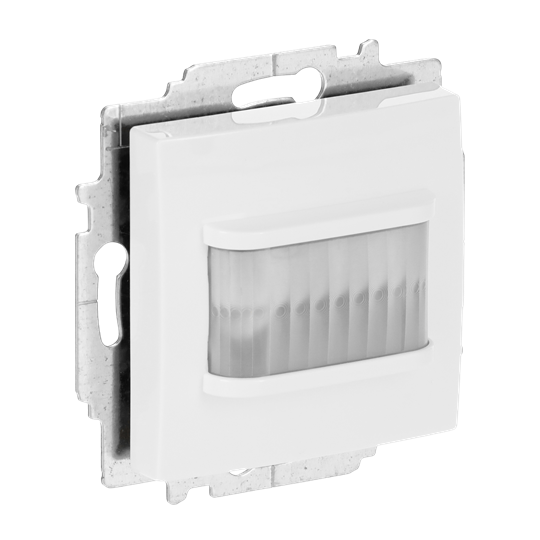

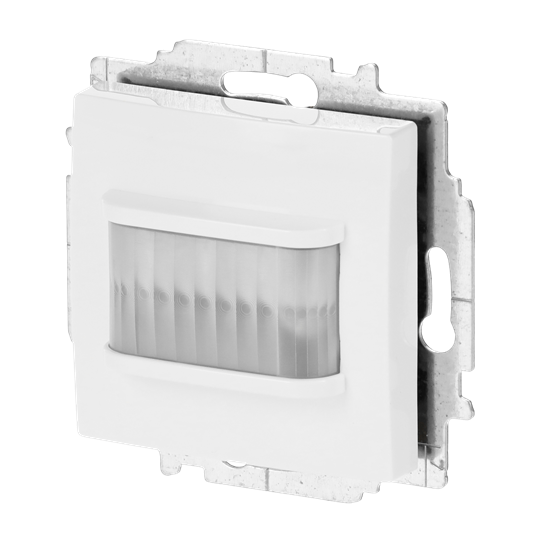

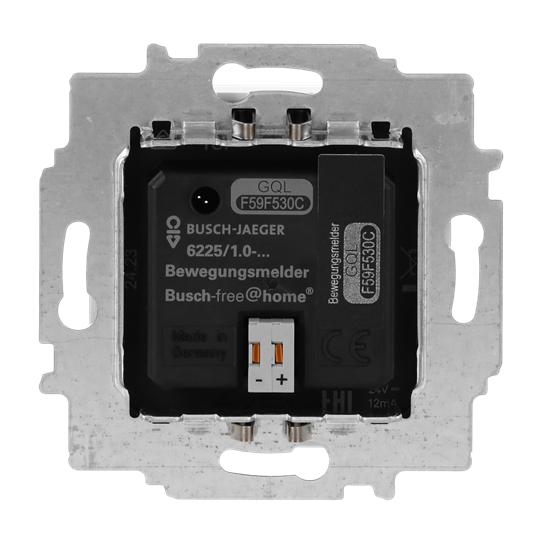

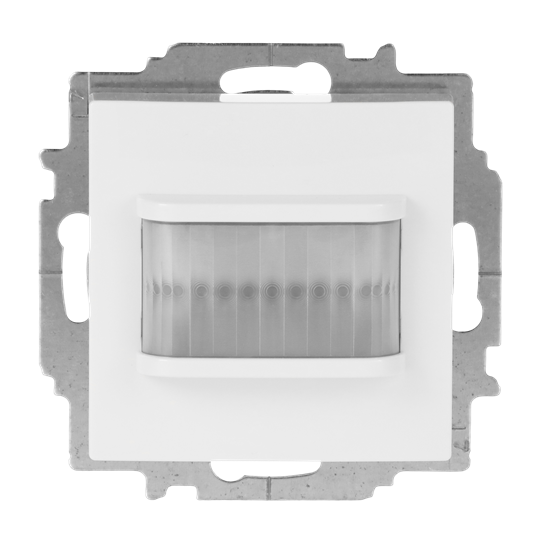

6225/1.0-914 Free@home Hreyfiskynjari 24V hvítt glans
Movement detector
With select lens for detection with animal access.
For automatic switching of free@home actuators d
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC001582
| Litur | white |
|---|---|
| Áferð | gloss |
| Bus system KNX | |
| Bus system KNX-RF (Radio Frequency) | |
| Bus system KNX Secure | |
| Bus system KNX Secure-RF (Radio Frequency) | |
| Bus system radio frequency | |
| Bus system LON | |
| Bus system Powernet | |
| Other bus systems | EV011934 |
| Radio frequency bidirectional | |
| Model | EV004048 |
| Mounting method | EV000154 |
| Material | EV000139 |
| Material quality | EV000403 |
| Surface protection | EV006034 |
| Surface finishing | EV006395 |
| Colour | EV000202 |
| RAL-number (similar) | 9010 |
| Transparent | |
| With bus connection | |
| Animal zone | |
| Staircase light controller | |
| Response value luminosity adjustable | |
| Optimum mounting height | 1.1 m |
| Max. reach frontally | 6 m |
| Detection angle vertical | 19 ° |
| Detection angle horizontal | 180 ° |
| Number of channels | 1 |
| Switching power | 2300 VA |
| Min. switch-on time | 30 s |
| Max. duty cycle | 30 min |
| Width | 71 mm |
| Height | 71 mm |
| Depth | 31.3 mm |
| Built-in depth | 8.5 mm |
| Min. depth of built-in installation box | 8.5 mm |
