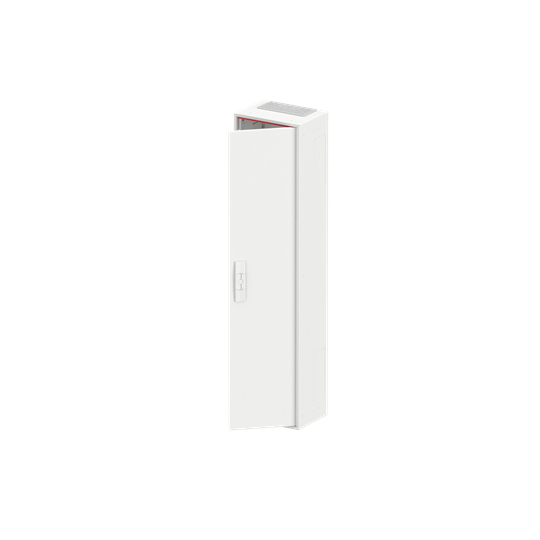

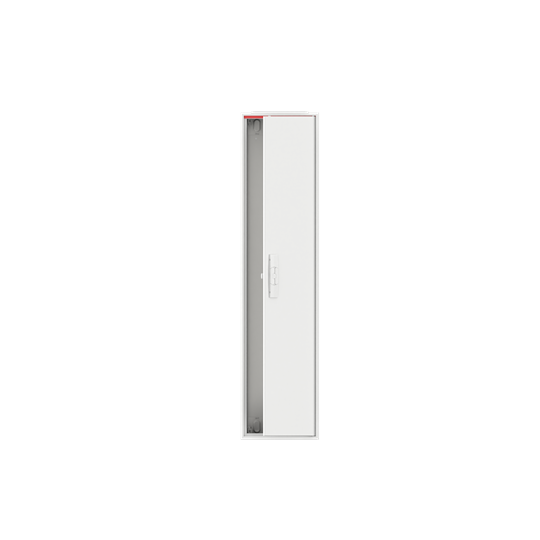

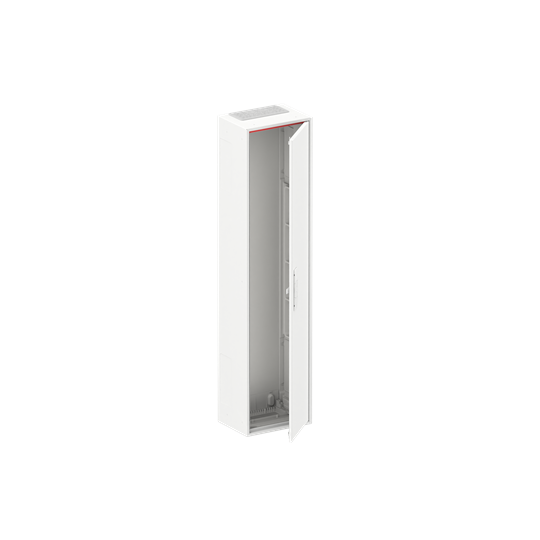

ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 96
Wall-mounting cabinet, empty cabinet, for the internal use, with Door, class of protection II (doubl
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000058
| Varnarflokkur | ip44 |
|---|---|
| Transparent cover/door | |
| With lock | |
| Nominal current (In) | 250 A |
| Height | 1250 mm |
| Width | 300 mm |
| Depth | 215 mm |
| Built-in depth | 190 mm |
| Inner depth | 207 mm |
| Material plate thickness cabinet | 0.9 mm |
| Material plate thickness door/cover | 0.9 mm |
| RAL-number | 9016 |
| Number of modules | 96 |
| Number of rows | 8 |
| Width in number of modular spacings | 12 |
| Number of openings for flange plates | 1 |
| Extension possible |
| Number of conduit inlets | 51 |
|---|
| With mounting plate |
|---|
| Suitable for outdoor use |
|---|
| Suitable for lightning protection |
|---|
| Cover with overpressure release |
|---|
