Striebel & John

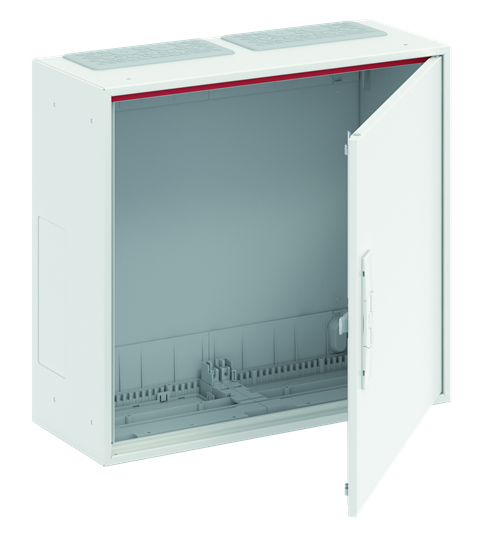

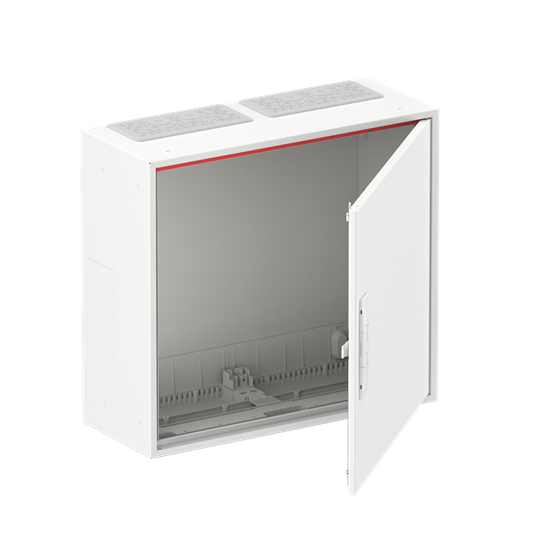

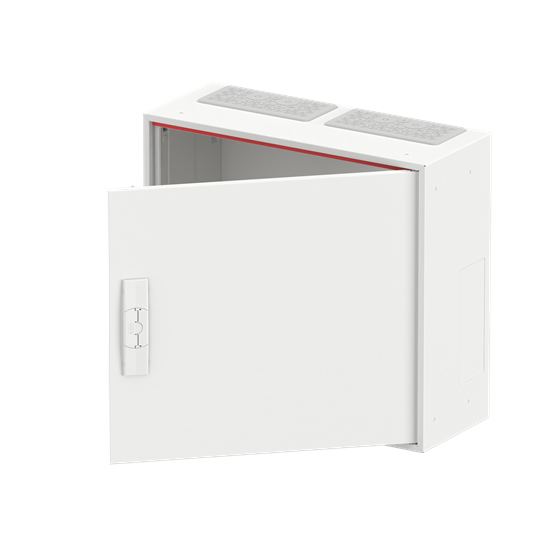

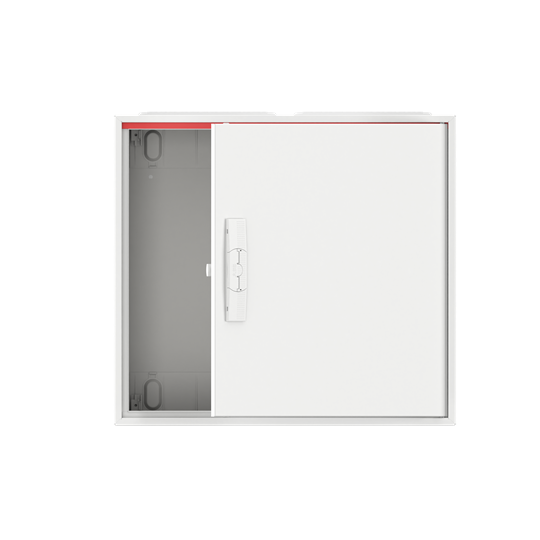

A23 Töflukassi 500x550x215mm IP44
Vörunr SUJ-A23EAN 4011617520115Framl. 2CPX052011R9999
ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 72
Wall-mounting cabinet, empty cabinet, for the internal use, with Door, class of protection II (doubl
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000058
| Varnarflokkur | ip44 |
|---|---|
| Transparent cover/door | |
| With lock | |
| Nominal current (In) | 250 A |
| Height | 500 mm |
| Width | 550 mm |
| Depth | 215 mm |
| Built-in depth | 190 mm |
| Inner depth | 207 mm |
| Material plate thickness cabinet | 0.9 mm |
| Material plate thickness door/cover | 0.9 mm |
| RAL-number | 9016 |
| Number of modules | 72 |
| Number of rows | 3 |
| Width in number of modular spacings | 24 |
| Number of openings for flange plates | 2 |
| Extension possible |
