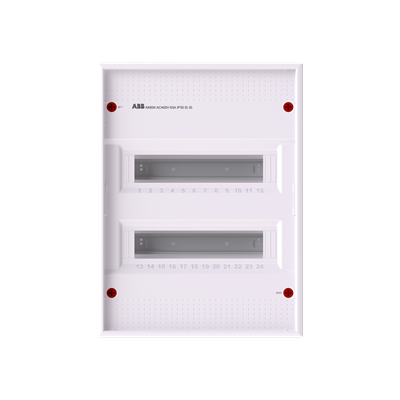

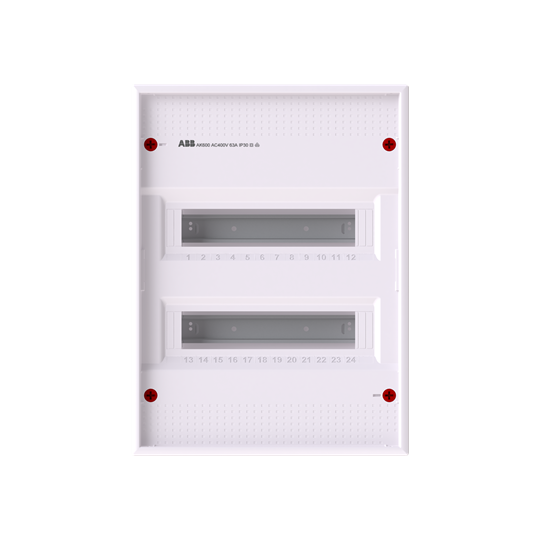

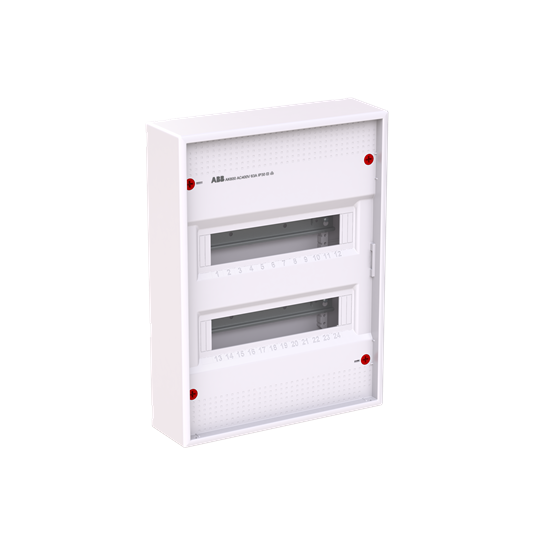

Consumer unit AK600, Surface mounting, 24 modules, 2 row(s), IP30, Door: Without Door, Dimensions:

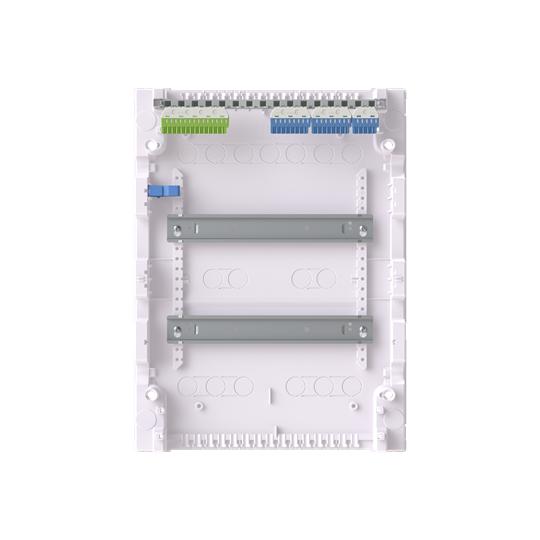

Consumer unit, partly assembled, for the internal use, without door, class of protection II (double
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000214
| Number of rows | 2 |
|---|---|
| Number of openings for socket outlets | 0 |
| Width in number of modular spacings | 12 |
| Transparent cover/door | |
| Signal passing door | |
| With lock | |
| Built-in depth | 55 mm |
| Built-in height | 406 mm |
| Built-in width | 255 mm |
| Inner depth | 55 mm |
| Earthing terminal block | |
| With N-disconnect slide | |
| Neutral terminal block |
| DIN-rail |
|---|
| With mounting plate |
|---|
| Extension possible |
|---|
| Sealable |
|---|
| EMC-version |
|---|
| RAL-number | 9016 |
|---|
| Height | 453 mm |
|---|
| Width | 339 mm |
|---|
| Depth | 99 mm |
|---|
