ABB Busch-Jaeger / KNX
ABB PS 1/60 safnskinna
Vörunr 473012EAN 4016779514668Framl. 2CDL210001R1060

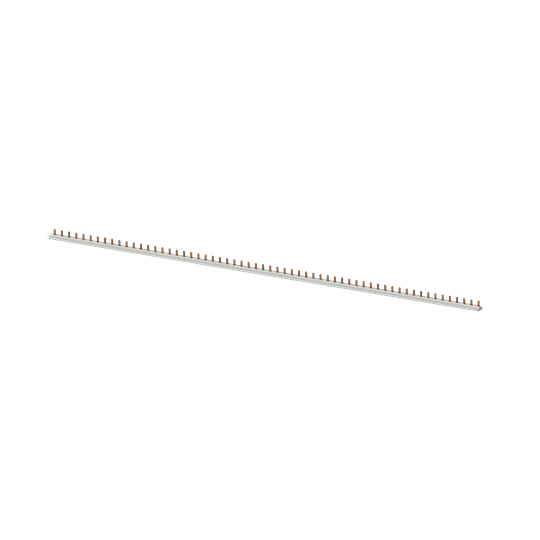

PS1/60 Busbar
PS1/60 Busbar
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000215
| Number of phases | 1 |
|---|---|
| Number of poles | 60 |
| Suitable for number of devices | 60 |
| Module width | 44698 mm |
| Cross section | 10 mm² |
| Length | 1050 mm |
| Width in number of modular spacings | 60 |
| Rated permanent current Iu | 63 A |
| Insulated | |
| Max. rated operation voltage Ue | 690 V |
| Rated short-time withstand current lcw | 25 kA |
| Suitable for devices with N-conductor | |
| Suitable for devices with auxiliary switch |
Skjöl
Skjöl og tenglar
Tengdar vörur
ABB Busch-Jaeger / KNX
474140
S201M-C Sjálfvar 1x40A C 10kA
ABB
47513
F202A Bilunarstraumsrofi 63/0,03 2póla 10kA
ABB
47512
F202A Bilunarstraumsrofi 40/0,03 2póla 10kA
1514
2V5KA Eining 216 greina x
Striebel & John
1521
1Z58 Eining mælir 48 greina+24 greina x
ABB Busch-Jaeger / KNX
473022
ABB PS 2/58 safnskinna
ABB Busch-Jaeger / KNX
473120
S201M-B Sjálfvar 1x20A B 10kA
ABB
479025

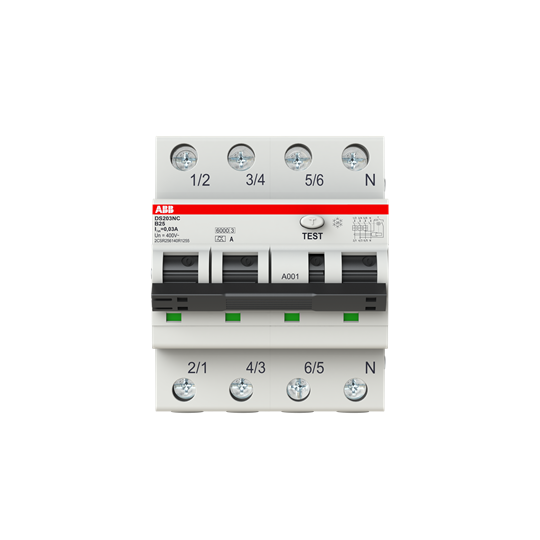

DS203NC Bilunarstraums sjálfvar 3x25A B 6kA
