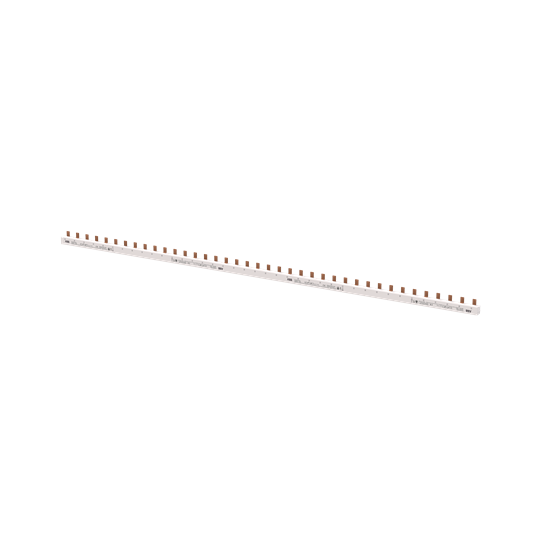

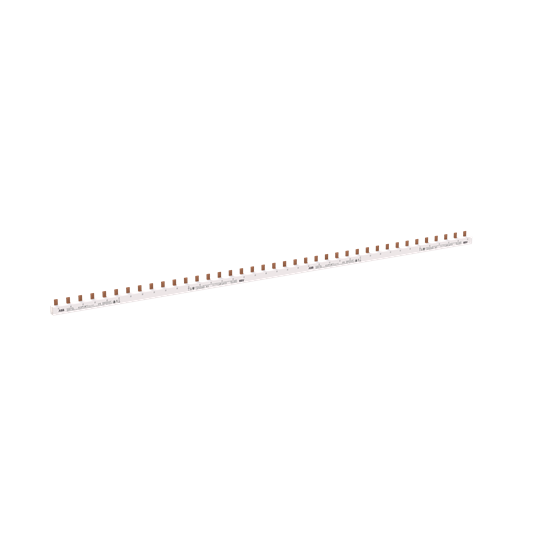

PS 3/39/16 ILTS-E Busbar
PS 3/39/16 ILTS-E Busbar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000215
| Number of phases | 3 |
|---|---|
| Number of poles | 39 |
| Suitable for number of devices | 13 |
| Module width | 17.5 mm |
| Cross section | 16 mm² |
| Length | 1050 mm |
| Width in number of modular spacings | 60 |
| Rated permanent current Iu | 80 A |
| Insulated | |
| Max. rated operation voltage Ue | 690 V |
| Rated short-time withstand current lcw | 25 kA |
| Suitable for devices with N-conductor | |
| Suitable for devices with auxiliary switch |
