XT3N 250 TMD 200-2000 3p F F

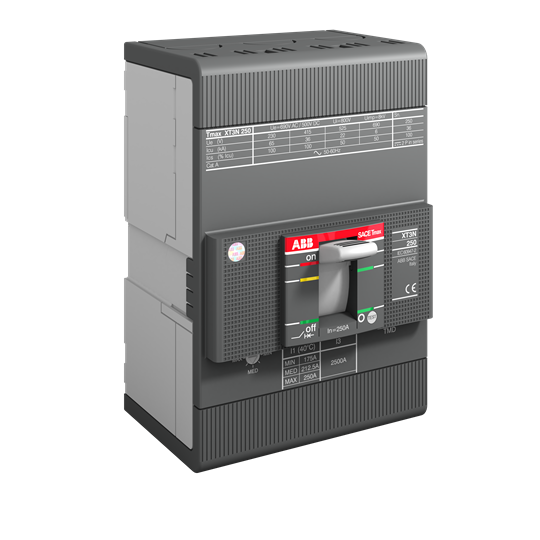

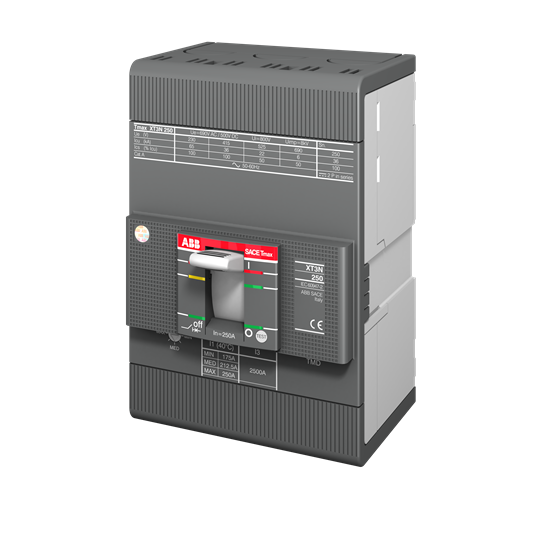

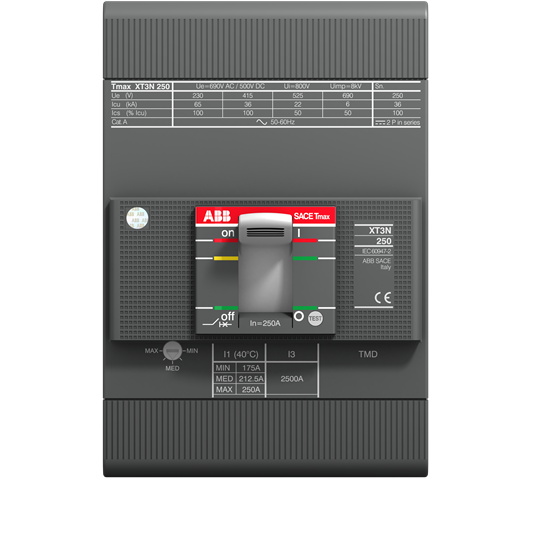

C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 200-2
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000228
| Rated permanent current Iu | 200 A |
|---|---|
| Rated voltage | 690 V |
| Overload release current setting | 140 A |
| Adjustment range undelayed short-circuit release | 2000 A |
| Power loss | 13.2 W |
| Integrated earth fault protection | |
| Suitable for DIN rail (top hat rail) mounting | |
| DIN rail (top hat rail) mounting optional | |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| With switched-off indicator | |
| With integrated under voltage release |
| Number of poles | 3 |
|---|
| Complete device with protection unit |
|---|
| Motor drive integrated |
|---|
| Motor drive optional |
|---|
