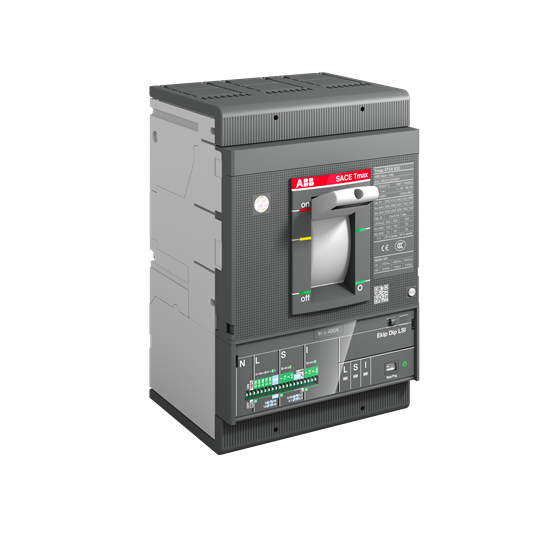

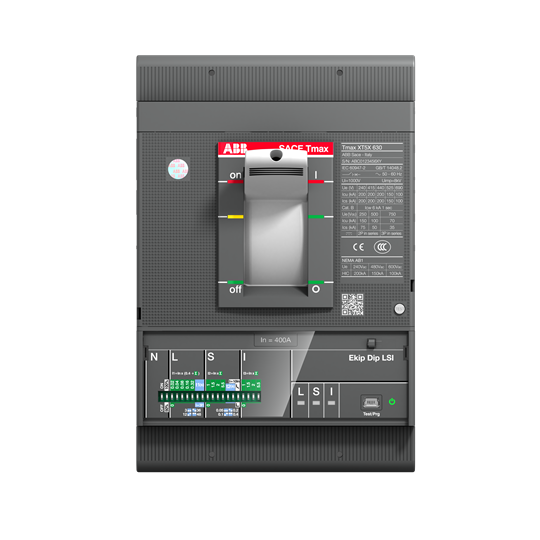

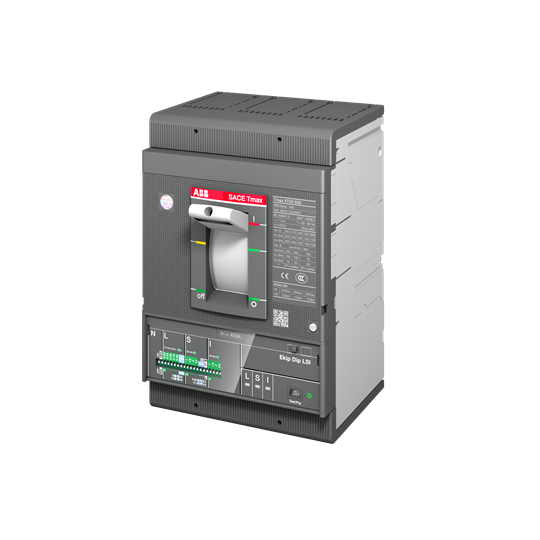

XT5S 630 Ekip Dip LS/I In=630 3p F F
C.BREAKER TMAX XT5S 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000228
| Rated permanent current Iu | 630 A |
|---|---|
| Rated voltage | 690 V |
| Overload release current setting | 252 – 630 A |
| Adjustment range short-term delayed short-circuit release | 630 – 6300 A |
| Adjustment range undelayed short-circuit release | 630 – 6300 A |
| Power loss | 45 W |
| Integrated earth fault protection | |
| Suitable for DIN rail (top hat rail) mounting | |
| DIN rail (top hat rail) mounting optional | |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| With switched-off indicator |
| With integrated under voltage release |
|---|
| Number of poles | 3 |
|---|
| Complete device with protection unit |
|---|
| Motor drive integrated |
|---|
| Motor drive optional |
|---|
