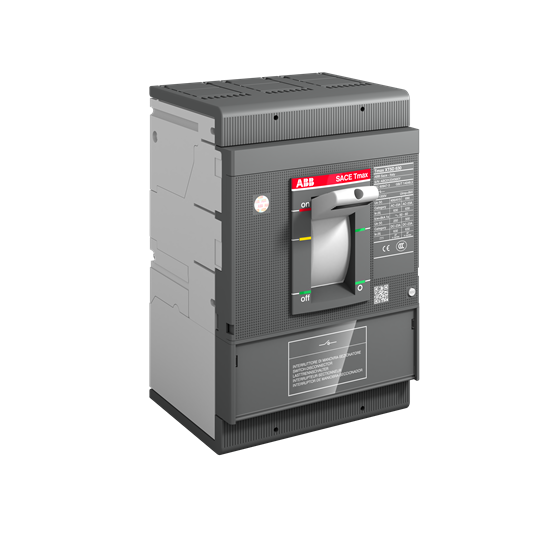

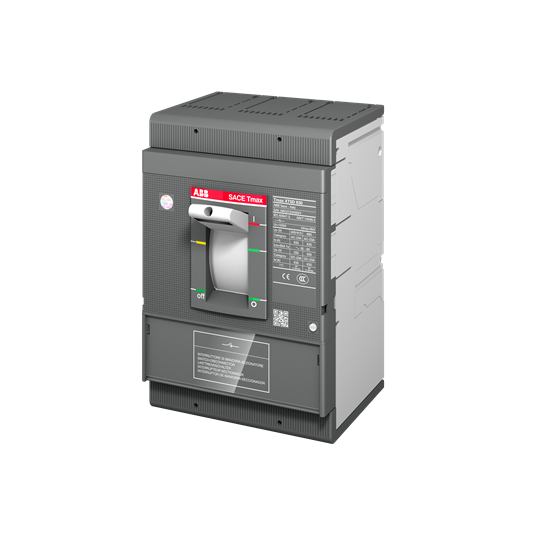

ABB XT5D 400 3p F F SWITCH-DISCONNECTOR TMAX XT5D 400 FIXED THREE-POLE WITH FRONT TERMINALS
XT5D 400 3p F F
SWITCH-DISCONNECTOR TMAX XT5D 400 FIXED THREE-POLE WITH FRONT TERMINALS
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000216
| Version as main switch | |
|---|---|
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Rated permanent current Iu | 400 A |
| Rated short-time withstand current lcw | 5 kA |
| Number of poles | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Device construction | EV009211 |
| Suitable for floor mounting | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Suitable for distribution board installation | |
| Suitable for intermediate mounting | |
| Colour control element | EV000202 |
| Interlockable | |
| Type of electrical connection of main circuit | EV008864 |
| Degree of protection (IP), front side | EV006405 |
| Degree of protection (NEMA) | EV000070 |
| Width | 140 mm |
| Height | 205 mm |
| Depth | 103.5 mm |
