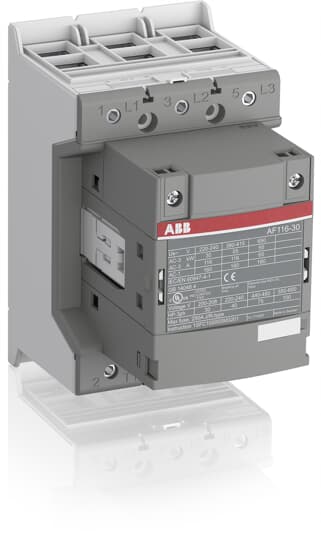

AF116-30-00-13 Contactor

Name: AF116-30-00-13 Contactor
Brand: ABB
SKU: ABBDK-AF116-30-00-13

Vörunr ABBDK-AF116-30-00-13EAN 7320500476406Framl. 1SFL427001R1300

The AF116-30-00-13 is a 3 pole - 690 V IEC or 600 V UL contactor with double clamp, controlling moto

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

ETIM flokkur · EC000066

Rated control supply voltage AC 50 Hz	100 – 250 V
Rated control supply voltage AC 60 Hz	100 – 250 V
Rated control supply voltage DC	100 – 250 V
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	690 V
Operating voltage AC 60 Hz	690 V
Rated operation current Ie at AC-1, 400 V	160 A
Rated operation current Ie at AC-3, 400 V	116 A
Rated operation power at AC-3, 400 V	55 kW
Rated operation power NEMA	14.914 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Suitable for distribution board
Width	90 mm
Height	150 mm
Depth	126 mm
