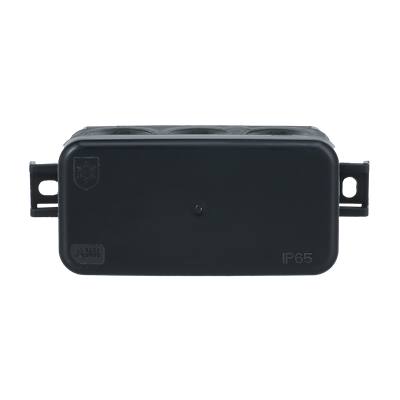

AP45M Tengidós lítil 105x43x40mm svart IP65
AP45M Junction box IP65 Black IP65
Surface mounted junction box AP45 (2,5 mm², 500 V) is equipped with 8 self-sealing membrane cable entries for cables up to Ø 17 mm and 4 for cables up to Ø 10 m
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC002600
| Litur | black |
|---|---|
| Varnarflokkur | ip65 |
| Model | EV010584 |
| Equipped with | EV000494 |
| Shape | EV000382 |
| Mounting method | EV000028 |
| Mounting in the soil | |
| Mounting under water | |
| Number of inlets | 12 |
| Inlet from the rear | |
| Length | 105 mm |
| Width | 43 mm |
| Depth | 40 mm |
| Diameter | 105 mm |
| Connectable | |
| Material | EV000139 |
| Halogen free | |
| Surface protection | EV006034 |
| Colour | EV000206 |
| Degree of protection (IP) | EV006421 |
| Cover model | EV009654 |
| Transparent cover | |
| Castable | |
| Cover attachment | EV007115 |
| Casting compound included | |
| Sealable | |
| Rated insulation voltage Ui | 500 V |
| With screening | |
| Weatherproof | |
| Operating temperature | -25 – 60 °C |
| Explosion-tested version |
