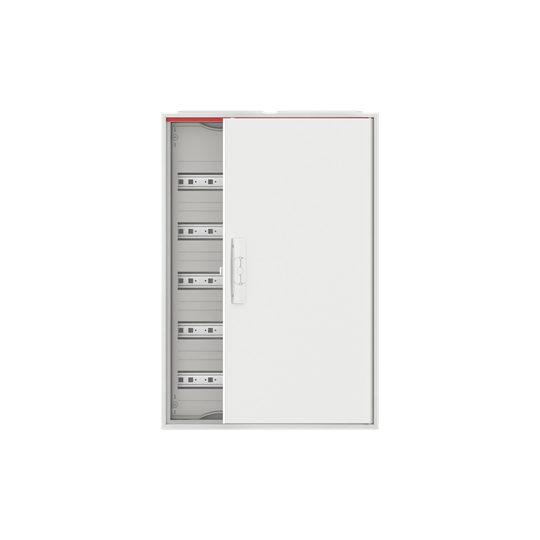

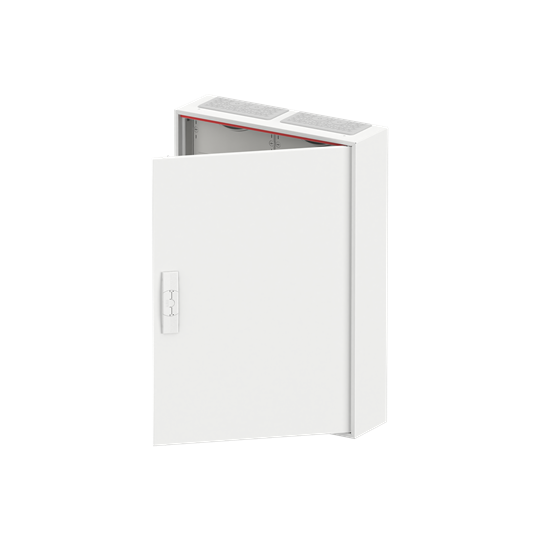

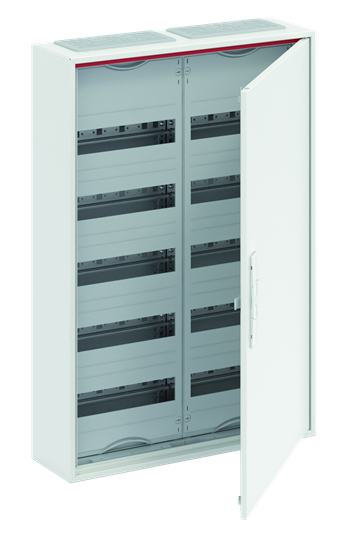

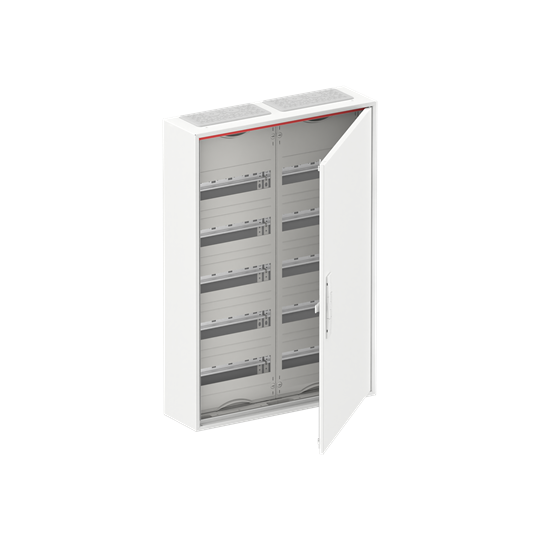

ComfortLine Compact distribution board, Surface mounting, 120 SU, Isolated (Class II), IP44, Field W
Compact distribution board, partly assembled cabinet, for the internal use, with Door, class of prot
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000214
| Varnarflokkur | ip44 |
|---|---|
| Number of rows | 5 |
| Number of openings for socket outlets | 0 |
| Width in number of modular spacings | 24 |
| Transparent cover/door | |
| Signal passing door | |
| With lock | |
| Built-in depth | 0 mm |
| Built-in height | 0 mm |
| Built-in width | 0 mm |
| Inner depth | 152 mm |
| Earthing terminal block | |
| With N-disconnect slide | |
| Neutral terminal block |
| DIN-rail |
|---|
| With mounting plate |
|---|
| Extension possible |
|---|
| Sealable |
|---|
| EMC-version |
|---|
| RAL-number | 9016 |
|---|
| Height | 800 mm |
|---|
| Width | 550 mm |
|---|
| Depth | 160 mm |
|---|
