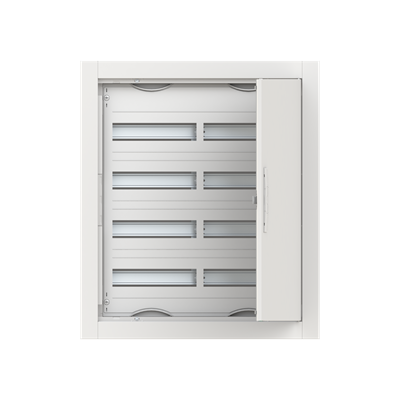

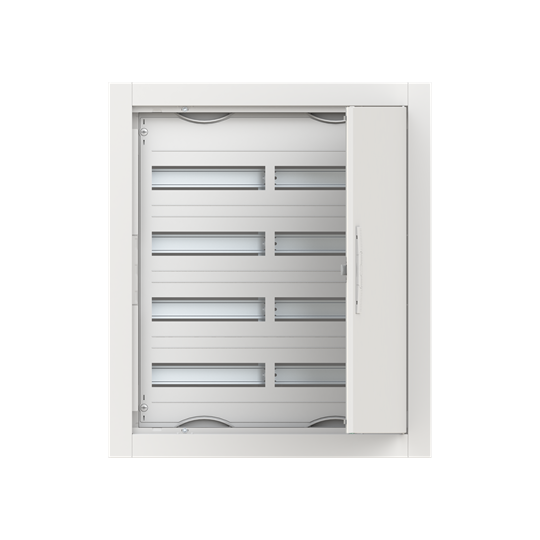

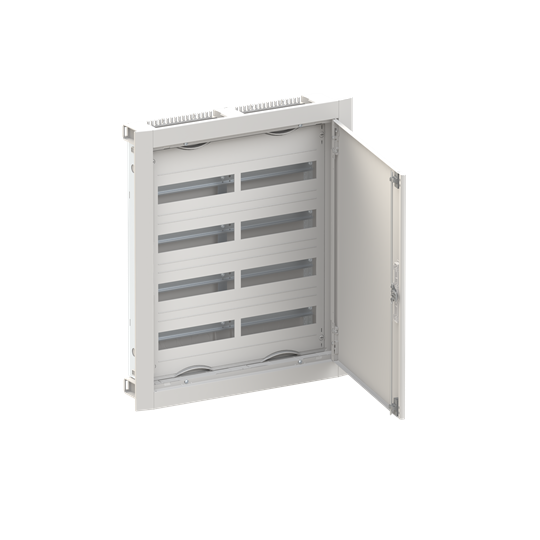

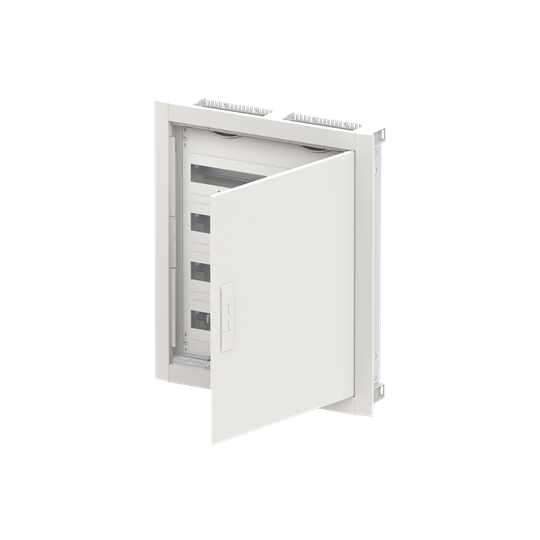

ComfortLine Compact distribution board, Flush mounting, 96 SU, Isolated (Class II), IP30, Field Widt
Compact distribution board, partly assembled cabinet, for the internal use, with closed doorframe an
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000214
| Number of rows | 4 |
|---|---|
| Number of openings for socket outlets | 0 |
| Width in number of modular spacings | 24 |
| Transparent cover/door | |
| Signal passing door | |
| With lock | |
| Built-in depth | 110 mm |
| Built-in height | 692 mm |
| Built-in width | 557 mm |
| Inner depth | 76 mm |
| Earthing terminal block | |
| With N-disconnect slide | |
| Neutral terminal block |
| DIN-rail |
|---|
| With mounting plate |
|---|
| Extension possible |
|---|
| Sealable |
|---|
| EMC-version |
|---|
| RAL-number | 9016 |
|---|
| Height | 714 mm |
|---|
| Width | 615 mm |
|---|
| Depth | 125 mm |
|---|
Tæknilýsingar og tenglar á síður framleiðanda. Allt á einum stað.
