DS-ARC1M-C Bilunarstraums sjálfvar m. neistavörn 1x13A+N 10kA

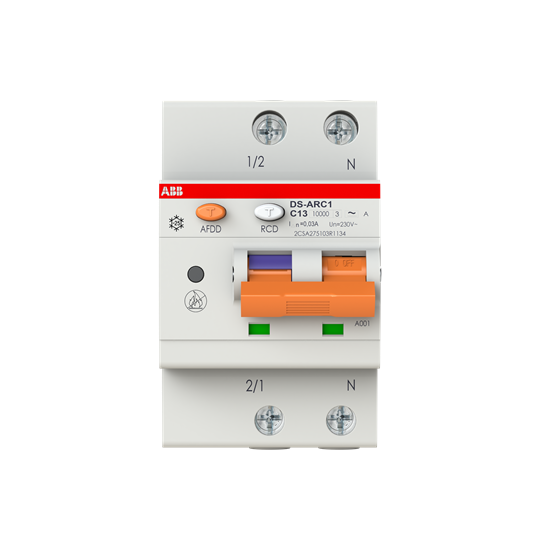

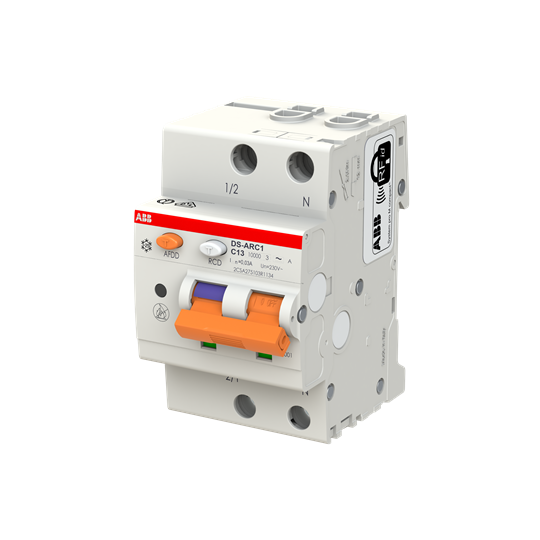

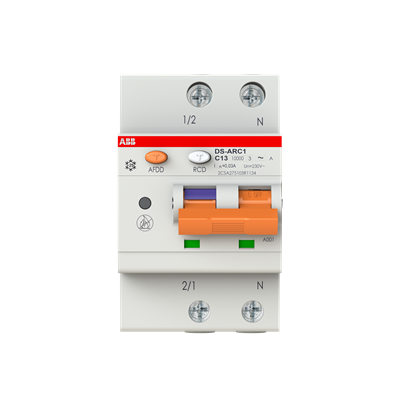

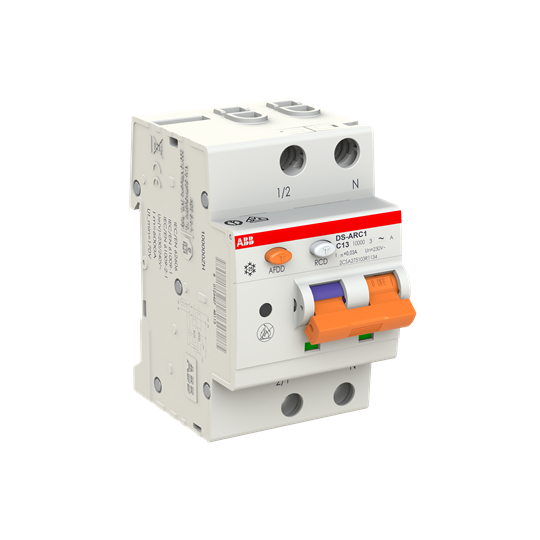

DS-ARC1 M C13 A30 Arc fault detection device integrated with RCBO
DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC002695
| Number of poles (total) | 2 |
|---|---|
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated current | 13 A |
| Rated fault current | 0.03 A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity according to EN 61009 | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 10 kA |
| Release characteristic | EV000084 |
| Concurrently switching neutral conductor | |
| Overvoltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | -40 – 70 °C |
| Width in number of modular spacings | 3 |
| Built-in depth | 69 mm |
| Connectable conductor cross section multi-wired | 1 – 25 mm² |
