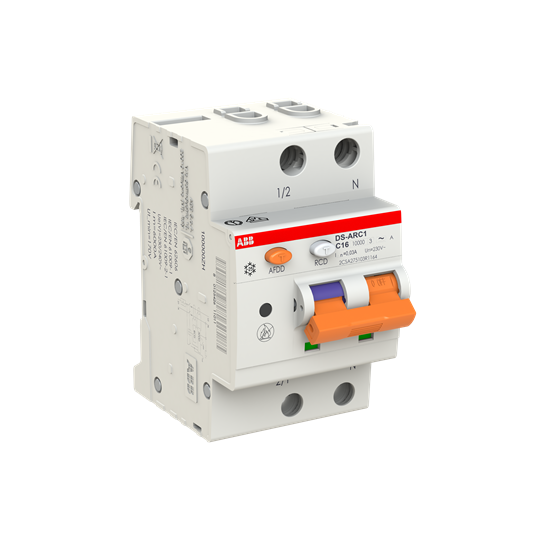

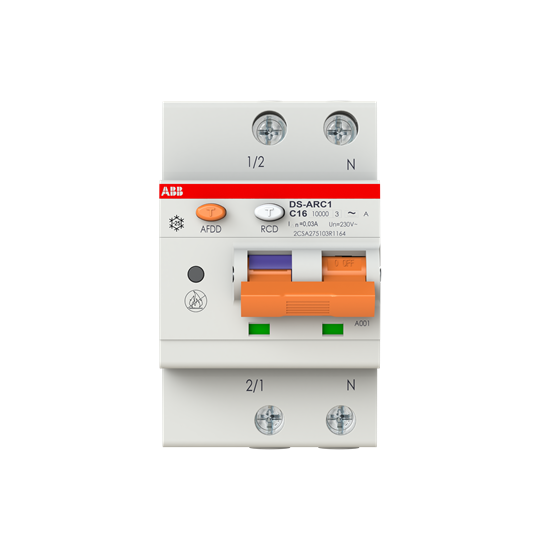

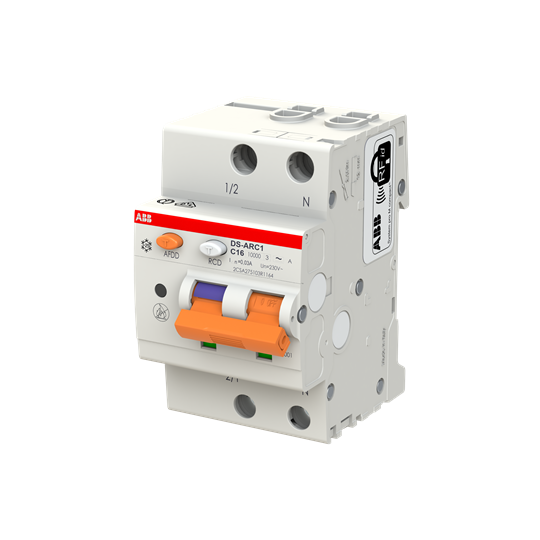

DS-ARC1 M C16 A30 Arc fault detection device integrated with RCBO
DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC002695
| Number of poles (total) | 2 |
|---|---|
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated current | 16 A |
| Rated fault current | 0.03 A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity according to EN 61009 | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 10 kA |
| Concurrently switching neutral conductor | |
| Overvoltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | -40 – 70 °C |
| Width in number of modular spacings | 3 |
| Built-in depth | 69 mm |
| Connectable conductor cross section multi-wired | 1 – 25 mm² |
