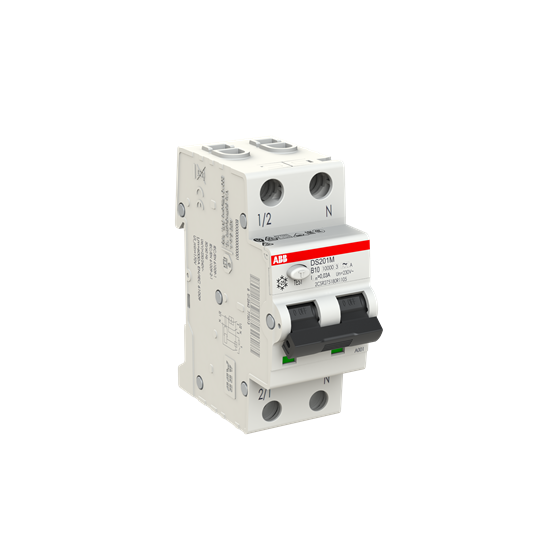

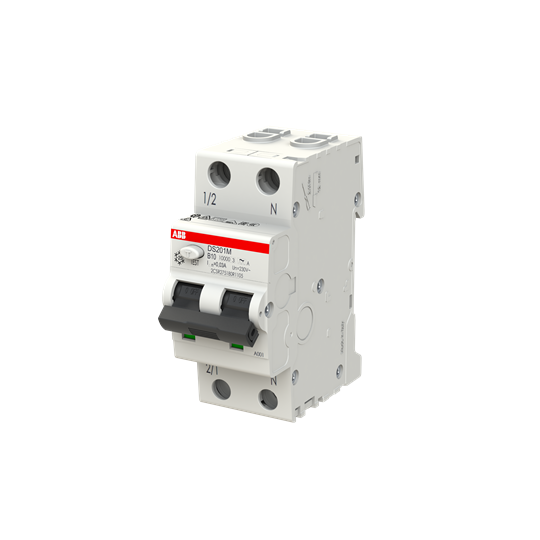

DS201M Bilunarstraums sjálfvar 10A B 10kA

Name: DS201M Bilunarstraums sjálfvar 10A B 10kA
Brand: ABB
SKU: 478410

Vörunr 478410EAN 8012542773313Framl. DS201MB10A30

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 10 A - B - Typ

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase cir

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

ETIM flokkur · EC000905

Overvoltage category
Number of poles (total)	2
Number of protected poles	1
Rated voltage	240 V
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	4 kV
Rated current	10 A
Rated fault current	0.03 A
Current limiting class	3
Power loss	2.3 W
Rated short-circuit breaking capacity according to EN 61009	10 kA
Rated short-circuit breaking capacity according to IEC 60947-2	15 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	10 kA
Concurrently switching neutral conductor
With interlocking device
