DS203NC Bilunarstraums sjálfvar 3x32A B 6kA

Name: DS203NC Bilunarstraums sjálfvar 3x32A B 6kA
Brand: ABB
SKU: 479032

Vörunr 479032EAN 8012542077626Framl. DS3NB32A30

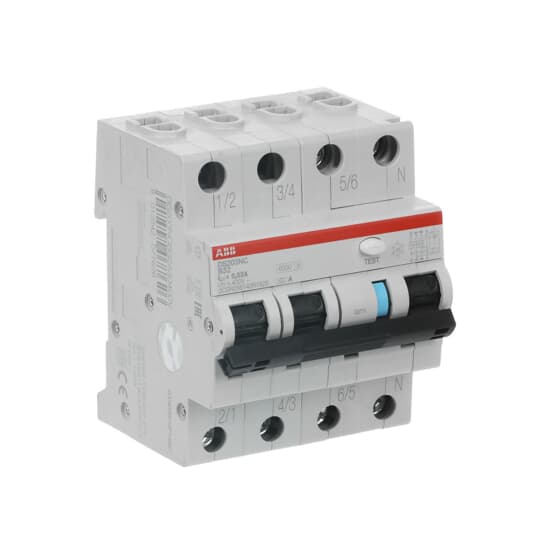

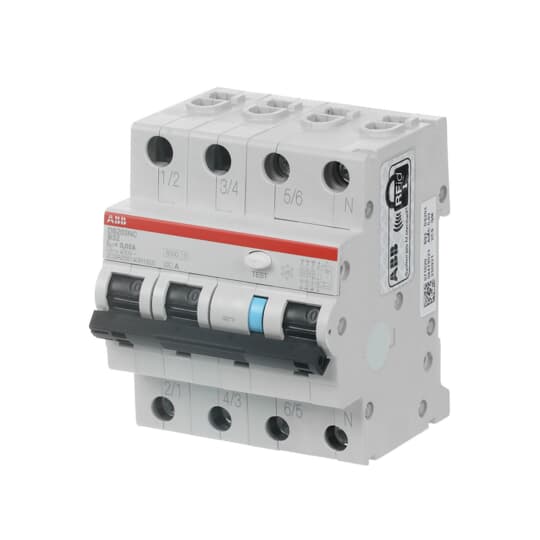

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - B - Typ

DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four module

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

ETIM flokkur · EC000905

Overvoltage category
Number of poles (total)	4
Number of protected poles	3
Rated voltage	415 V
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	4 kV
Rated current	32 A
Rated fault current	0.03 A
Current limiting class	3
Power loss	15.1 W
Rated short-circuit breaking capacity according to EN 61009	6 kA
Rated short-circuit breaking capacity according to IEC 60947-2	10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	6 kA
Concurrently switching neutral conductor
With interlocking device
