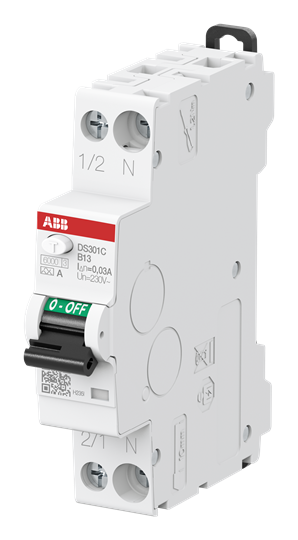

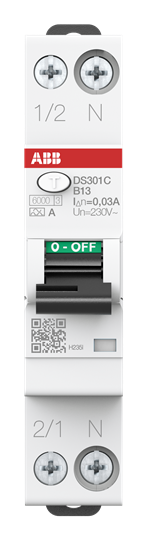

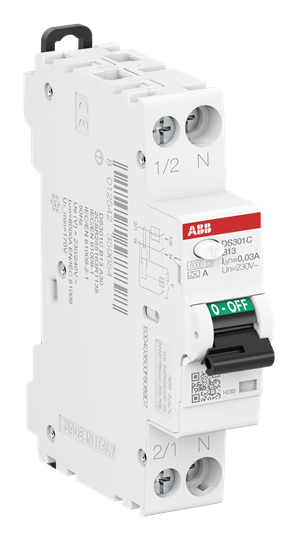

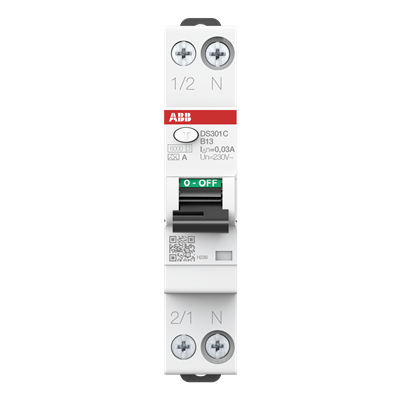

Residual Current Circuit Breaker with Overcurrent Protection DS301C - 1P+N - 30 mA - 13 A - B - Type
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase cir
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000905
| Number of poles (total) | 2 |
|---|---|
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 13 A |
| Rated fault current | 0.03 A |
| Current limiting class | 3 |
| Power loss | 2.47 W |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Concurrently switching neutral conductor | |
| With interlocking device | |
| Overvoltage category |
| 3 |
| Pollution degree | 2 |
|---|
| Ambient temperature during operating | -25 – 55 °C |
|---|
| Width in number of modular spacings | 1 |
|---|
| Built-in depth | 17.6 mm |
|---|
| Anti-nuisance tripping version |
|---|
