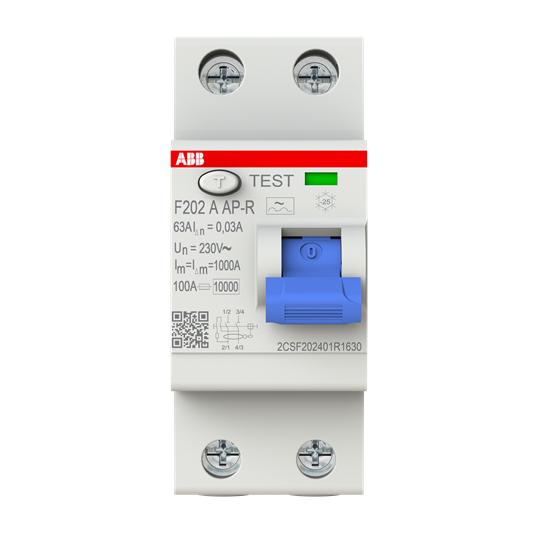

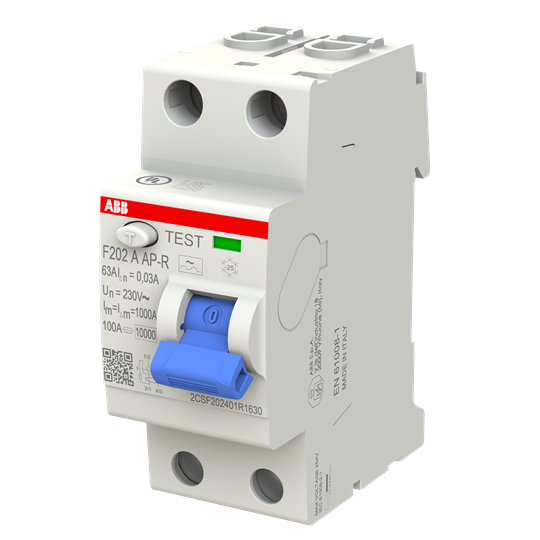

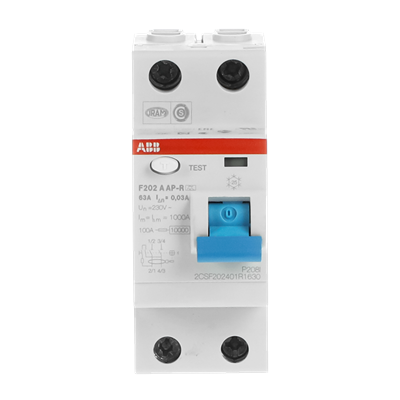

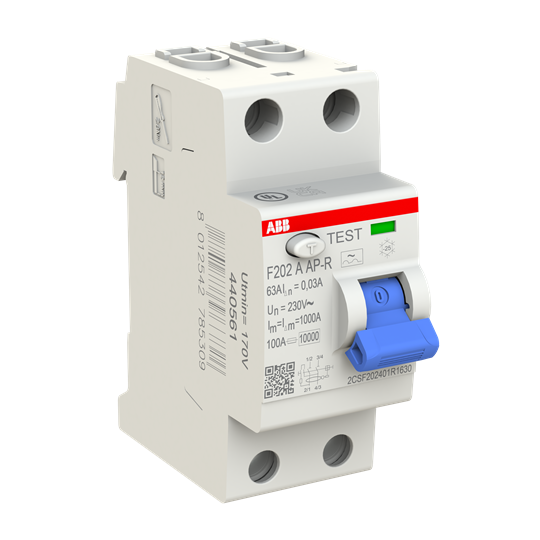

Residual Current Circuit Breaker F200 - 2P - 30 mA - 63 A - Type A APR
The RCCBs F200 series assures protection to people and installations against fault current to earth.
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000003
| Number of poles | 2 |
|---|---|
| Rated current | 63 A |
| Rated impulse withstand voltage Uimp | 4 kV |
| Power loss | 6.4 W |
| Selective protection | |
| Short-time delayed tripping | |
| Surge current capacity | 3 kA |
| With interlocking device | |
| Additional equipment possible | |
| Width in number of modular spacings | 2 |
| Built-in depth | 69 mm |
| Ambient temperature during operating | -25 – 55 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired |
| 0 – 25 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
|---|
| RAL-number (similar) | 7035 |
|---|
| Device width | 35 mm |
|---|
| Explosion-proof |
|---|
| Device height | 85 mm |
|---|
| Device depth | 69 mm |
|---|
