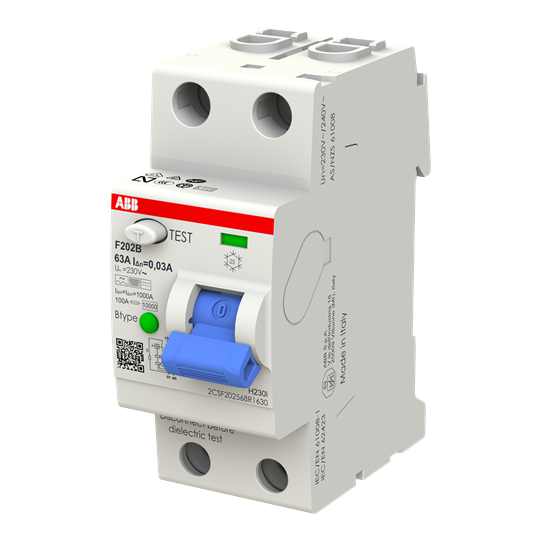

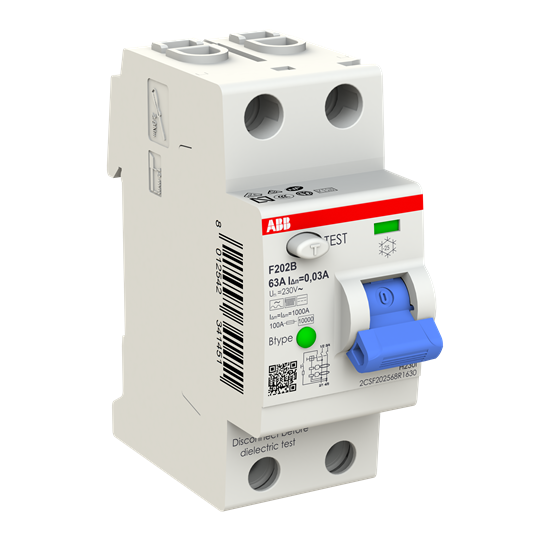

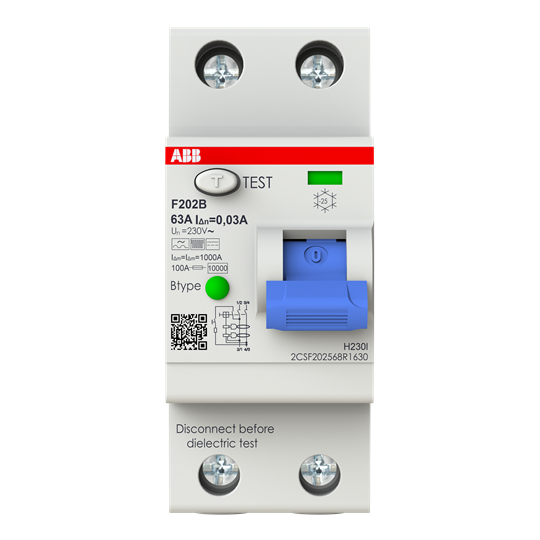

Residual Current Circuit Breaker F200 - 2P - 30 mA - 63 A - Type B
The RCCBs F200 series assures protection to people and installations against fault current to earth.
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000003
| Number of poles | 2 |
|---|---|
| Rated current | 63 A |
| Rated impulse withstand voltage Uimp | 4 kV |
| Selective protection | |
| Short-time delayed tripping | |
| Surge current capacity | 3 kA |
| With interlocking device | |
| Additional equipment possible | |
| Width in number of modular spacings | 2 |
| Built-in depth | 69 mm |
| Ambient temperature during operating | -25 – 50 °C |
| Pollution degree | 3 |
| Connectable conductor cross section solid-core | 1 – 25 mm² |
| RAL-number (similar) | 7035 |
|---|
| Device width | 35 mm |
|---|
| Explosion-proof |
|---|
| Device height | 85 mm |
|---|
| Device depth | 69 mm |
|---|
