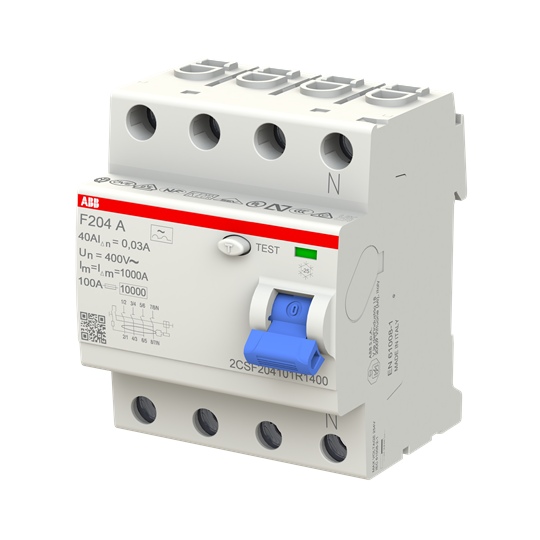

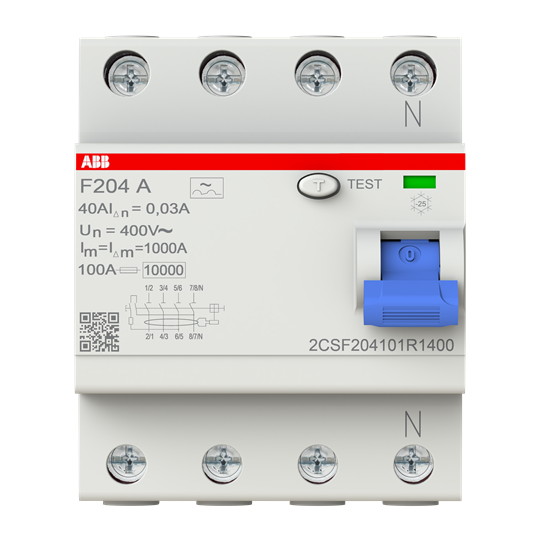

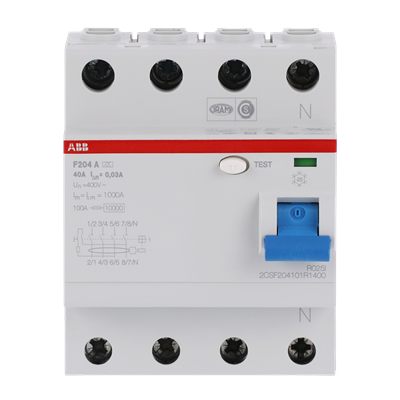

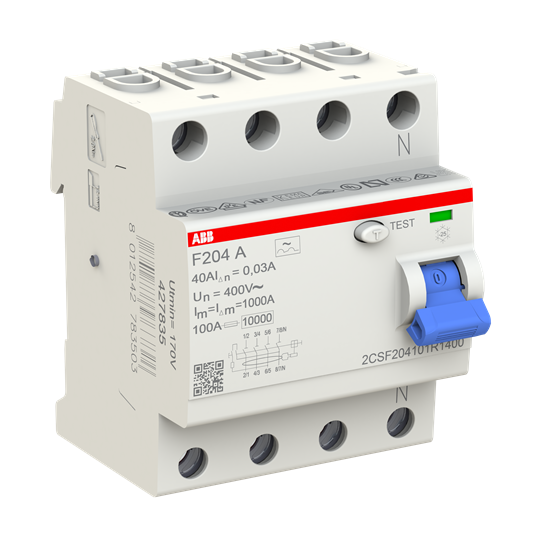

F204A Bilunarstraumsrofi 40/0,03 4póla 10kA

Name: F204A Bilunarstraumsrofi 40/0,03 4póla 10kA
Brand: ABB
SKU: 47523

Vörunr 47523EAN 8012542783503Framl. F427835

Residual Current Circuit Breaker F200 - 4P - 30 mA - 40 A - Type A

The RCCBs F200 series assures protection to people and installations against fault current to earth.

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

ETIM flokkur · EC000003

Number of poles	4
Rated current	40 A
Rated impulse withstand voltage Uimp	4 kV
Power loss	9.6 W
Selective protection
Short-time delayed tripping
With interlocking device
Additional equipment possible
Width in number of modular spacings	4
Built-in depth	69 mm
Ambient temperature during operating	-25 – 55 °C
Pollution degree	2
Connectable conductor cross section multi-wired	0 – 25 mm²
