ABB

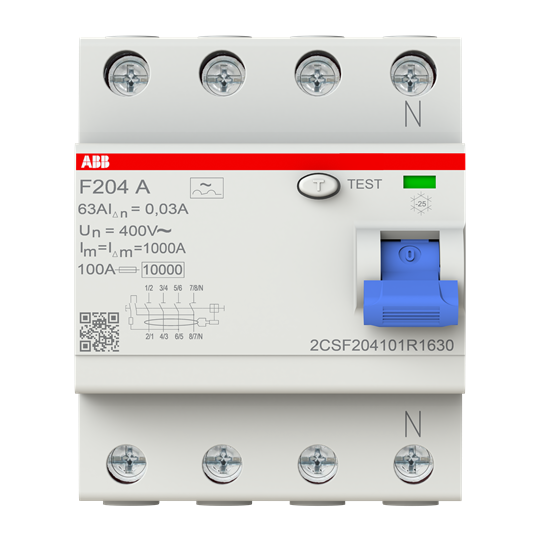

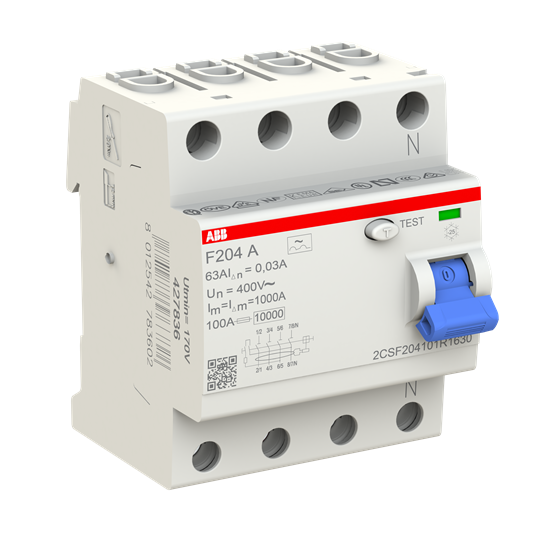

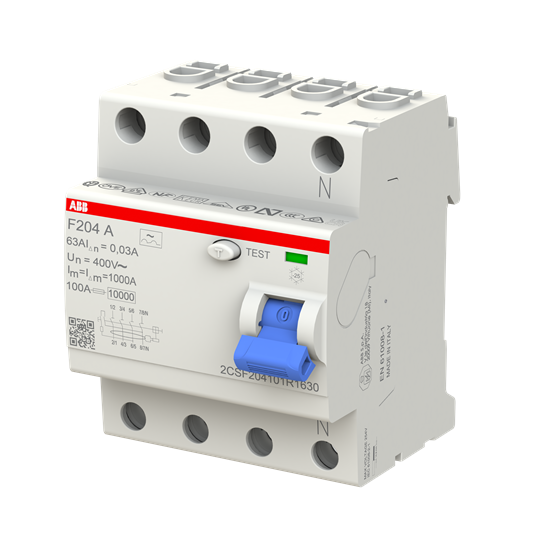

F204A Bilunarstraumsrofi 63/0,03 4póla 10kA
Vörunr 47524EAN 8012542783602Framl. F427836
Residual Current Circuit Breaker F200 - 4P - 30 mA - 63 A - Type A
The RCCBs F200 series assures protection to people and installations against fault current to earth.
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000003
| Number of poles | 4 |
|---|---|
| Rated current | 63 A |
| Rated impulse withstand voltage Uimp | 4 kV |
| Power loss | 13.2 W |
| Selective protection | |
| Short-time delayed tripping | |
| With interlocking device | |
| Additional equipment possible | |
| Width in number of modular spacings | 4 |
| Built-in depth | 69 mm |
| Ambient temperature during operating | -25 – 55 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 0 – 25 mm² |
