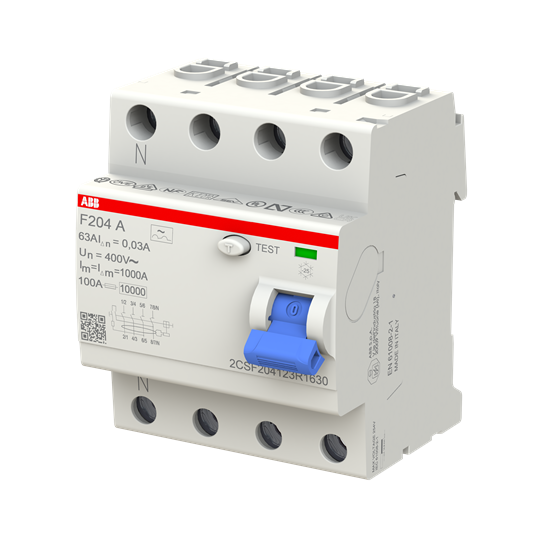

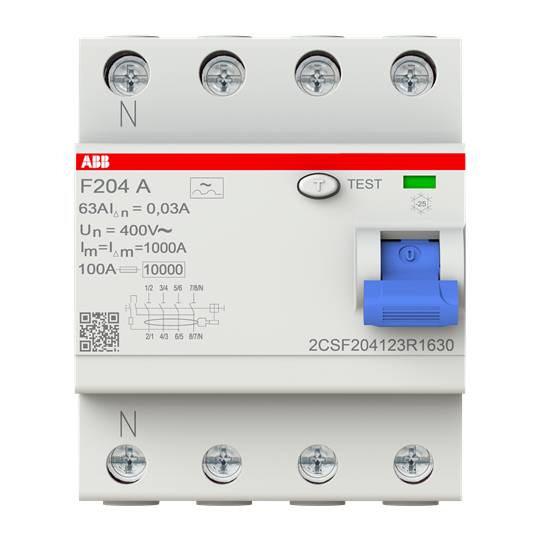

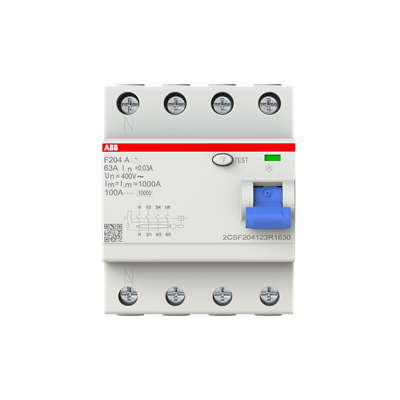

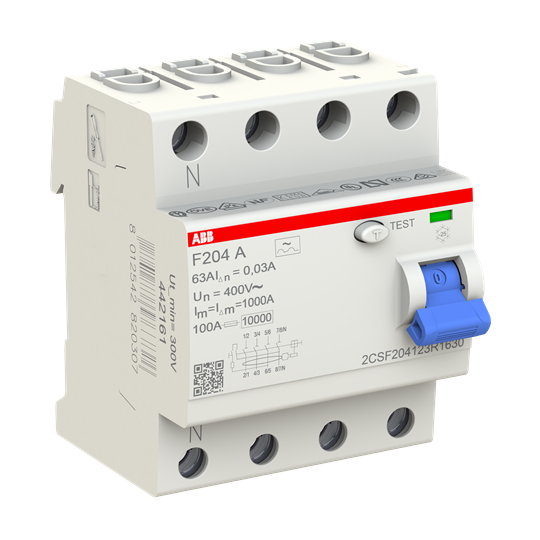

F204A-L Bilunarstraumsrofi 63/0,03 4póla 10kA (N=v/m)
Residual Current Circuit Breaker F200 - 4P - 30 mA - 63 A - Type A
The RCCBs F200 series assures protection to people and installations against fault current to earth.
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000003
| Number of poles | 4 |
|---|---|
| Rated current | 63 A |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | EV000242 |
| Leakage current type | EV000896 |
| Selective protection | |
| Short-time delayed tripping | |
| With interlocking device | |
| Frequency | EV008015 |
| Additional equipment possible | |
| Degree of protection (IP) | EV006405 |
| Width in number of modular spacings | 4 |
| Built-in depth | 69 mm |
| Ambient temperature during operating | -25 – 55 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 0 – 25 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| RAL-number (similar) | 7035 |
| Device width | 70 mm |
| Explosion-proof | |
| Device height | 85 mm |
| Device depth | 69 mm |
