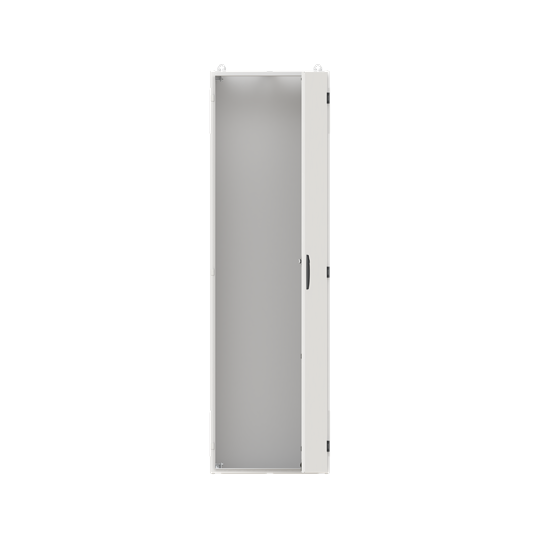

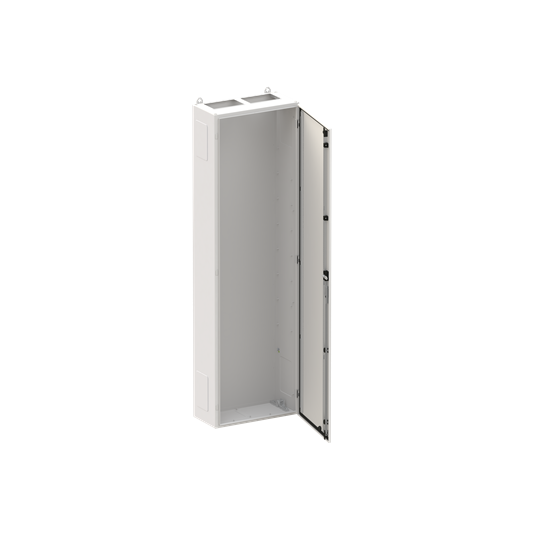

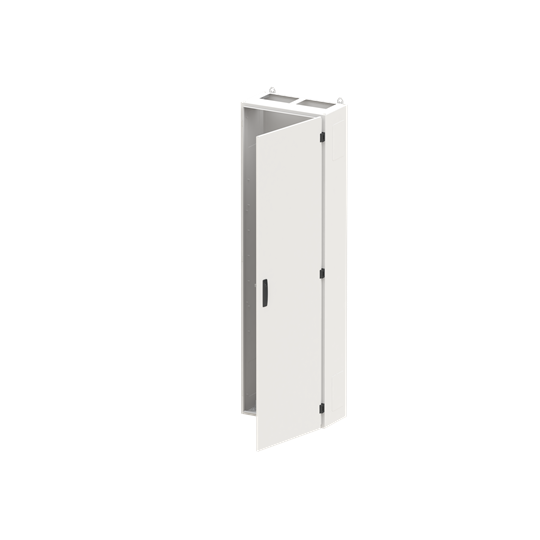

Floor-standing cabinet, Field width: 2, Rows: 12, 1850 mm x 550 mm x 275 mm, Grounded (Class I), IP5
Floor-standing cabinet, series TwinLine, empty cabinet, Expansion option: Lateral and bottom, for th
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000058
| Transparent cover/door | |
|---|---|
| With lock | |
| Height | 1850 mm |
| Width | 550 mm |
| Depth | 275 mm |
| Built-in depth | 222.5 mm |
| Inner depth | 272 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1.5 mm |
| RAL-number | 7035 |
| Number of modules | 288 |
| Number of rows | 12 |
| Width in number of modular spacings | 24 |
| Number of openings for flange plates | 2 |
| Extension possible | |
| Number of conduit inlets |
| 104 |
| With mounting plate |
|---|
| Suitable for outdoor use |
|---|
| Suitable for lightning protection |
|---|
| Cover with overpressure release |
|---|
