IO/S8.6.1.1 Actuator, 8-fold, MDRC

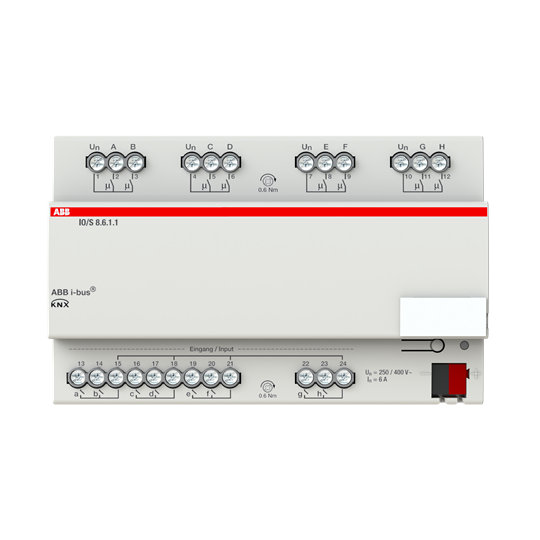

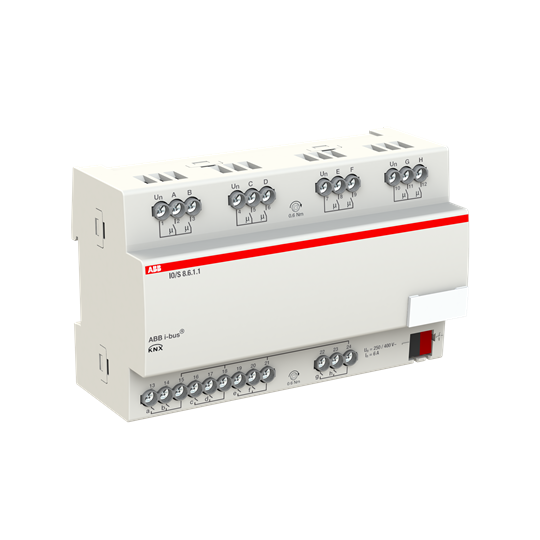

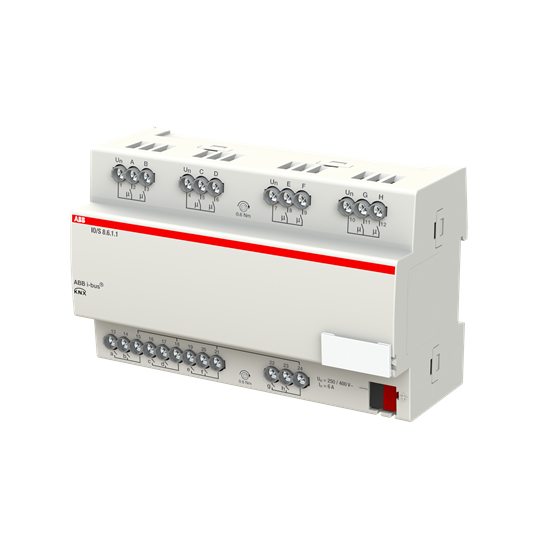

IO/S8.6.1.1 I/O Actuator, 8-fold, MDRC
For the control of loads in residential areas, typically in hotel rooms and apartments. The I/O Actu
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC001584
| Bus system KNX | |
|---|---|
| Bus system KNX-RF (Radio Frequency) | |
| Bus system KNX Secure | |
| Bus system KNX Secure-RF (Radio Frequency) | |
| Bus system radio frequency | |
| Bus system LON | |
| Bus system Powernet | |
| Other bus systems | EV000154 |
| Remote operation possible | |
| Ethernet | |
| Mounting method | EV006471 |
| Width in number of modular spacings | 8 |
| With bus connection | |
| LED controlling | |
| With LED indication | |
| Local operation/hand operation | |
| Max. switching current | 6 A |
| Max. switching power | 1200 W |
| Input voltage | 35 V |
| Suitable for C-load | |
| Number of output channels | 8 |
| Max. number of switching contacts | 8 |
| With switch function | |
| Rated current | 6 A |
| External signal voltage necessary | |
| Different phases connectable | |
| Type of current | EV000460 |
| Degree of protection (IP) | EV006405 |
