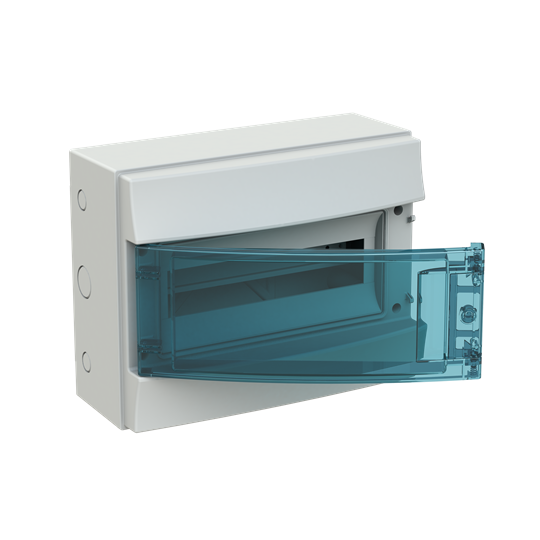

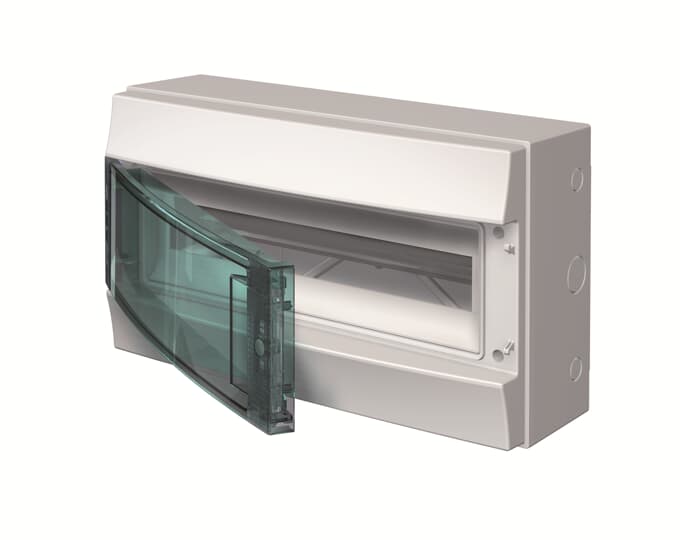

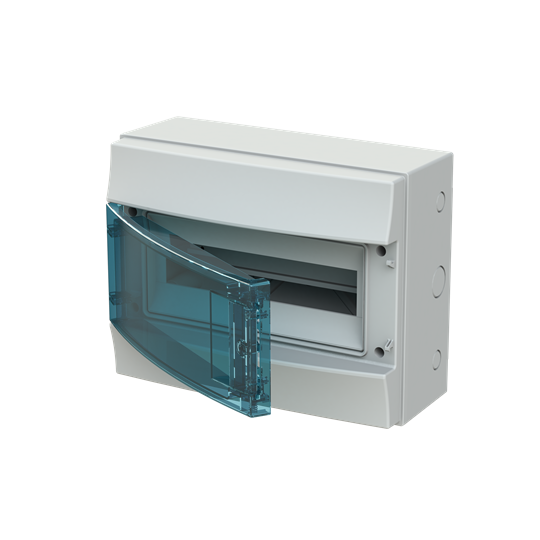

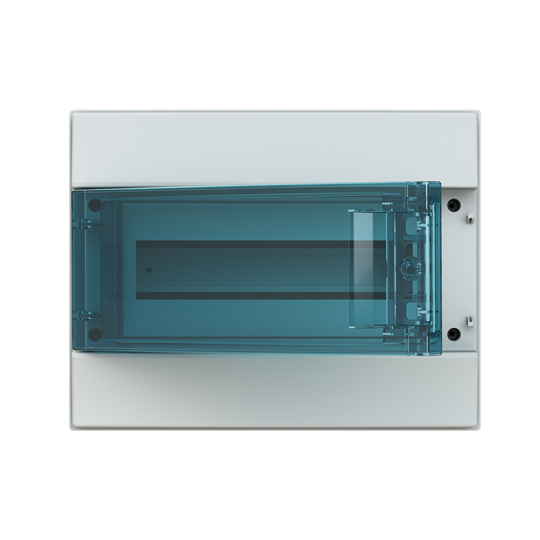

Consumer unit MISTRAL65, Surface mounting, 12 modules, 1 row(s), IP65, Door: Single, Plastic, Tran
Consumer unit, series Mistral 65, for the internal use, with Door, class of protection II (double in
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000214
| Varnarflokkur | ip65 |
|---|---|
| Number of rows | 1 |
| Width in number of modular spacings | 12 |
| Transparent cover/door | |
| Signal passing door | |
| With lock | |
| Built-in depth | 84 mm |
| Built-in height | 193 mm |
| Built-in width | 252 mm |
| Inner depth | 98 mm |
| Earthing terminal block | |
| With N-disconnect slide | |
| Neutral terminal block |
| DIN-rail |
|---|
| With mounting plate |
|---|
| Extension possible |
|---|
| Sealable |
|---|
| RAL-number | 7035 |
|---|
| Height | 250 mm |
|---|
| Width | 320 mm |
|---|
| Depth | 155 mm |
|---|
