Mistral 65 650 24 greina m.N/PE sk.

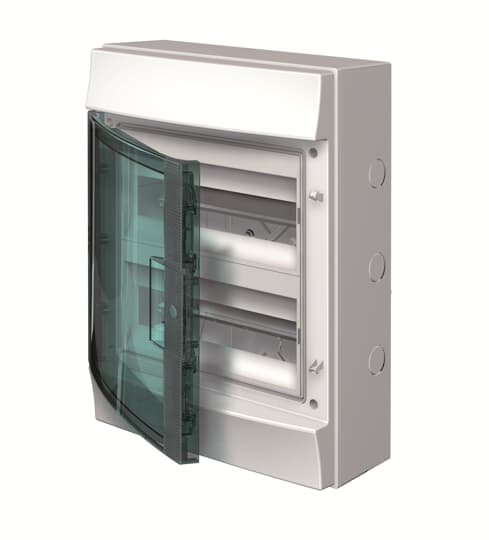

Consumer unit MISTRAL65, Surface mounting, 24 modules, 2 row(s), IP65, Door: Single, Plastic, Tran
Consumer unit, series Mistral 65, for the internal use, with Door, class of protection II (double in
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000214
| Varnarflokkur | ip65 |
|---|---|
| Mounting method | EV000384 |
| Number of rows | 2 |
| Width in number of modular spacings | 12 |
| Type of covering | EV004216 |
| Cover model | EV000116 |
| Type of door | EV002646 |
| Transparent cover/door | |
| Signal passing door | |
| With lock | |
| Type of closure | EV000154 |
| Housing material | EV000139 |
| Built-in depth | 84 mm |
| Built-in height | 358 mm |
| Built-in width | 252 mm |
| Inner depth | 98 mm |
| Earthing terminal block | |
| With N-disconnect slide | |
| Neutral terminal block | |
| DIN-rail | |
| With mounting plate | |
| Extension possible | |
| Sealable | |
| Colour | EV000270 |
| RAL-number | 7035 |
| Degree of protection (IP) | EV006421 |
| Height | 435 mm |
| Width | 320 mm |
| Depth | 155 mm |
