S-ARC1M-B Sjálfvar m. neistavörn 1x16A+N 10kA

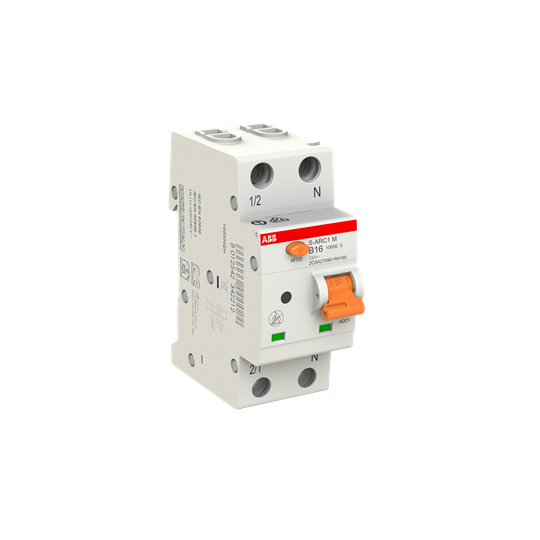

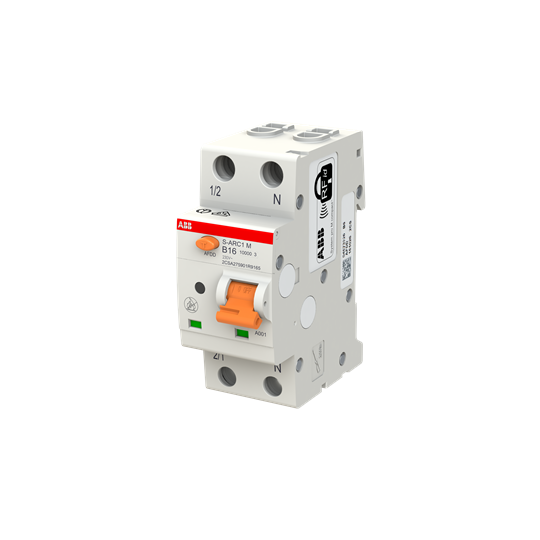

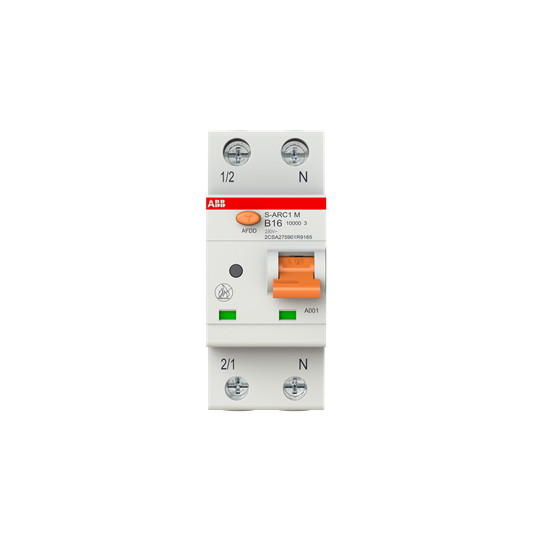

S-ARC1 M B16 Arc fault detection device integrated with MCB
S-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated MCB in two modules, for the
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC002694
| Release characteristic | EV000074 |
|---|---|
| Number of poles | 2 |
| Rated current | 16 A |
| Rated voltage | 240 V |
| Rated short-circuit breaking capacity according to EN 60898 | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 10 kA |
| Voltage type | EV000460 |
| Current limiting class | 3 |
| Frequency | 50 Hz |
| Concurrently switching neutral conductor | |
| Overvoltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Built-in depth | 69 mm |
| Additional equipment attached at delivery | EV012272 |
