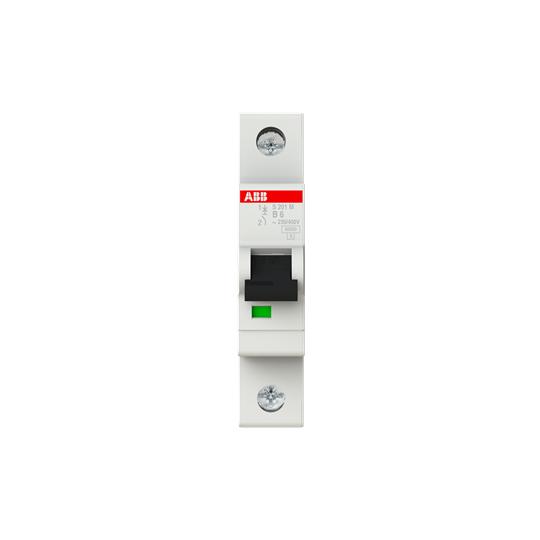

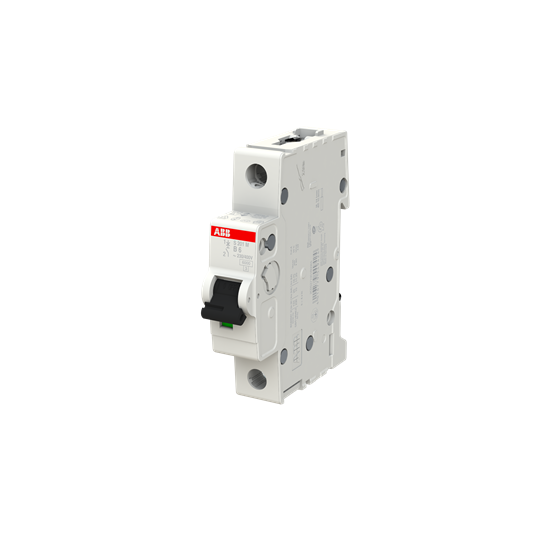

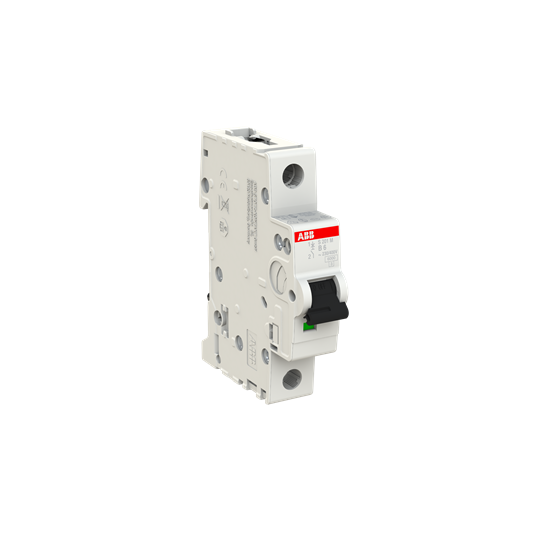

Miniature Circuit Breaker - S200M - 1P - 6 A - B - (AC) 10 kA
System pro M compact S200M miniature circuit breakers are current limiting. They have two different
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000042
| Built-in depth | 69 mm |
|---|---|
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 6 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 440 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Frequency | 50 – 60 Hz |
| Power loss | 2 W |
| Current limiting class | 3 |
| Flush-mounted installation | |
| Concurrently switching neutral conductor | |
| Overvoltage category |
| 3 |
| Pollution degree | 3 |
|---|
| Additional equipment possible |
|---|
| Width in number of modular spacings | 1 |
|---|
| Ambient temperature during operating | -25 – 55 °C |
|---|
| Connectable conductor cross section multi-wired | 0.75 – 25 mm² |
|---|
| Connectable conductor cross section solid-core | 0.75 – 35 mm² |
|---|
| Explosion-proof |
|---|
