S203M-B Sjálfvar 3x50A B 10kA

Name: S203M-B Sjálfvar 3x50A B 10kA
Brand: ABB Busch-Jaeger / KNX
SKU: 473350

Vörunr 473350EAN 4016779606073Framl. 2CDS273001R0505

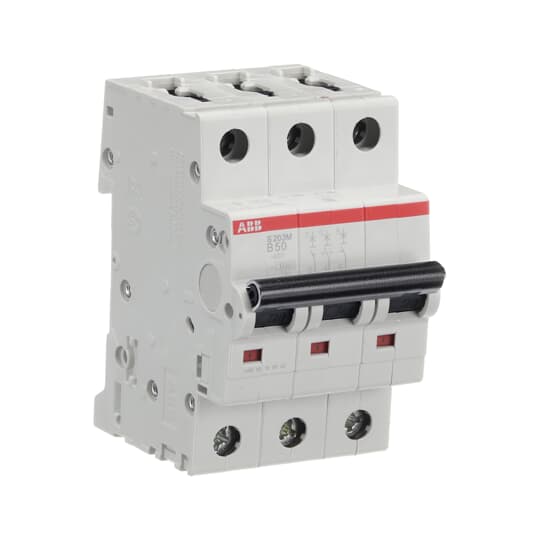

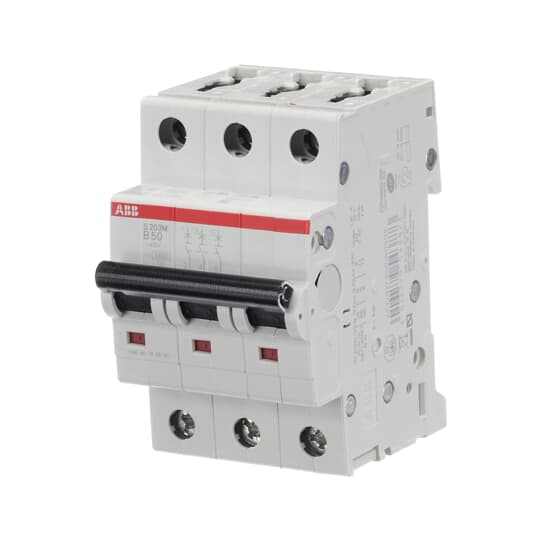

Miniature Circuit Breaker - S200M - 3P - 50 A - B - (AC) 10 kA

System pro M compact S200M miniature circuit breakers are current limiting. They have two different

Tækni

Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

ETIM flokkur · EC000042

Additional equipment possible
Built-in depth	69 mm
Number of poles (total)	3
Number of protected poles	3
Rated current	50 A
Rated voltage	400 V
Rated insulation voltage Ui	440 V
Rated impulse withstand voltage Uimp	4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10 kA
Frequency	50 – 60 Hz
Power loss	9.75 W
Current limiting class	3
Flush-mounted installation
Concurrently switching neutral conductor
Overvoltage category	3
Pollution degree	3
