SAH/S24.10.7.1 Switch/Shutter Actuator 24f.

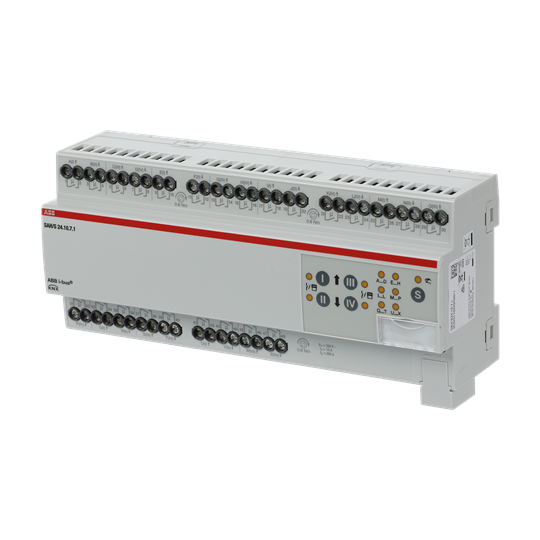

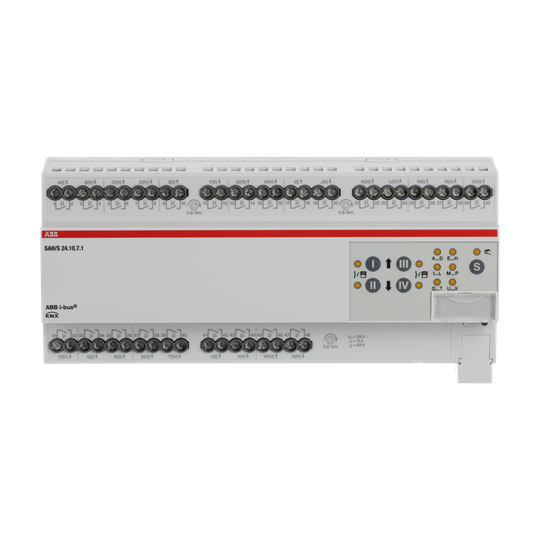

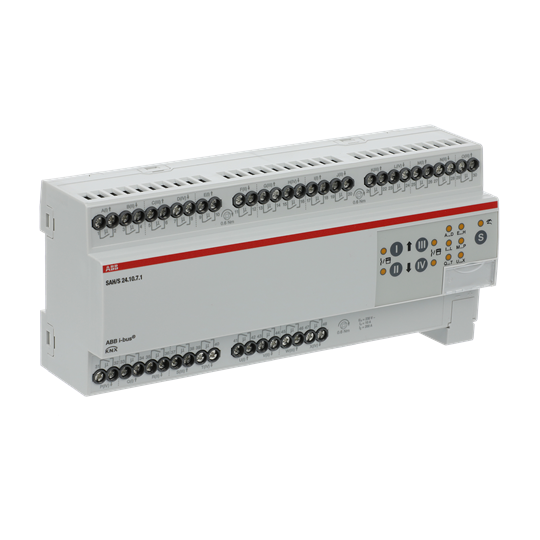

SAH/S24.10.7.1 Switch/Shutter Actuator, 24-fold, 10 A, MDRC
The compact 10 A combi switch actuator has 24 independent switching relays. The outputs can be used
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC001097
| Bus system KNX | |
|---|---|
| Bus system KNX-RF (Radio Frequency) | |
| Bus system KNX Secure | |
| Bus system KNX Secure-RF (Radio Frequency) | |
| Bus system radio frequency | |
| Bus system LON | |
| Bus system Powernet | |
| Other bus systems | EV000154 |
| Radio frequency bidirectional | |
| Mounting method | EV000154 |
| Width in number of modular spacings | 12 |
| Local operation/hand operation | |
| With LED indication | |
| Max. switching power | 1200 W |
| Output power | 1200 W |
| Max. number of switching contacts | 24 |
| Max. switching current | 10 A |
| Rated current | 10 A |
| Rated operating voltage | 230 V |
| With bus connection | |
| Bus module detachable | |
| Min. depth of built-in installation box | 64.5 mm |
| Degree of protection (IP) | EV006405 |
