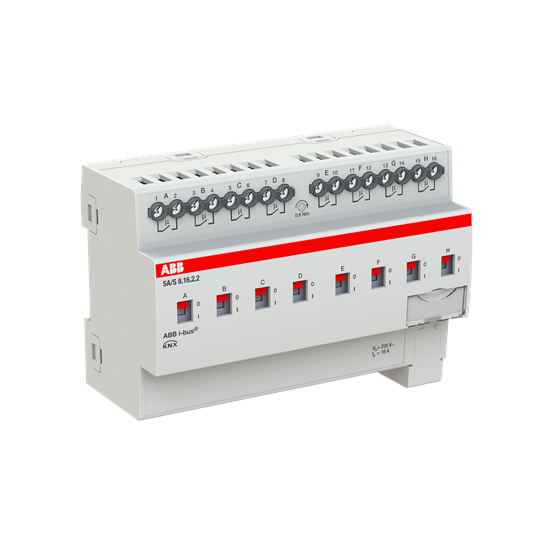

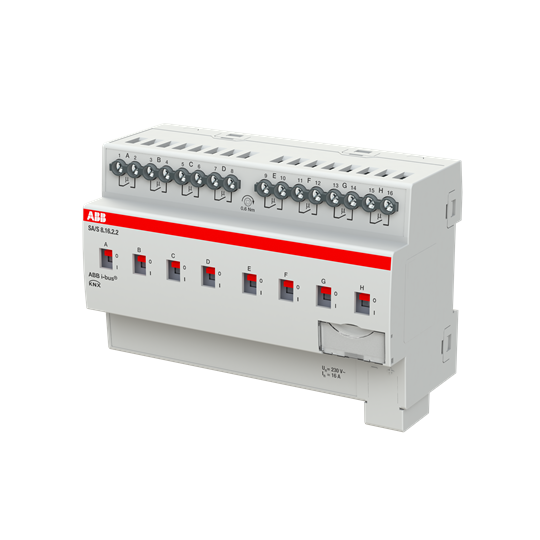

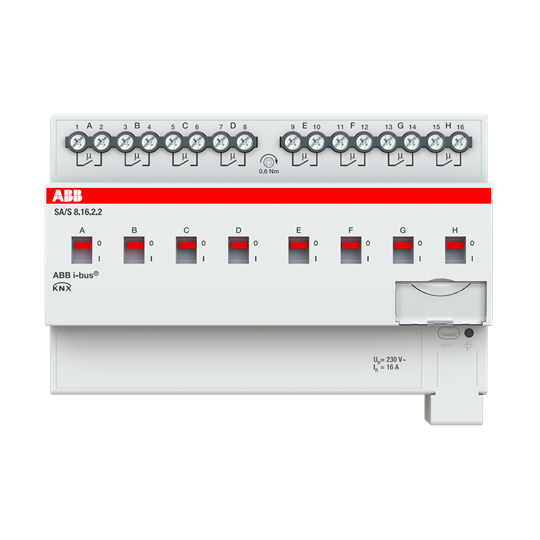

SA/S8.16.2.2 Switch Actuator, 8-fold, 16 A, MDRC
The switch actuator uses potential free contacts to switch 8 independent electrical loads via the AB
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC001097
| Bus system KNX | |
|---|---|
| Bus system KNX-RF (Radio Frequency) | |
| Bus system KNX Secure | |
| Bus system KNX Secure-RF (Radio Frequency) | |
| Bus system radio frequency | |
| Bus system LON | |
| Bus system Powernet | |
| Radio frequency bidirectional | |
| Width in number of modular spacings | 8 |
| Local operation/hand operation |
|---|
| With LED indication |
|---|
| Max. switching power | 2500 W |
|---|
| Output power | 2500 W |
|---|
| Max. number of switching contacts | 8 |
|---|
| Max. switching current | 16 A |
|---|
| Rated current | 16 A |
|---|
| Rated operating voltage | 230 V |
|---|
| With bus connection |
|---|
| Bus module detachable |
|---|
