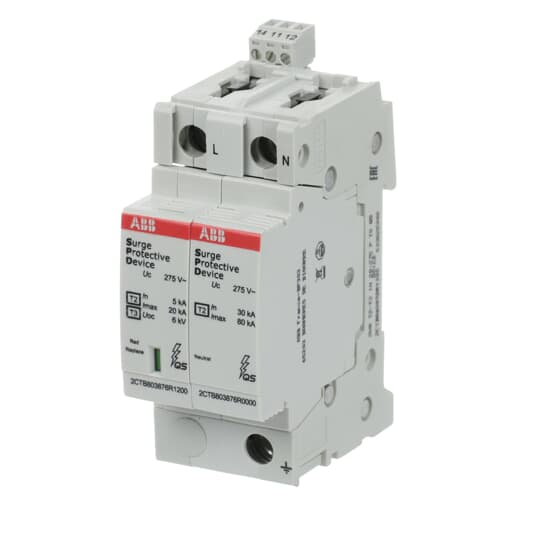

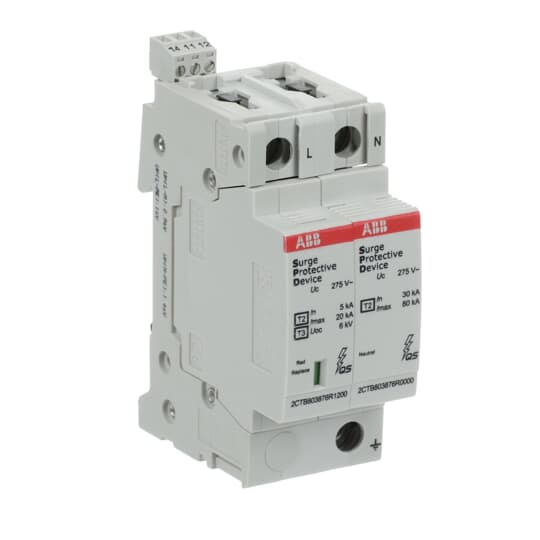

OVR T2-T3 1N 20-275 P TS QS Surge Protective Device
OVR T2-T3 1N 20-275 P TS QS Surge Protective Device
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000941
| System configuration DC | |
|---|---|
| System configuration IT | |
| System configuration TN | |
| System configuration TN-C | |
| System configuration TN-C-S | |
| System configuration TN-S | |
| System configuration TT | |
| System configuration other | |
| Number of conductors (without earthing) | 2 |
| Nominal discharge surge current (8/20) |
| 5 kA |
| Max. discharge surge current (8/20) | 5 kA |
|---|
| Nominal voltage AC | 400 V |
|---|
| Max. continuous voltage AC | 275 V |
|---|
| Voltage protection level | 1.4 kV |
|---|
| Voltage protection level L-N | 0.9 kV |
|---|
| Voltage protection level N-PE | 1.4 kV |
|---|
| Max. overcurrent protection device, parallel connection (fuse) | 125 A |
|---|
| Max. overcurrent protection device, series connection (fuse) | 125 A |
|---|
| Short-circuit breaking capacity (Isccr) | 100 kA |
|---|
| Integrated short-circuit protection |
|---|
| Integrated backup fuse |
|---|
| Leakage-current free |
|---|
| Max. conductor cross section solid (solid, stranded) | 25 mm² |
|---|
| Max. conductor cross section flexible (fine-strand) | 16 mm² |
|---|
| With remote signalling contact |
|---|
| Category type 2 |
|---|
