Surge Protective Device Eldingavari

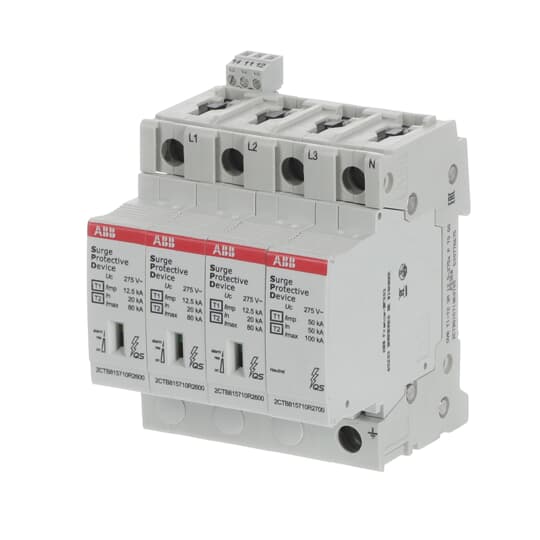

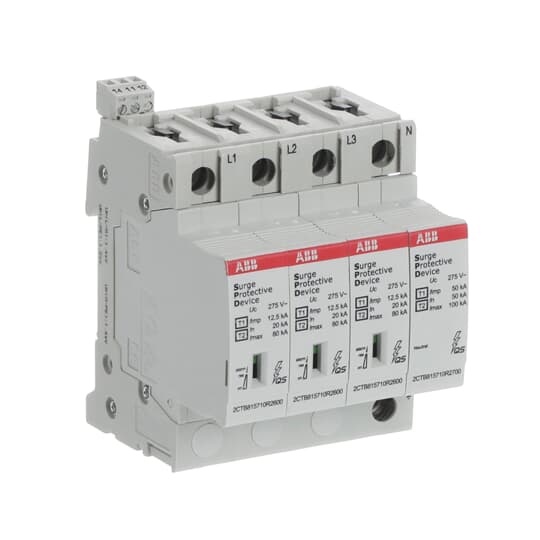

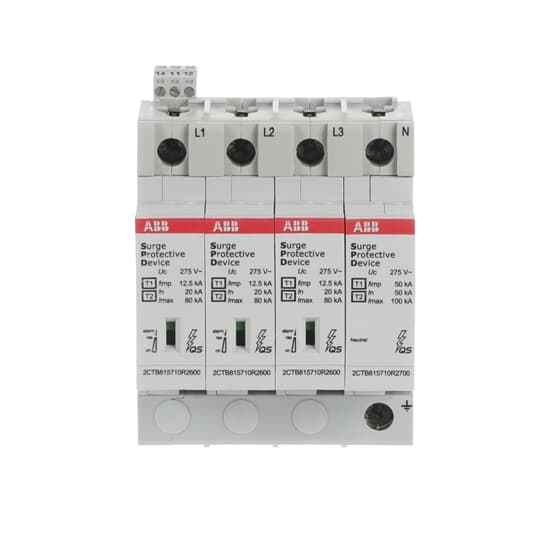

OVR T1-T2 3N 12.5-275s P TS QS Surge Protective Device
Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning c
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC001457
| System configuration DC | |
|---|---|
| System configuration IT | |
| System configuration TN | |
| System configuration TN-C | |
| System configuration TN-C-S | |
| System configuration TN-S | |
| System configuration TT | |
| System configuration other | |
| Number of poles | 4 |
| Lightning impulse current (10/350 µs) | 12.5 kA |
| Voltage protection level L-N | 1.4 kV |
| Voltage protection level L-PE | 1.5 kV |
| Voltage protection level N-PE | 1.4 kV |
| Construction size | EV007011 |
| Remote signalling | |
| Integrated backup fuse | |
| Energy-coordinated protection effect with regard to the terminal equipment | |
| Voltage switching spark gap technology | |
| Overcurrent protected voltage tapping | |
| Degree of protection (IP) | EV006405 |
