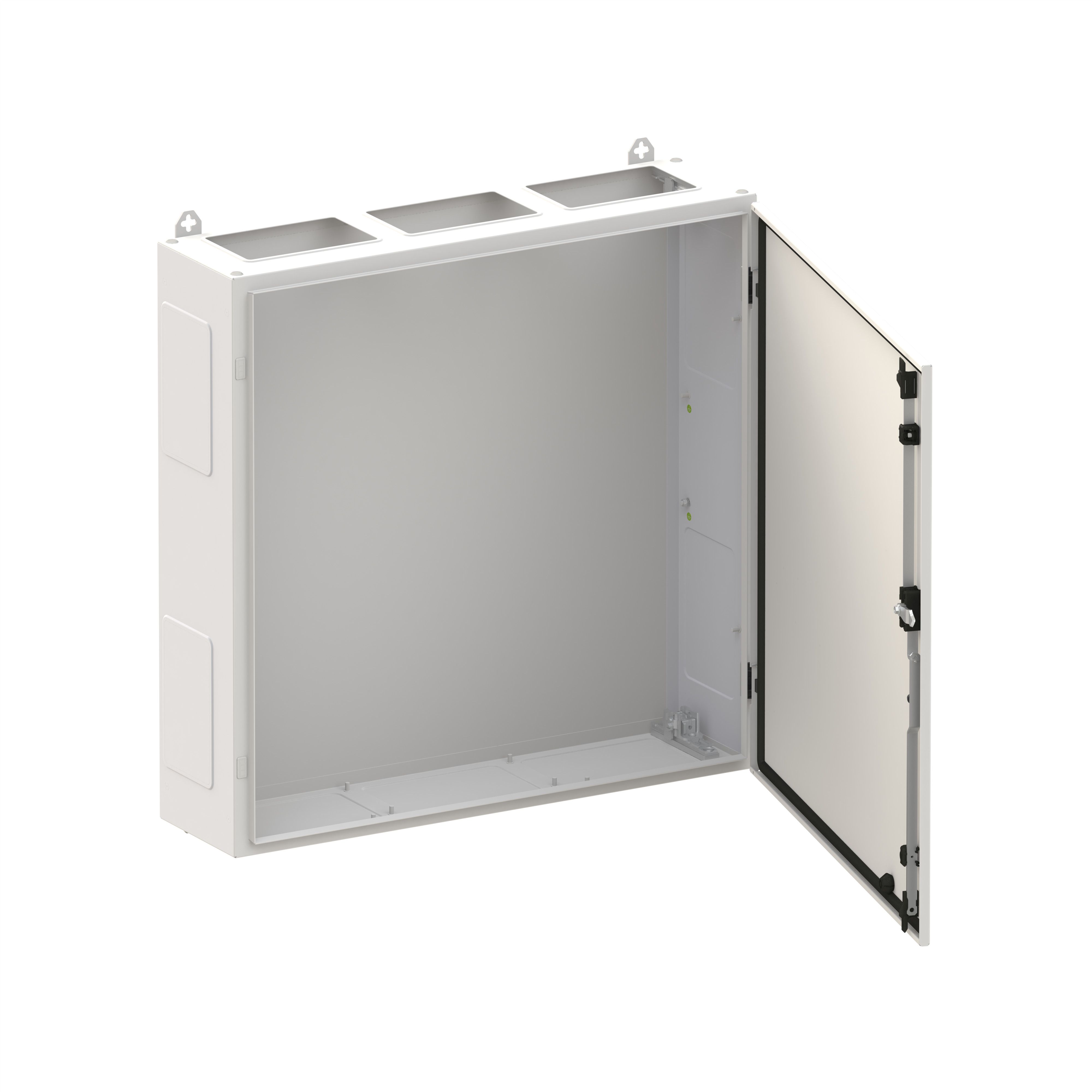

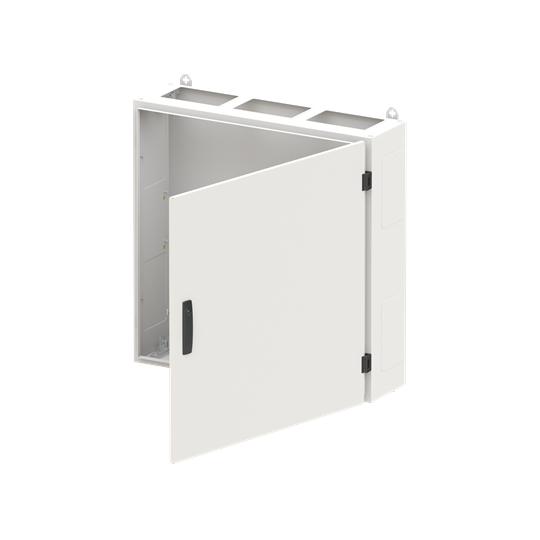

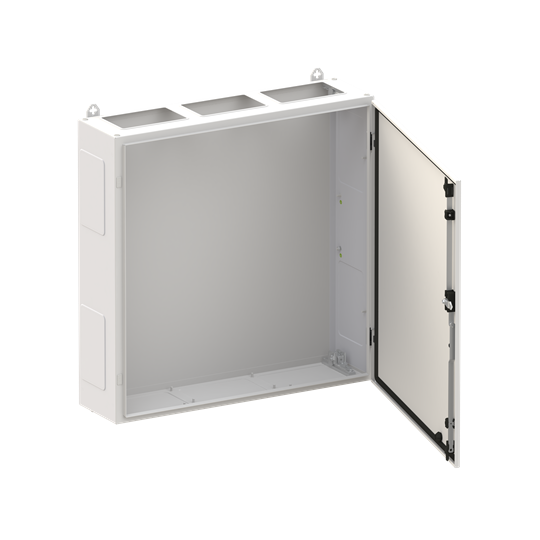

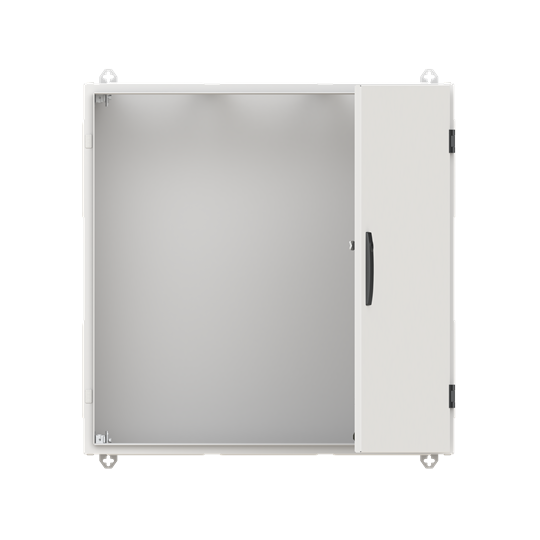

Wall-mounting cabinet, Field width: 3, Rows: 5, 800 mm x 800 mm x 225 mm, Grounded (Class I), IP55
Wall-mounting cabinet, series TwinLine, empty cabinet, Expansion option: Lateral and bottom, for the
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000058
| Varnarflokkur | ip55 |
|---|---|
| Transparent cover/door | |
| With lock | |
| Height | 800 mm |
| Width | 800 mm |
| Depth | 225 mm |
| Built-in depth | 170 mm |
| Inner depth | 222 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1.5 mm |
| RAL-number | 7035 |
| Number of modules | 180 |
| Number of rows | 5 |
| Width in number of modular spacings | 36 |
| Number of openings for flange plates | 3 |
| Extension possible |
| Number of conduit inlets | 156 |
|---|
| With mounting plate |
|---|
| Suitable for outdoor use |
|---|
| Suitable for lightning protection |
|---|
| Cover with overpressure release |
|---|
