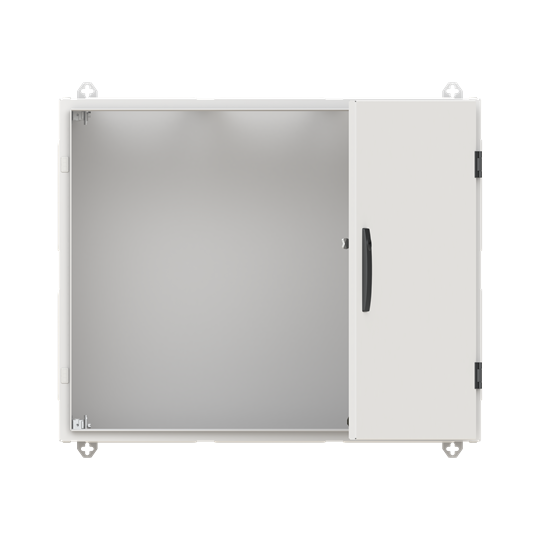

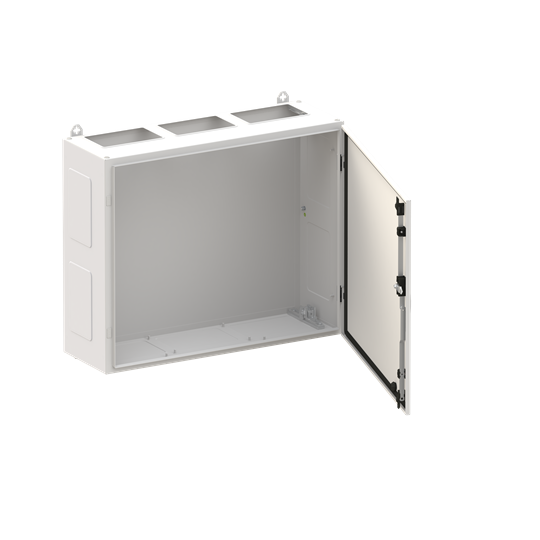

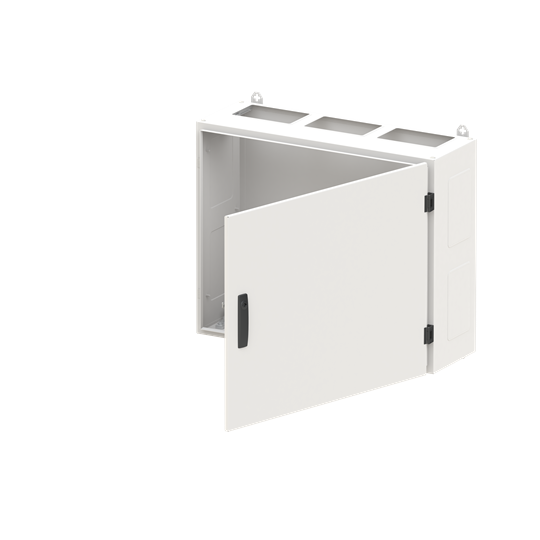

TL304G Veggskápur 650x800x275mm IP55
Wall-mounting cabinet, Field width: 3, Rows: 4, 650 mm x 800 mm x 275 mm, Grounded (Class I), IP55
Wall-mounting cabinet, series TwinLine, empty cabinet, Expansion option: Lateral and bottom, for the
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
ETIM flokkur · EC000058
| Varnarflokkur | ip55 |
|---|---|
| Mounting method | EV000384 |
| Type of covering | EV000494 |
| Cover model | EV009916 |
| Type of door | EV002646 |
| Transparent cover/door | |
| With lock | |
| Height | 650 mm |
| Width | 800 mm |
| Depth | 275 mm |
| Built-in depth | 222.5 mm |
| Inner depth | 272 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1.5 mm |
| Colour | EV000270 |
| RAL-number | 7035 |
| Number of modules | 144 |
| Number of rows | 4 |
| Width in number of modular spacings | 36 |
| Number of openings for flange plates | 3 |
| Extension possible | |
| Number of conduit inlets | 156 |
| Housing material | EV007763 |
| Housing material quality | EV000154 |
| Surface protection | EV008895 |
| Type of coating | EV000154 |
| With mounting plate | |
| Suitable for outdoor use | |
| Suitable for lightning protection | |
| Degree of protection (IP) | EV006420 |
| Protection class according to IEC 61140 | EV000582 |
| Impact strength | EV006814 |
| Circuit integrity | EV000494 |
| Cover with overpressure release |
