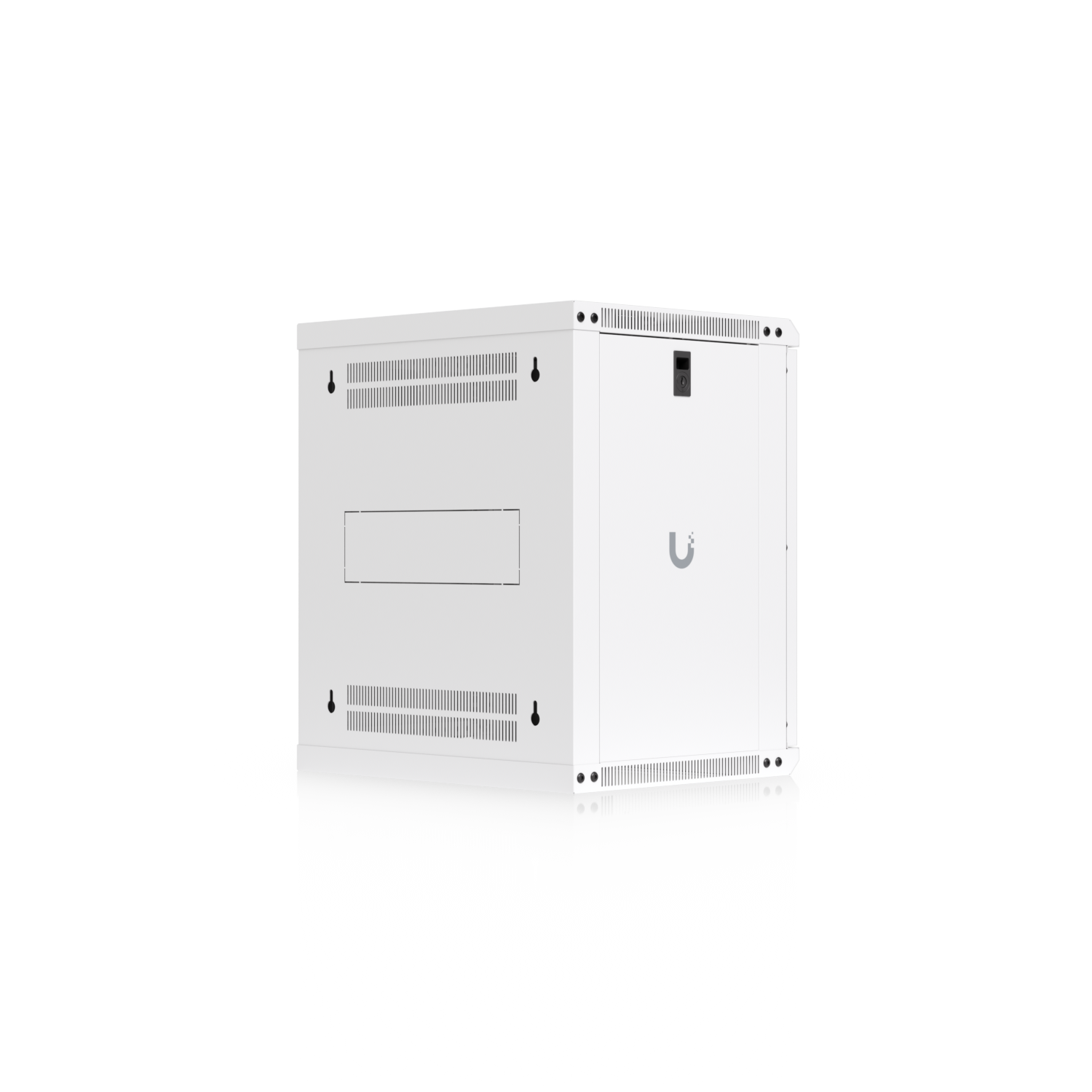

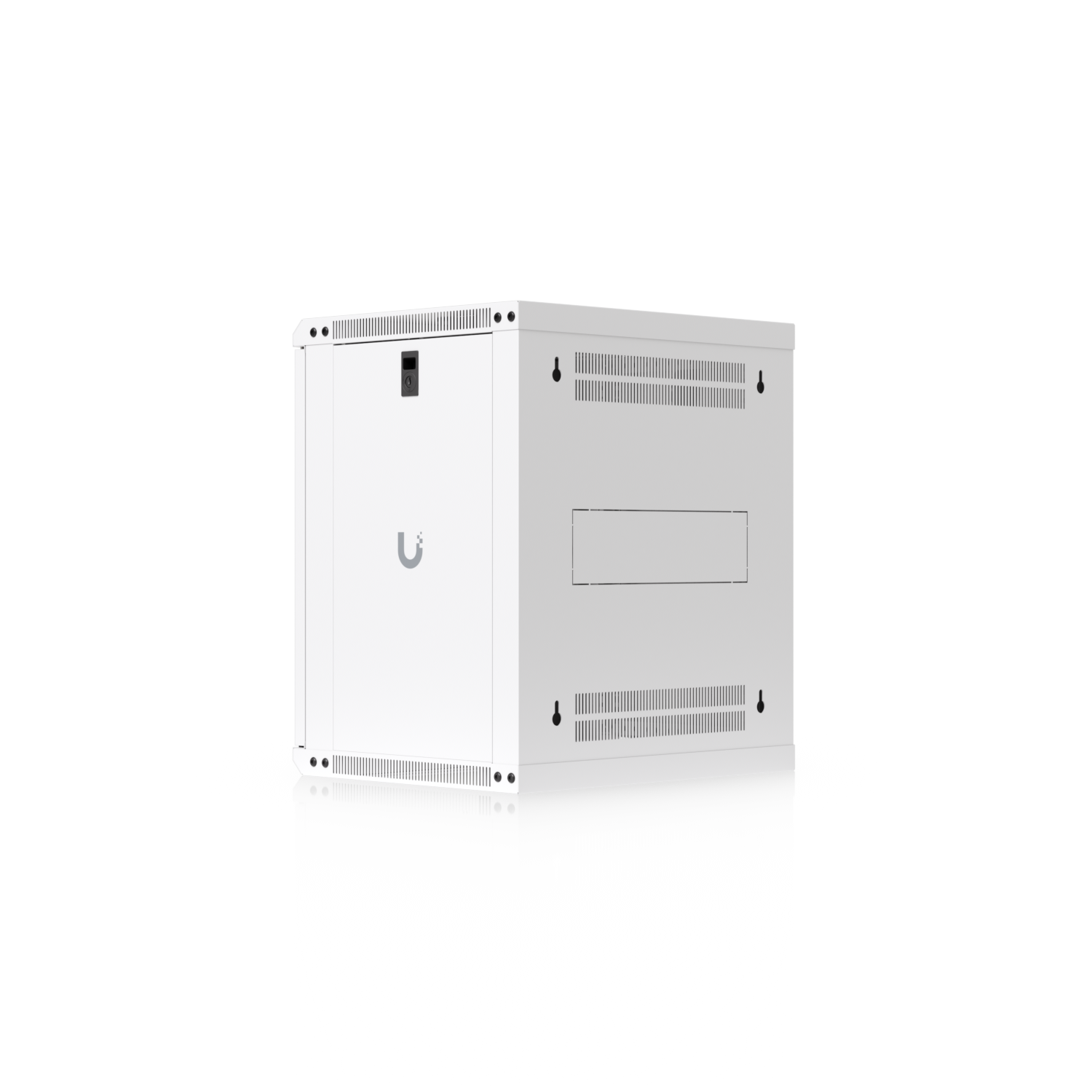

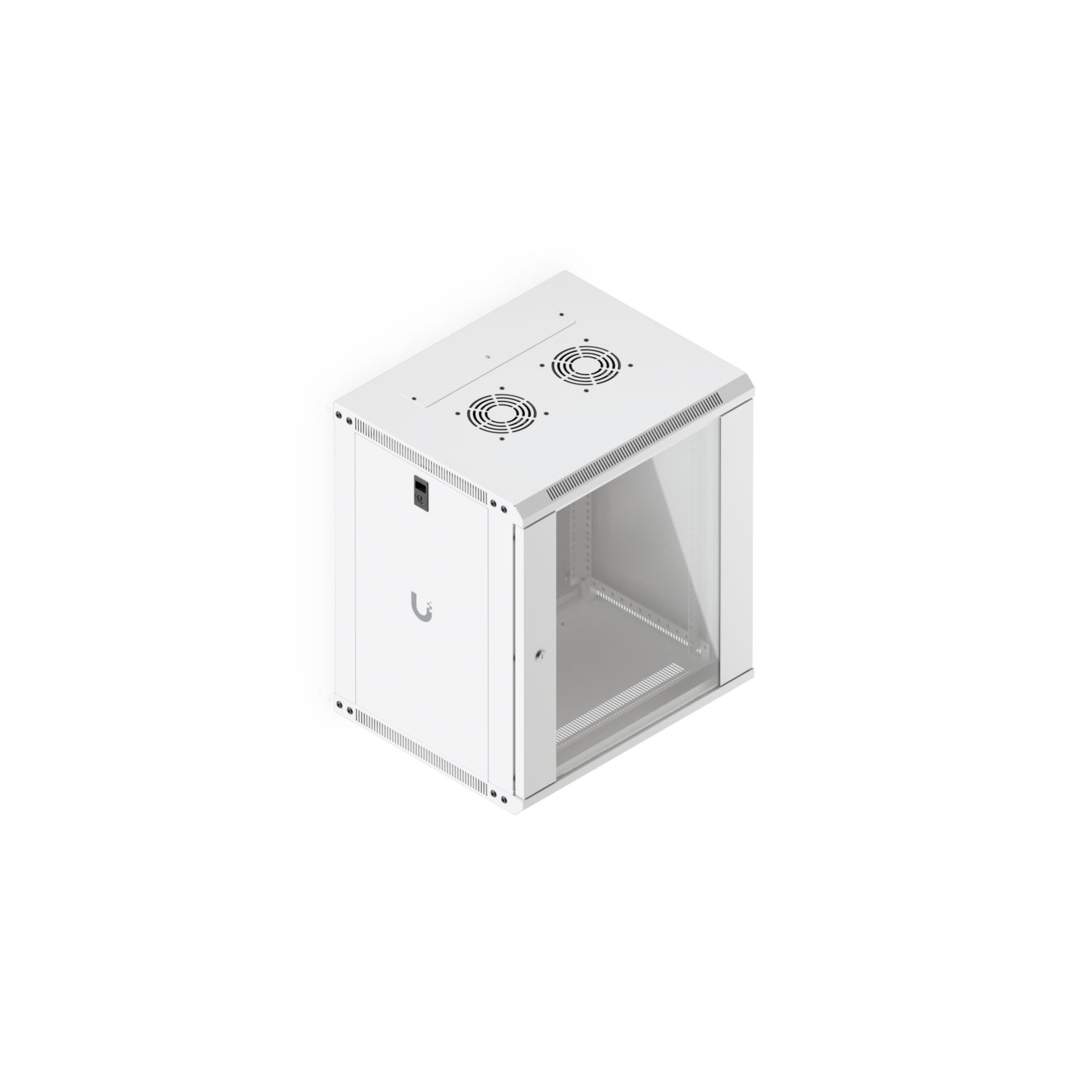

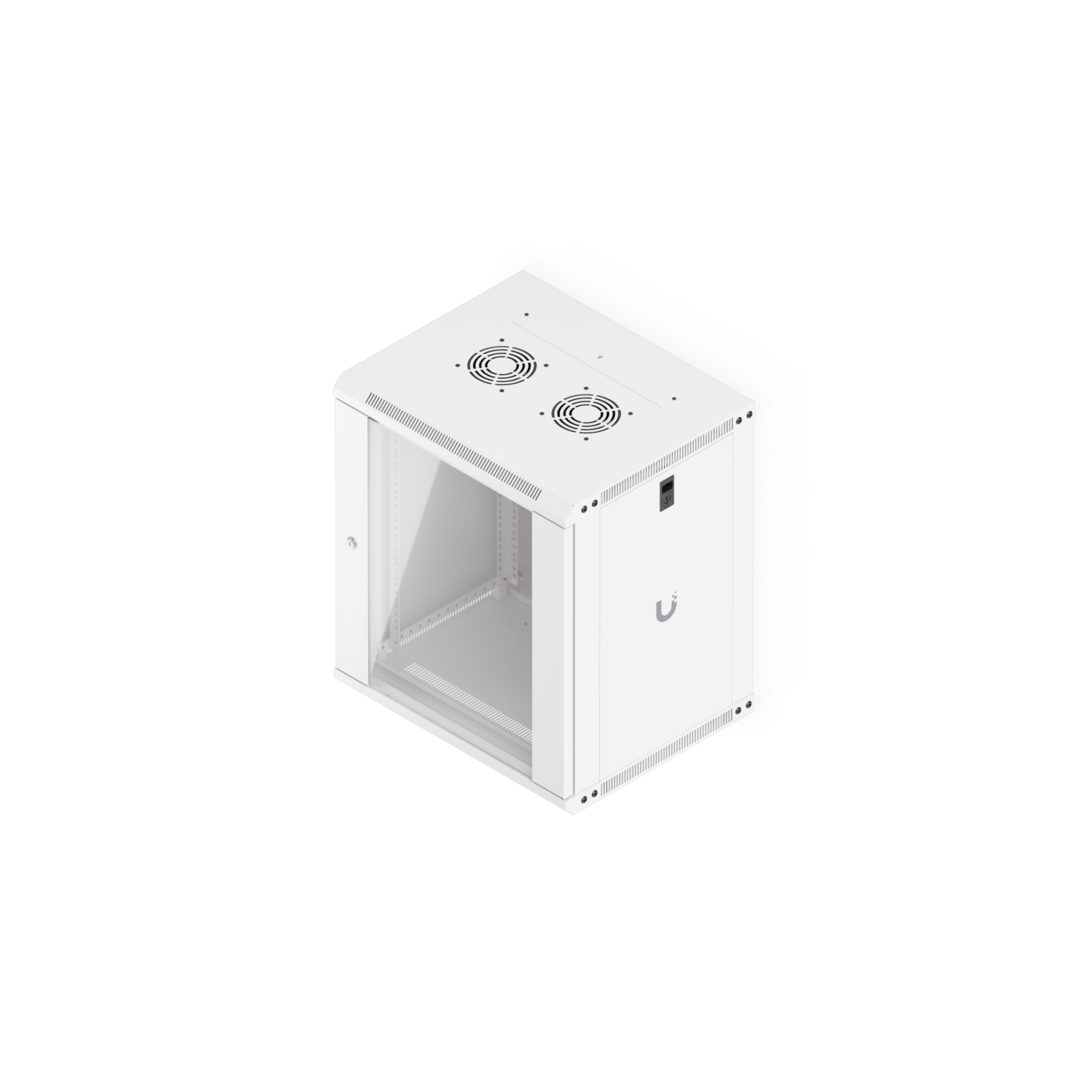

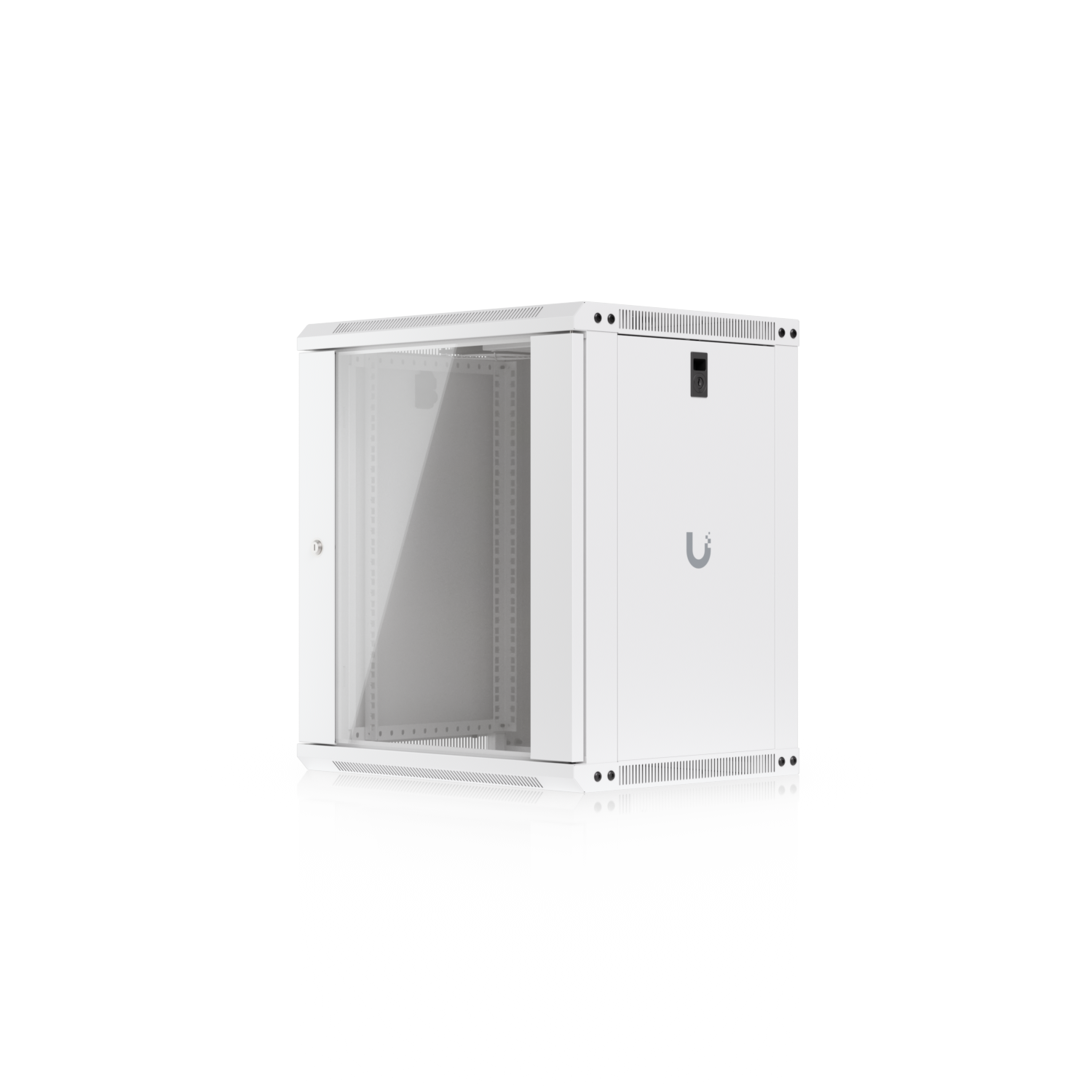

UniFi 12U Rack Cabinet, 450 mm, Glass Door
Fullsamsett veggfest rekki með innbyggðum viftum og útdraganlegum hliðarplötum, hannaður fyrir auðvelt aðgengi að búnaði og rýmissparandi uppsetningar í smærri skala.
Athugasemd um sendingu: Vegna stærðar og þyngdar vörunnar getur afhending verið takmörkuð á tiltekin heimilisföng. Þessi rekki er sendur fullsamsettur og getur krafist viðbótar meðhöndlunar og vinnslutíma fyrir sendingu.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Packaging: 580 x 675 x 735 mm (22.8 x 26.6 x 28.9") Rack: 550 x 450 x 635 mm (21.7 x 17.7 x 25") |
|---|---|
| Weight | Packaging: 23.2 kg (51.1 lb) Rack: 19 kg (41.9 lb) |
| Enclosure Material | SPCC steel Door/side panels: 0.8 mm (0.03") Main body: 0.8 mm (0.03") Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features: U Height | 12U |
| Rack Features: Rack Type | 4 post, enclosed cabinet |
| Rack Features: Mounting Hole Type | Square |
| Rack Features: Adjustable Mounting Depth | Default 283 mm (11.1") Max. 305 mm (12") Adjustable pitch 22 mm (0.9") |
| Rack Features: Max. Weight Capacity | 50 kg (110 lb) |

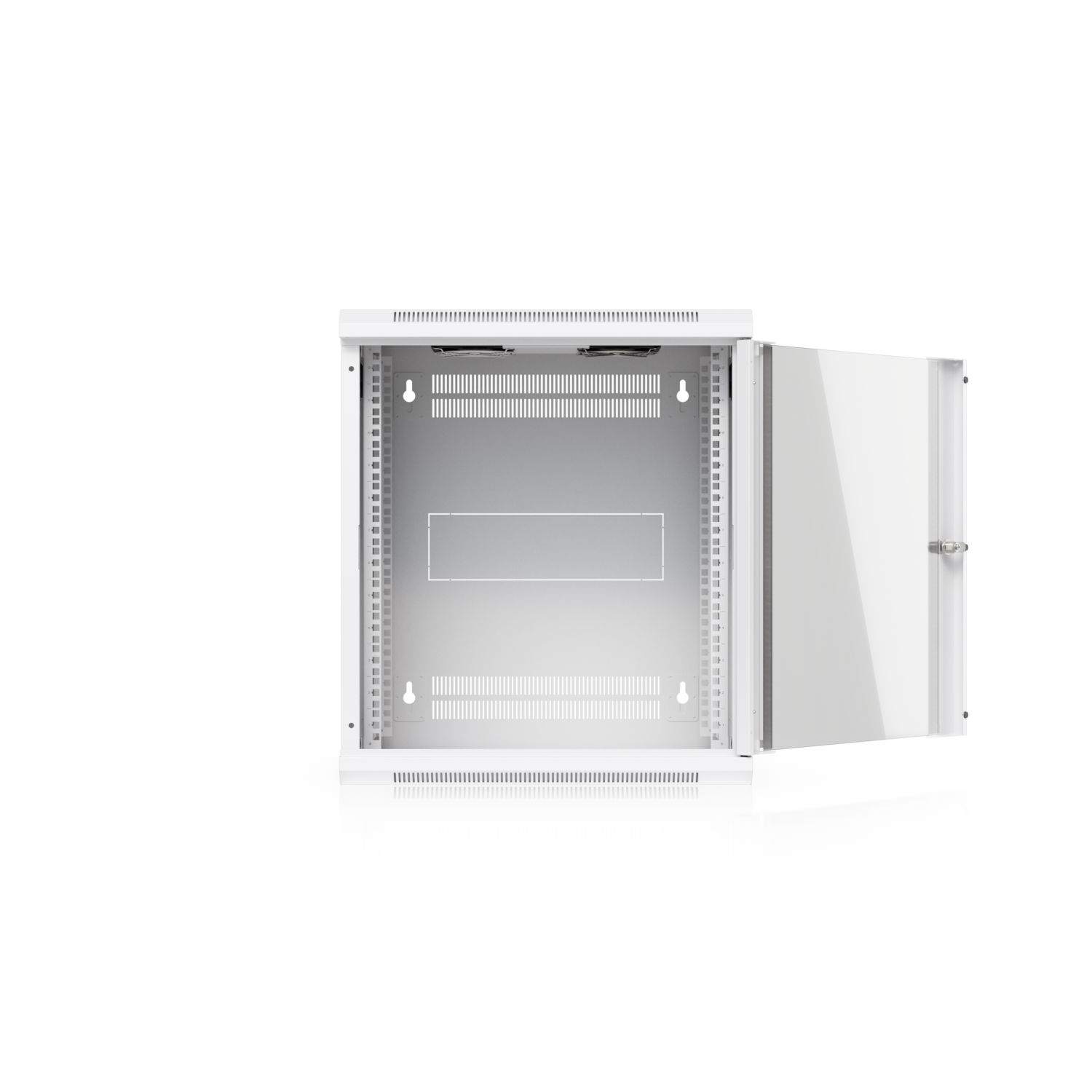

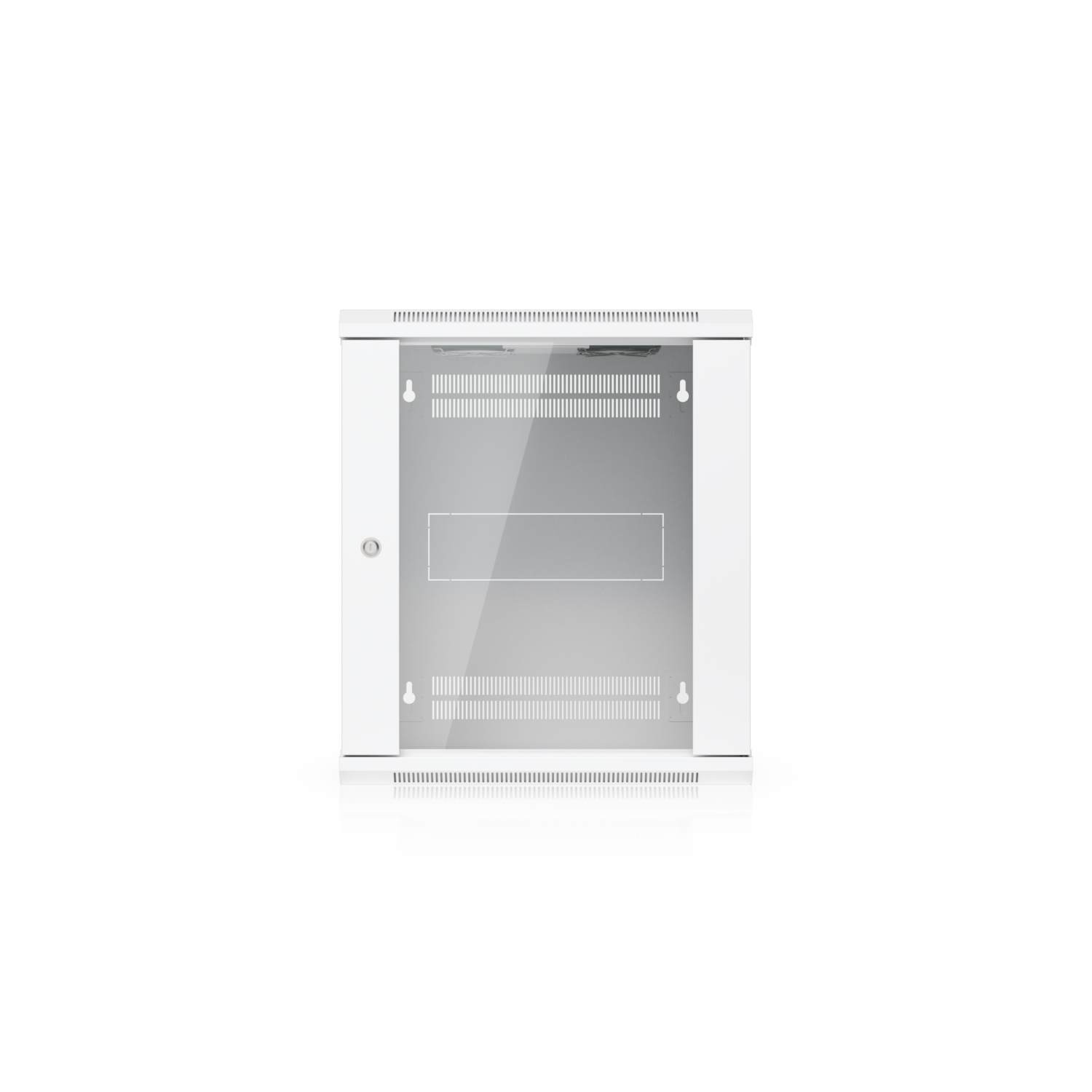

| Rack Features: Front Door | Tempered glass Default left-hand outswing, reversible |

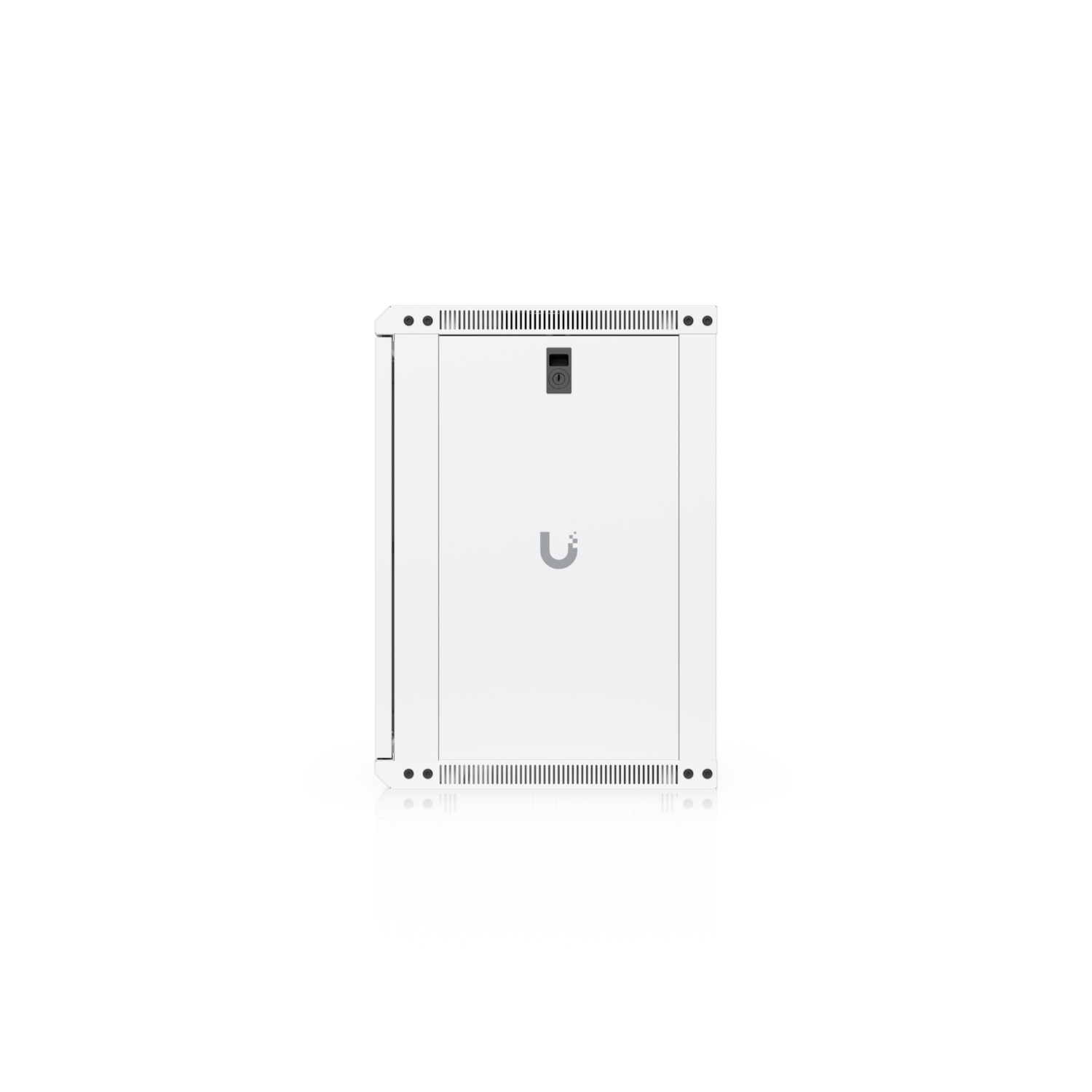

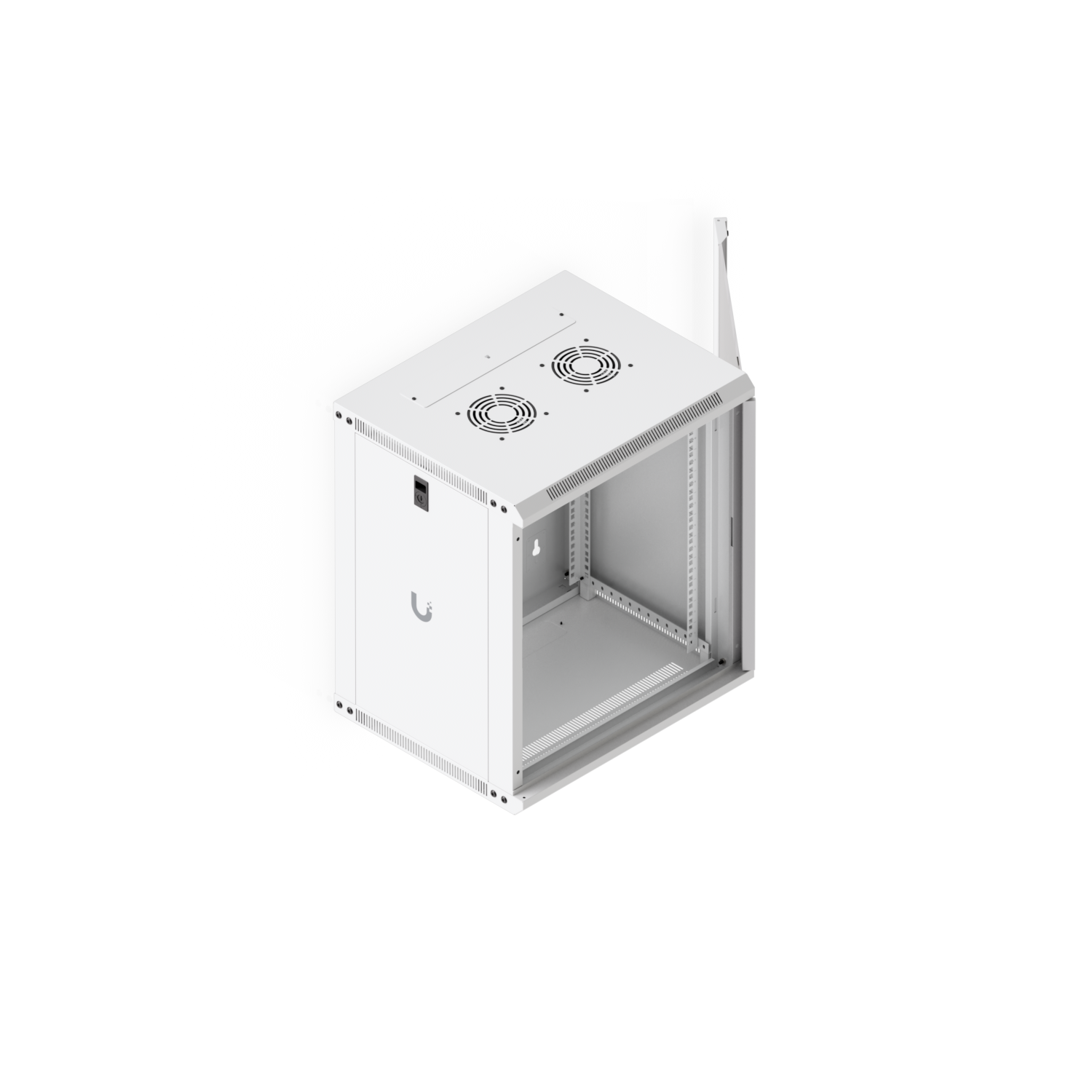

| Rack Features: Side Panels | (2) Solid, removable and lockable |
| Rack Features: Mounting | Wall mount |

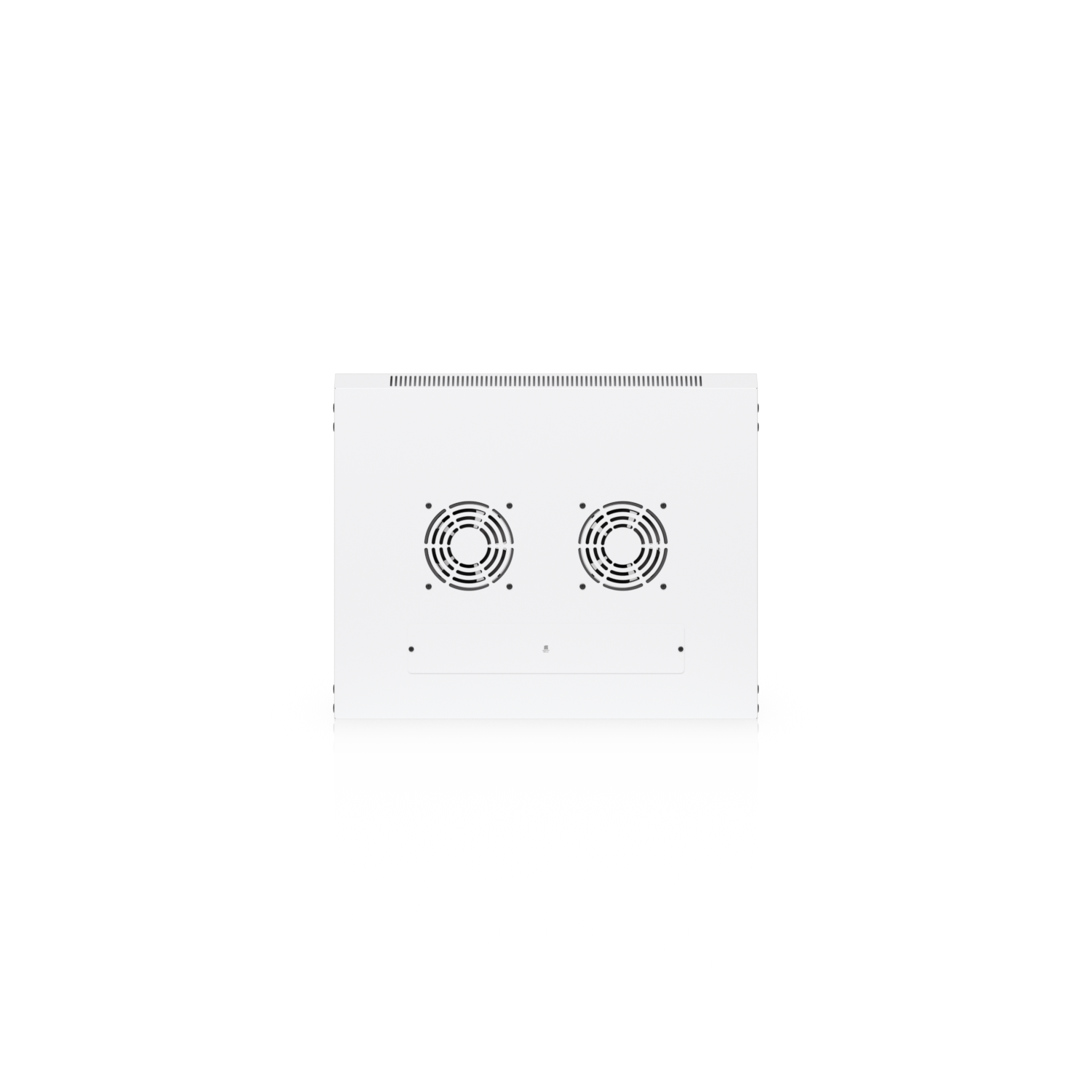

| Rack Features: Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units (Input voltage: Region-specific; 110–120V AC for US models, 220–240V AC for EU models) |
| Rack Features: Acoustic Noise | ≤ 50 dB(A) sound pressure level (Measured at 1 m in front of the enclosure, with cabinet empty (no installed equipment), under nominal fan operating conditions per ISO 7779) |
| Rack Features: Grounding Lugs | Yes (Pre-installed) |

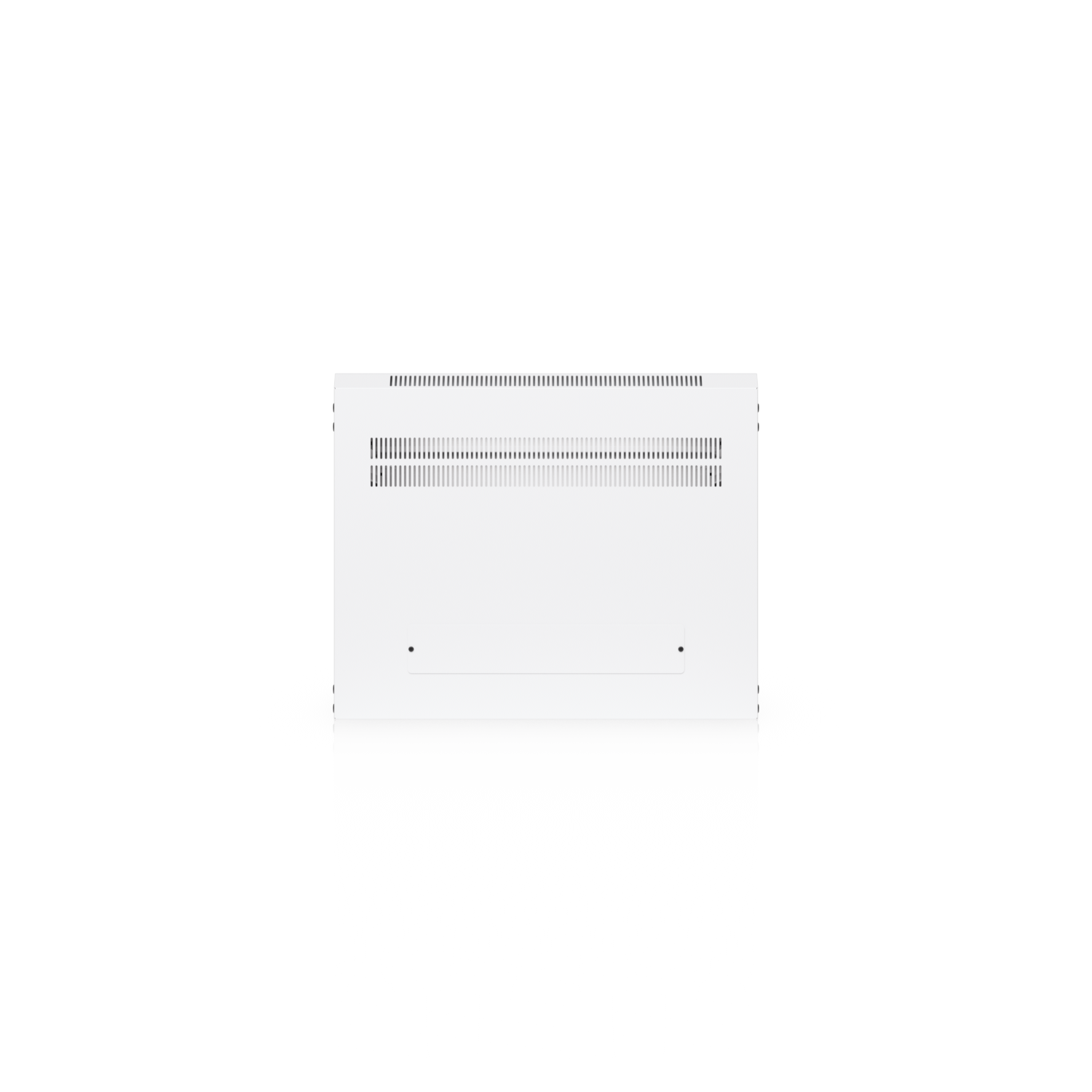

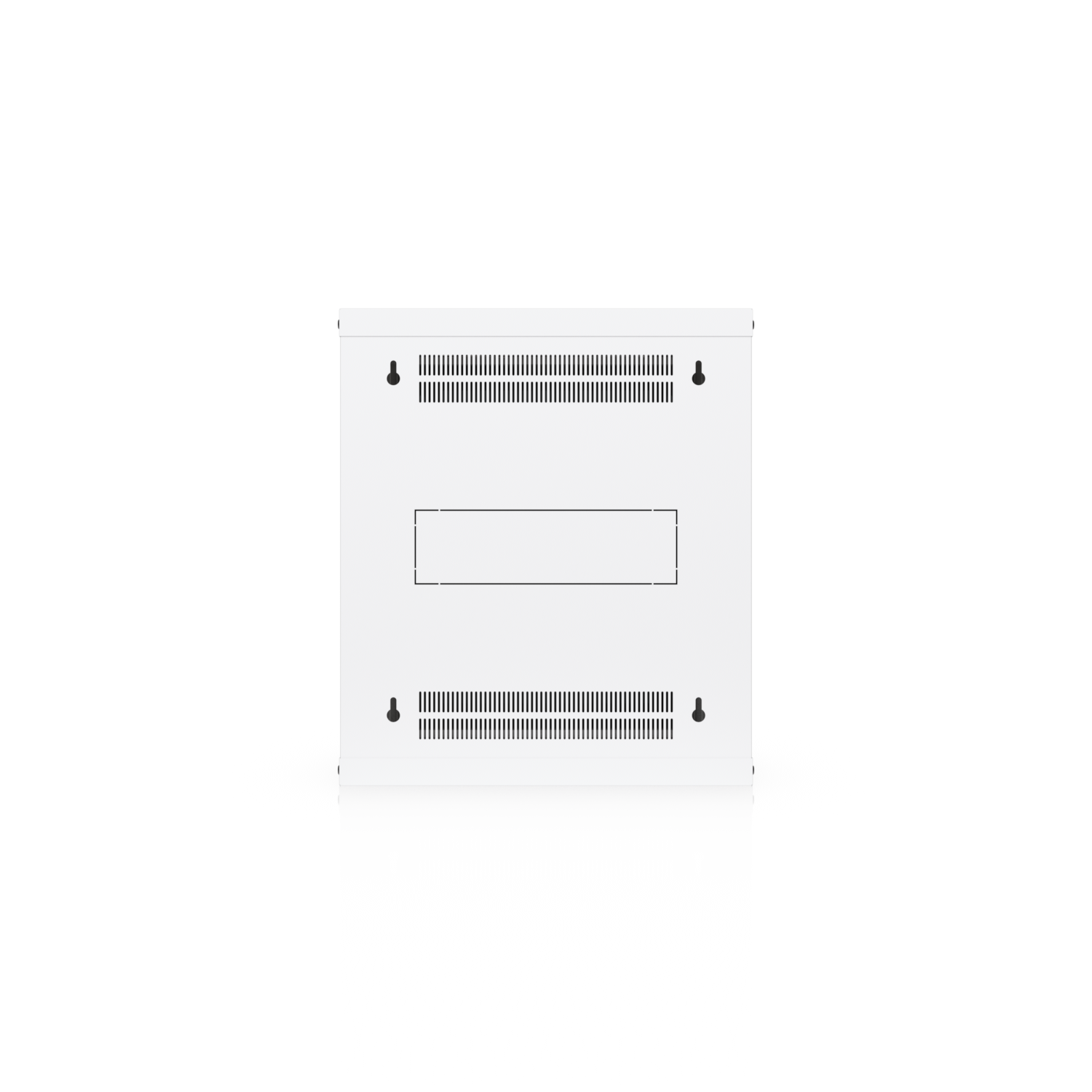

| Rack Features: Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Rack Features: Security | (1) Front door lock (4) Side panel locks (2) Keys |
| Rack Features: Standard | CE; EIA/ECA-310-E; RoHS |
| Supported Devices | Compatible with Ubiquiti rack-mount devices up to 325 mm in depth. Note: 325 mm devices can be installed when the mounting depth is set to 305 mm (max), but DC power backup is not supported due to limited rear-side clearance. (Includes UNVR-Pro, UNAS-Pro, USW-Pro-Max-24, USW-Pro-Max-24-PoE, USW-Pro-Max-48, USW-Pro-Aggregation, USW-Enterprise-24-PoE) |
| NDAA Compliant | Yes |
