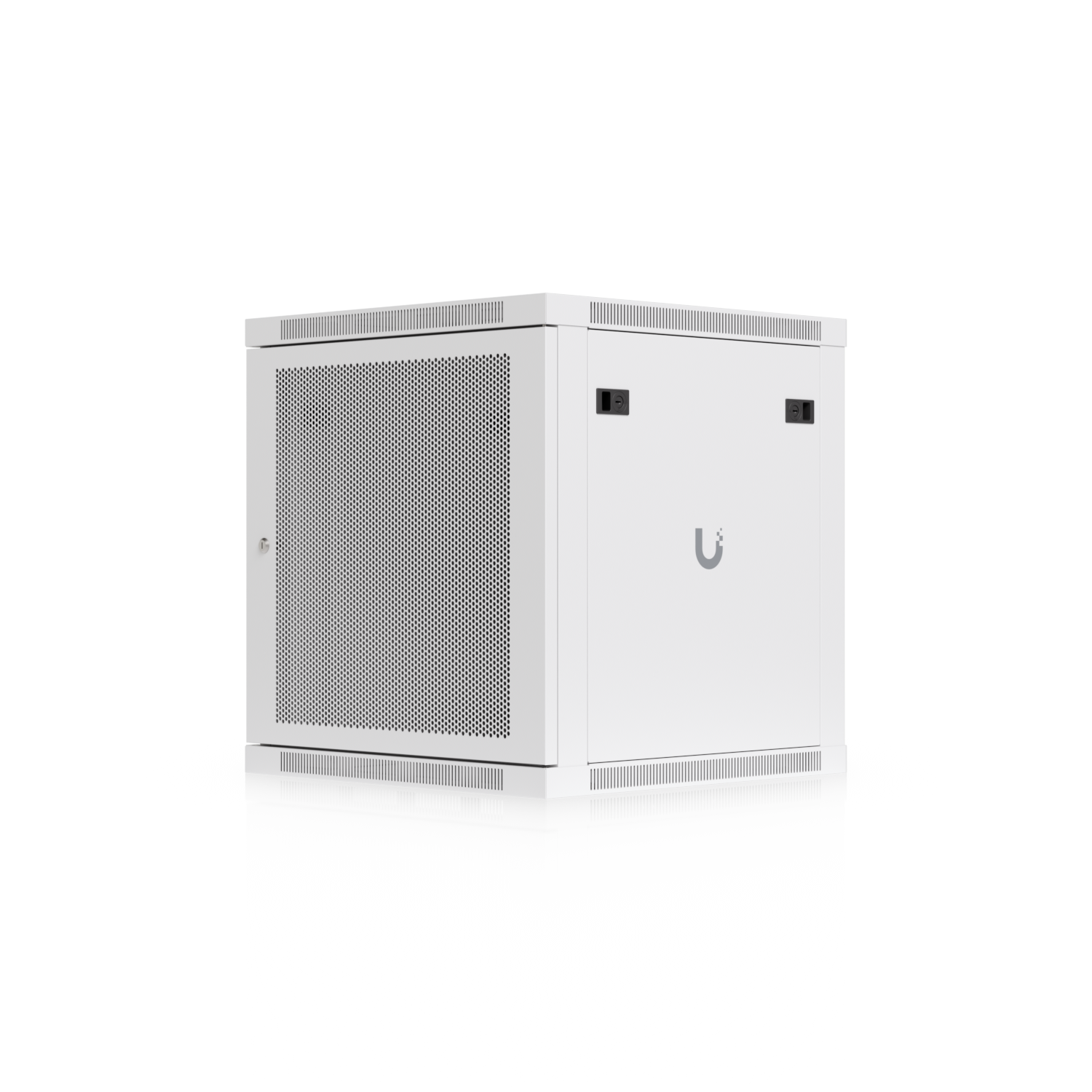

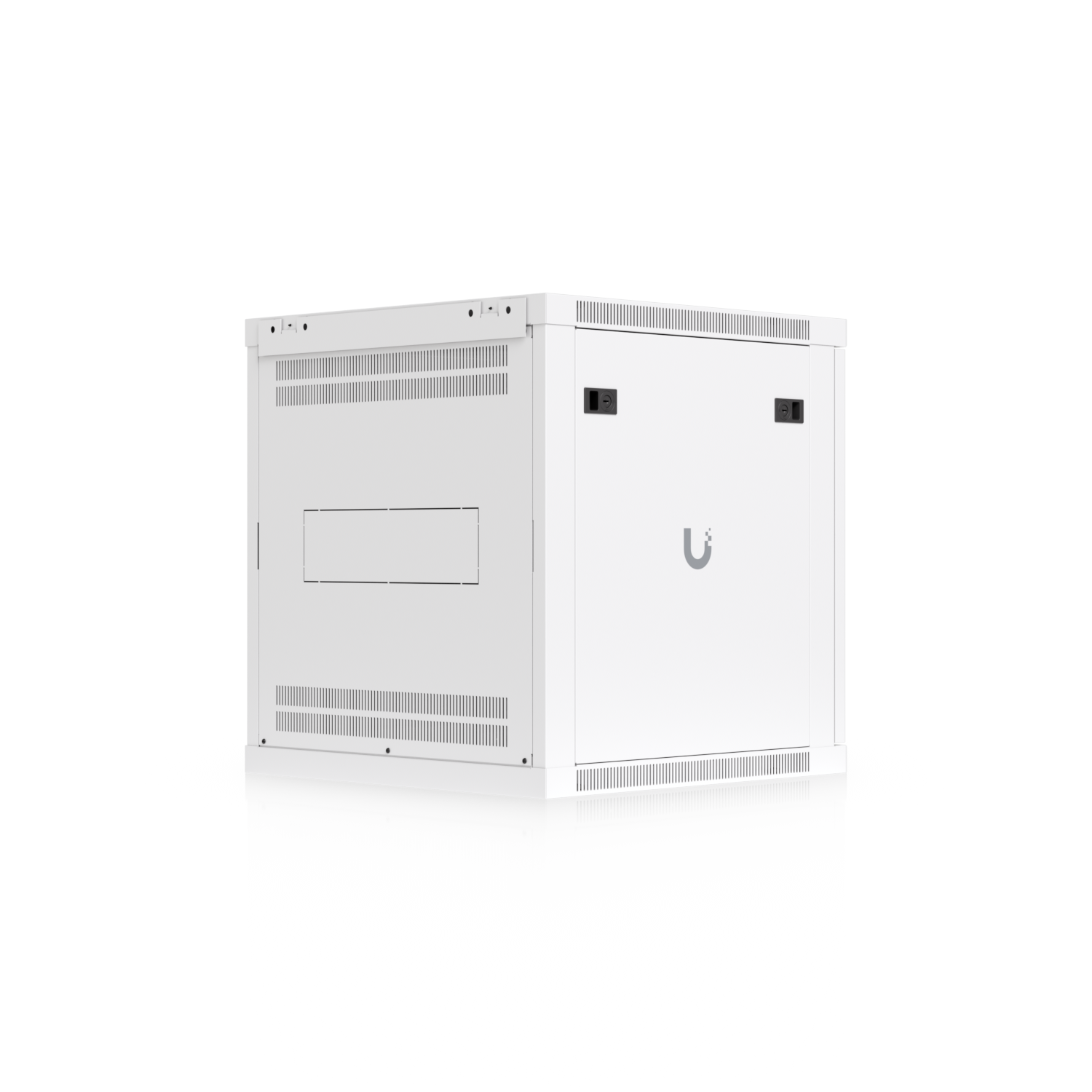

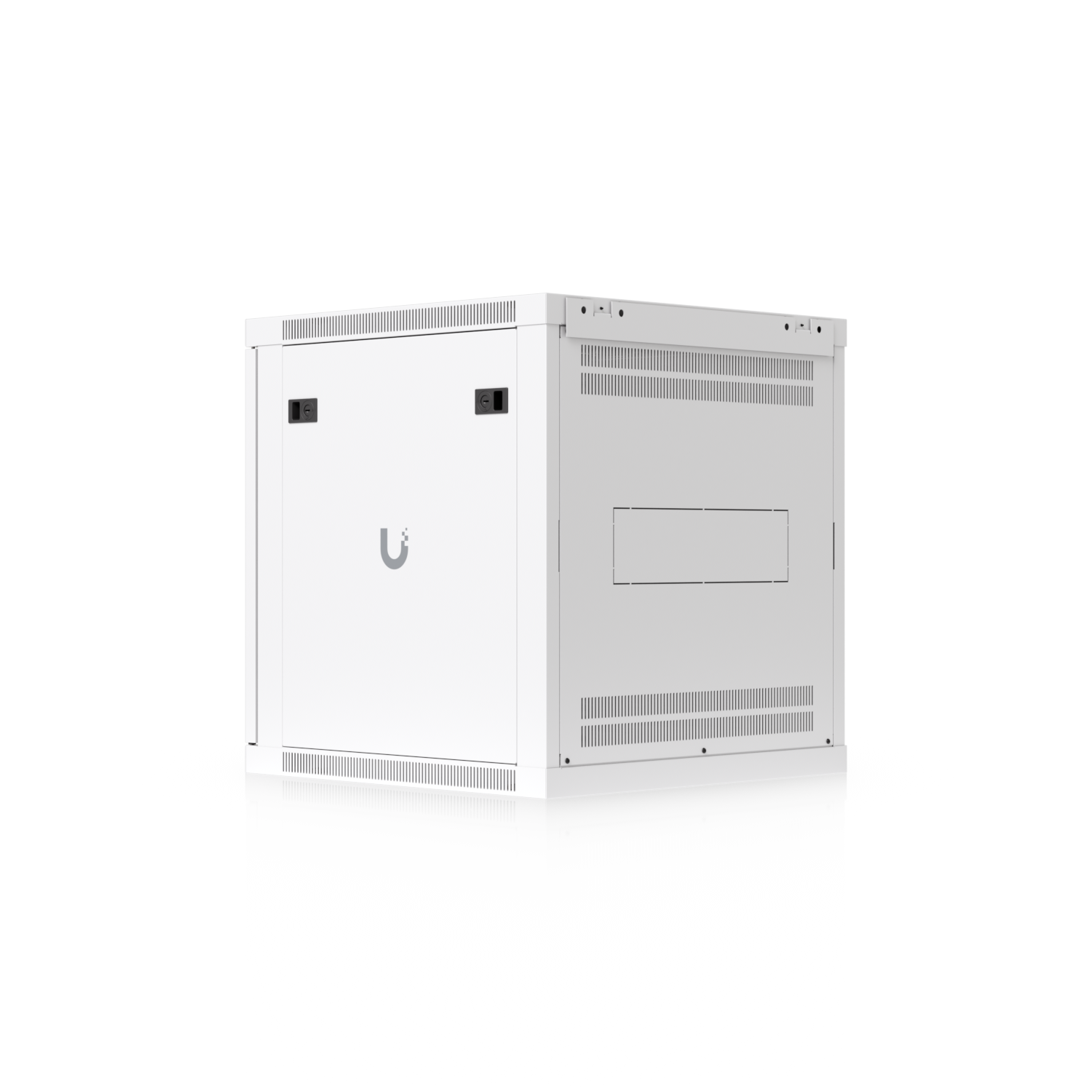

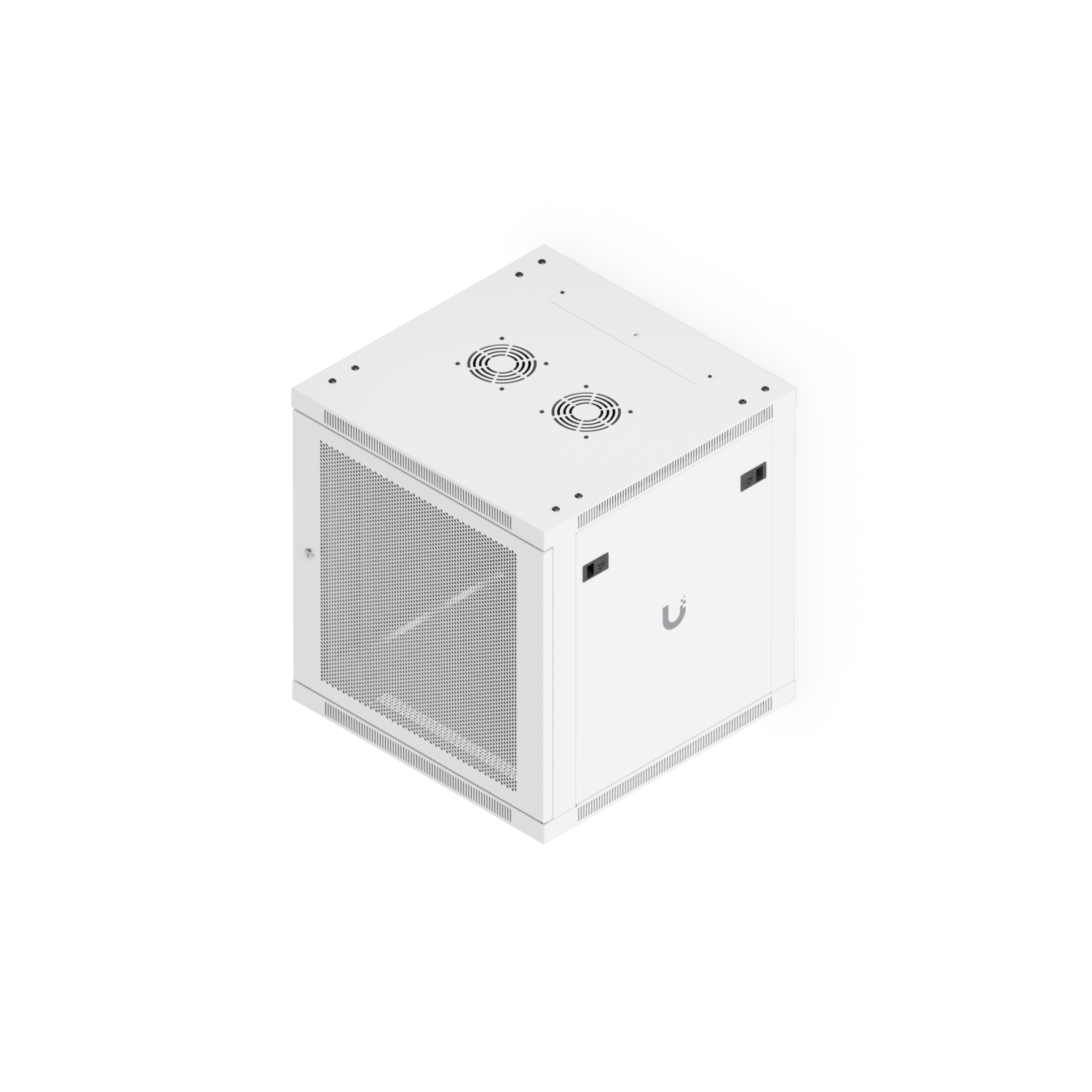

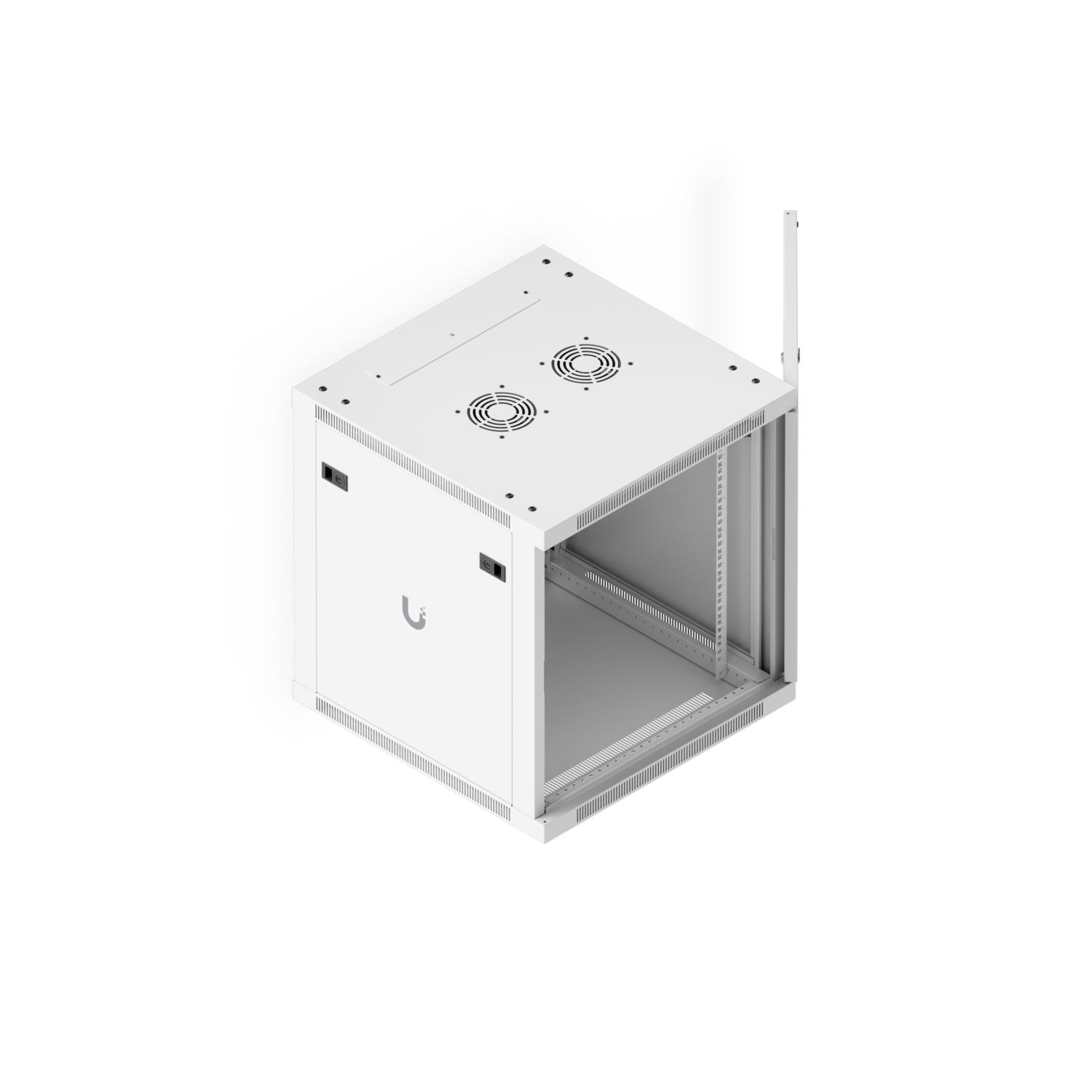

UniFi 12U Rack Cabinet, 600 mm, Perforated Door
Fullsamsettur veggfestur rekki með innbyggðum viftum og útdraganlegum spjöldum, hannaður fyrir auðvelt aðgengi að búnaði og pláss-nýtna uppsetningu í smærri stíl.
Athugasemd um sendingu: Vegna stærðar og þyngdar vörunnar getur afhending verið takmörkuð á tiltekin heimilisföng. Þessi rekki er sendur fullsamsettur og getur þurft viðbótar meðhöndlun og vinnslutíma fyrir sendingu.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Packaging: 740 x 730 x 735 mm (29.1 x 28.7 x 28.9") Rack: 598 x 600 x 639 mm (23.5 x 23.6 x 25.2") |
|---|---|
| Weight | Packaging: 31.8 kg (70.1 lb) Rack: 26.4 kg (58.2 lb) |
| Enclosure Material | SPCC steel Door/side panels: 1.2 mm (0.05") Main body: 1.2 mm (0.05") Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features: U Height | 12U |
| Rack Features: Rack Type | 4 post, enclosed cabinet |
| Rack Features: Mounting Hole Type | Square |
| Rack Features: Adjustable Mounting Depth | Default 448 mm (17.6") Max. 508 mm (20") Adjustable pitch 20 mm (0.8") |
| Rack Features: Max. Weight Capacity | 80 kg (176 lb) |

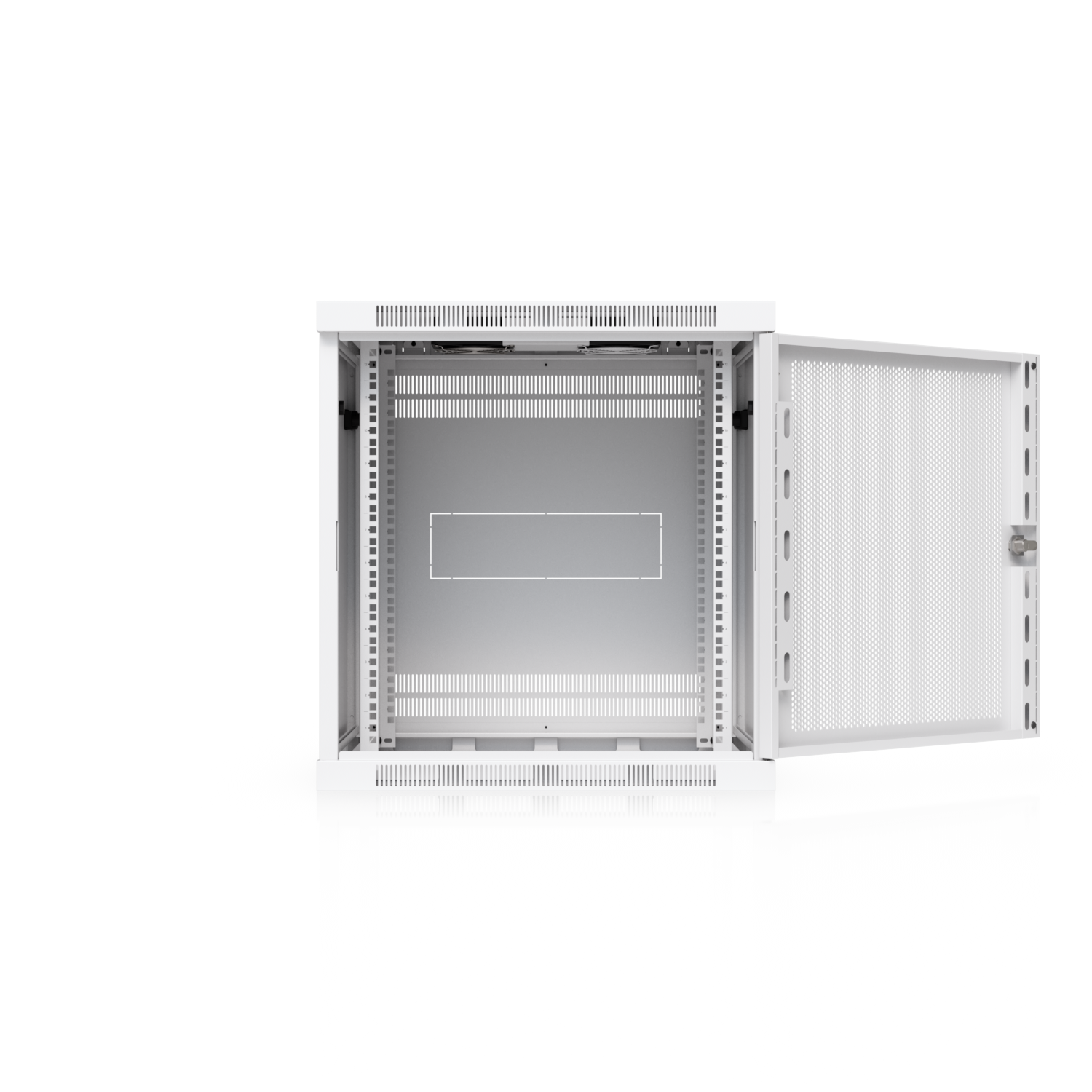

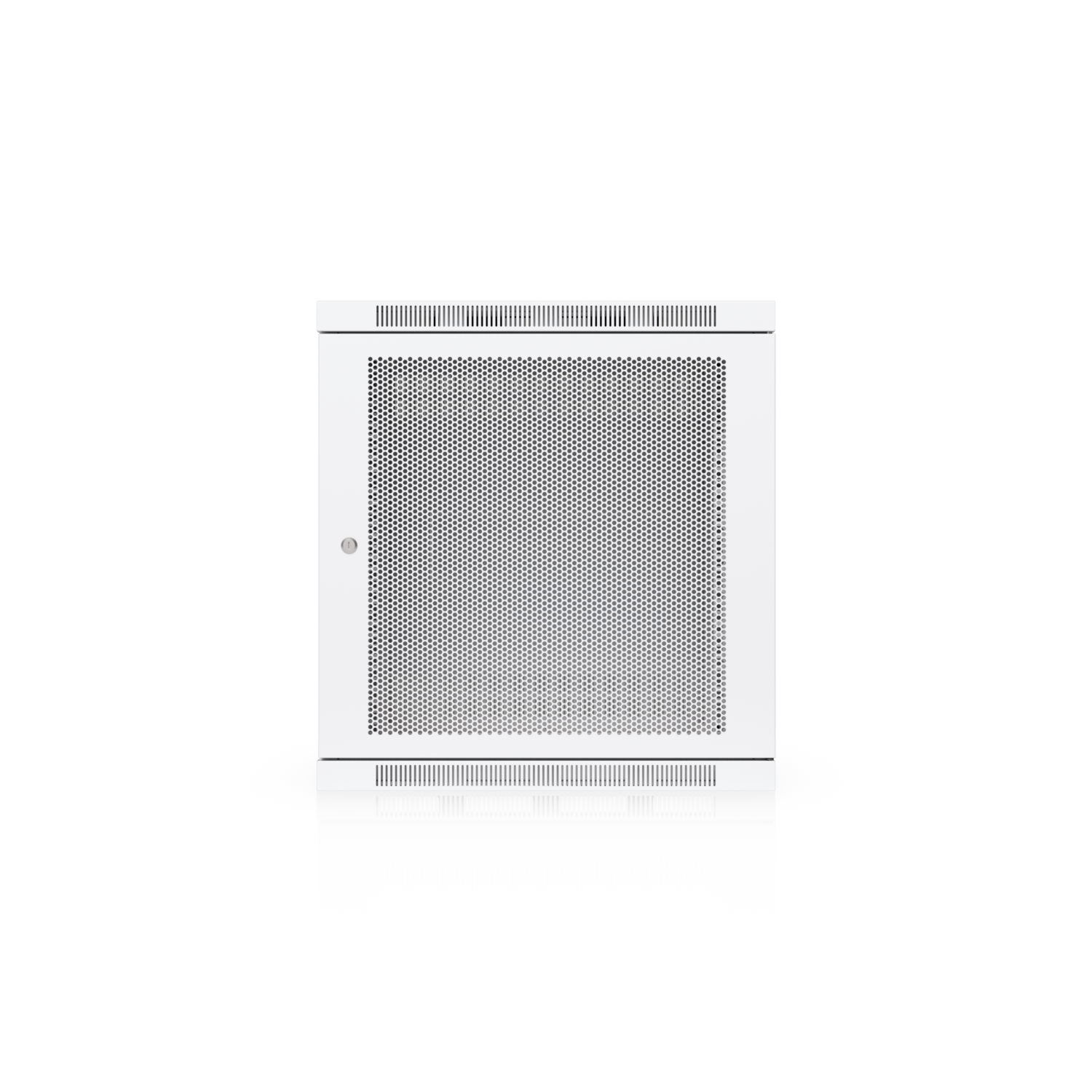

| Rack Features: Front Door | Perforated Default left-hand outswing, reversible |

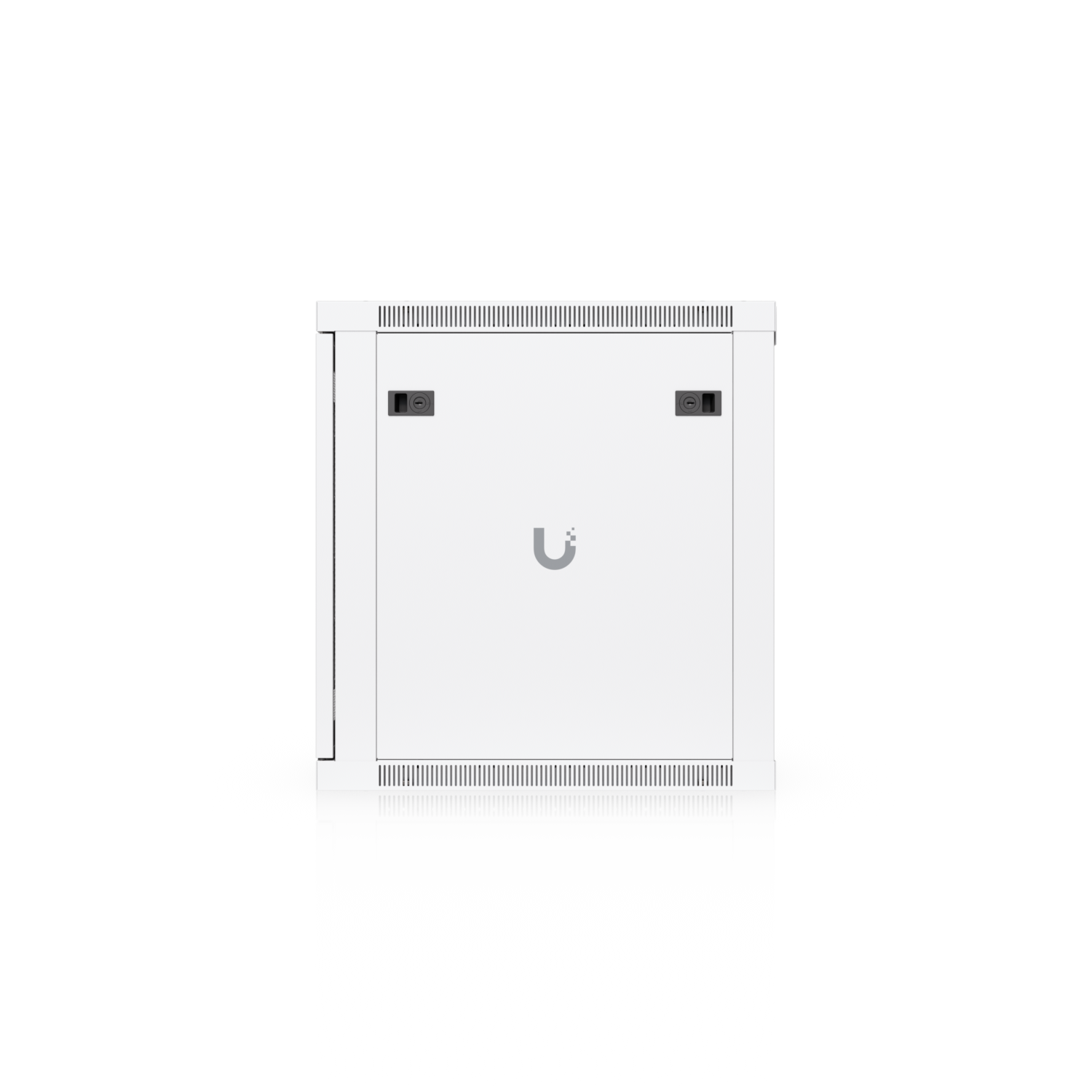

| Rack Features: Side Panels | (2) Solid, removable and lockable |
| Rack Features: Mounting | Wall mount |

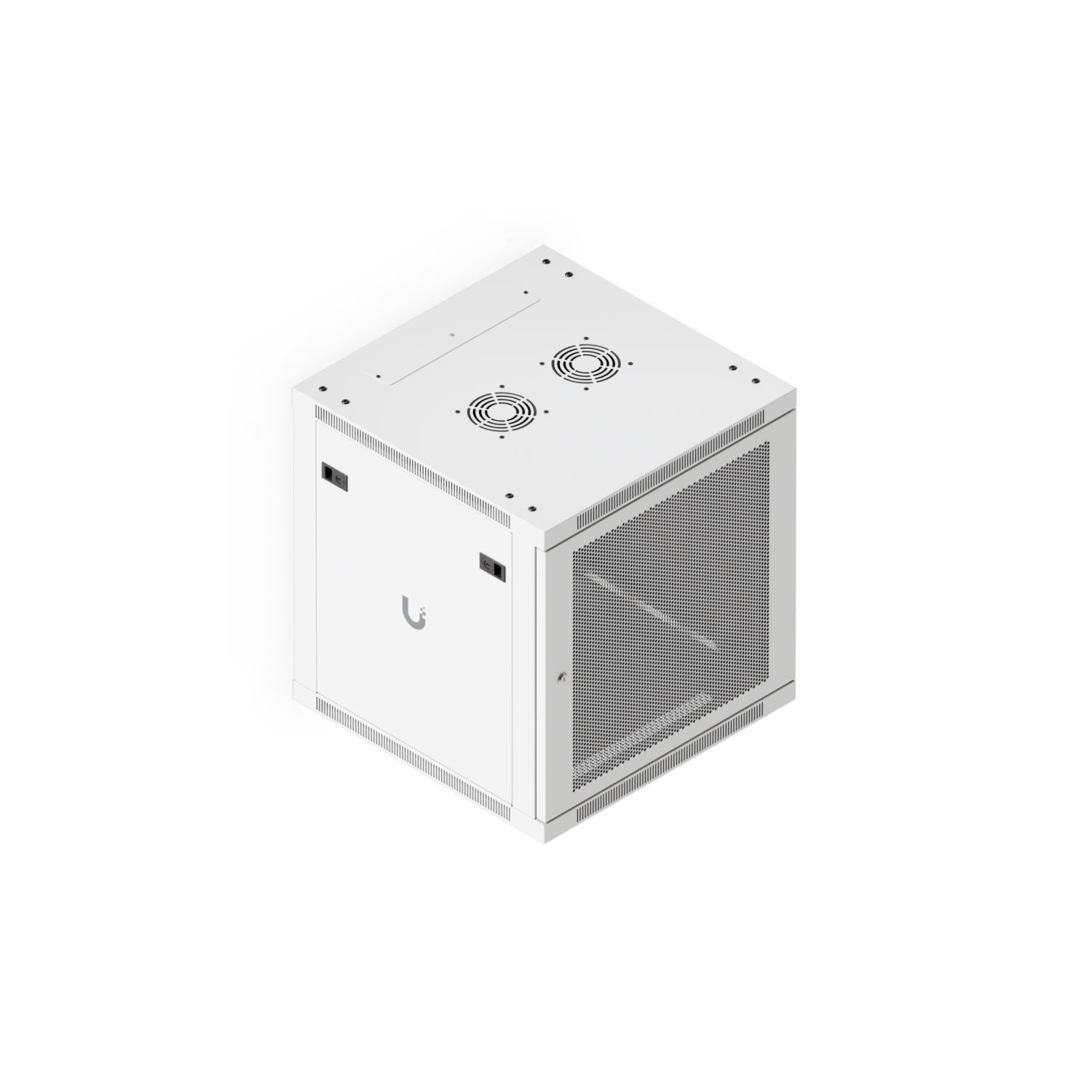

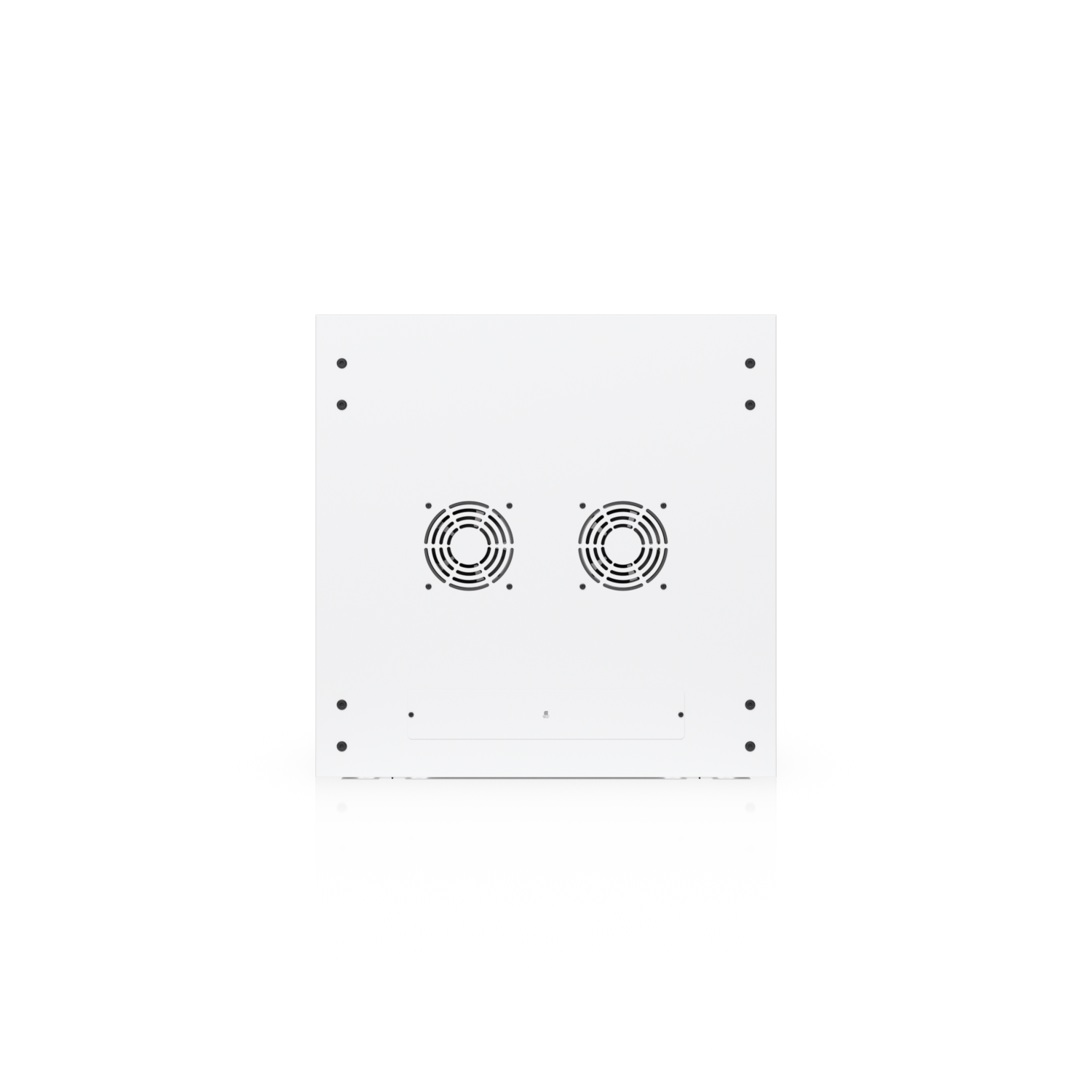

| Rack Features: Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units (Input voltage: Region-specific; 110–120V AC for US models, 220–240V AC for EU models) |
| Rack Features: Acoustic Noise | ≤ 50 dB(A) sound pressure level (Measured at 1 m in front of the enclosure, with cabinet empty (no installed equipment), under nominal fan operating conditions per ISO 7779) |
| Rack Features: Grounding Lugs | Yes (Pre-installed) |

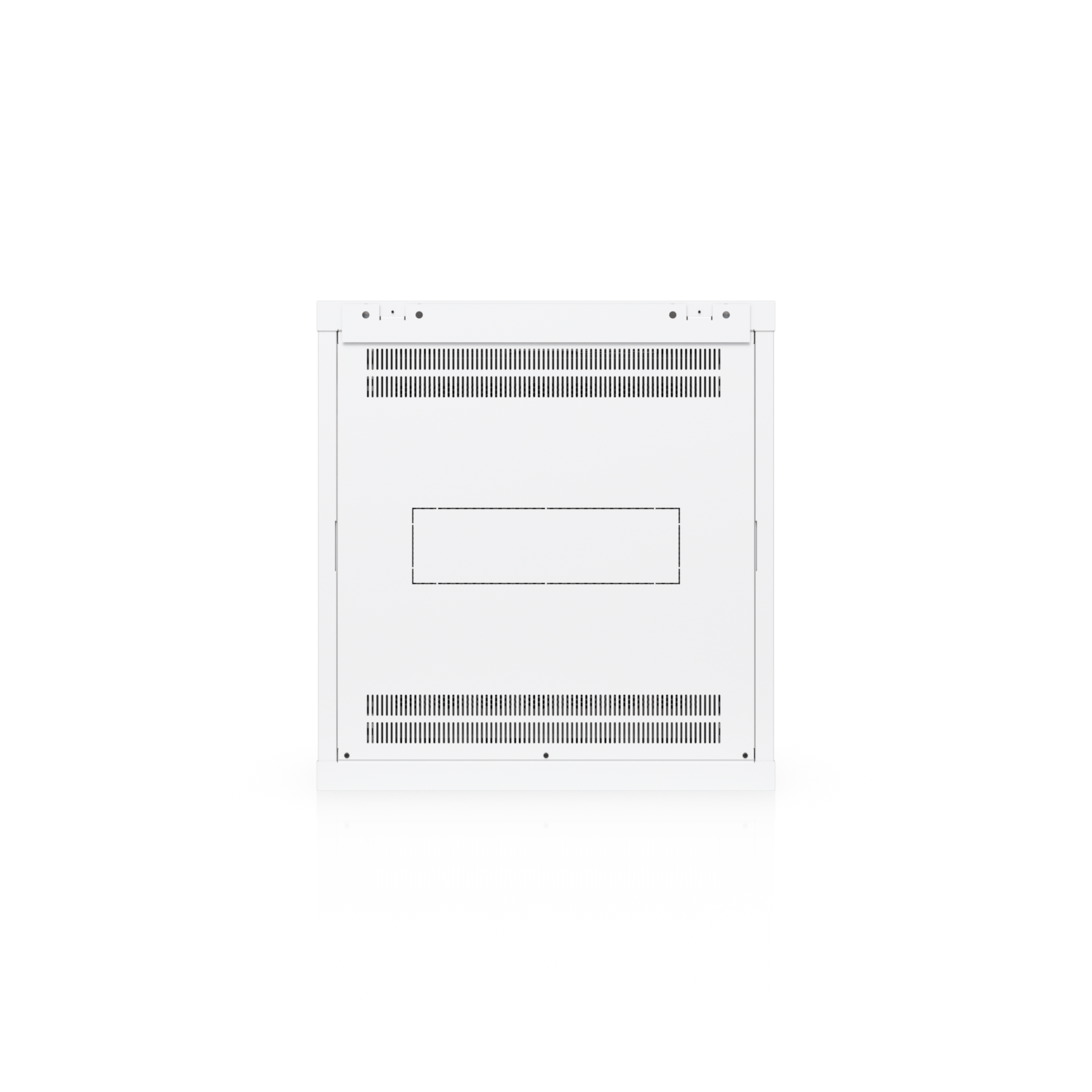

| Rack Features: Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Rack Features: Security | (1) Front door lock (4) Side panel locks (2) Keys |
| Rack Features: Standard | CE; EIA/ECA-310-E; RoHS |
| NDAA Compliant | Yes |
