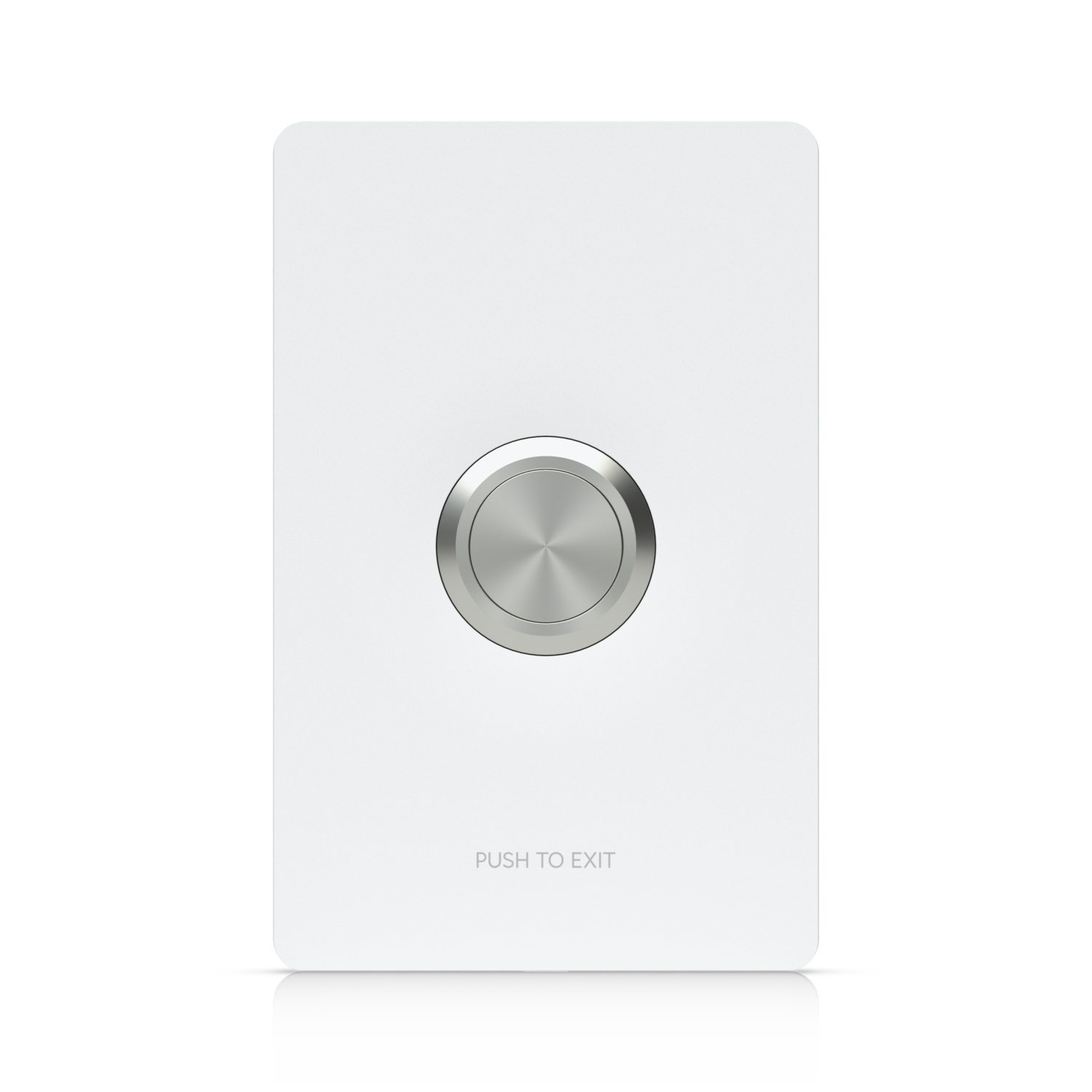

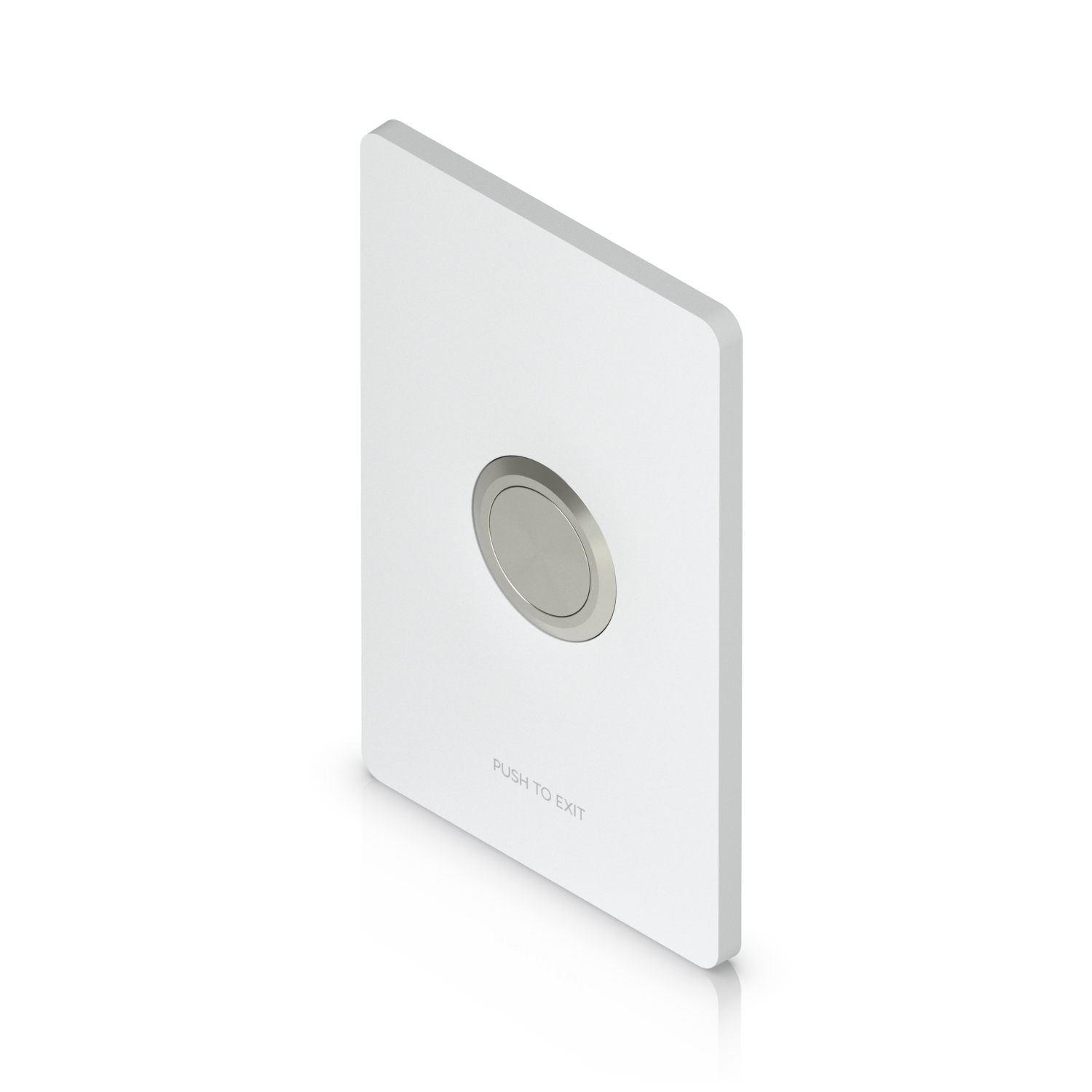

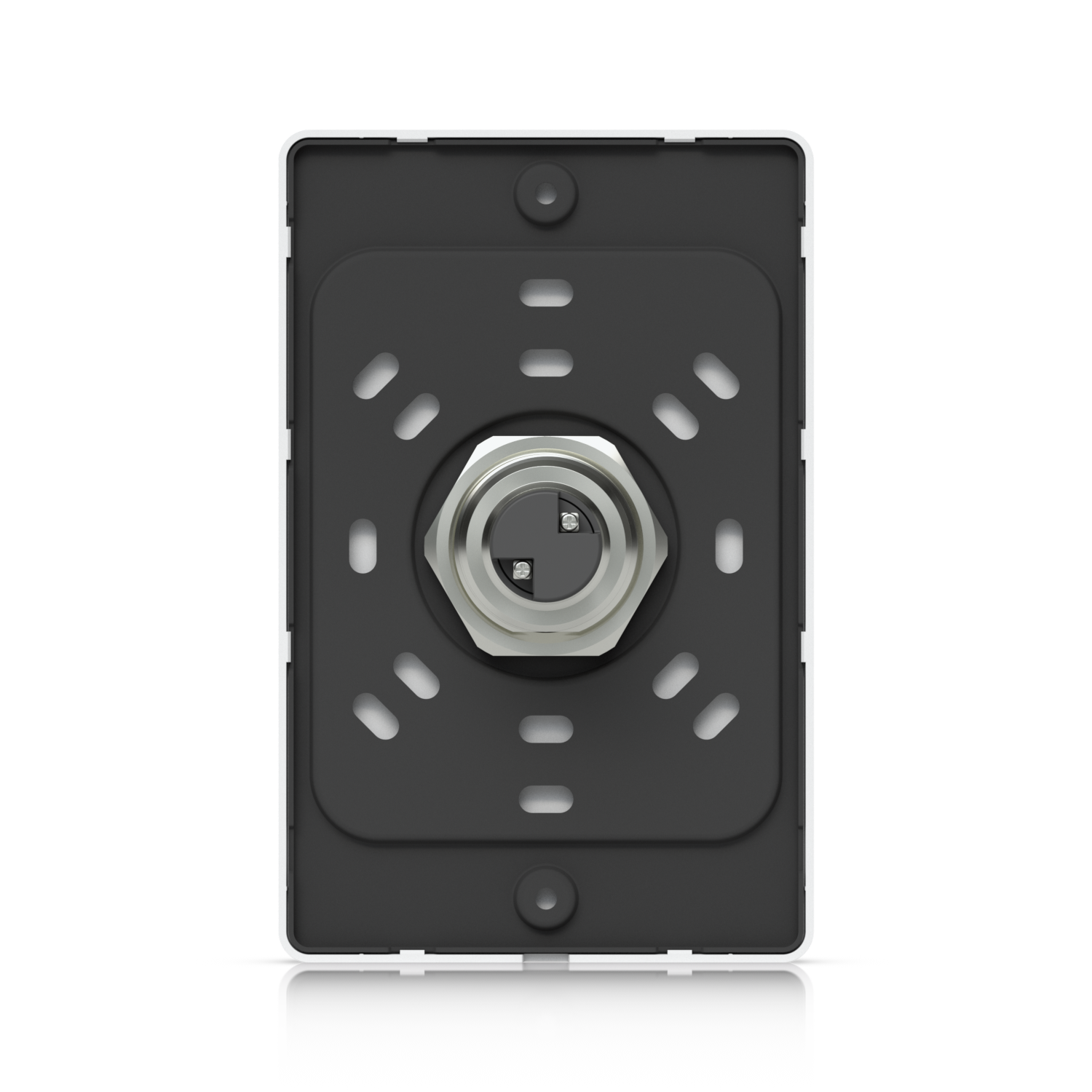

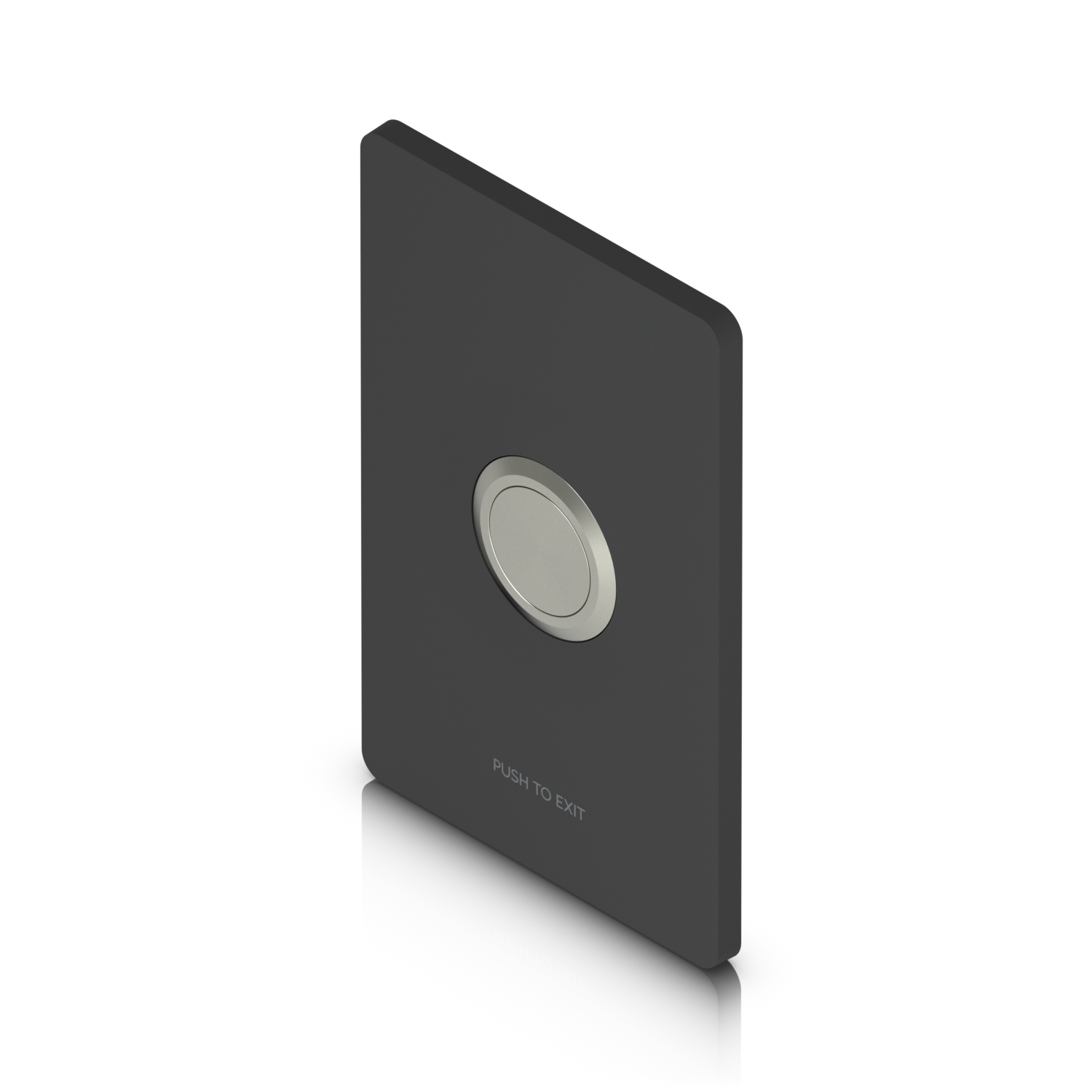

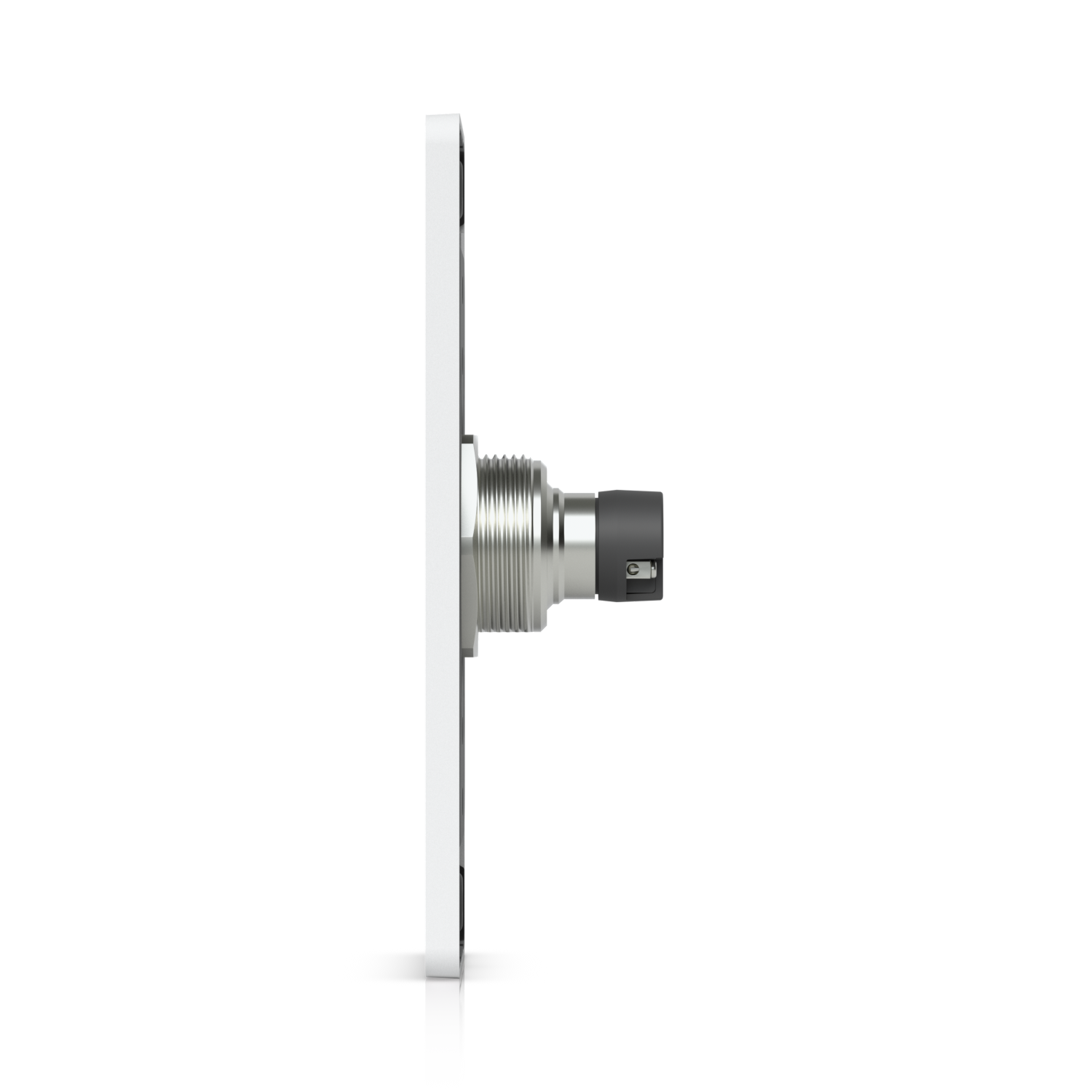

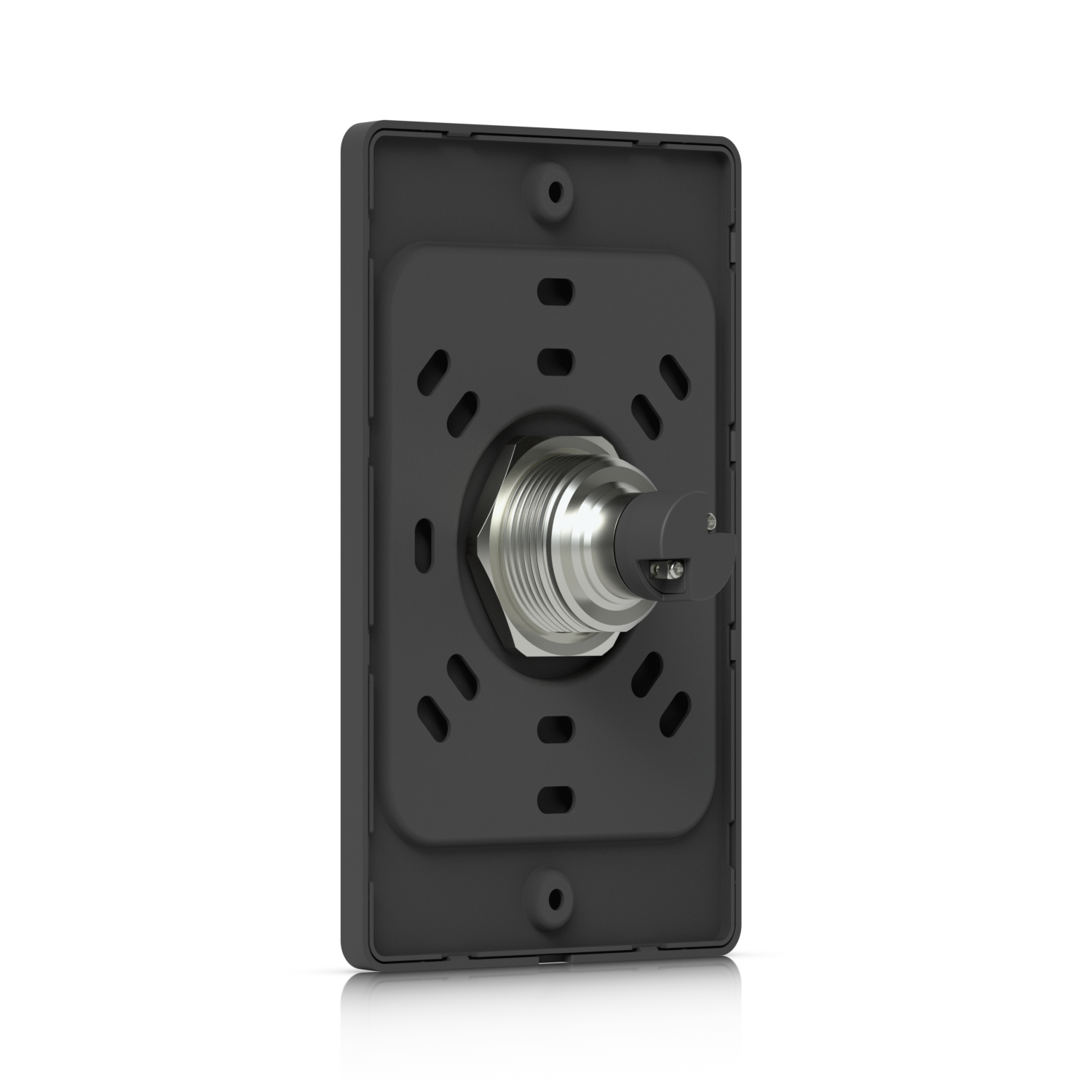

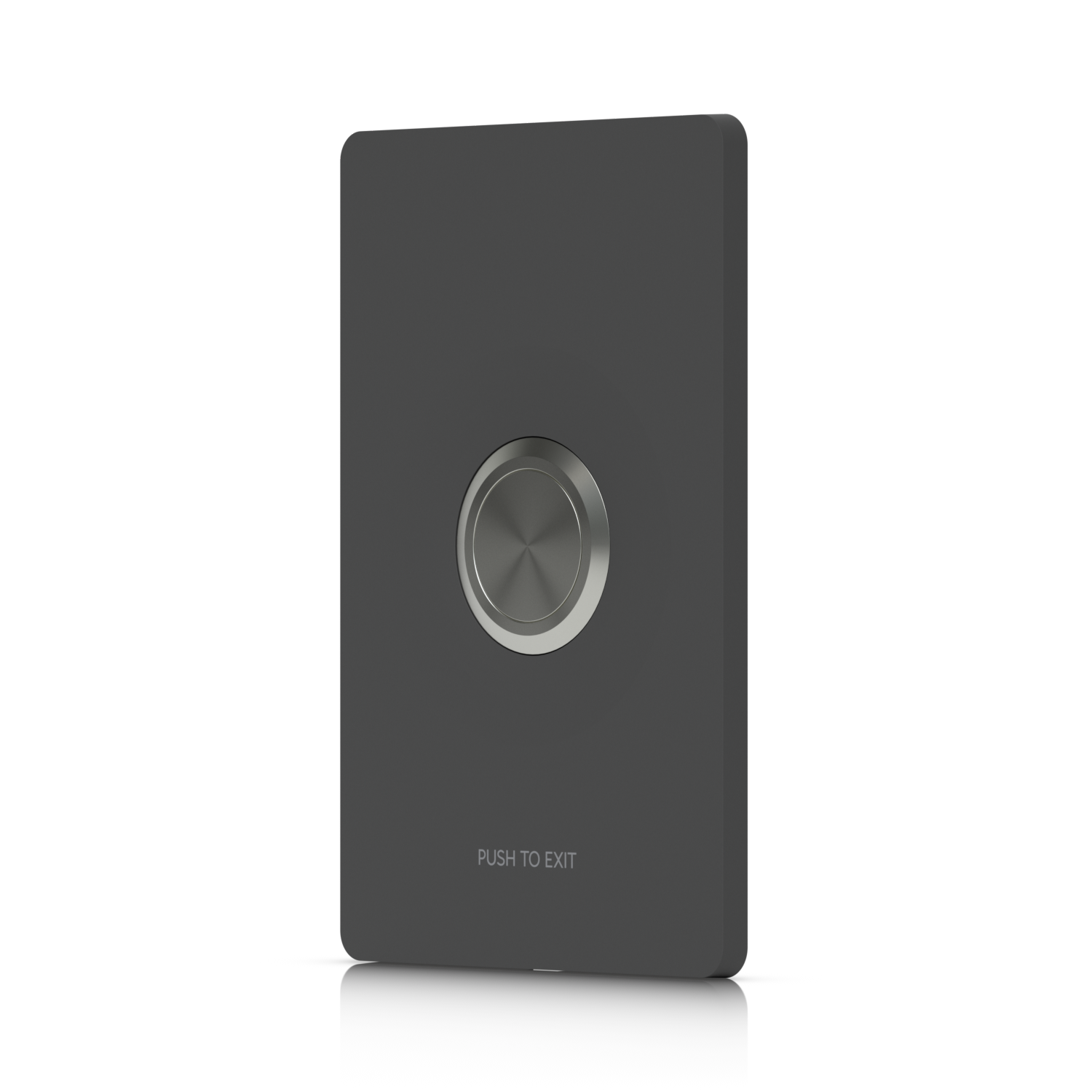

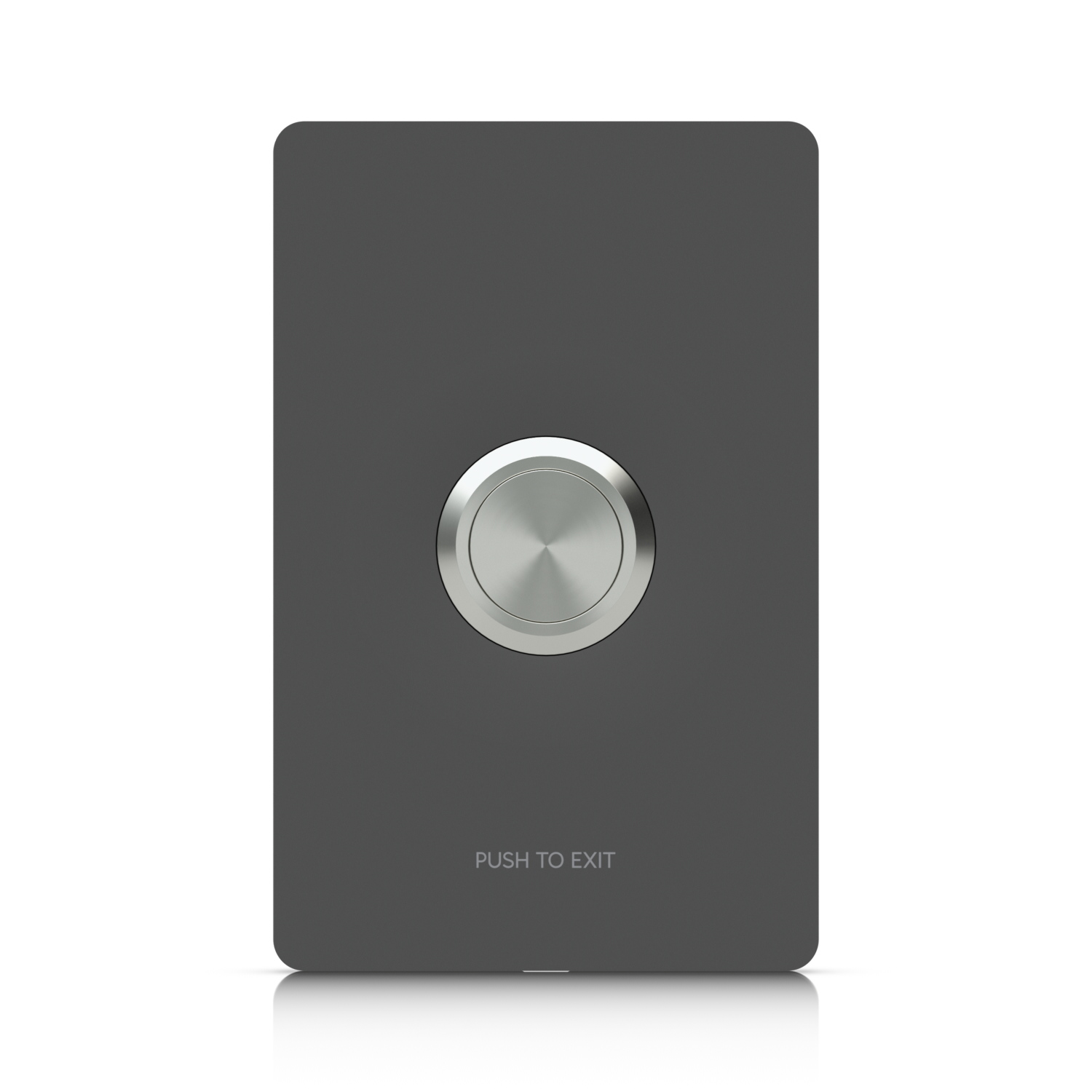

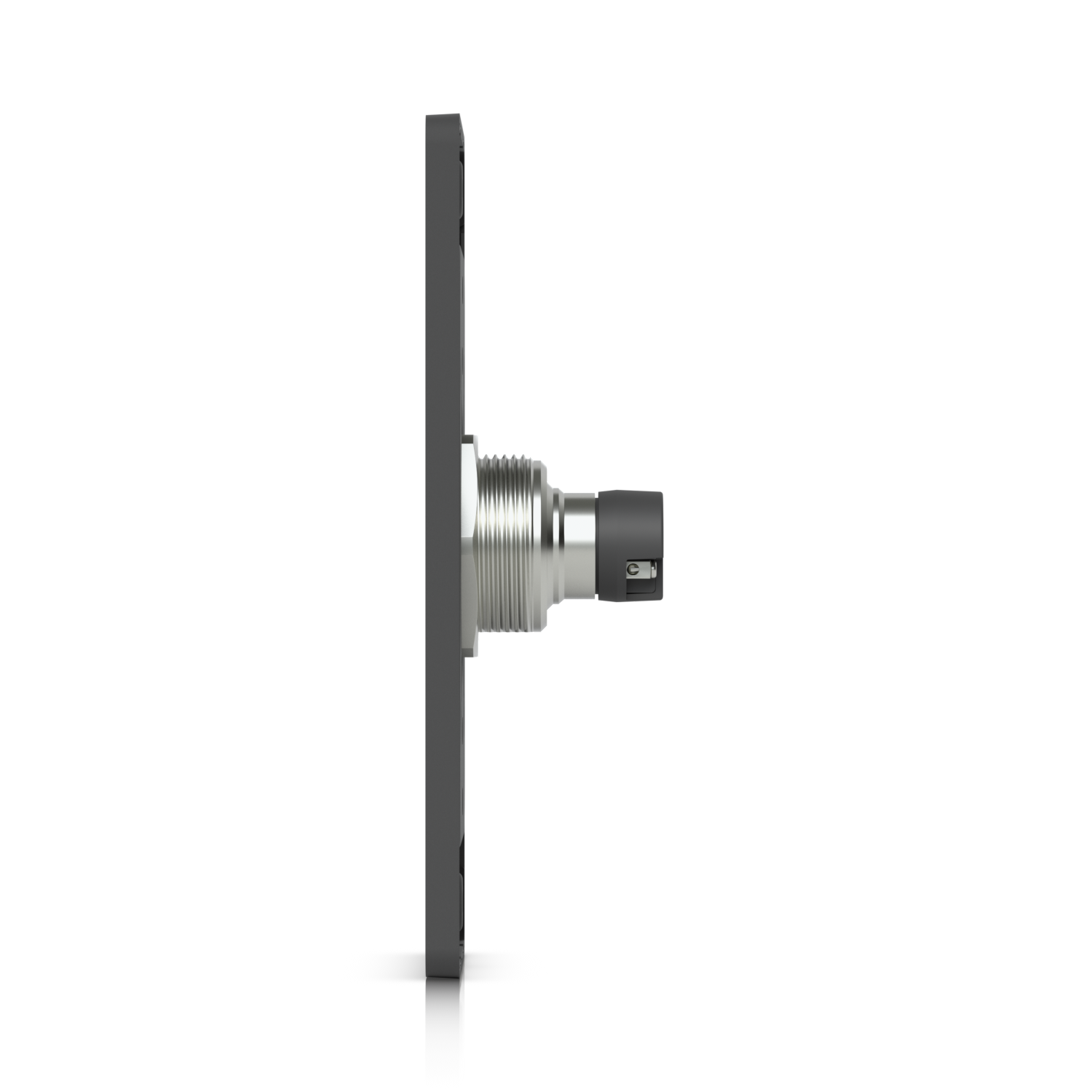

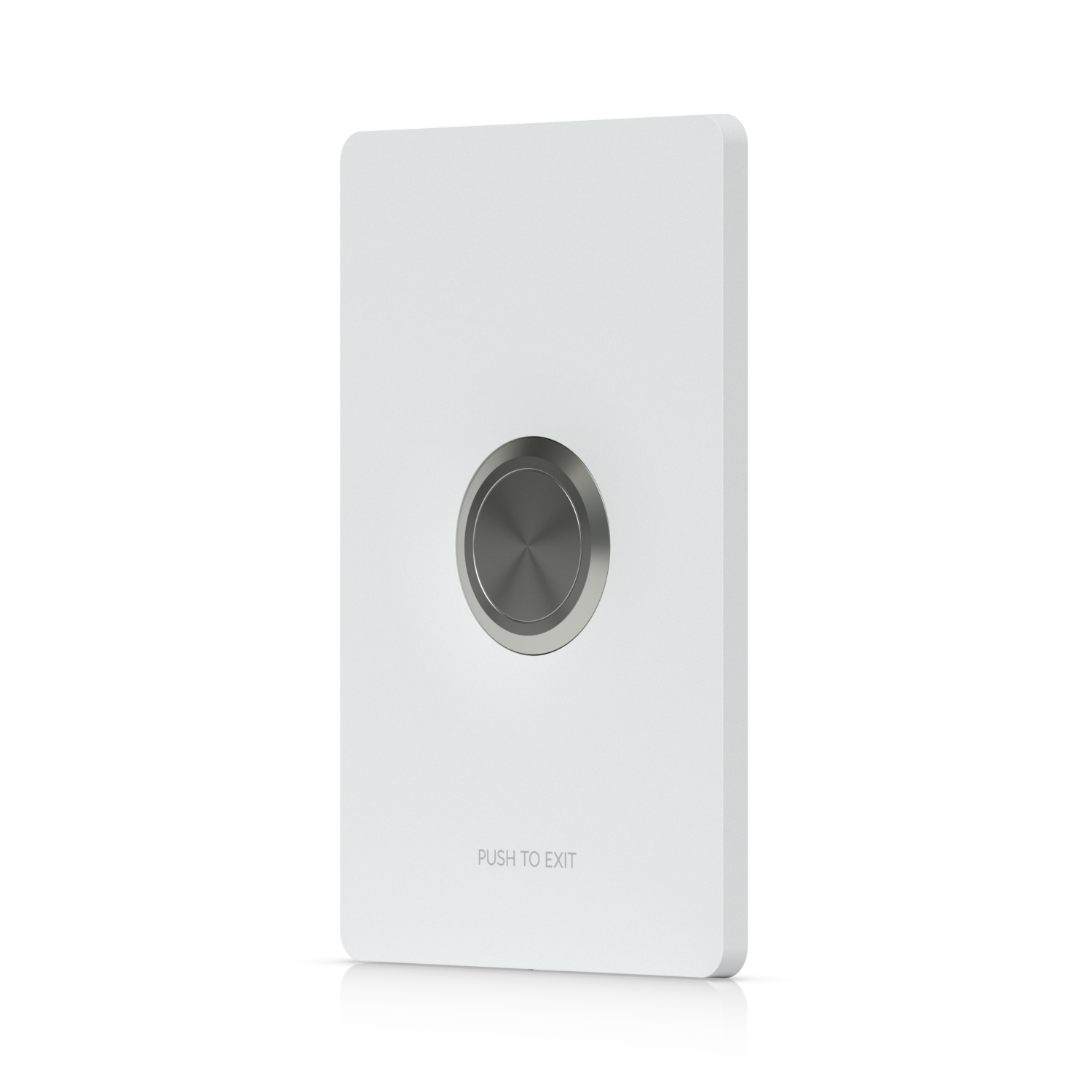

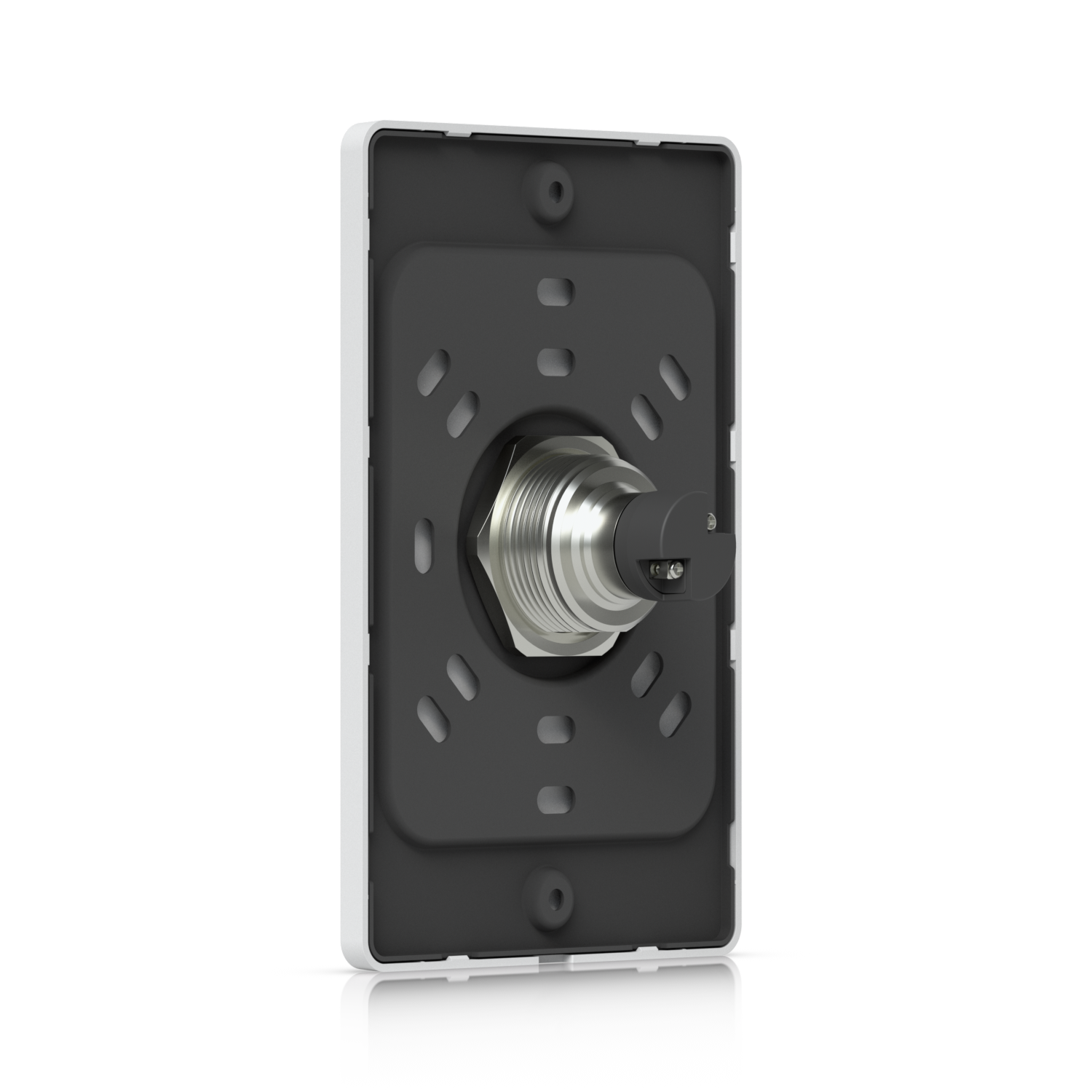

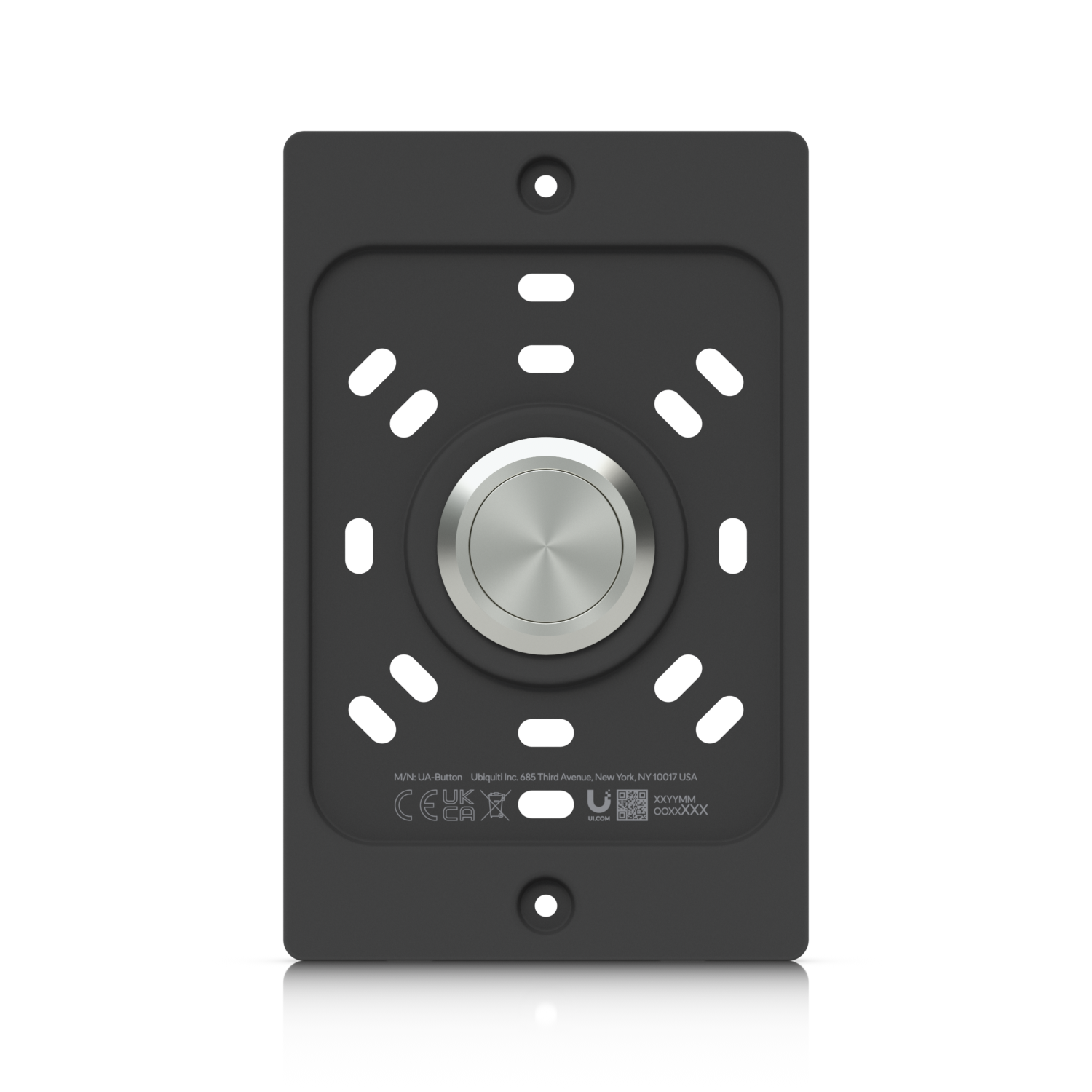

UniFi Access Button
Útgöngutakki (push-to-exit) hannaður fyrir UniFi Access Hubs.
- Fylgir með svartri og hvítri framplötu
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5") |
|---|---|
| Weight | 180 g (6.3 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate, SGCC steel |
| Available Colors | Black, white |
| Indoor and Outdoor Use | Indoor only |
| Mechanical Life | 1,000,000 clicks |
| Power Method | UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Contact Type | (1) Normal open |
| Contact Rating | 30V DC, 2A |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Document number, and issue date and/or revision level | UA-Button, V01 |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Storage Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, UL 294, CAN/ULC-60839-11-1 |
