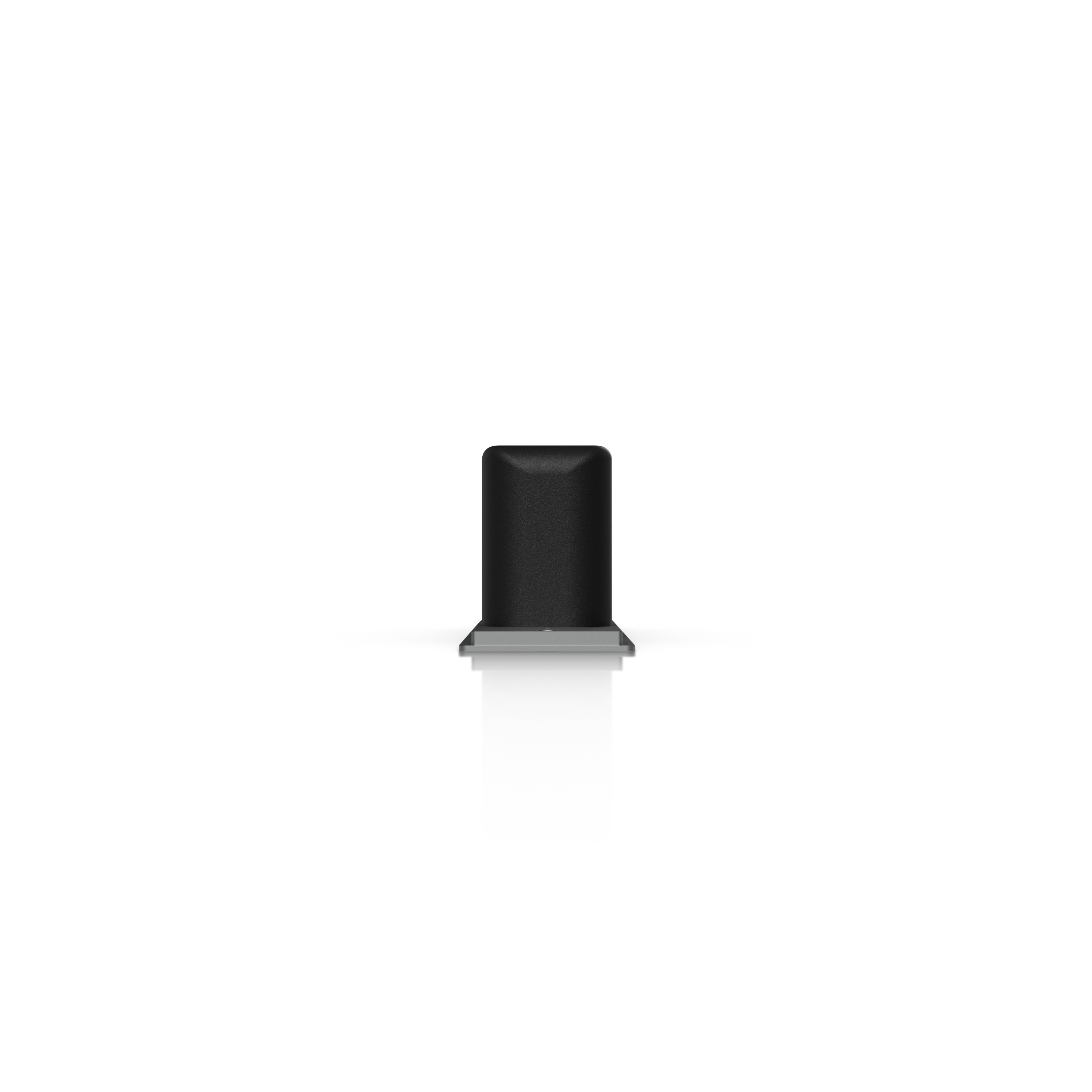

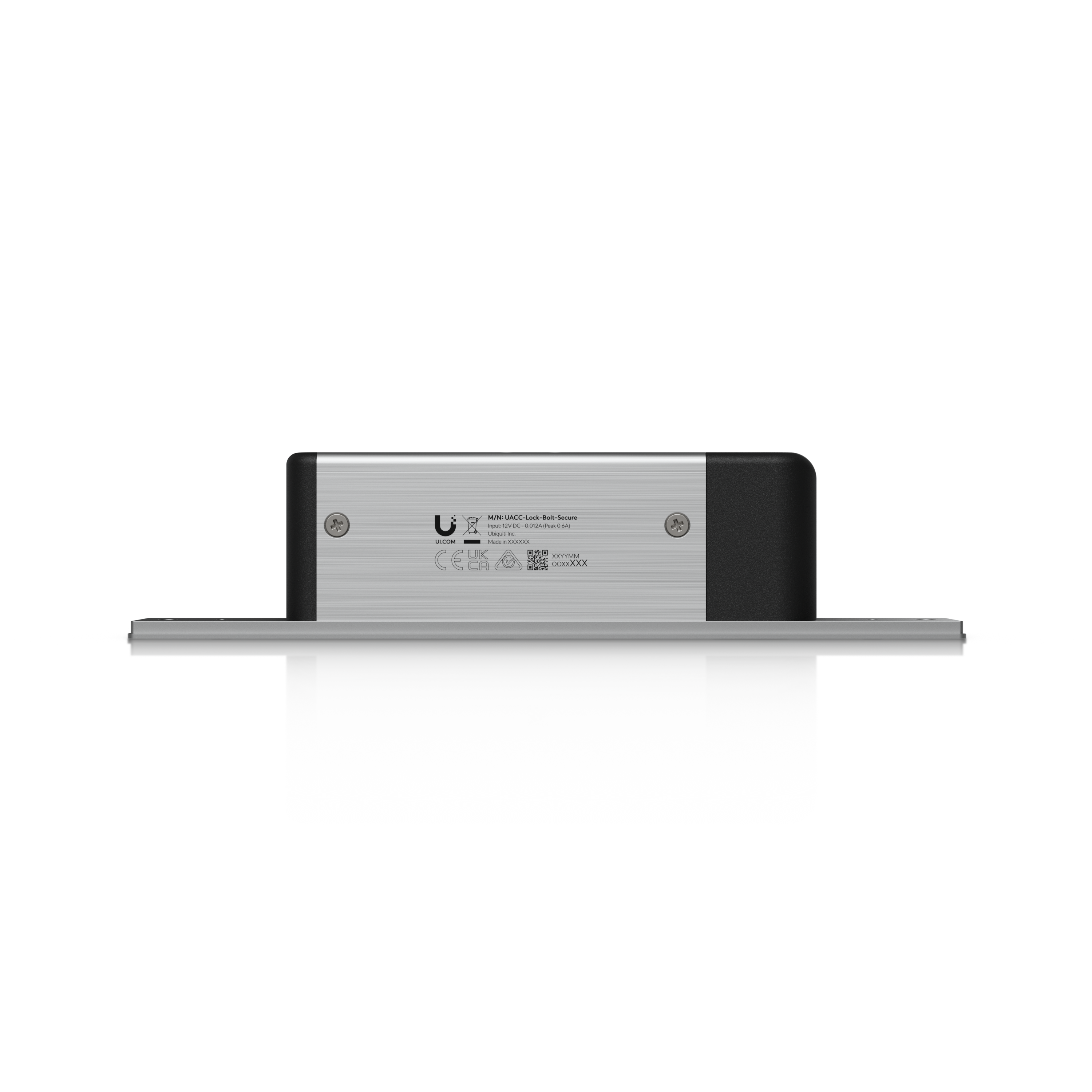

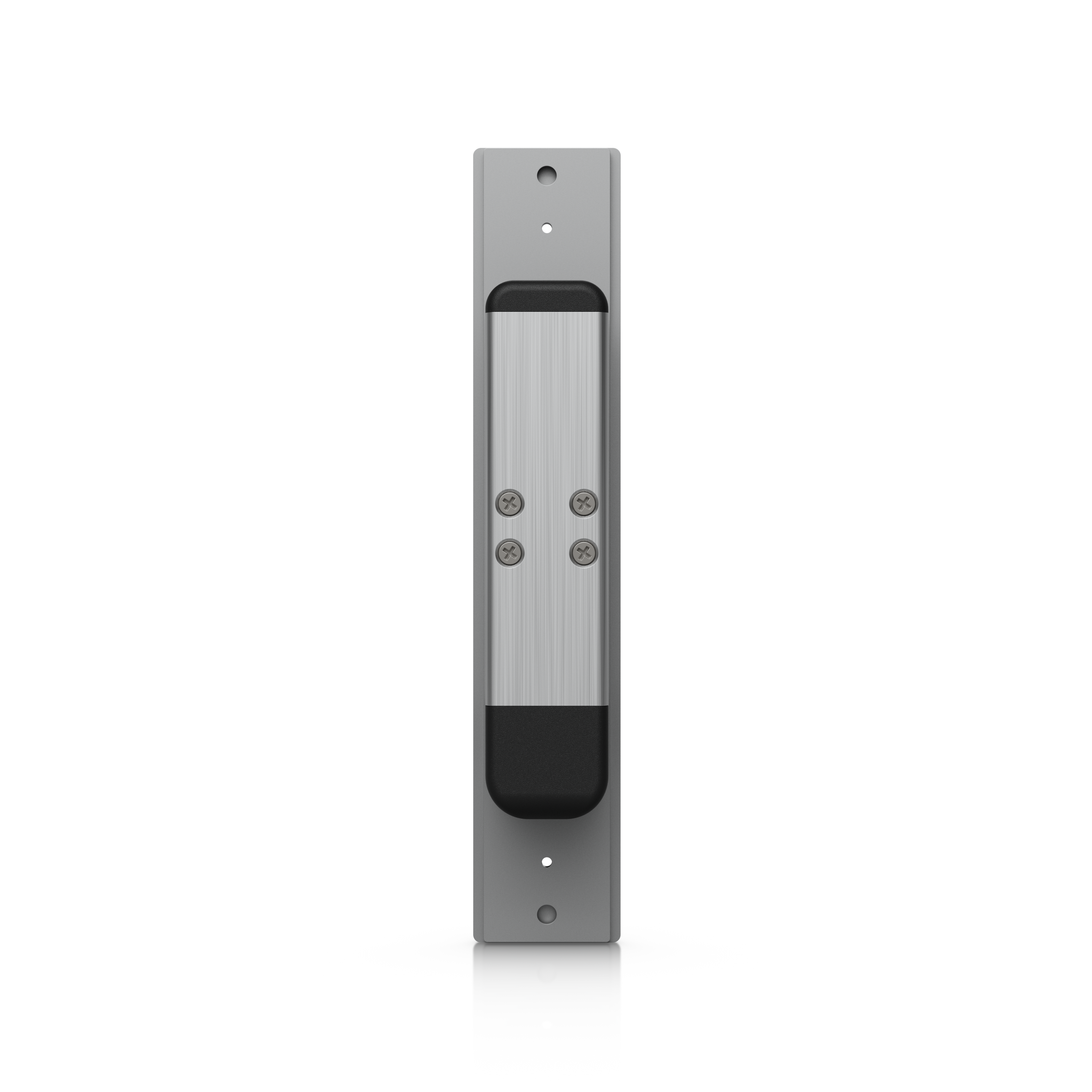

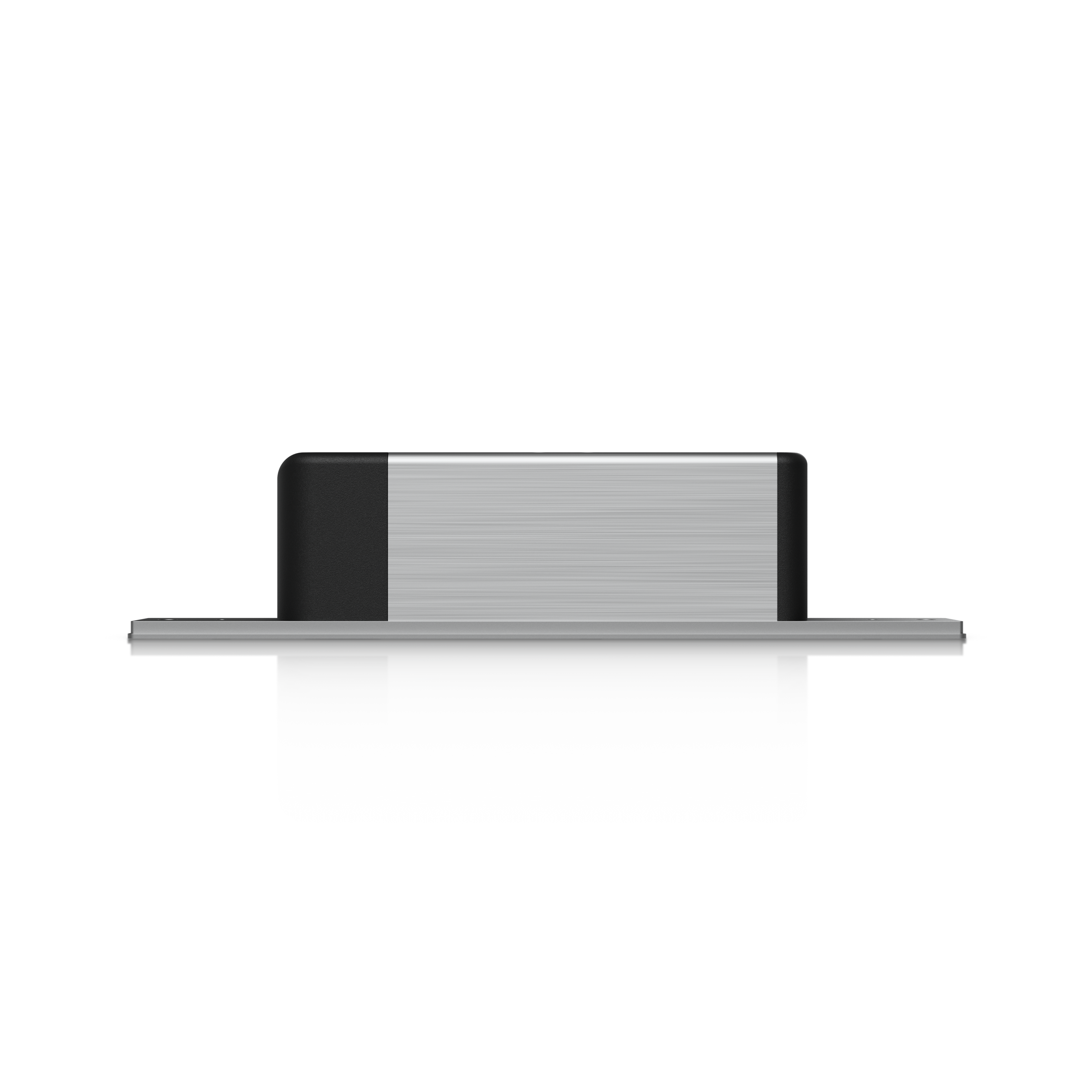

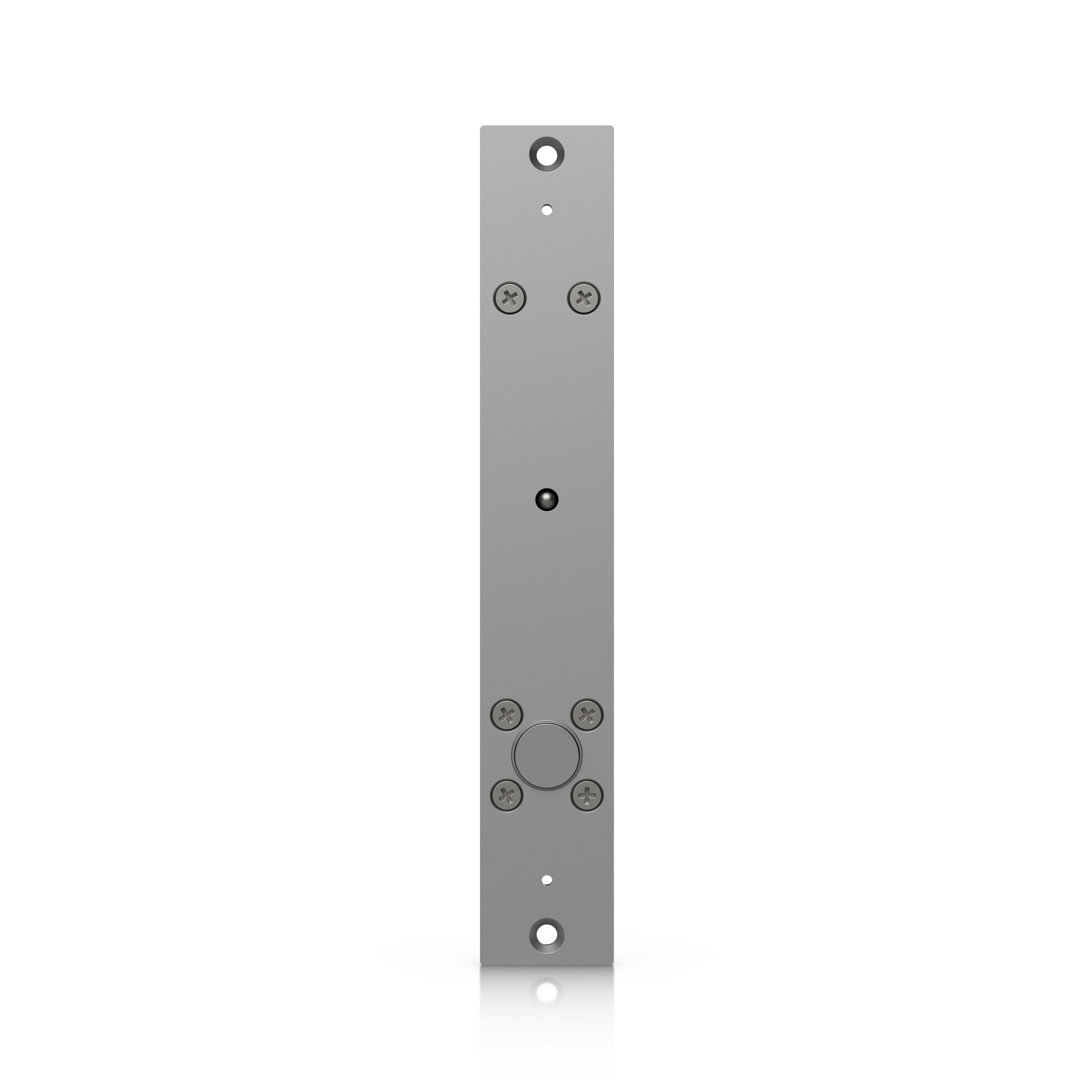

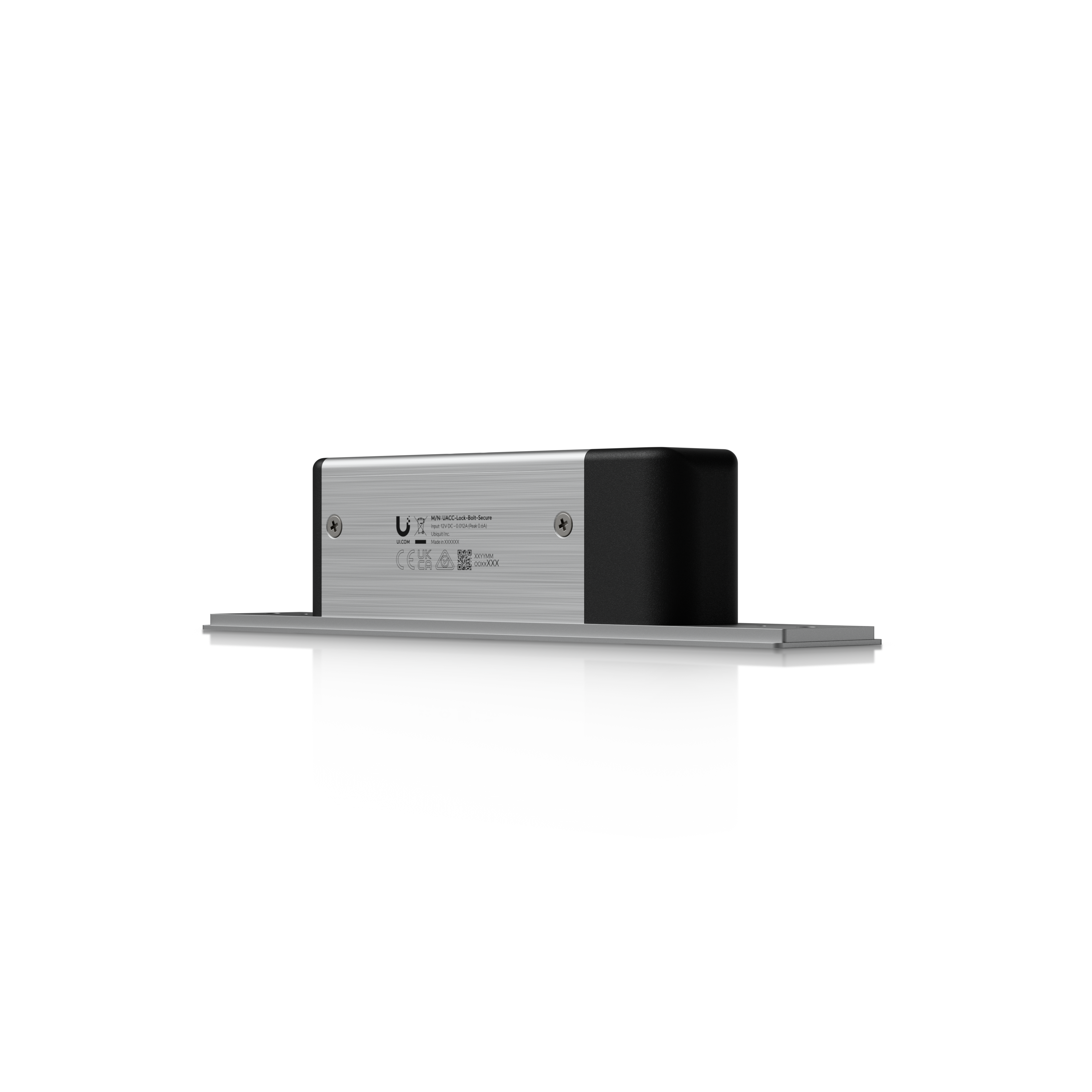

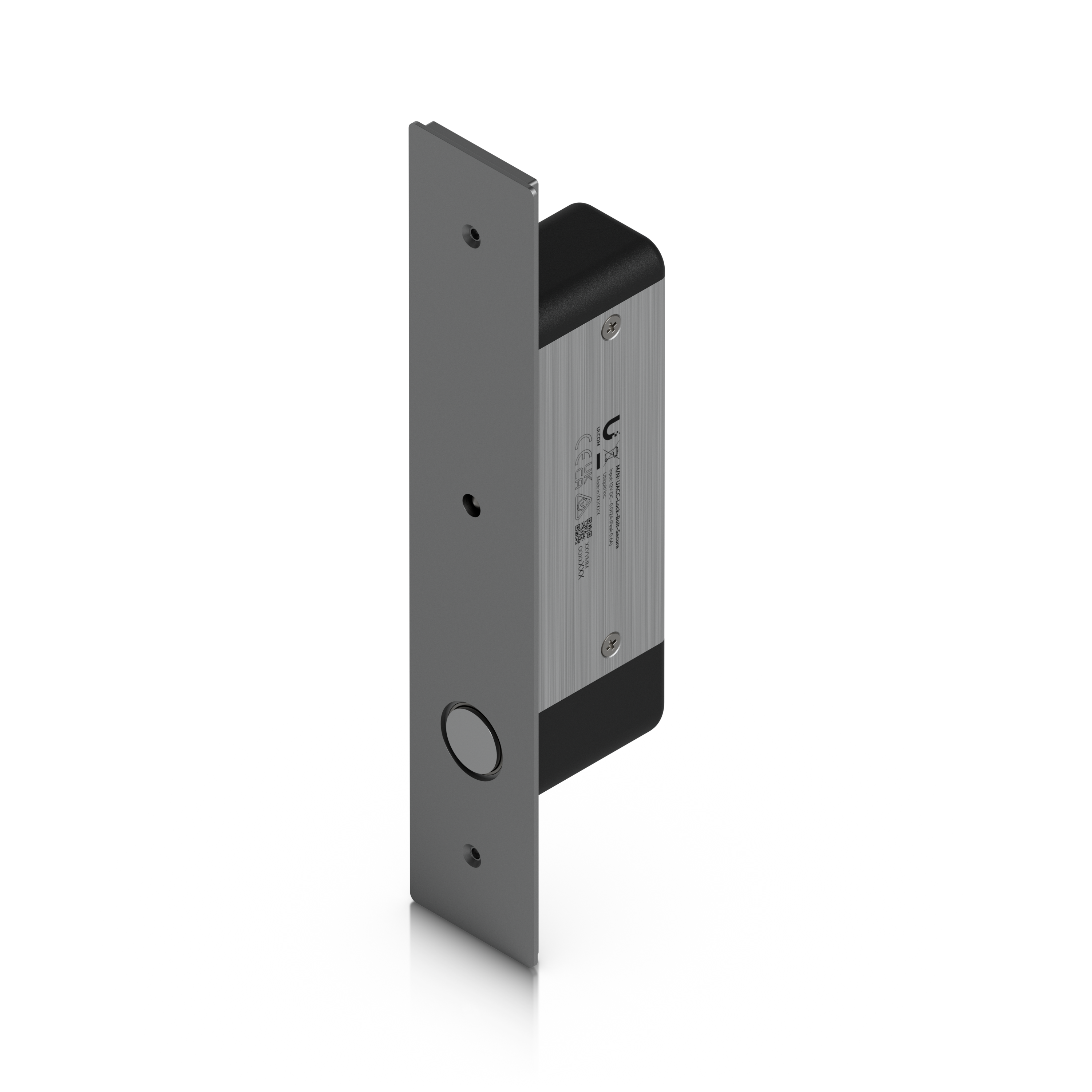

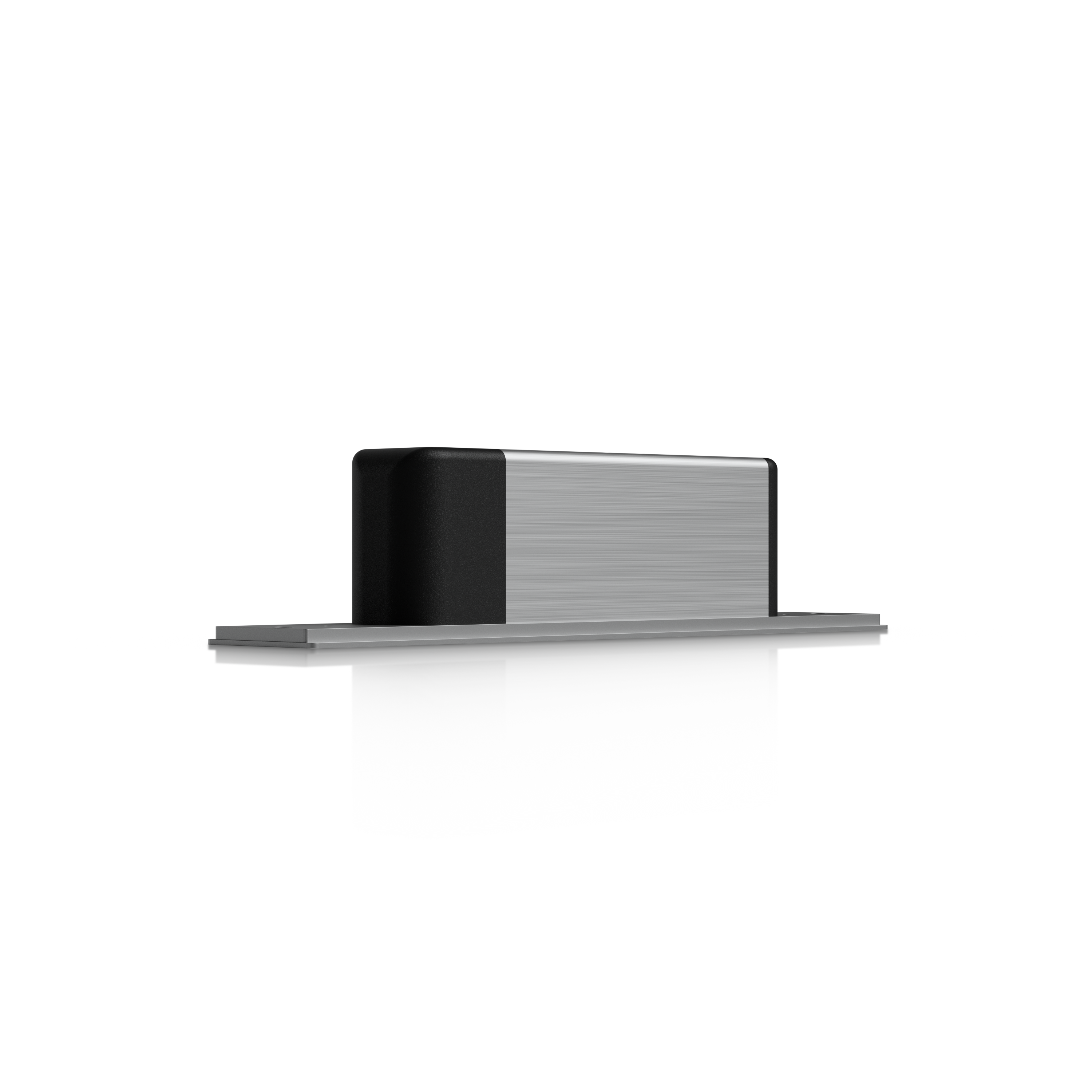

UniFi Access Fail-Secure Bolt Lock
Fail-secure rafmagns fallbolti (drop bolt) læsing.
Athugið. Hannað fyrir NO/COM/NC relay tengingu með UniFi Access Hub.
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1") |
|---|---|
| Weight | Lock body: 350 g (12.3 oz) Door frame plate: 22 g (0.7 oz) Door plate: 46 g (1.6 oz) |
| Enclosure Material | Lock body: aluminum alloy Door frame plate/Door plate: aluminum alloy |
| Lock Features: Lock Type | Fail secure |
| Lock Features: Support Door Type | Single door (Wooden/metal) |
| Lock Features: DPS | Embedded |
| Lock Features: Current Power | Max. 900mA |
| Lock Features: Support Voltage Range | 12V DC ±10% |
| Lock Features: Wiring | (1) Lock 12V/NO (red) (1) Lock 12V/COM (black) (1) Lock 12V/NC (blue) (1) DPS/- (white) (1) DPS/+ (orange) |
| Lock Features: Mounting | Door frame recess mount |
| Lock Features: LED Indicator | Red: locked Green: unlocked & power indicator |
| Door Status Contact: Type | Dry contact |
| Door Status Contact: Logic | Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Door Status Contact: Rating | Max. 30V DC, 0.5A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
Engin skjöl skráð á þessa vöru.
