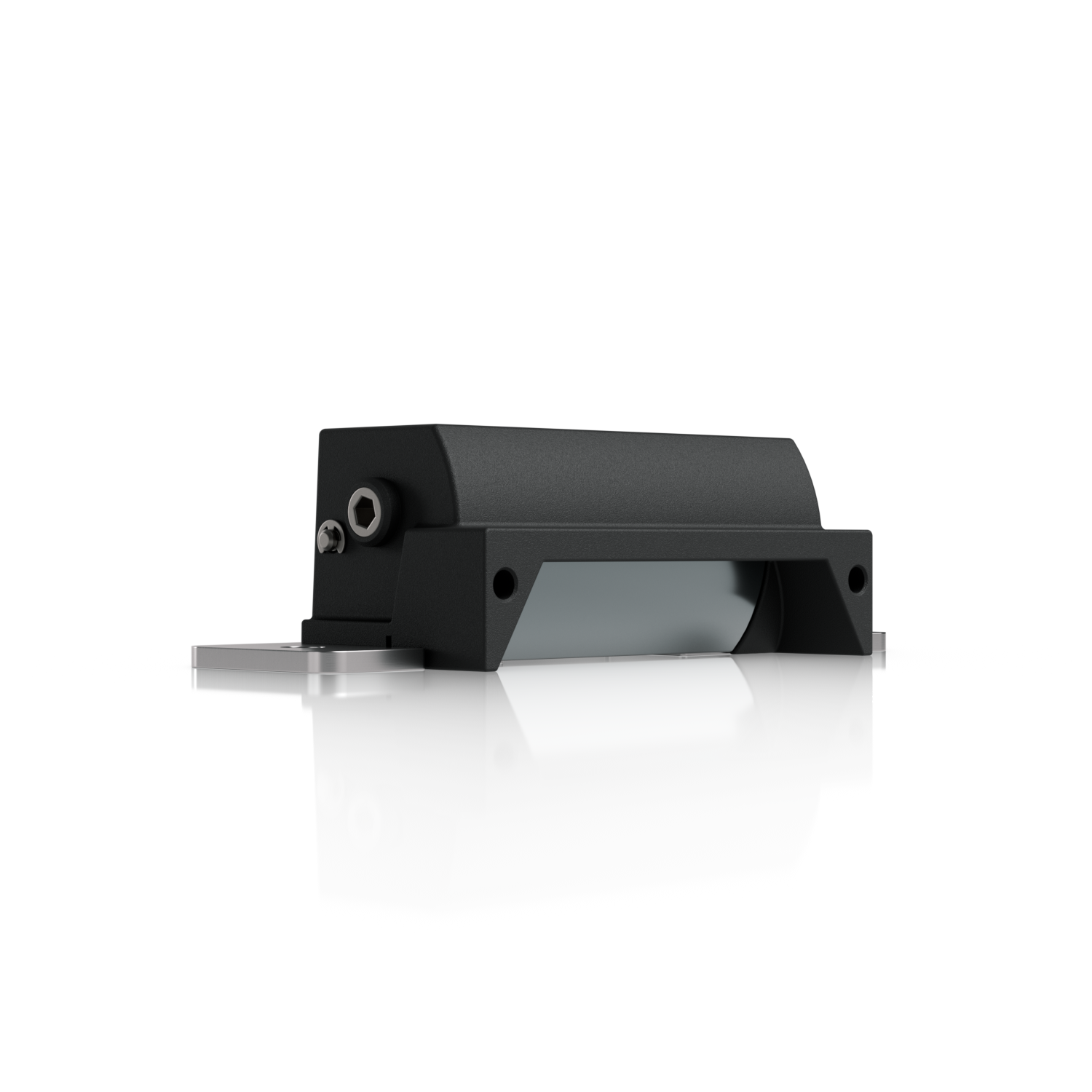

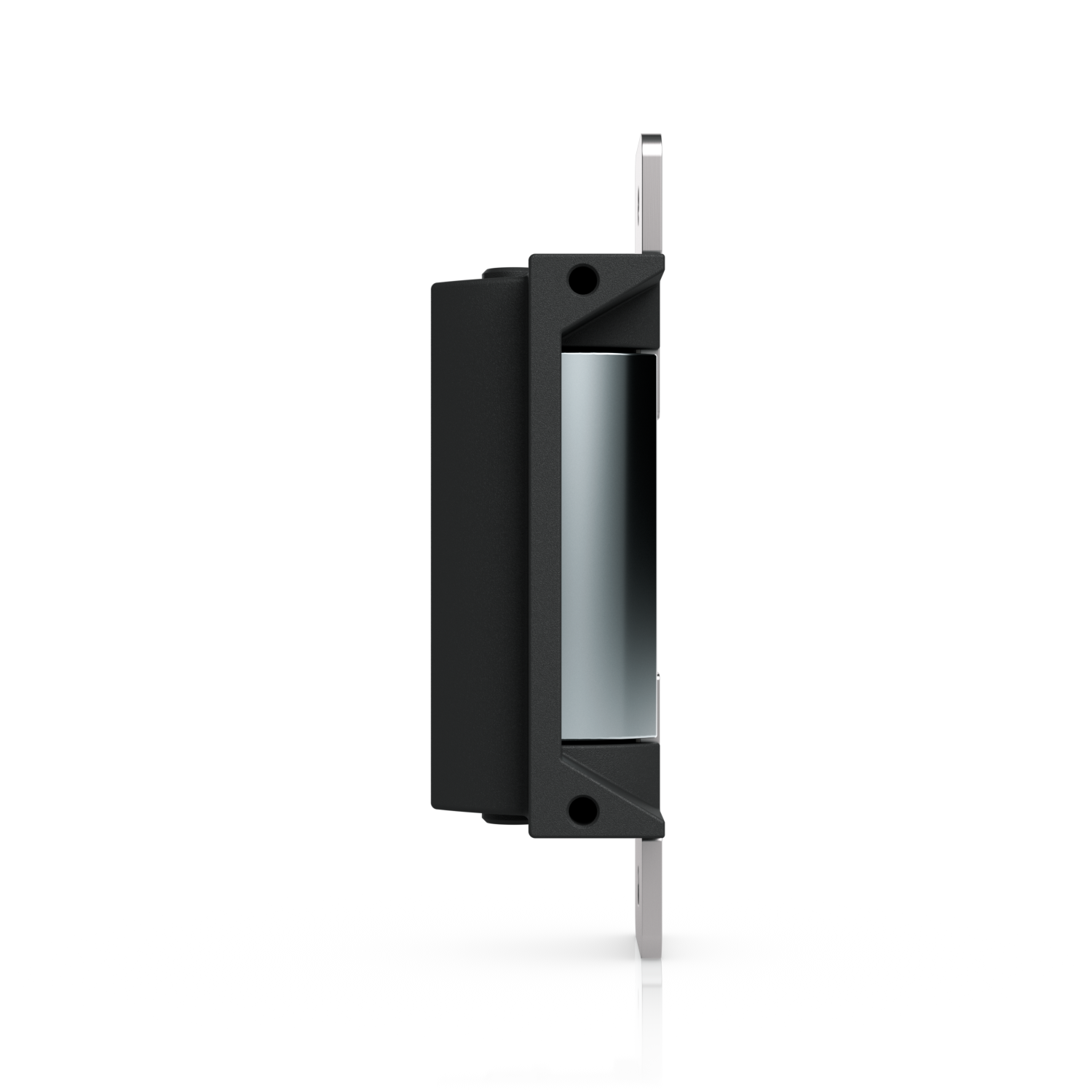

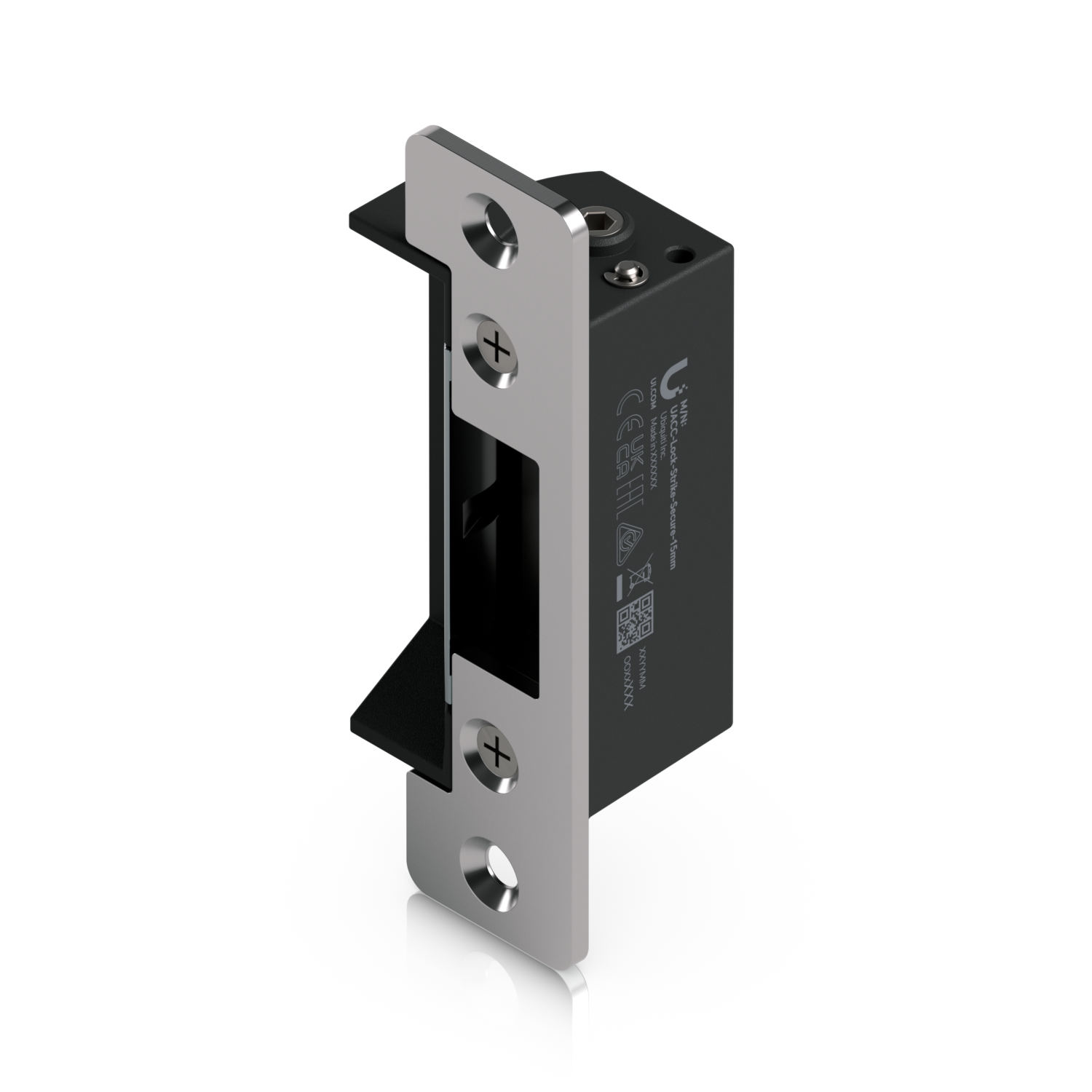

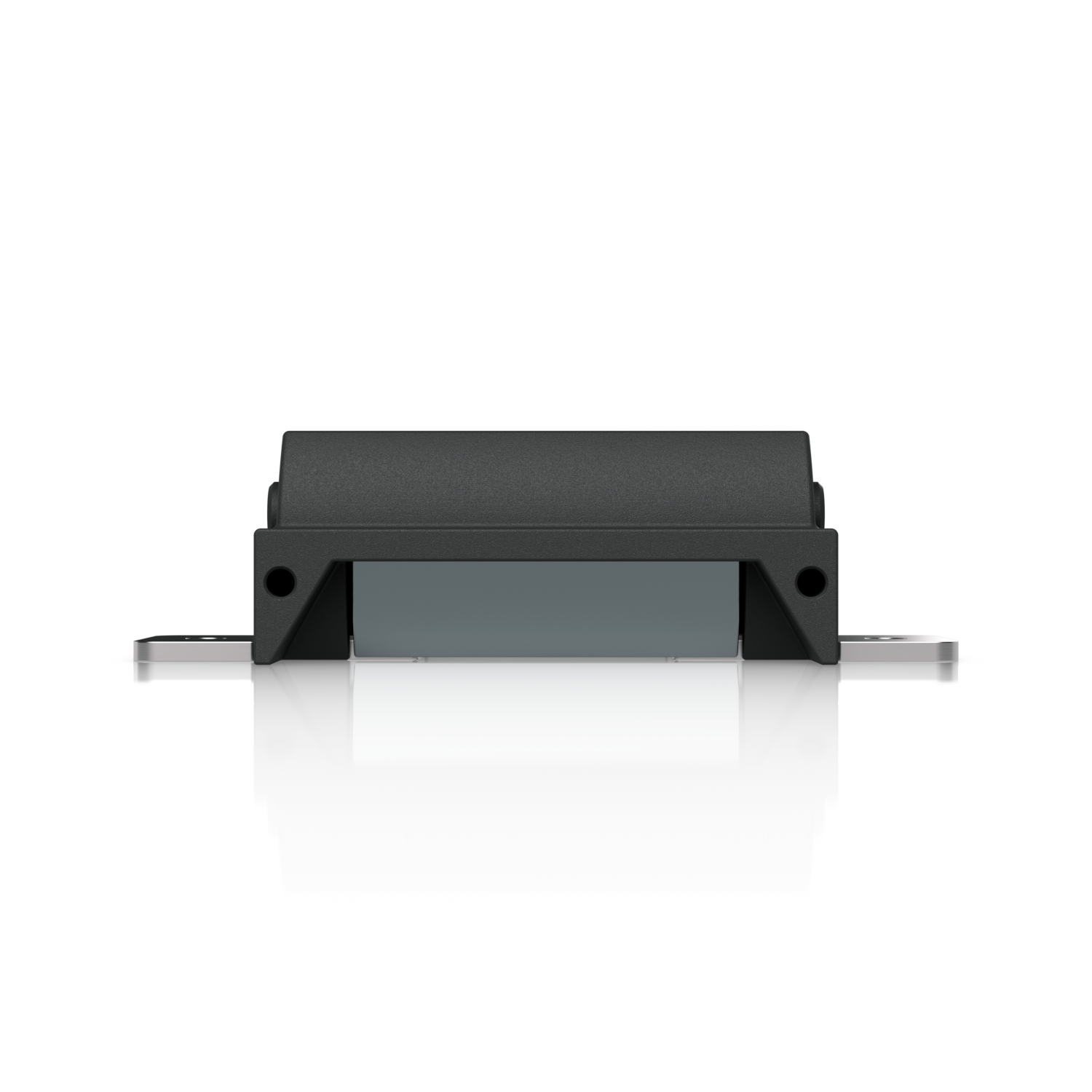

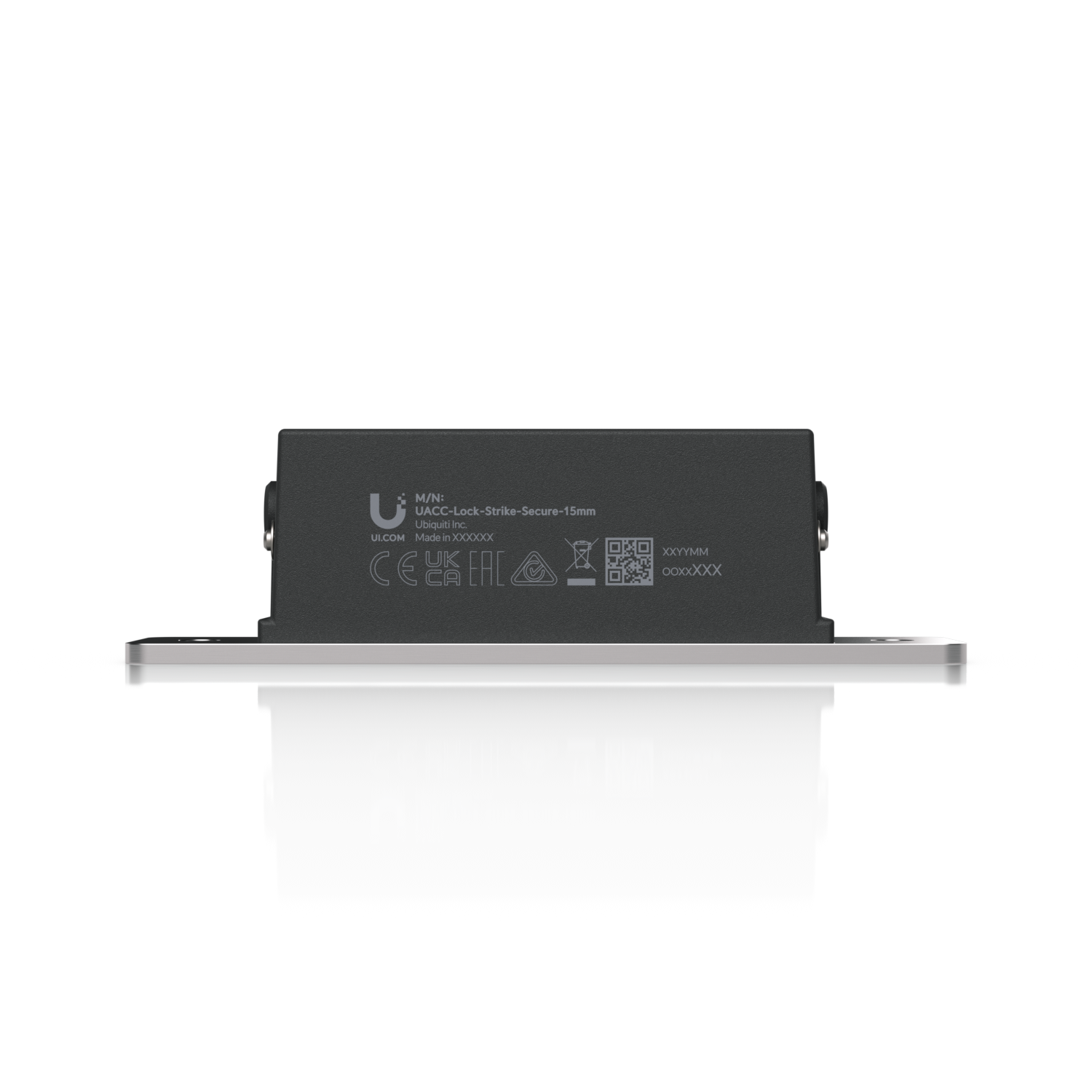

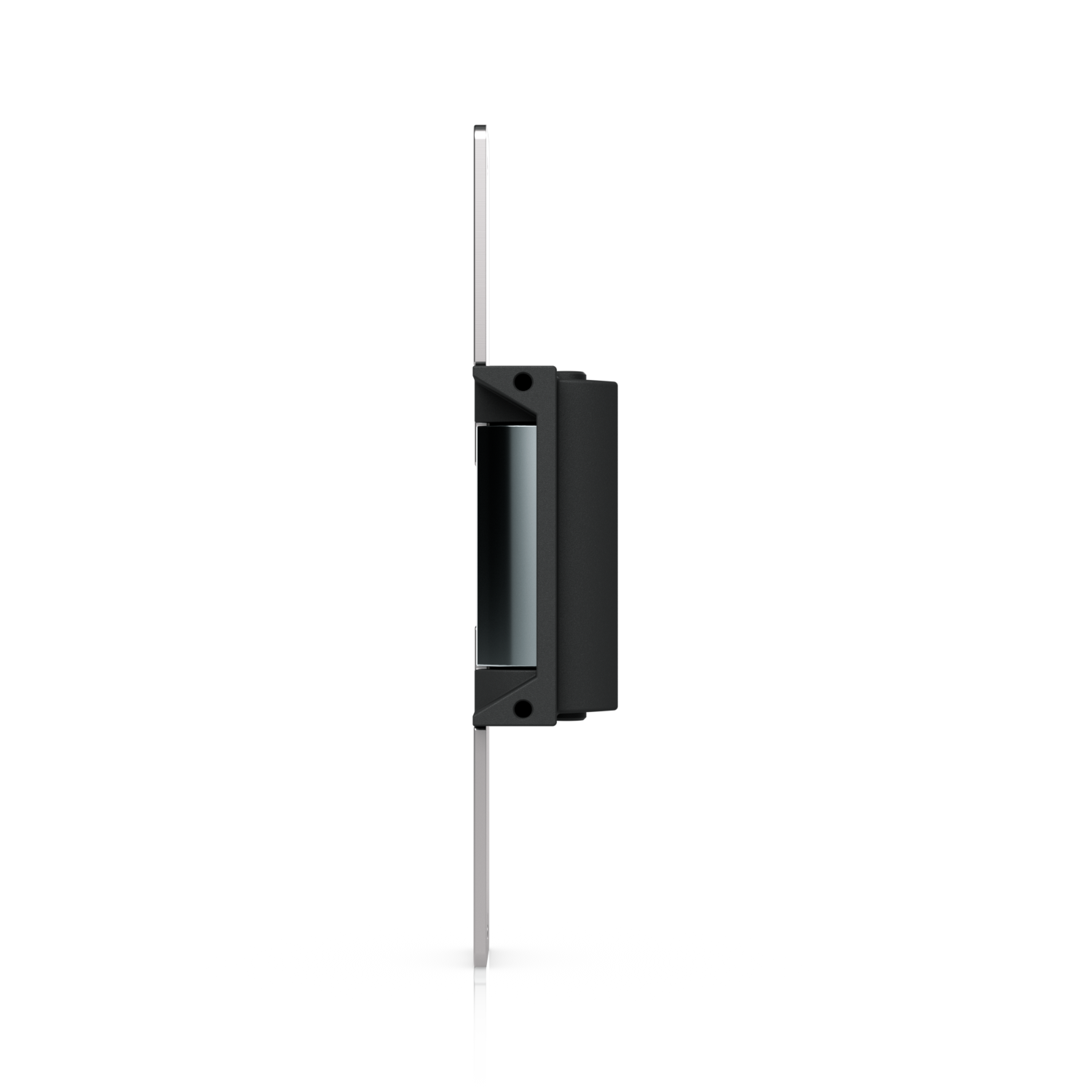

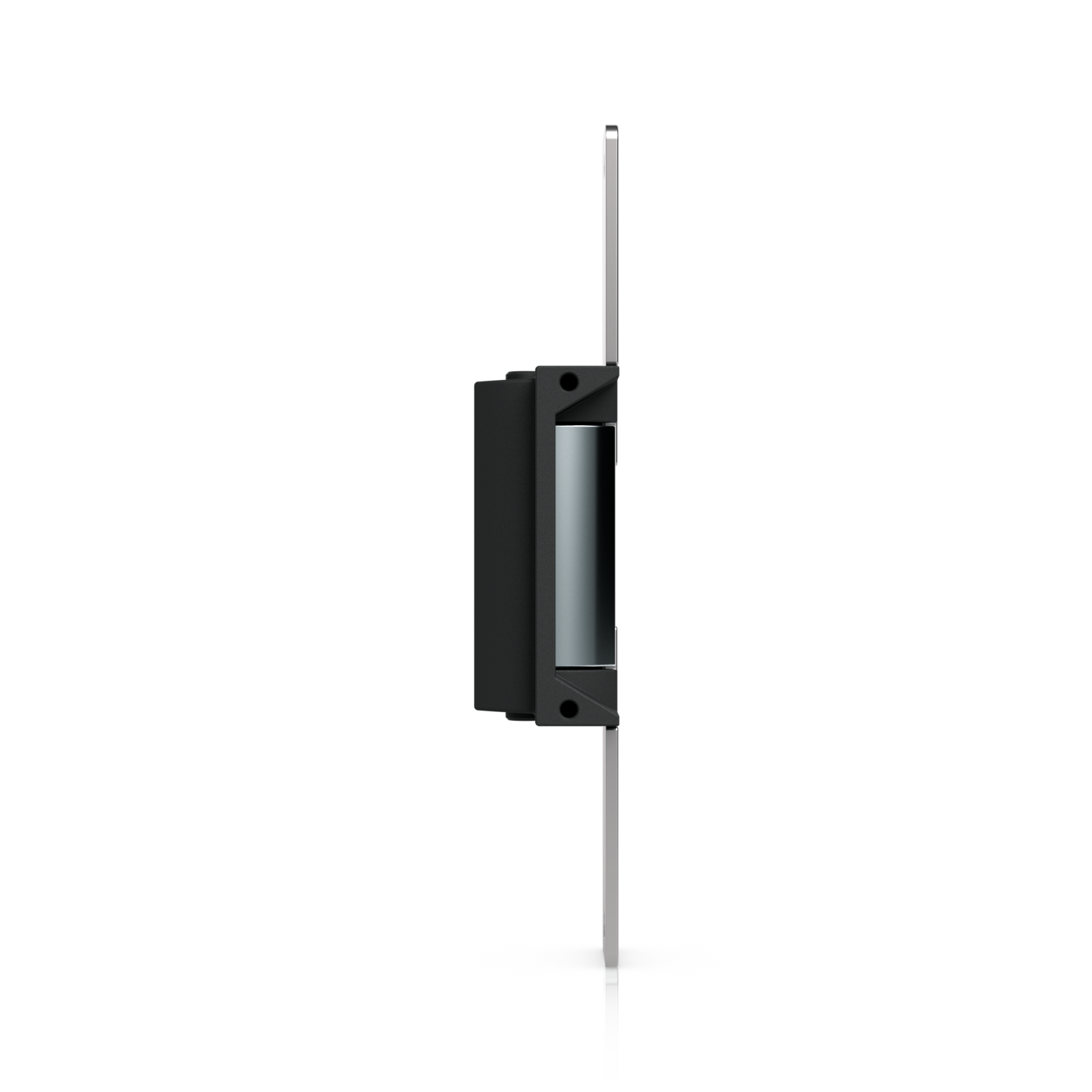

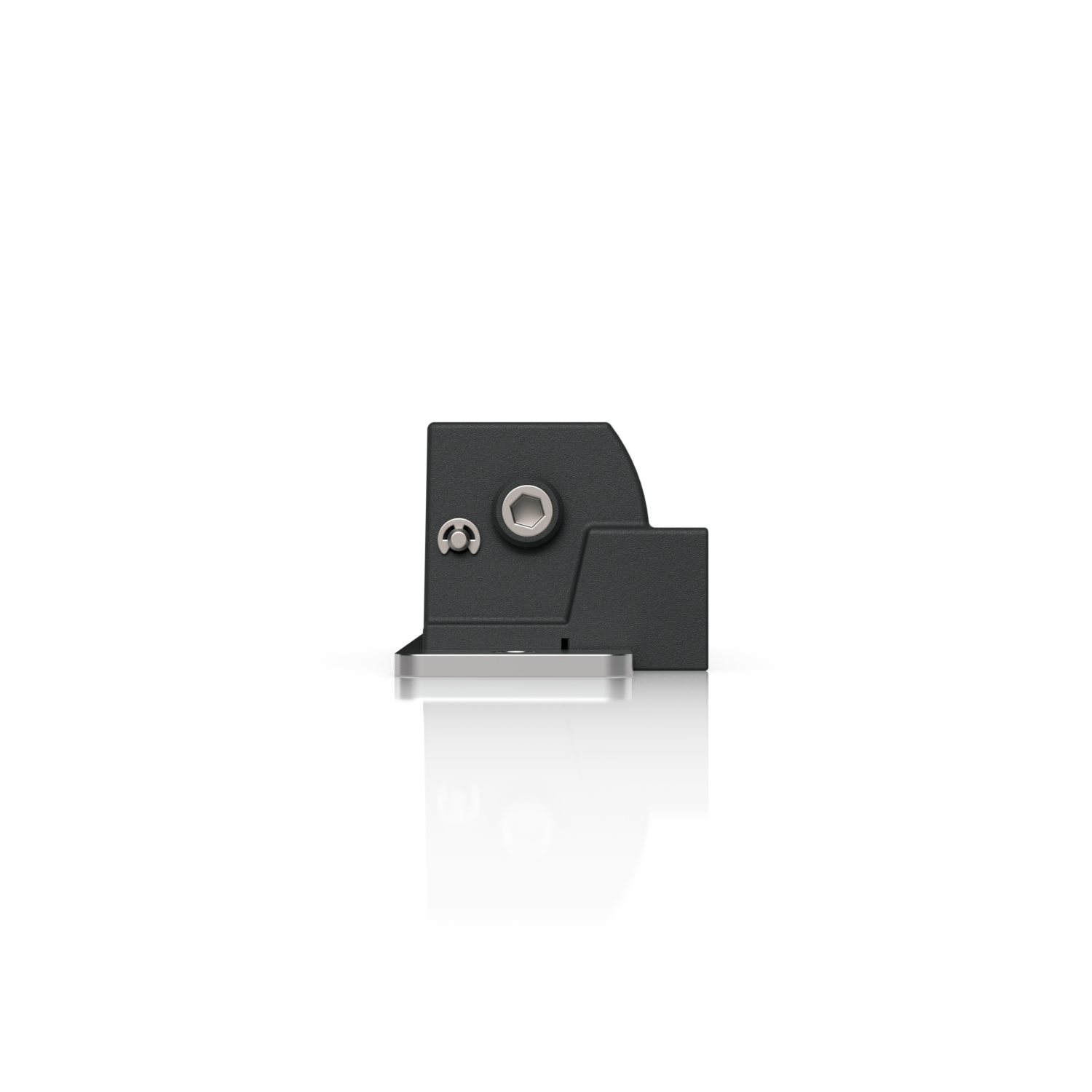

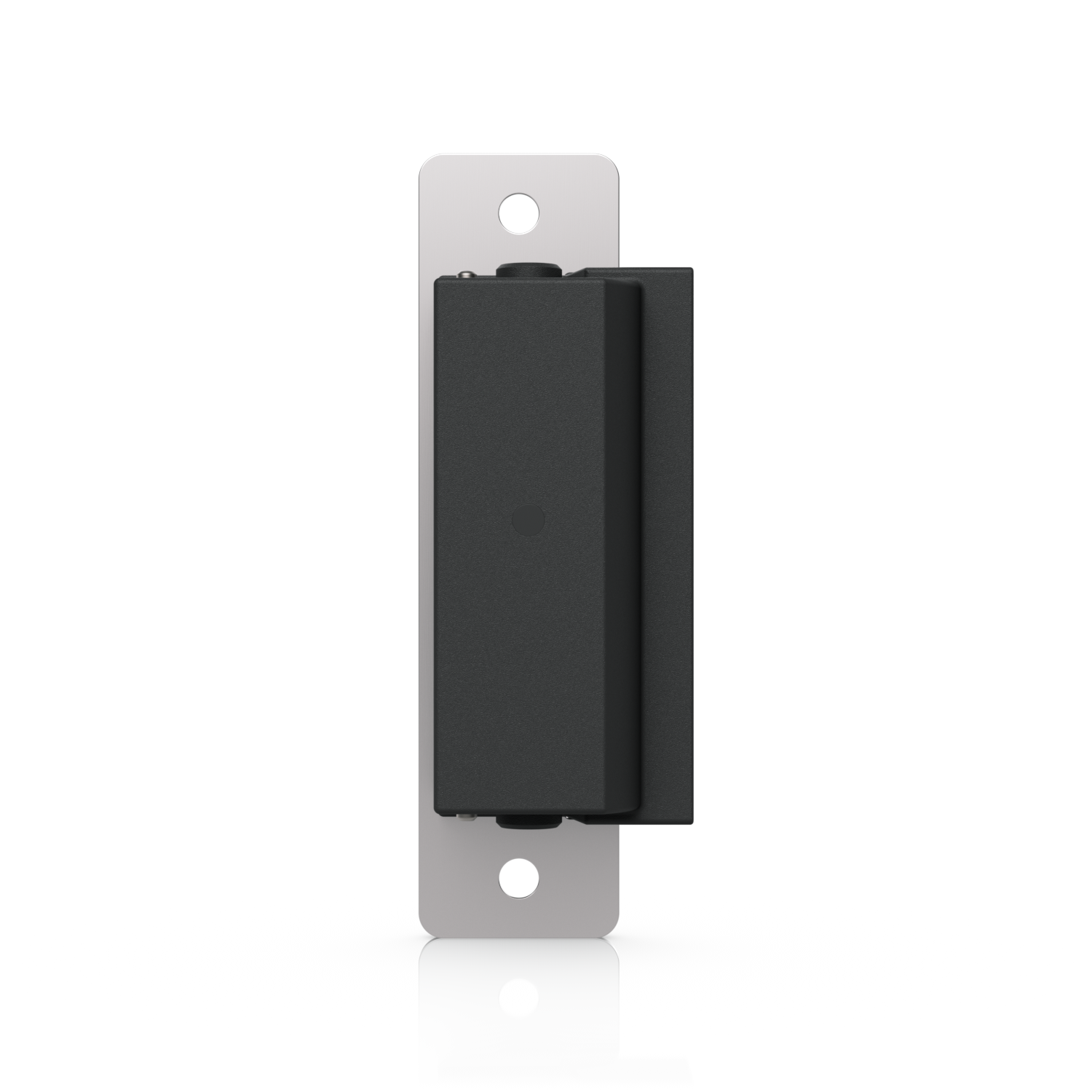

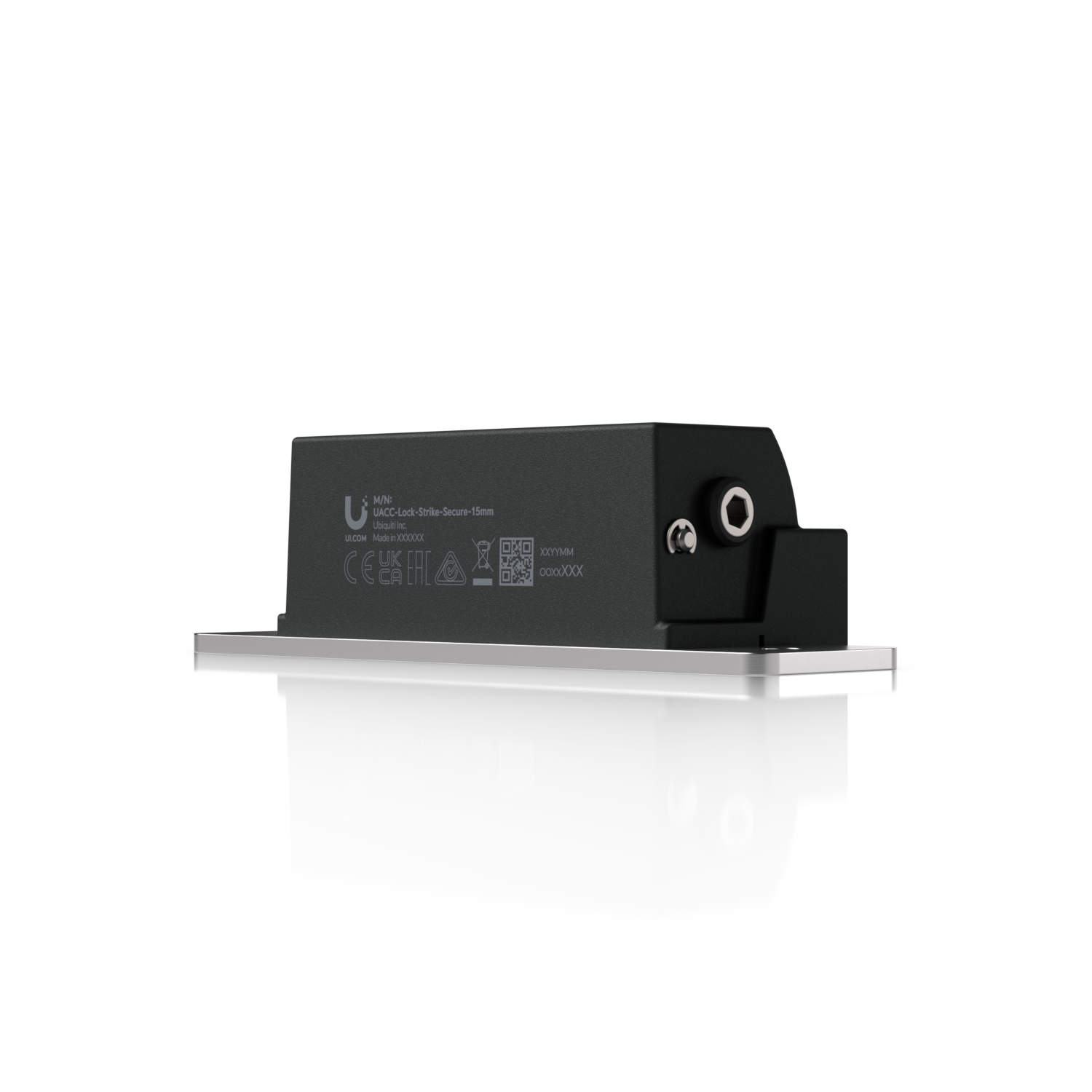

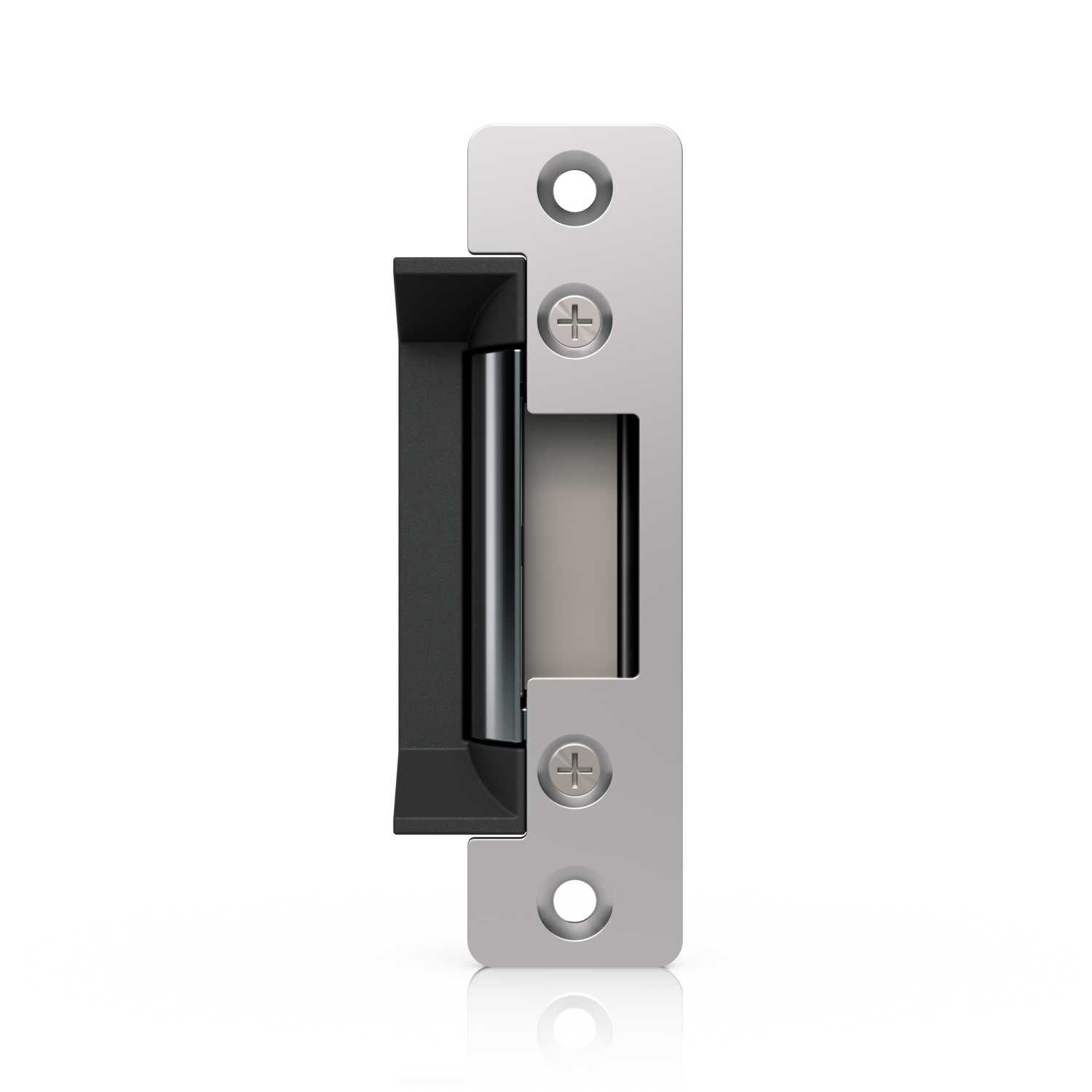

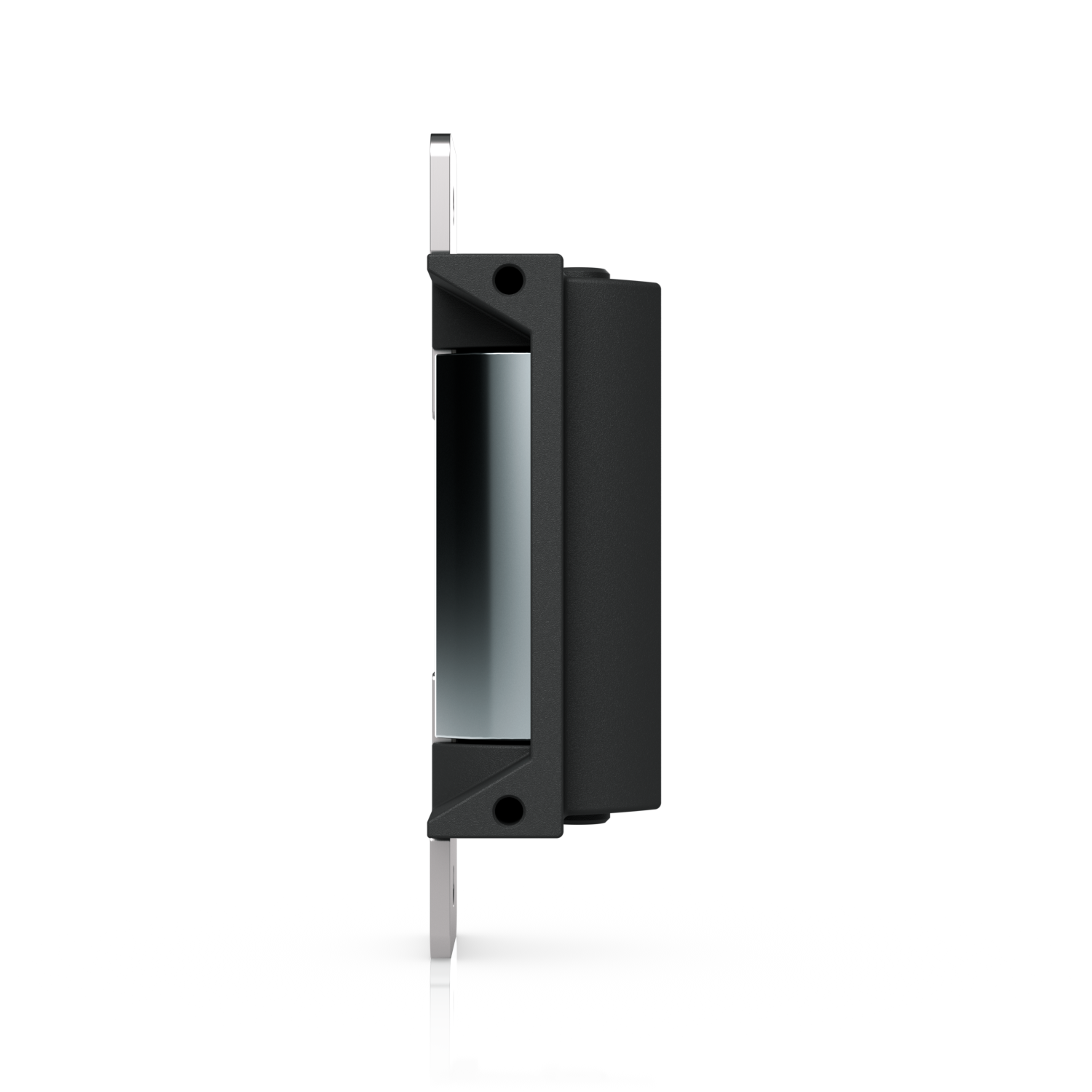

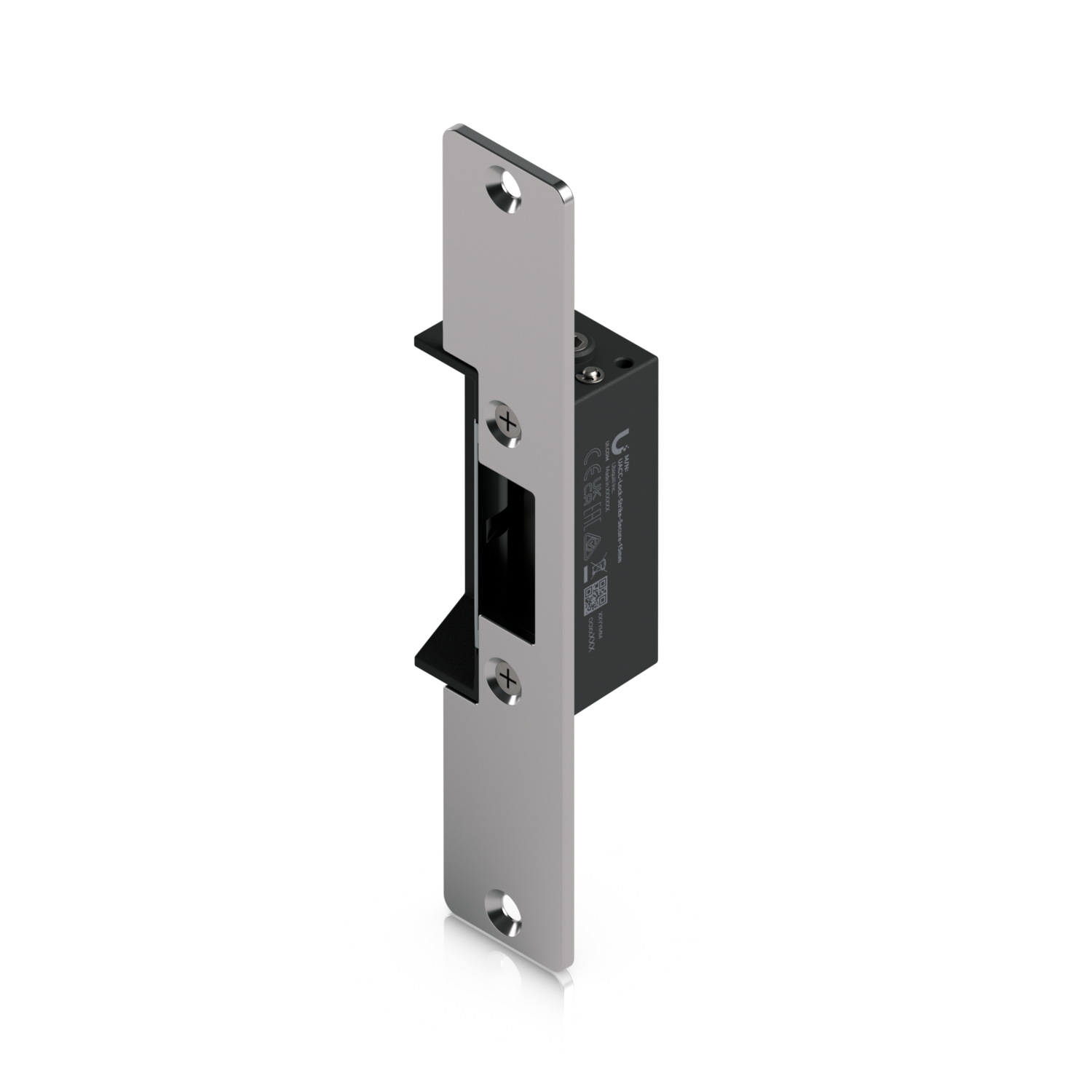

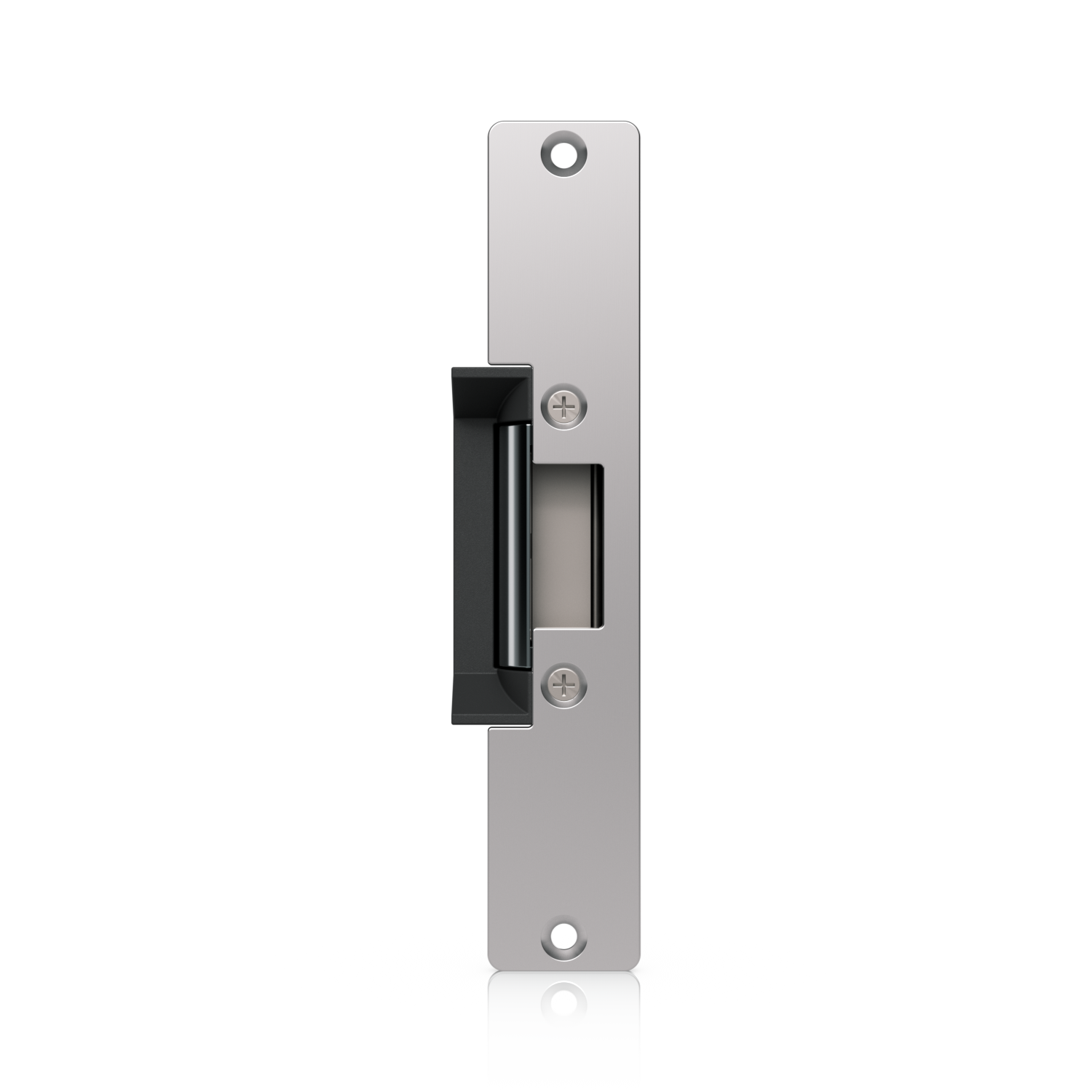

UniFi Access Fail-Secure Strike Lock (15 mm)
Fail-secure rafmagnslæsing sem tengist UniFi Access Hub.
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") |
|---|---|
| Weight | Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure Material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Lock Features: Lock Type | Fail secure |
| Lock Features: Support Door Type | Single door (Wooden/metal) |
| Lock Features: Holding Force | 1,200 kg (2,645 lb) |
| Lock Features: Current Power | 400mA ±10% |
| Lock Features: Support Voltage Range | 12V DC ±10% |
| Lock Features: Wiring | (1) Lock 12V/NO (red) (1) Lock 12V/COM (black) |
| Lock Features: Mounting | Door frame recess mount |
| Door Status Contact: Type | Dry contact |
| Door Status Contact: Logic | Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Door Status Contact: Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
