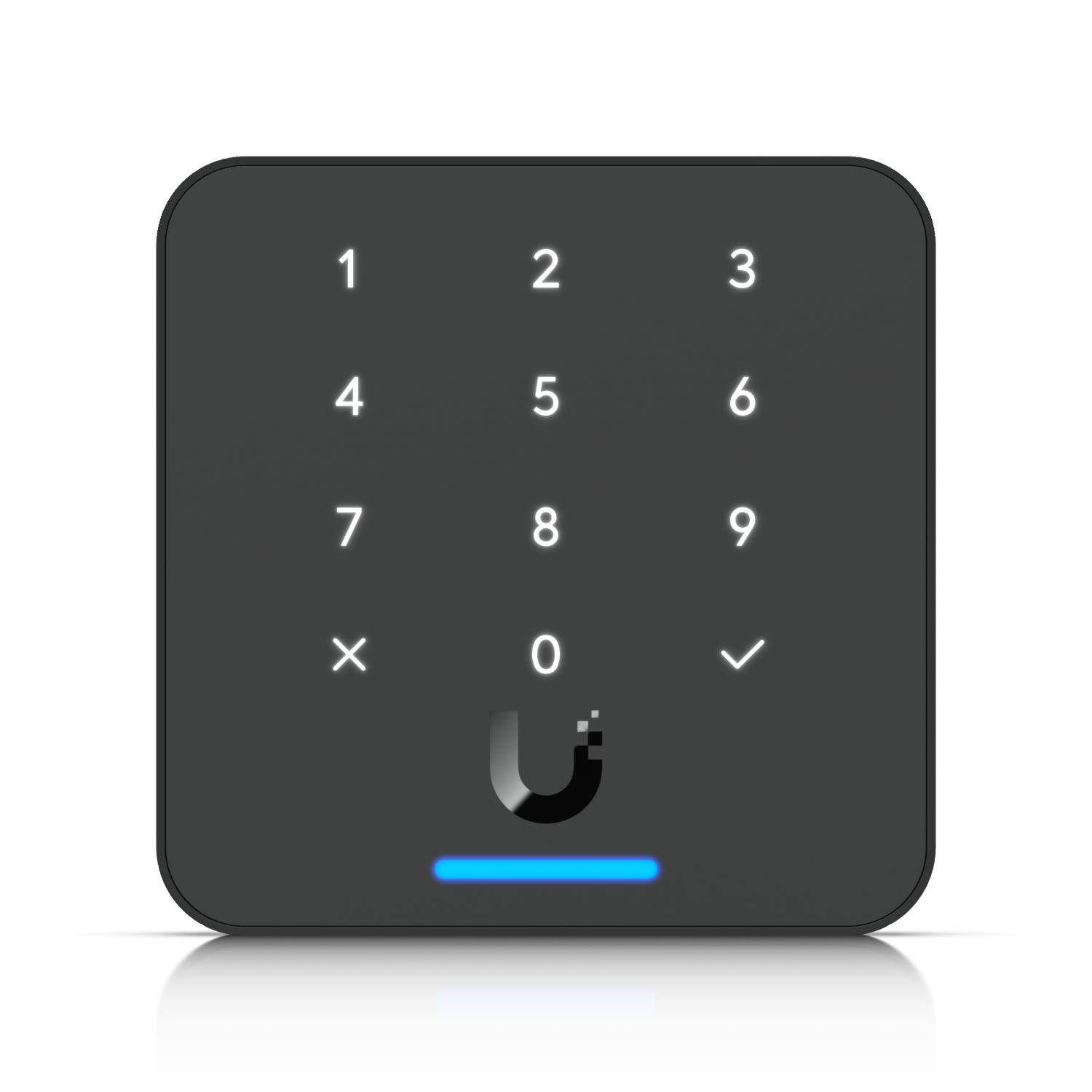

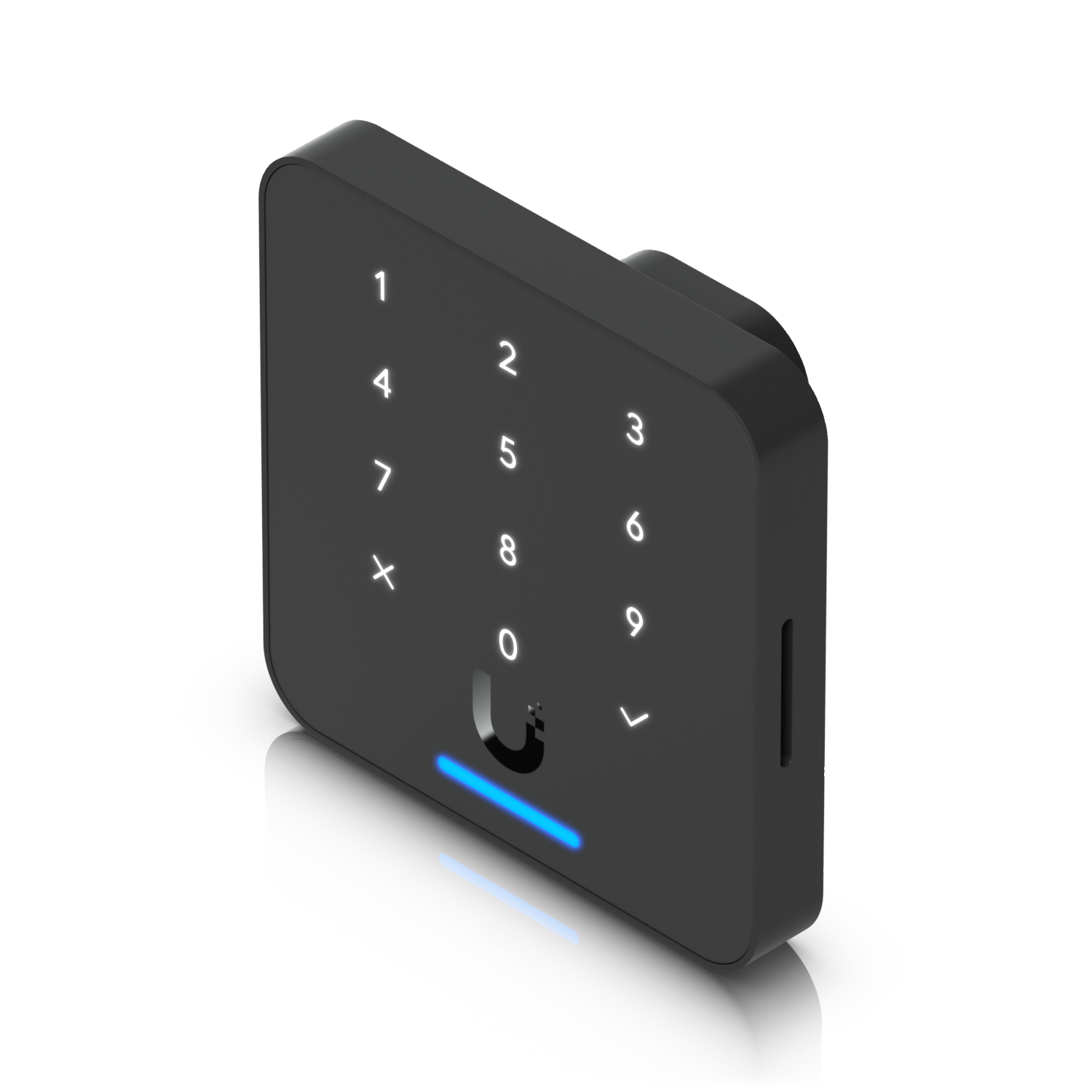

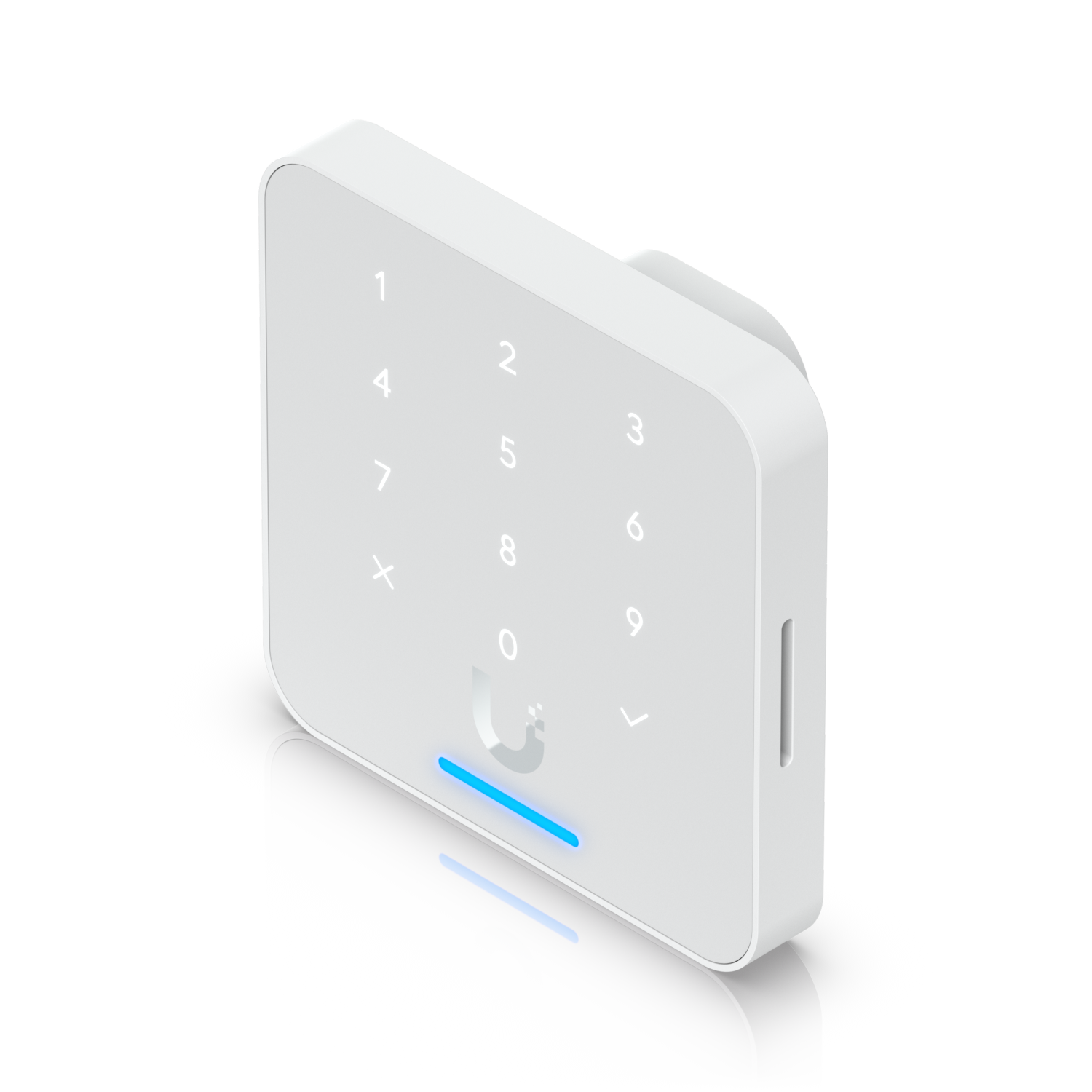

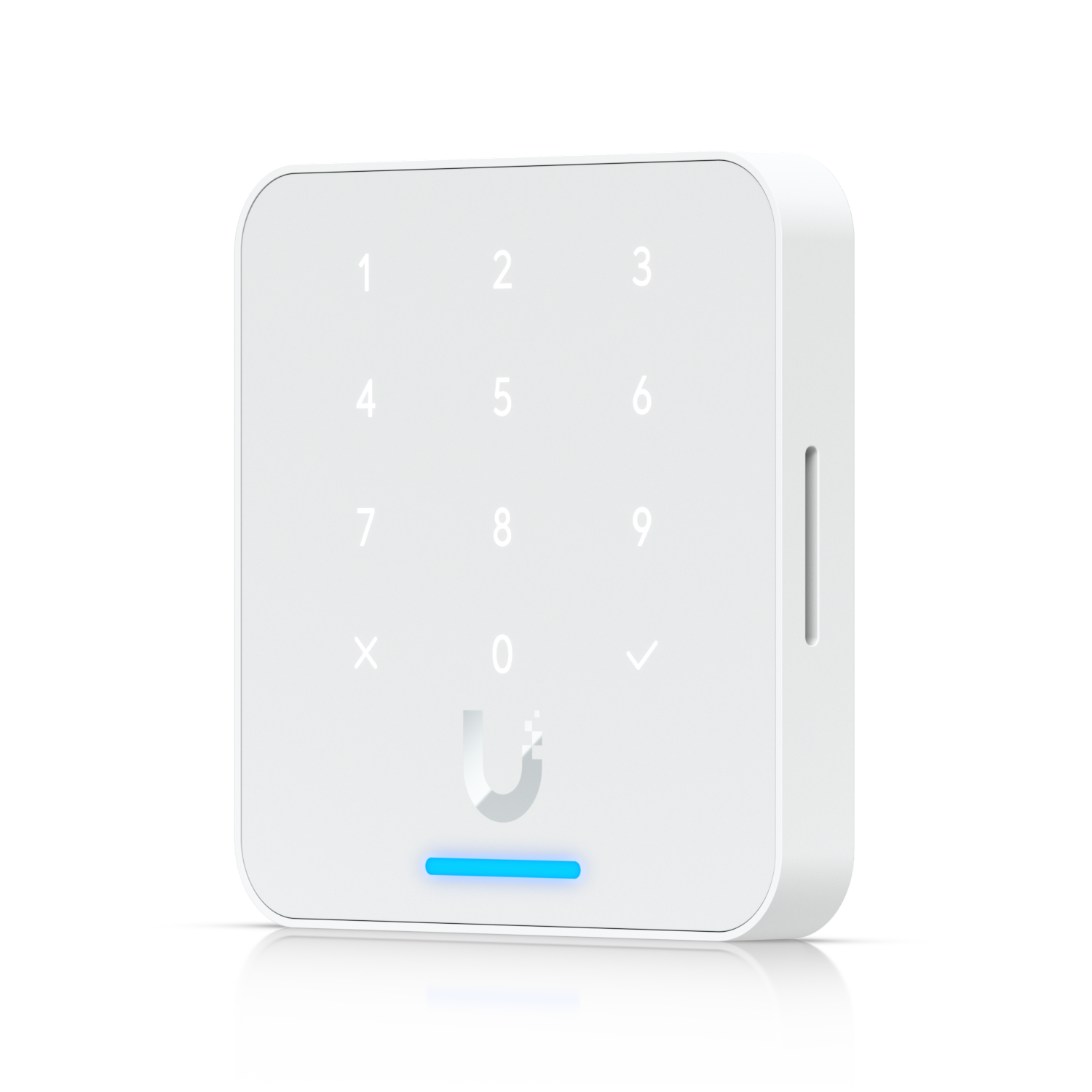

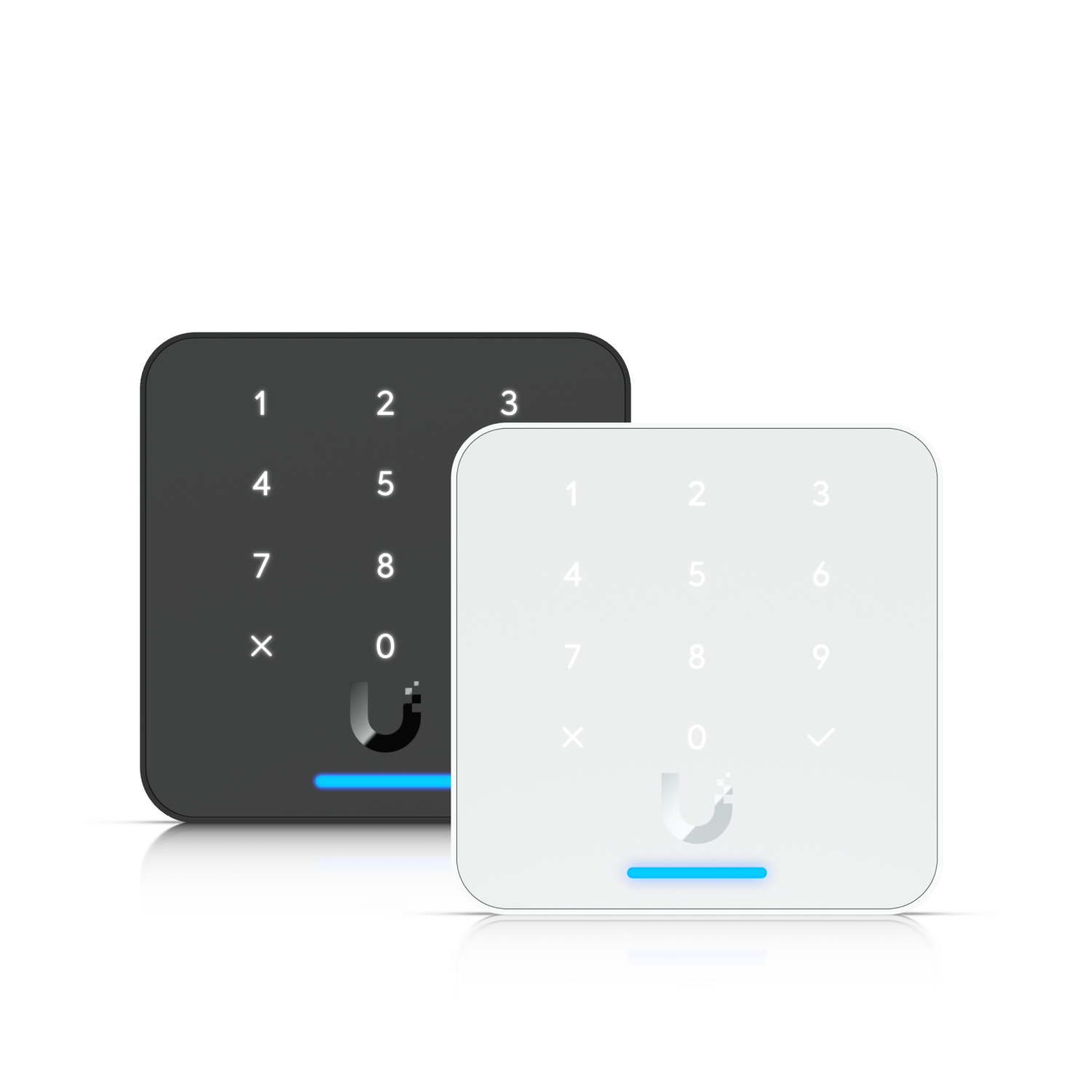

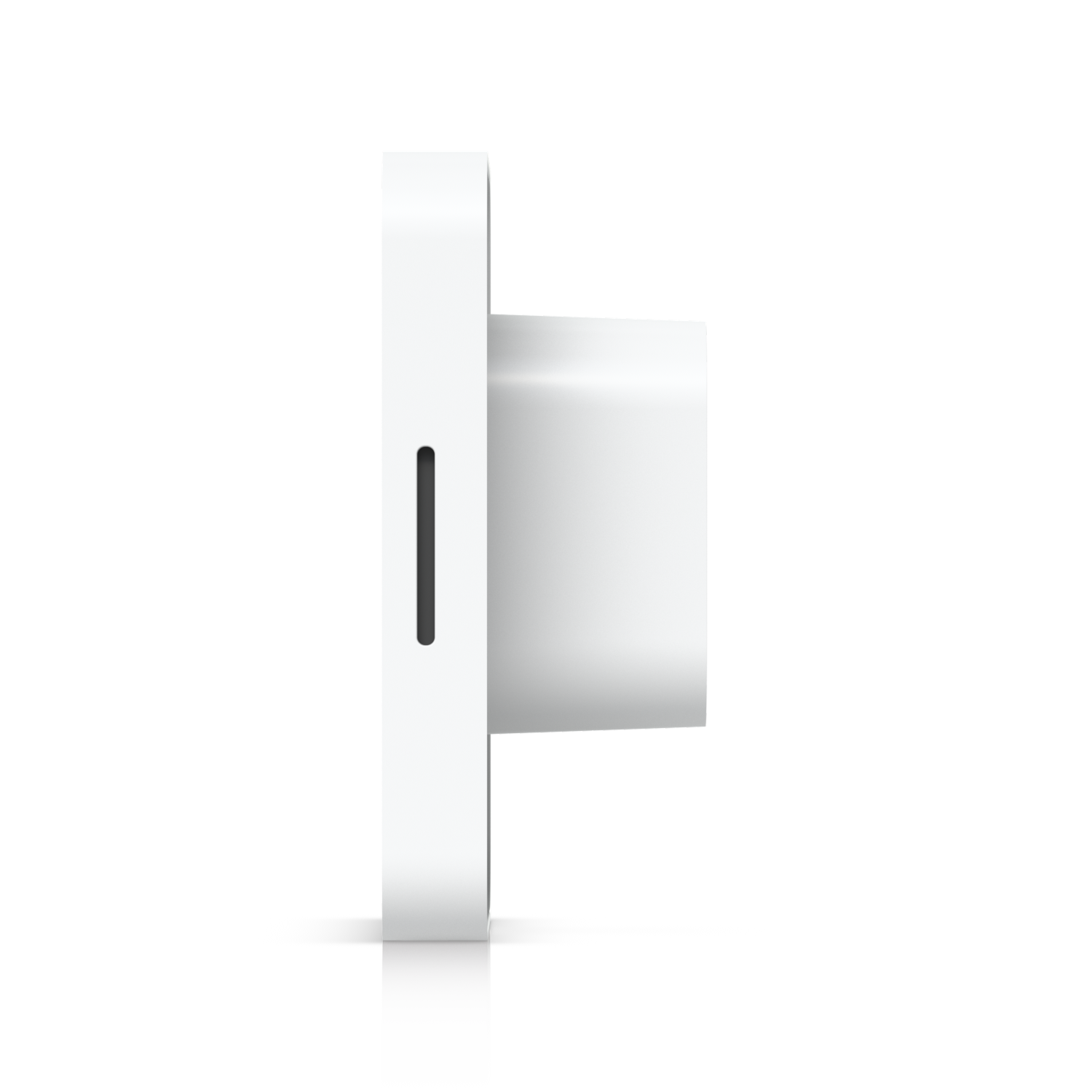

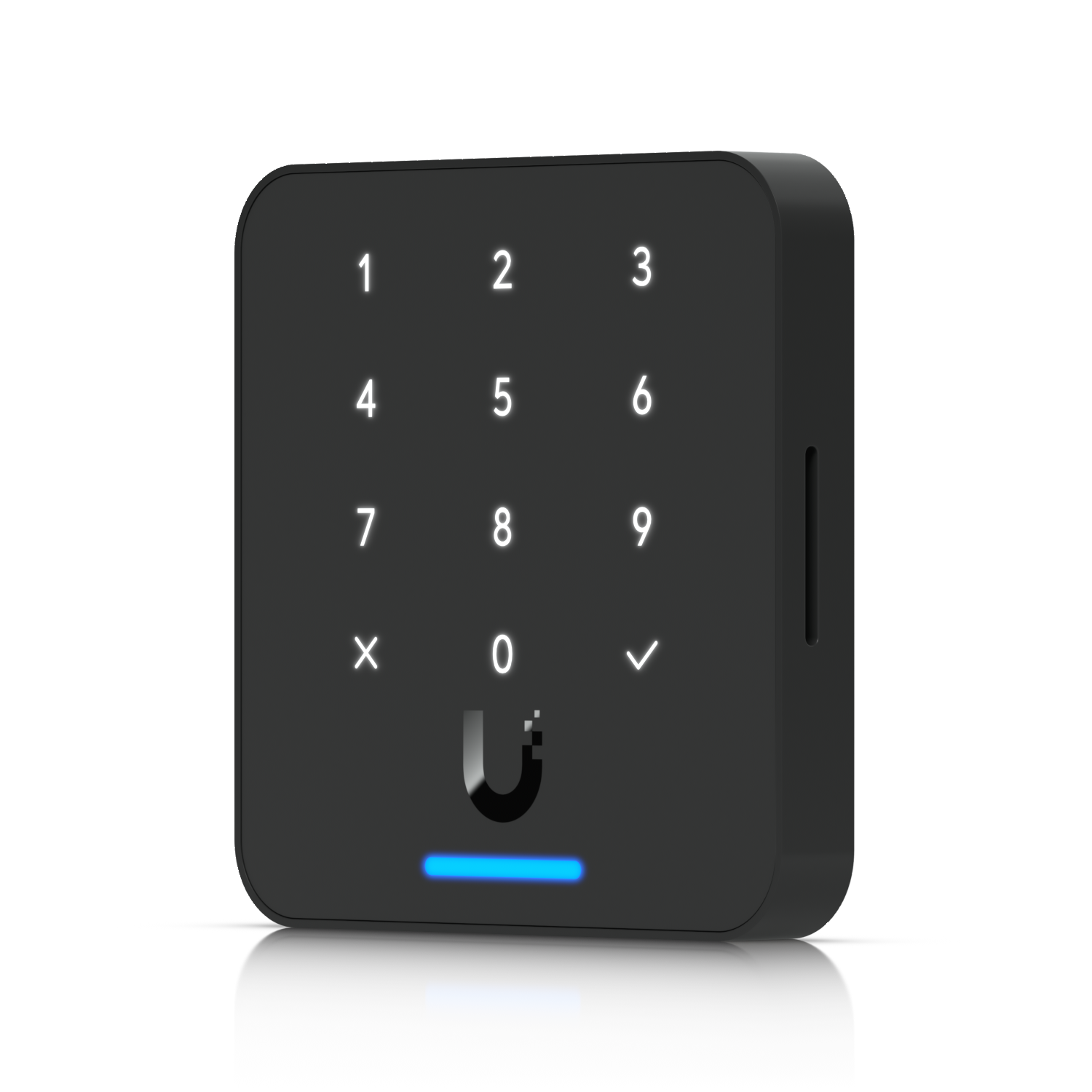

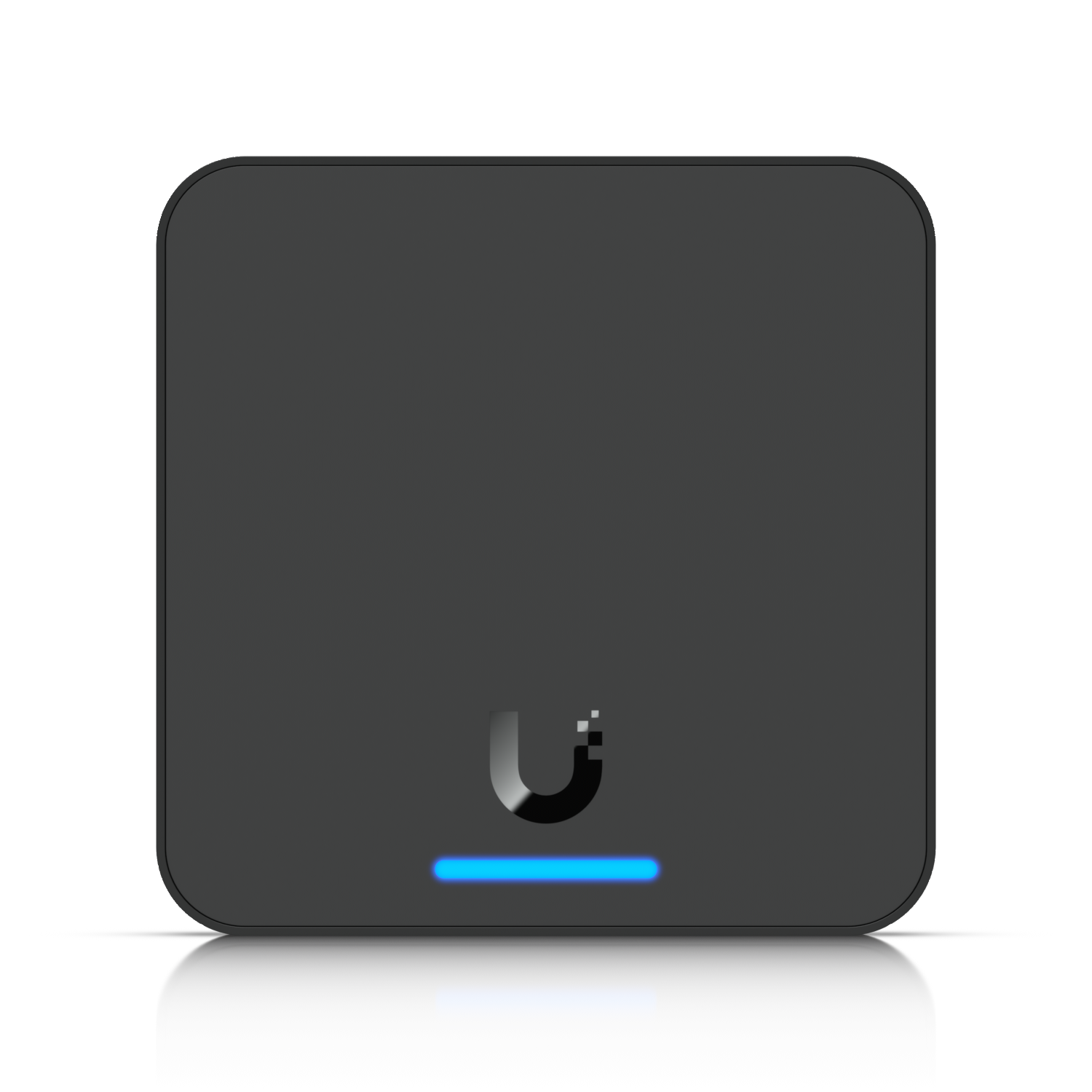

UniFi Access G3 Reader Flex (Black)
- Opnun með talnaborði, NFC korti, UniFi Identity appinu eða Touch Pass*
- Birtir kveðjur við inngöngu og útgöngu
- Hnappar virka vel (einnig með raka eða flesta hanska)
- IP55 veðurþol (-30 til 60°C)
- Tengist UniFi Access Hub um PoE
- *10 ókeypis Touch Pass leyfi til 1 árs fylgja. Smelltu til að fá nánari upplýsingar.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 88 × 88 × 36.5 mm (3.5 × 3.5 × 1.4") |
|---|---|
| UniFi Application Suite | Access |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Weatherproofing | IP55 |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| NDAA Compliant | Yes |
| Weight | 165 g (5.8 oz) |
| Enclosure Material | Polycarbonate, glass, aluminium alloy |
| Mount Material | Polycarbonate, aluminum alloy |
| Mounting | Wall (Included) Gang-box, junction box (Optional) |
| Indoor and Outdoor Use | Yes |

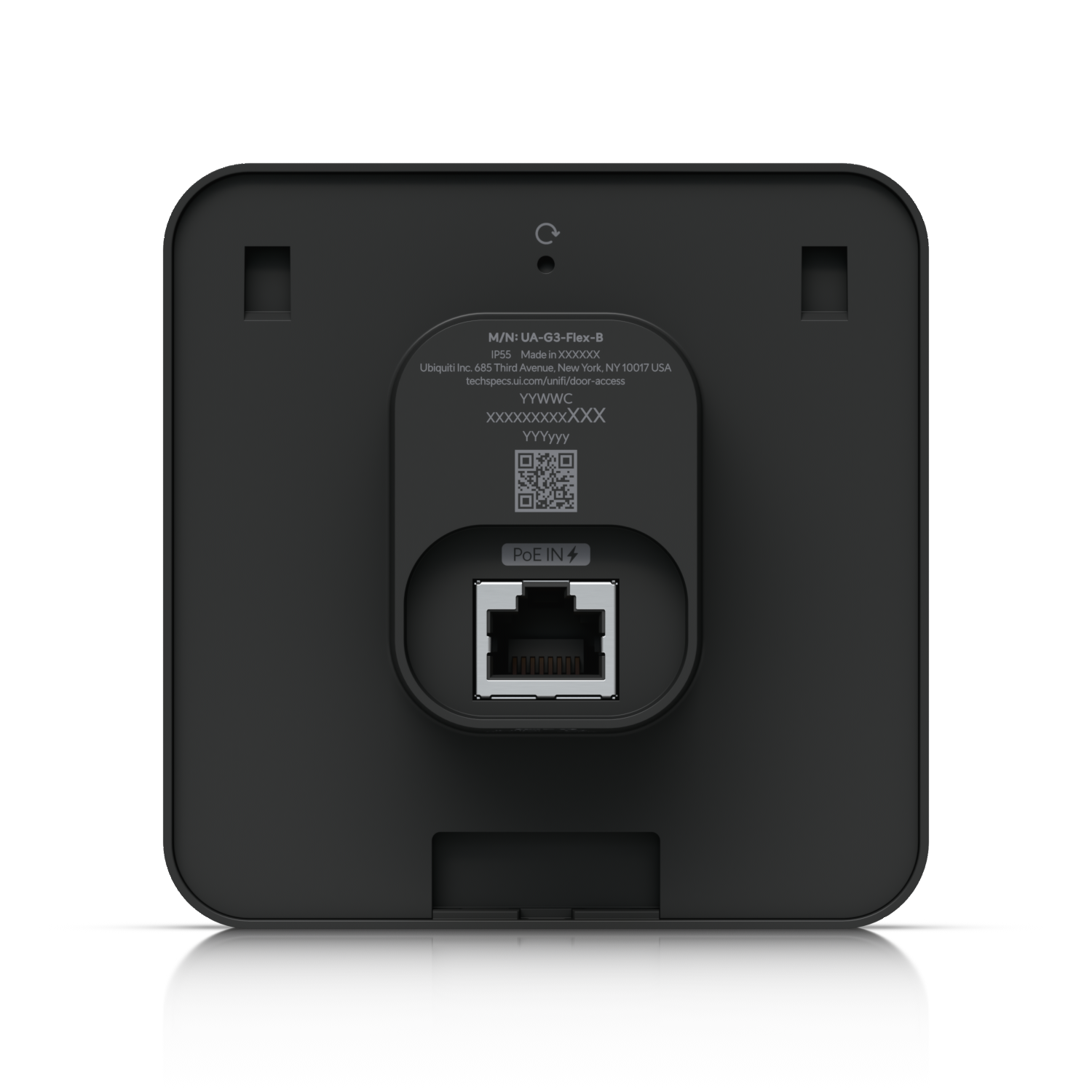

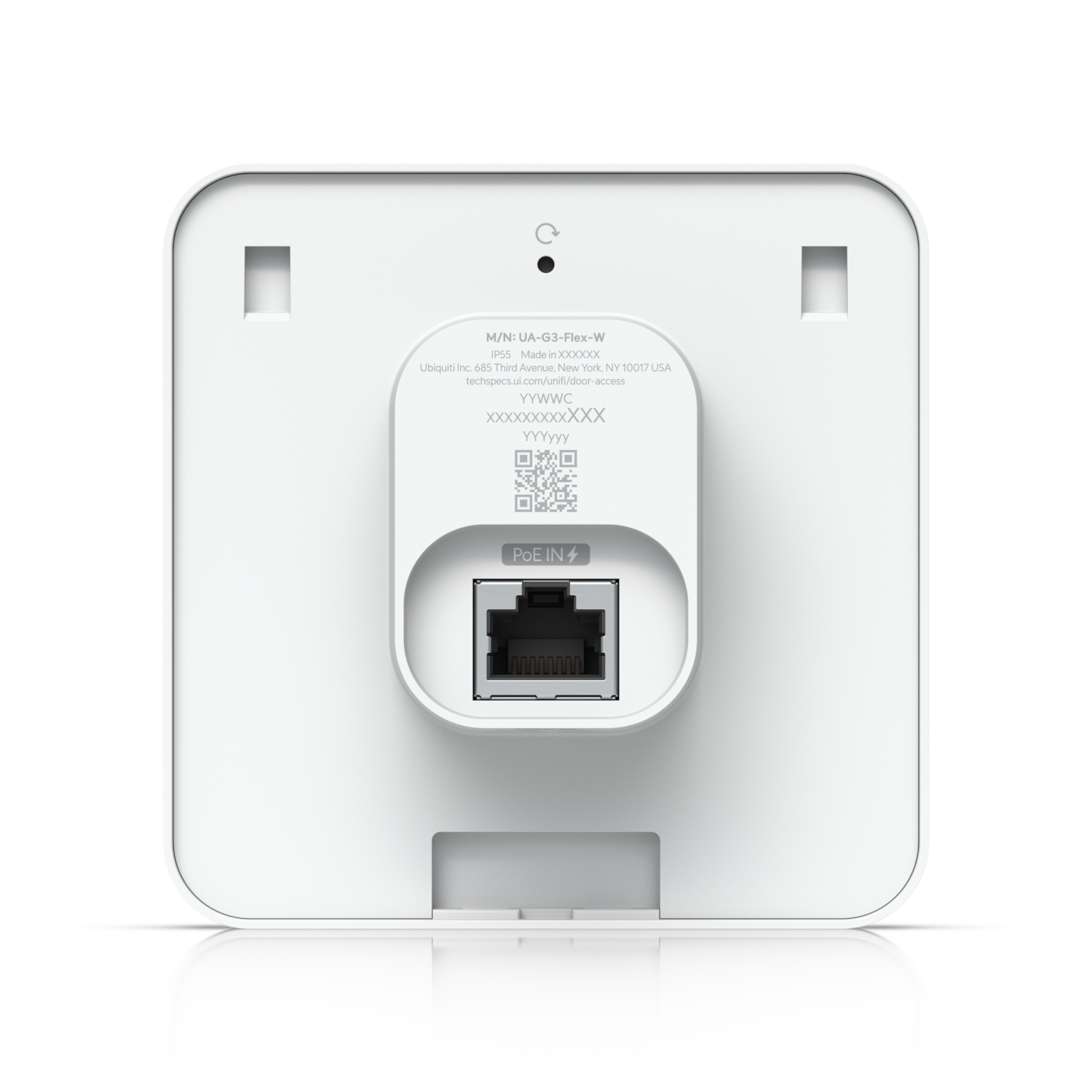

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | (12) Capacitive buttons |
| Speaker | Yes ((1) 1W) |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Flex V01 |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
