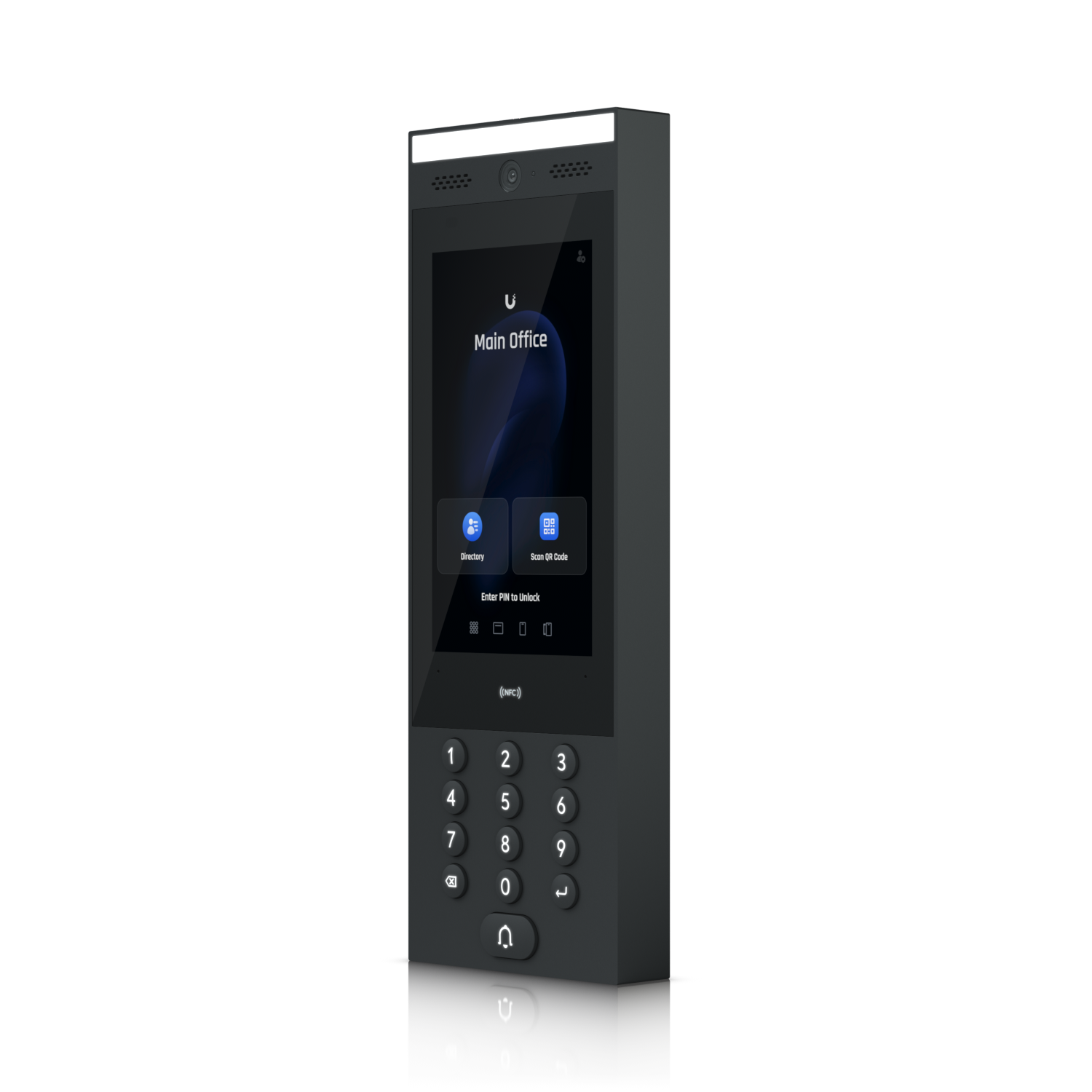

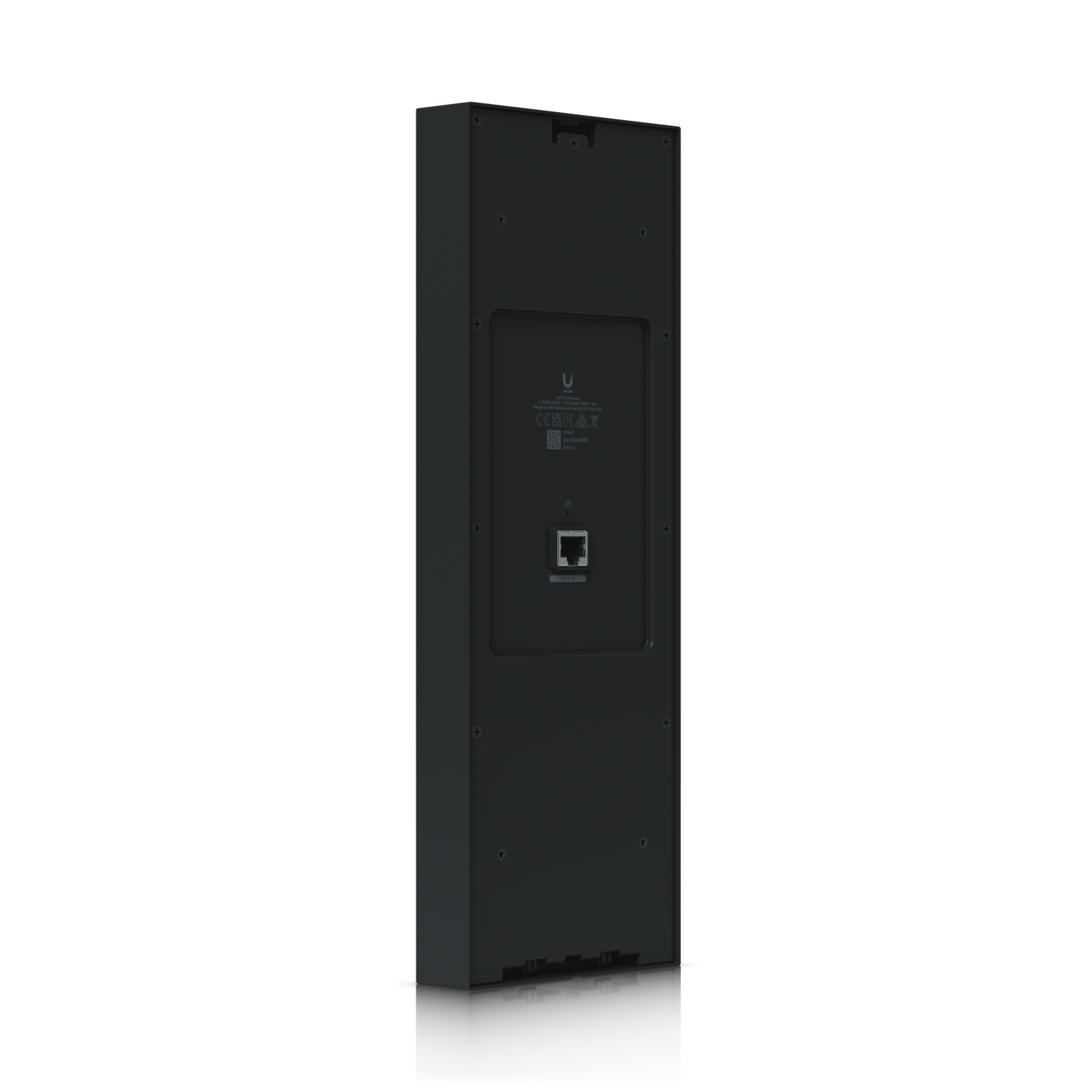

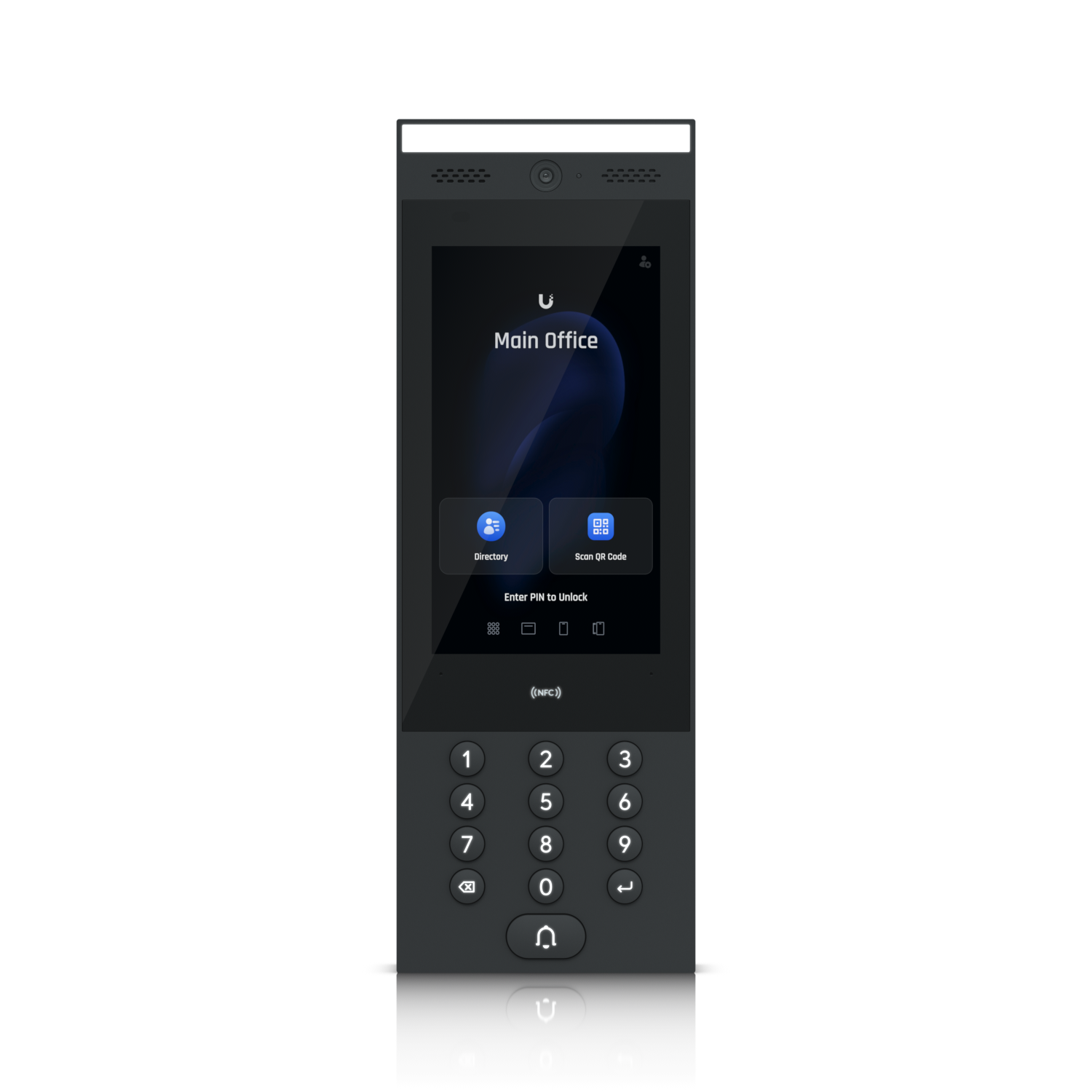

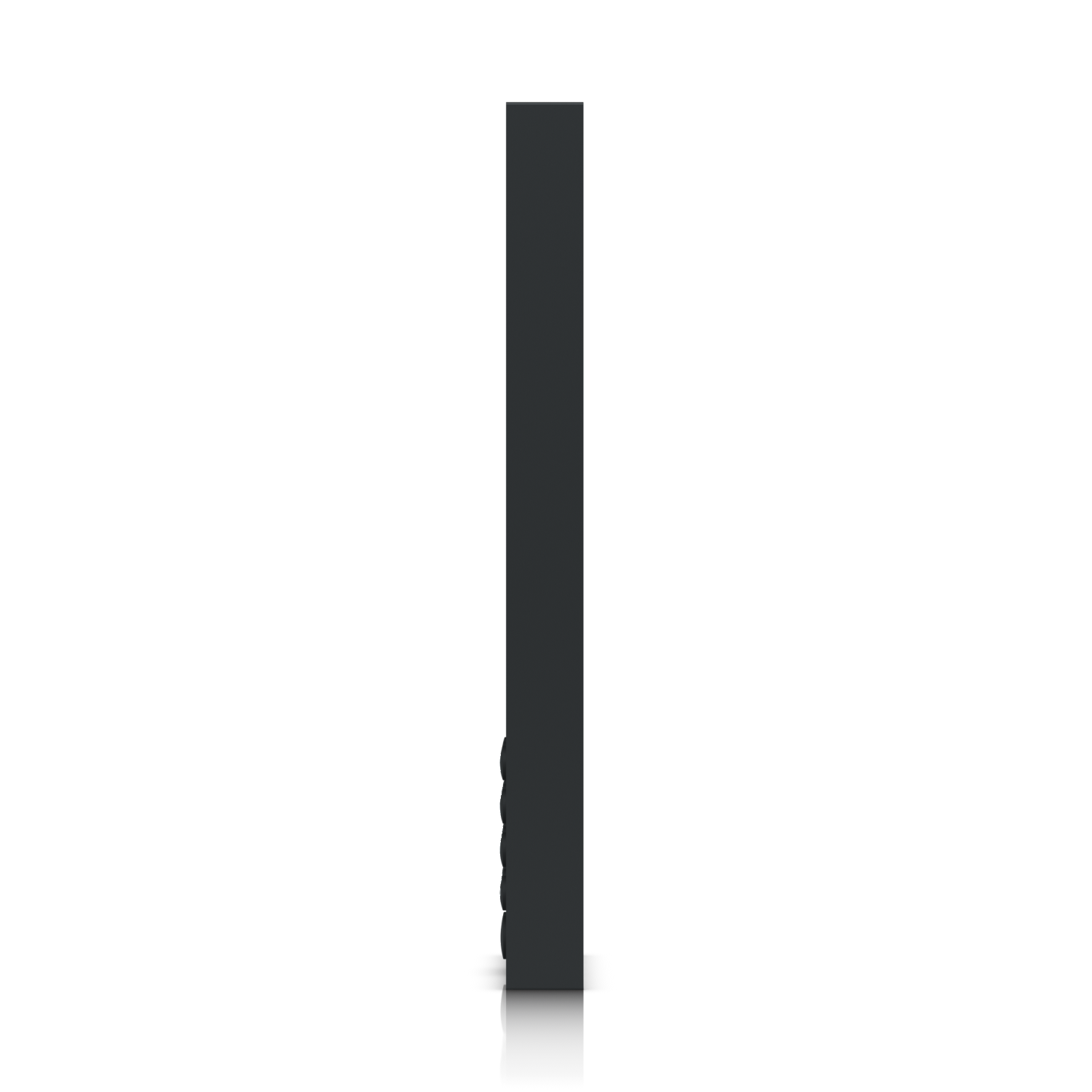

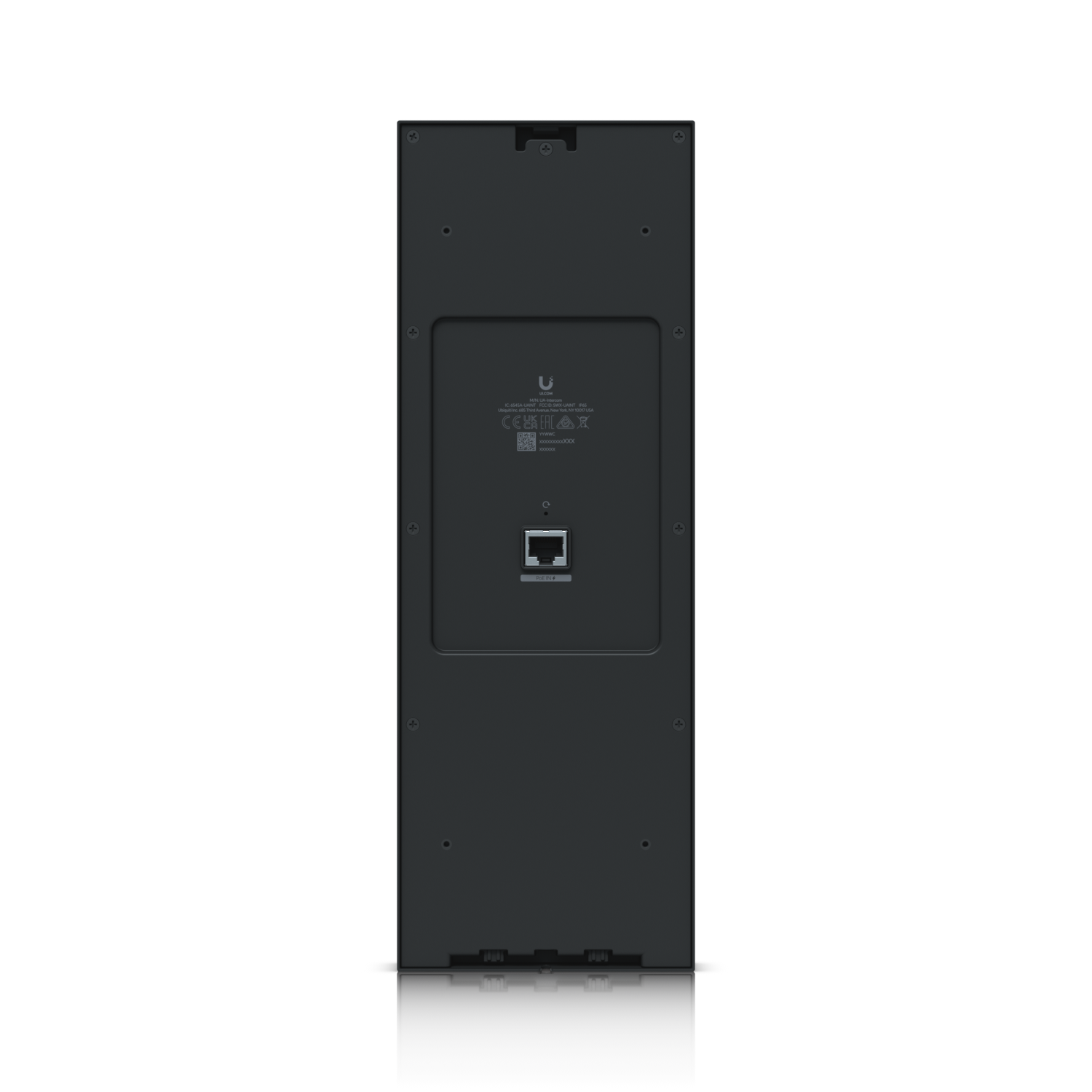

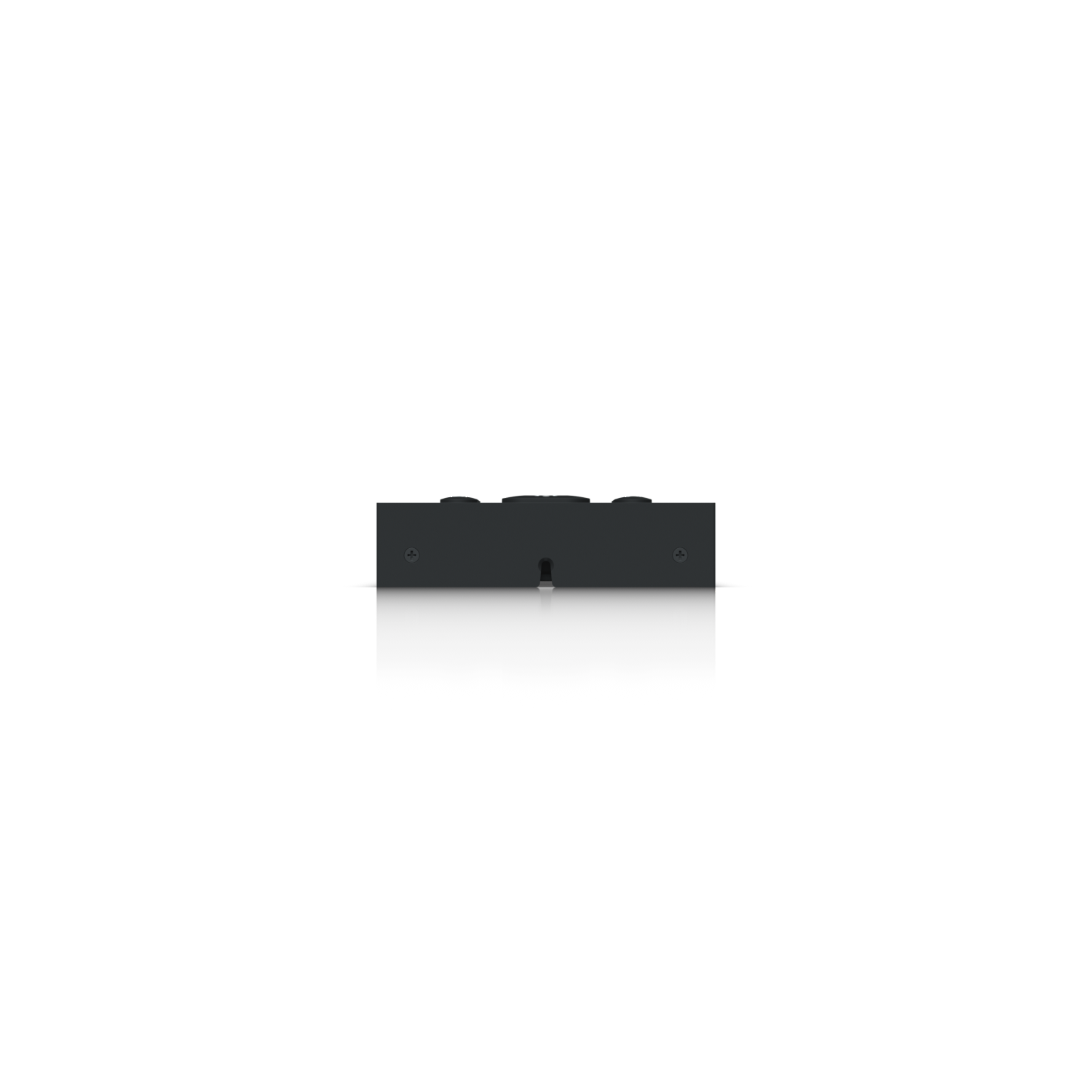

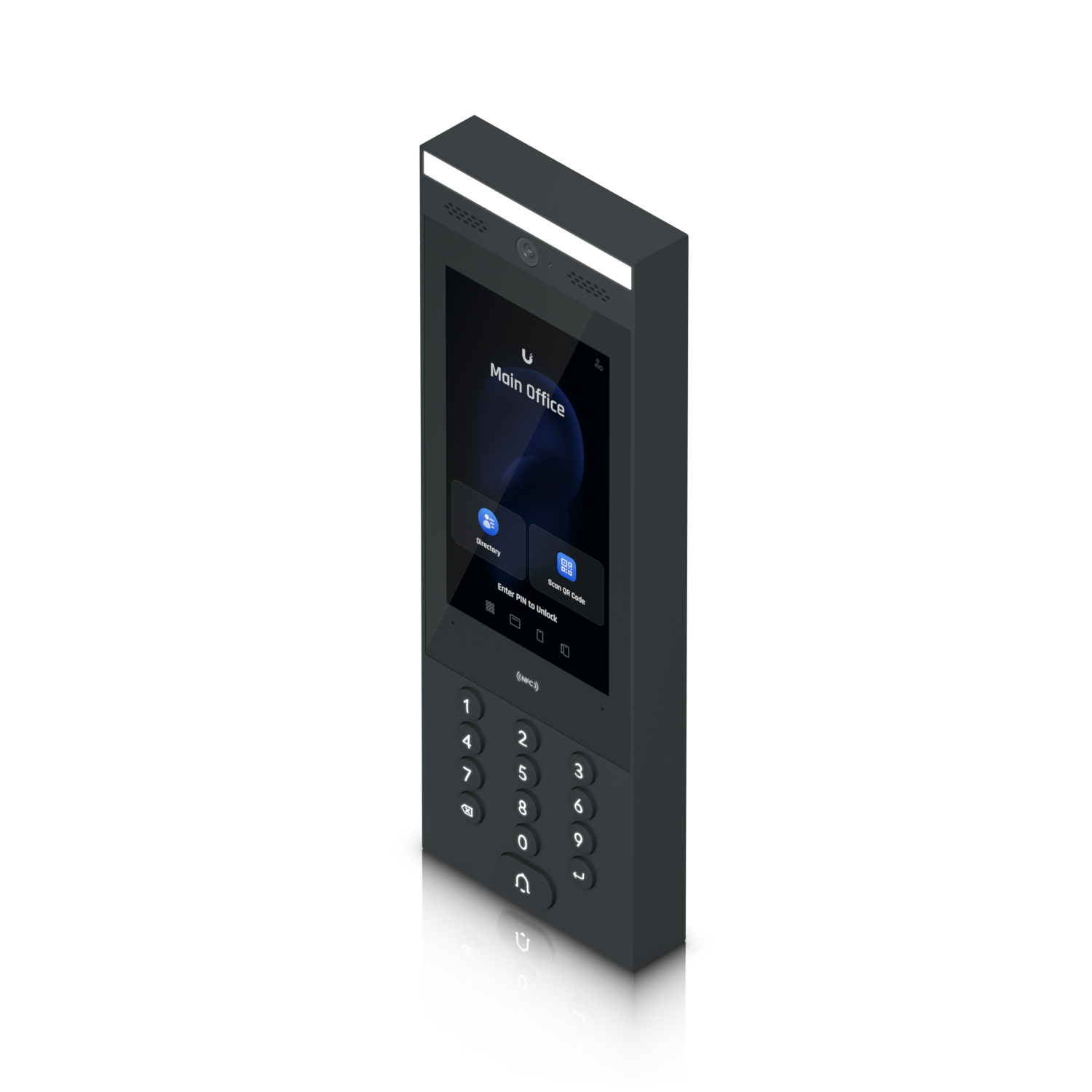

UniFi Access Intercom
Innandyra/utandyra dyrasímastöð til að stýra beiðnum um aðgang að íbúðar- og atvinnuhúsnæði.
- Opnar með NFC korti, UniFi Identity farsímaforriti, PIN kóða eða QR kóða
- Nafnalisti og dyrabjalla til að óska eftir aðgangi
- Pörun við marga UniFi Intercom Viewers fyrir fjaraðgangsstýringu
- Tengist UniFi Access Hub röðinni með PoE
- Veðurþolið (útiþol -30 til 60° C)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
|---|---|
| Integrated Camera | Yes |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Mobile Unlock | Yes |
| Face Unlock | Yes |
| UniFi Application Suite | Access |
| Two-Way Intercom & Doorbell Access | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP65 |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional) |
| Indoor and Outdoor Use | Yes |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Video: Max. Frame Rate | 30 FPS |
| Video: Resolution | 2MP 1200 x 1600 (3:4) |
| Optics: Resolution | 8 MP (2448 × 3264) |
| Optics: Field of View | H: 79.4°, V: 97.5°, D: 118.2° |
| Sensors | Proximity sensor ALS sensor |
| Display: Size | 177 mm (7") diagonal |
| Display: Screen Technology | Capacitive multi-touch |
| Display: Luminance | Max. 1000 nits (Typical) |
| Display: Screen Orientation | Portrait |
| Display: Resolution | 1024 x 600 px |
| Microphone | Yes |
| Speaker | Yes ((1) 4 ohm, 2W) |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| LEDs | Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Intercom, V01 |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F) (The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66)) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
