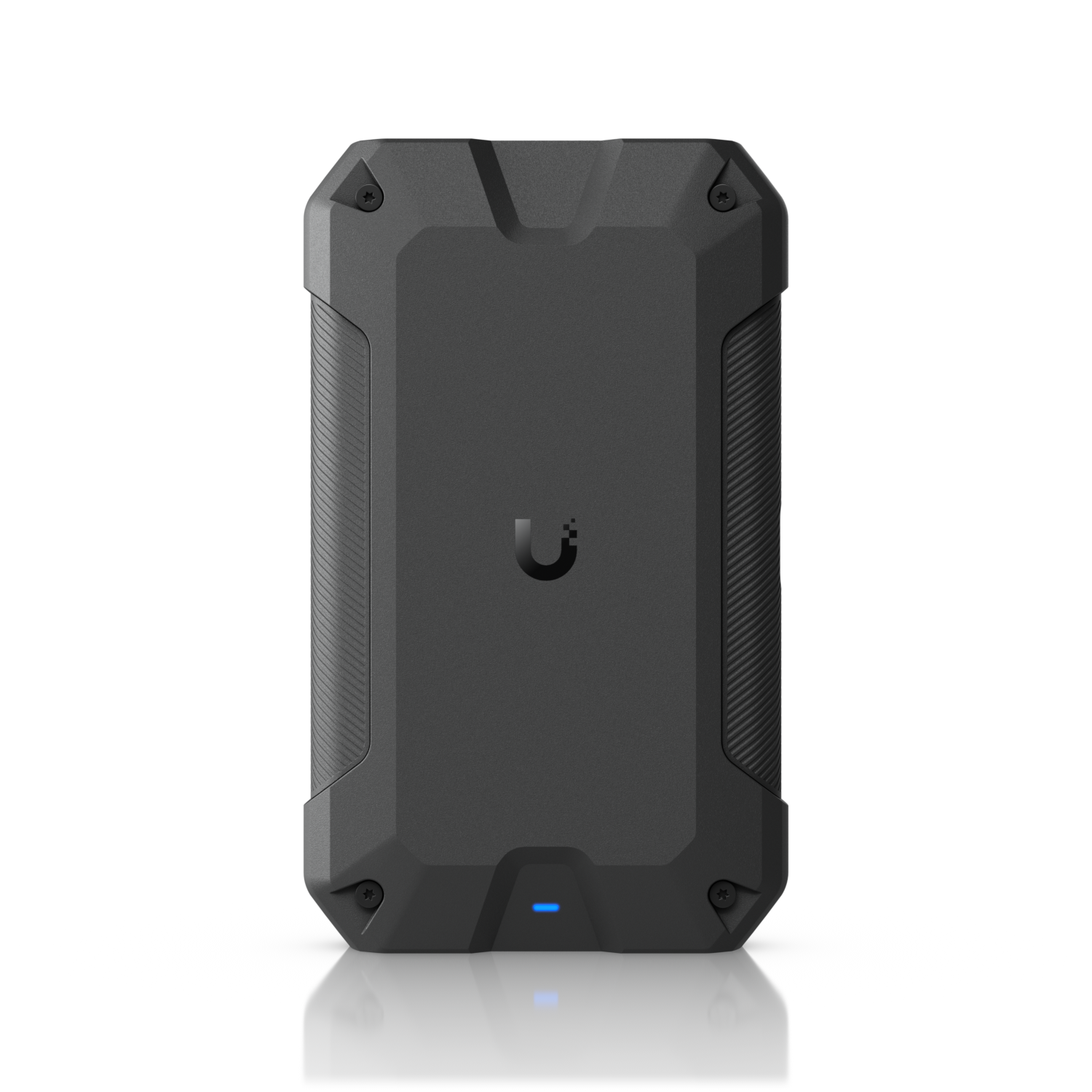

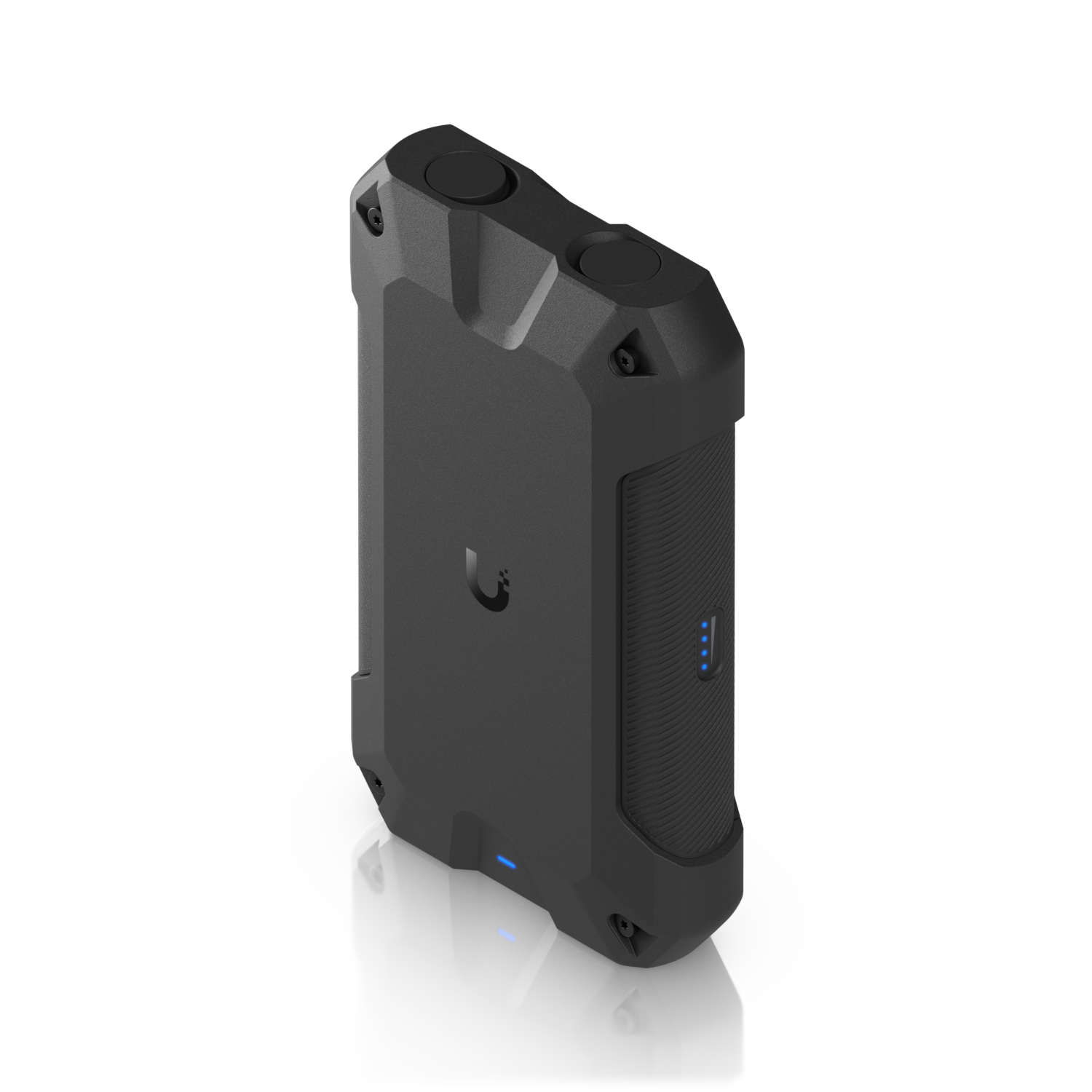

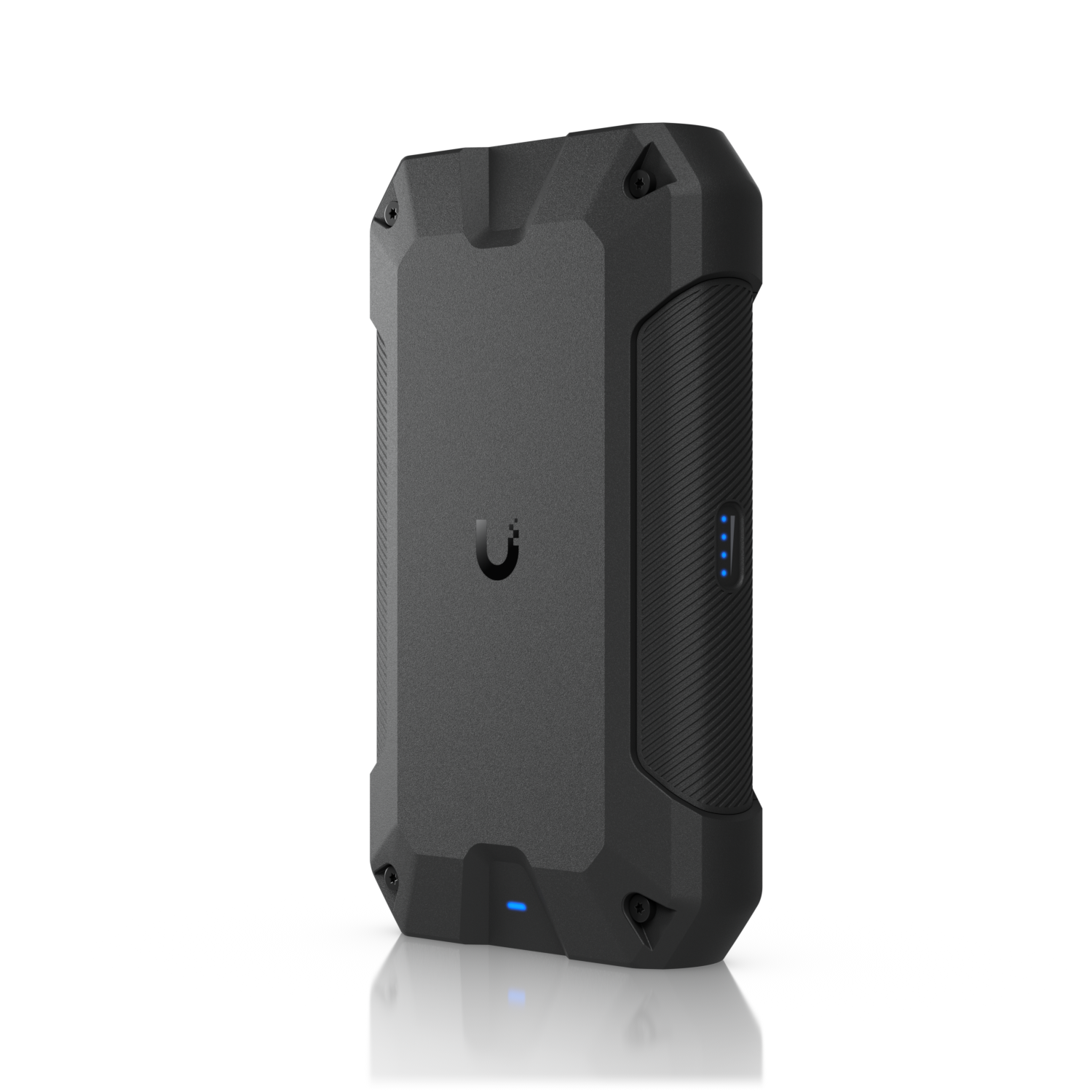

UniFi Access Point U7 Industrial
IP67 iðnaðar WiFi 7 aðgangsstaður með útvíkkuðu hitastigssviði, innbyggðu háhagnaðar stefnuvirku RF kerfi með stillanlegri einangrun og stjórn á geislabreidd.
Athugið. Krefst UniFi Network 11 RC og Access Point 8.8.12 (væntanlegt 12. okt).
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Device: 170 × 103 × 41.2 mm (6.7 × 4.1 × 1.6") Ball mount installed: 170 × 103 × 107.6 mm (6.7 × 4.1 × 4.2") Adjustable reflectors installed: 177.6 x 299.7 × 177.8 mm (7 x 11.8 × 7") Omnidirectional antennas installed: 341.8 × 103 × 107.6 mm (13.5 × 4.1 × 4.2") (Dimensions with antennas include the ball mount) |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts included) |
| Weatherproofing | IP67 (With cable gland properly installed) |
| Power Method | PoE |
| MIMO: 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO: 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate: 5 GHz | 4.3 Gbps (BW240) (Depends on regulatory region) |
| Max. Data Rate: 2.4 GHz | 688 Mbps (BW40) |

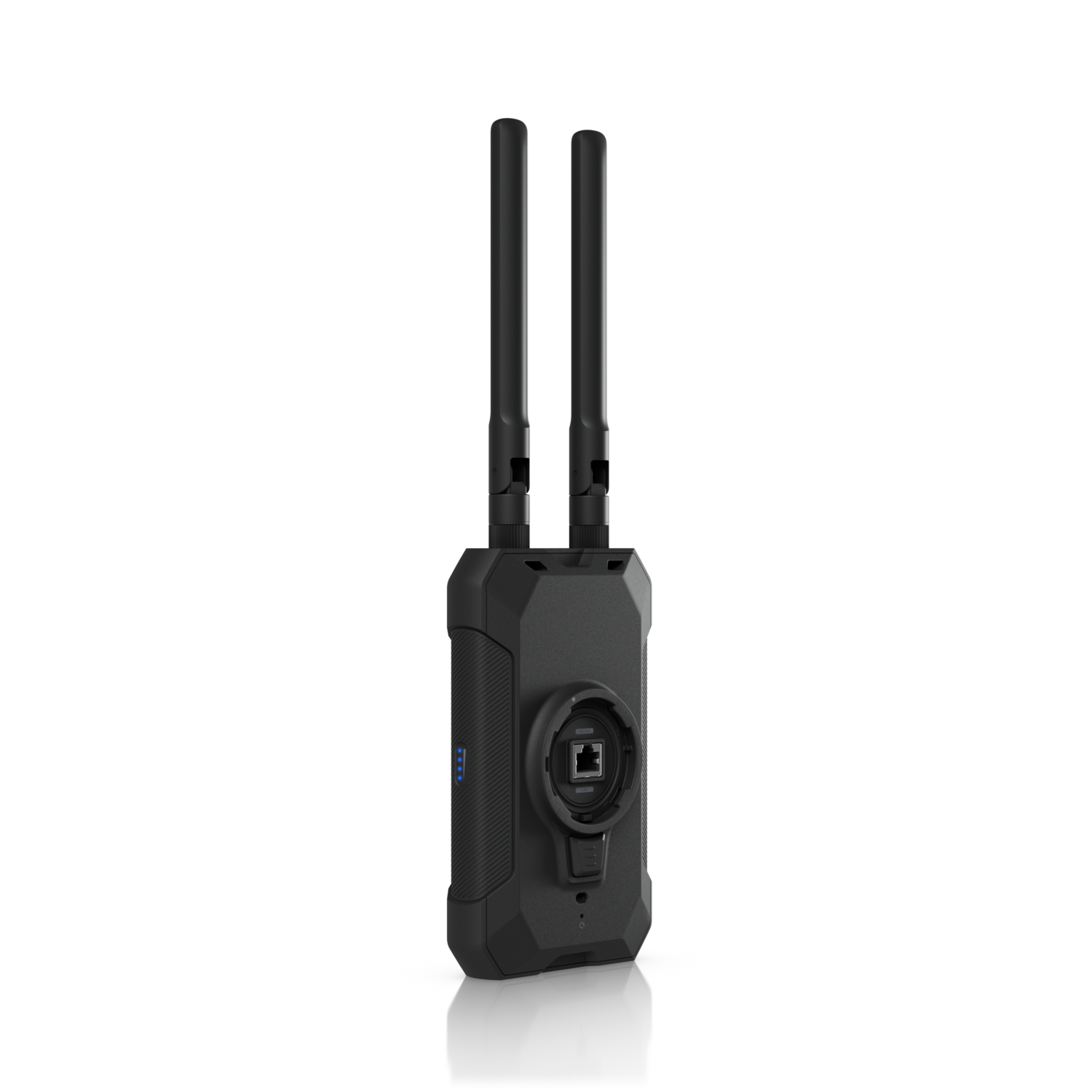

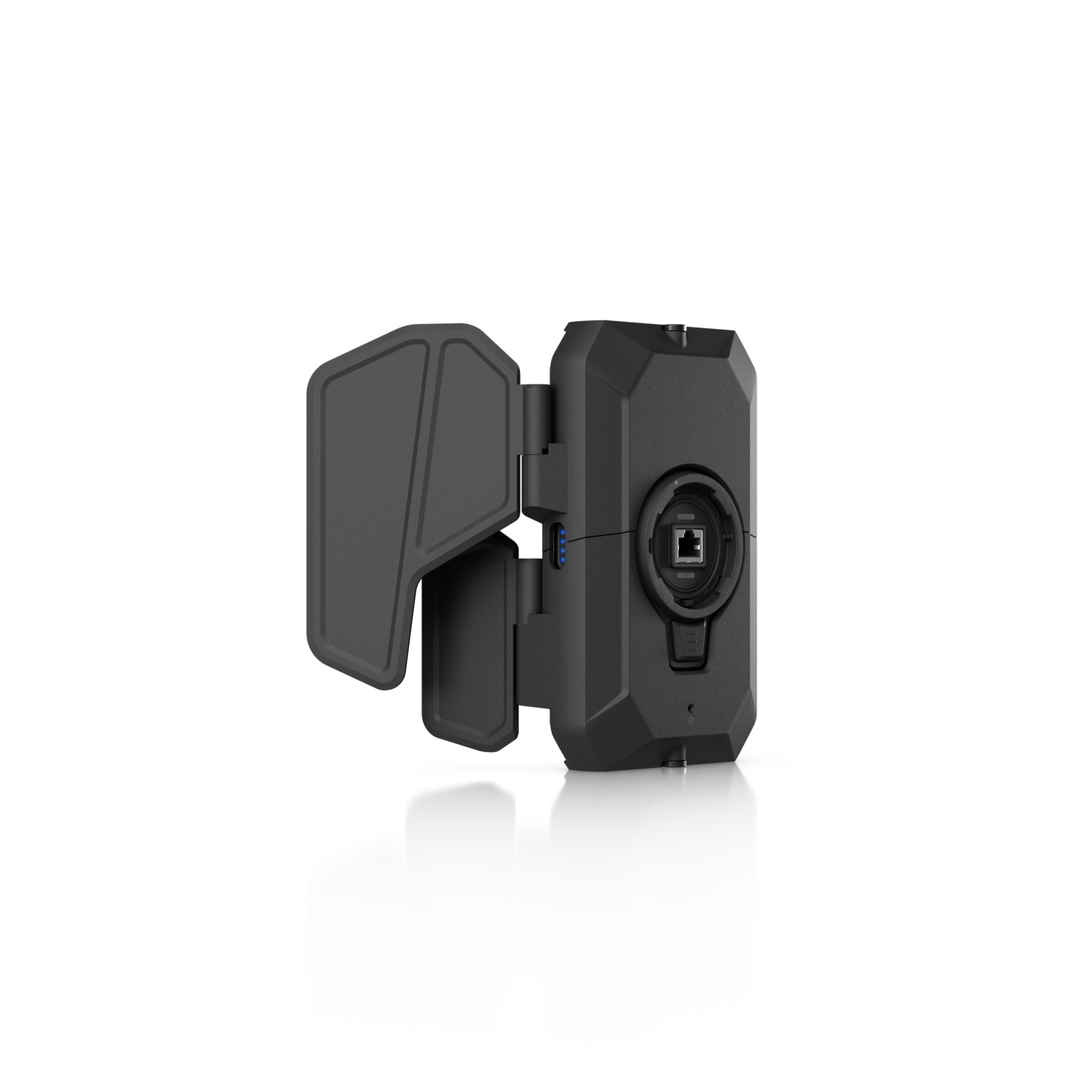

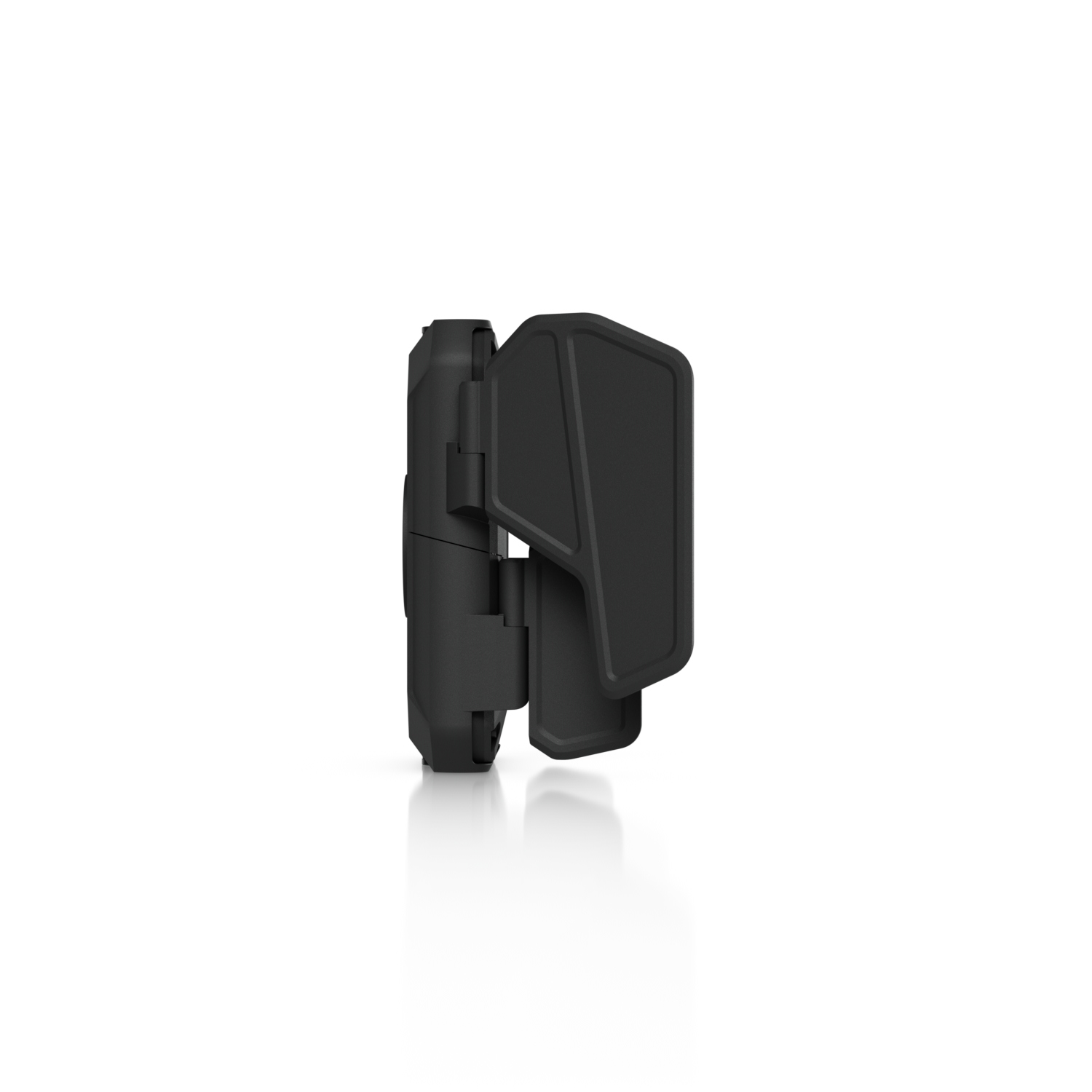

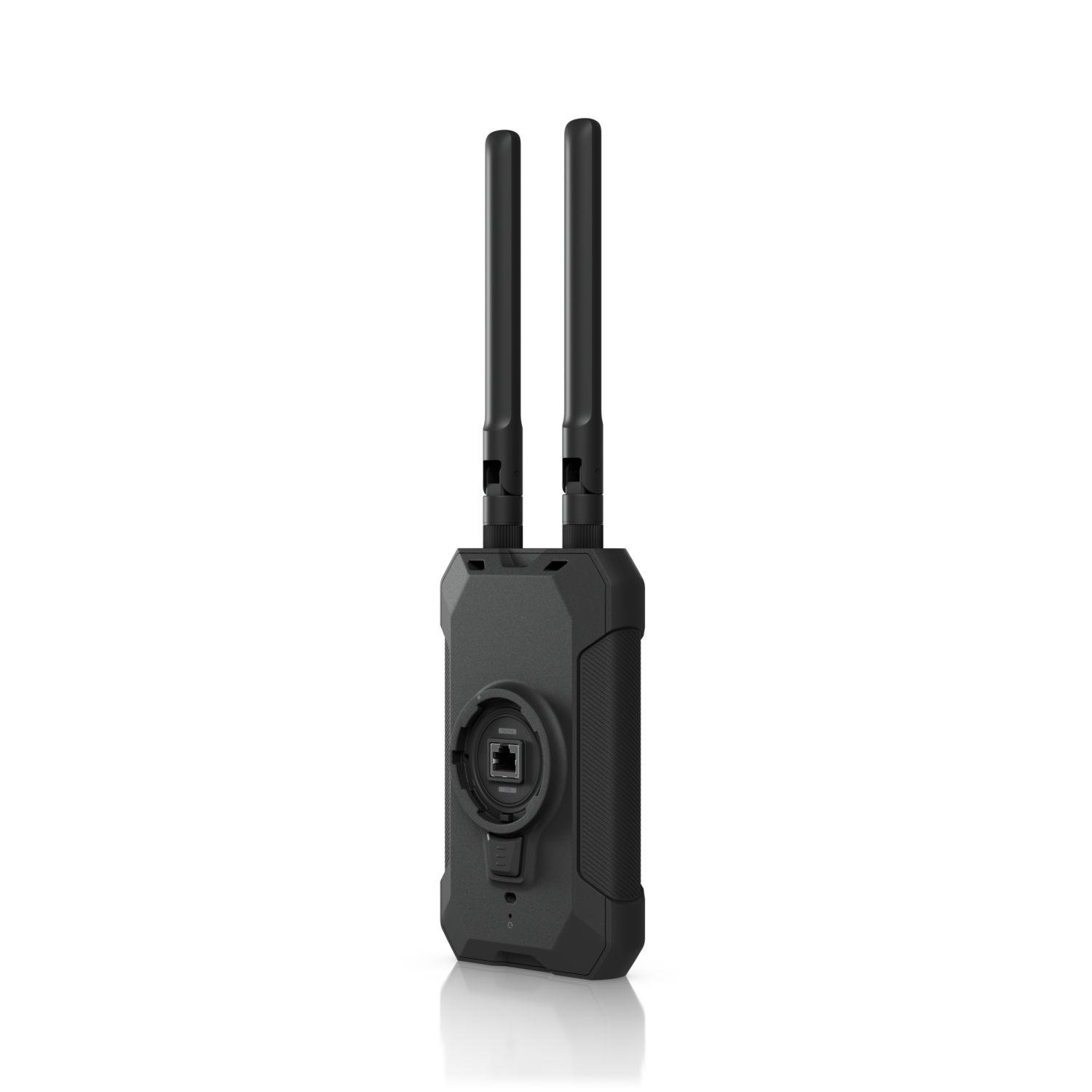

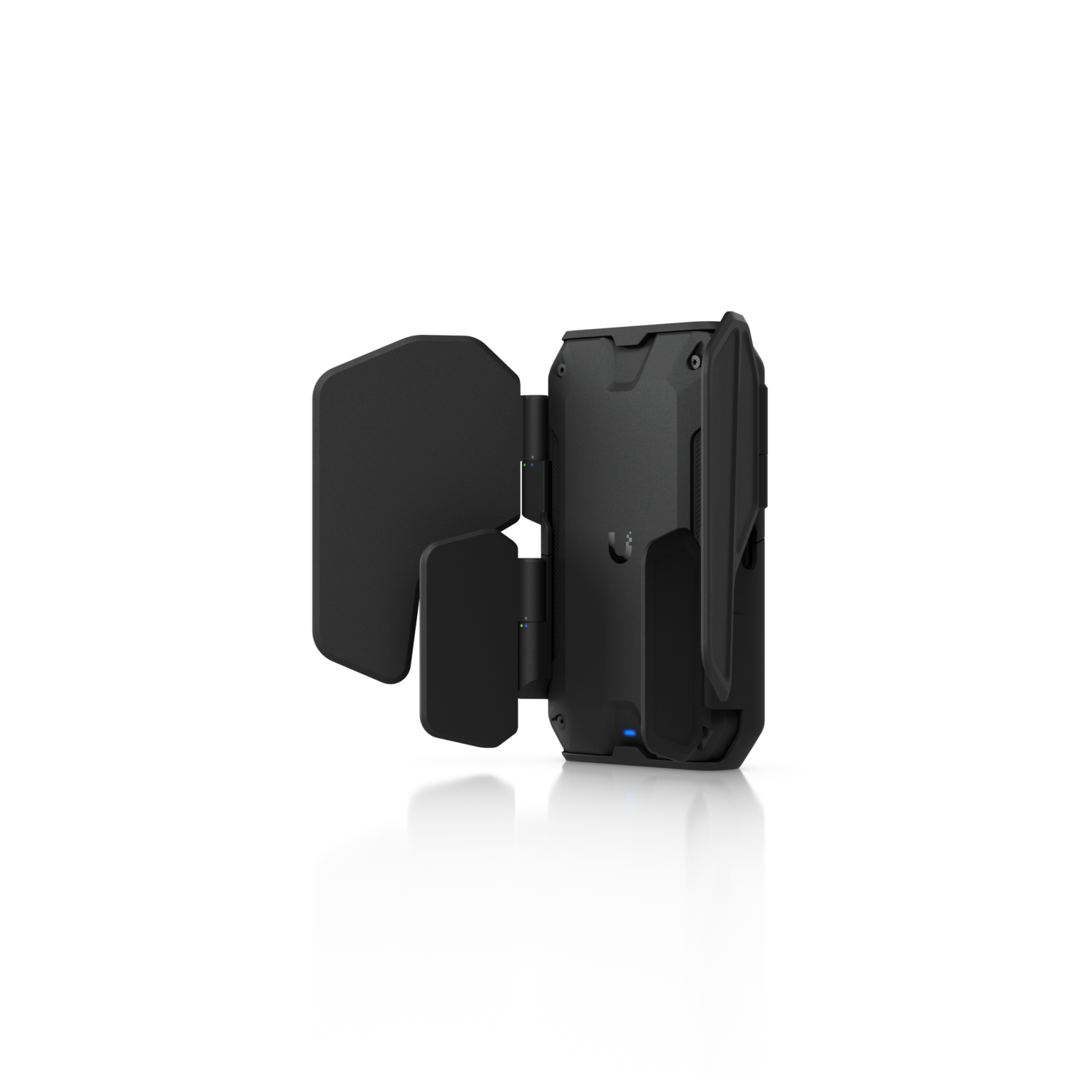

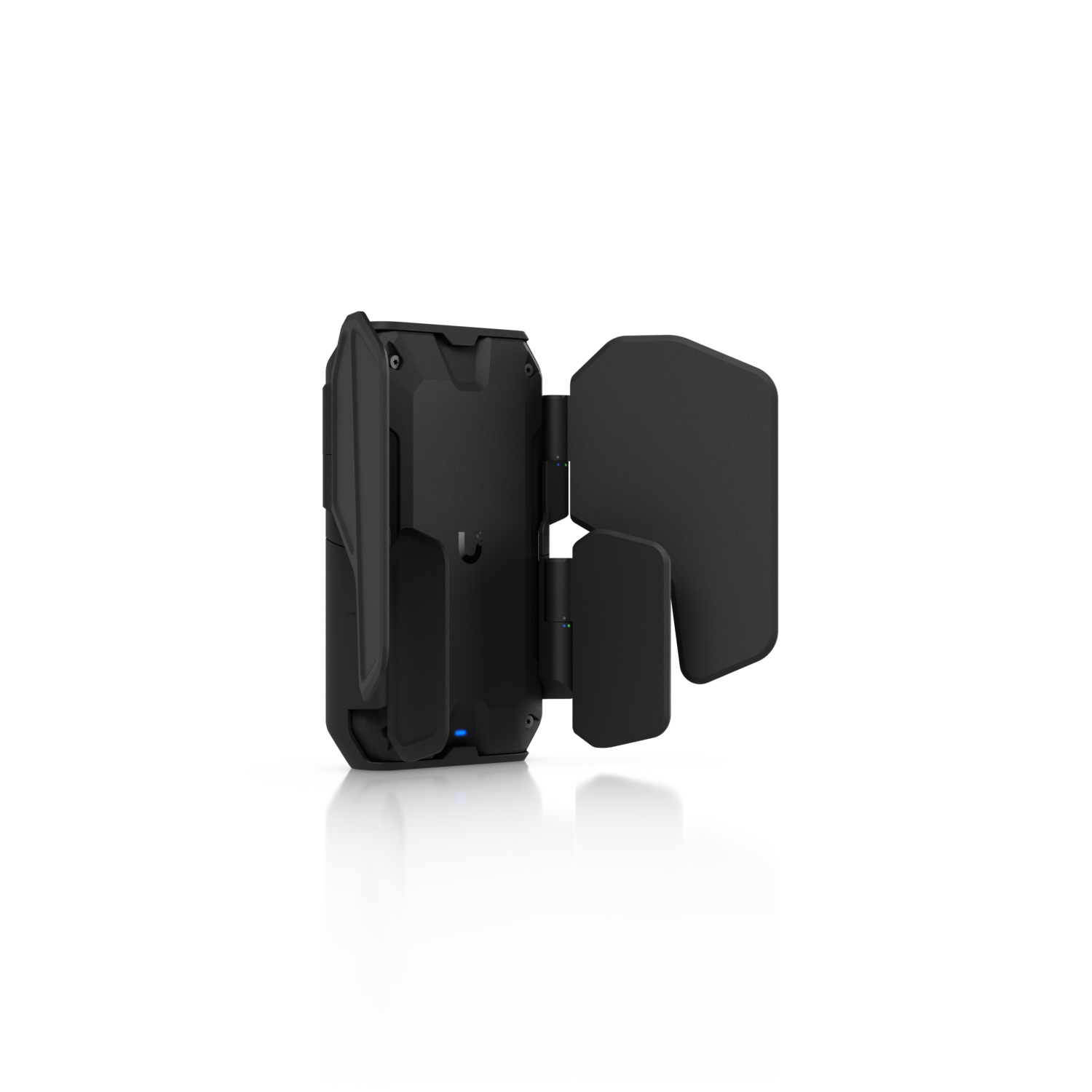

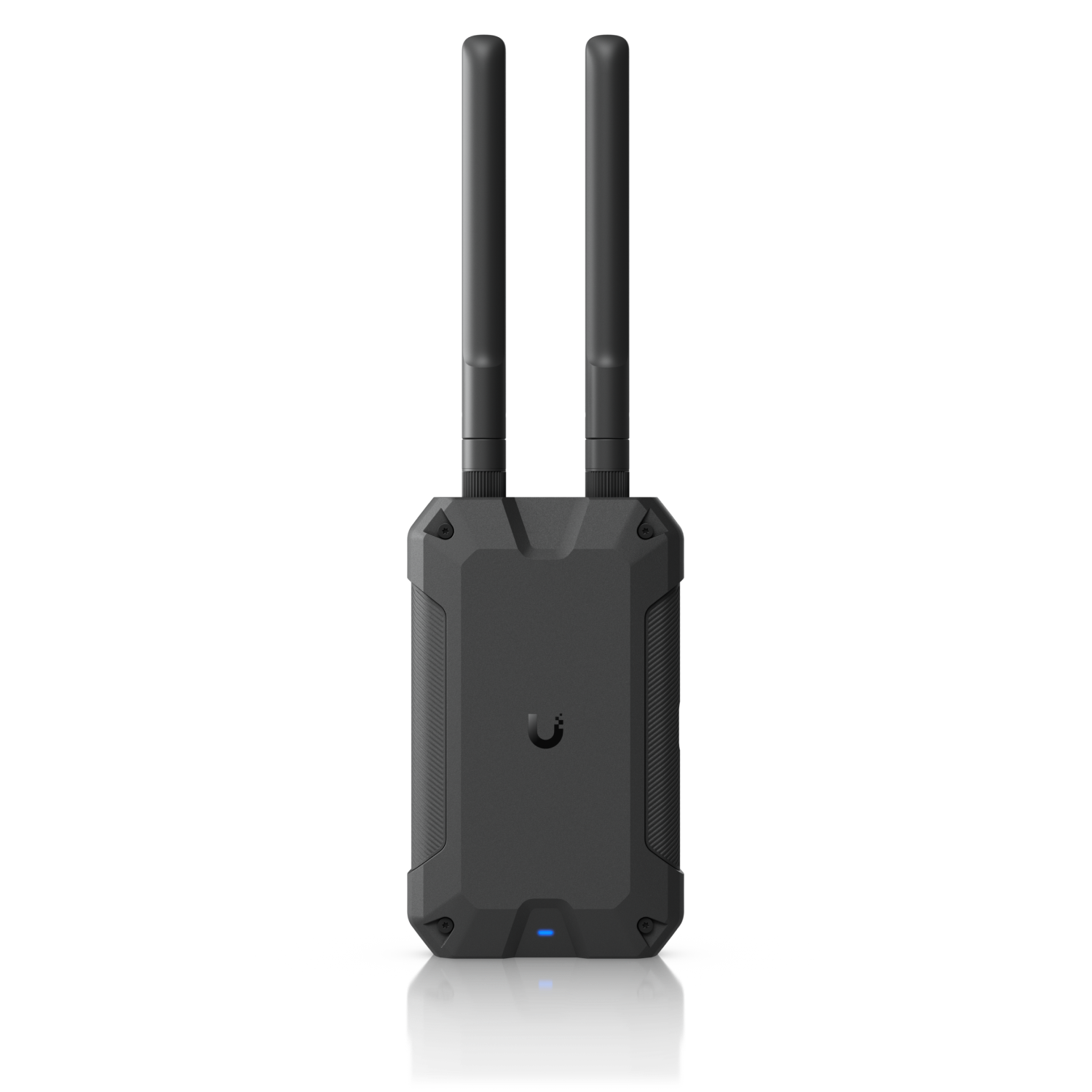

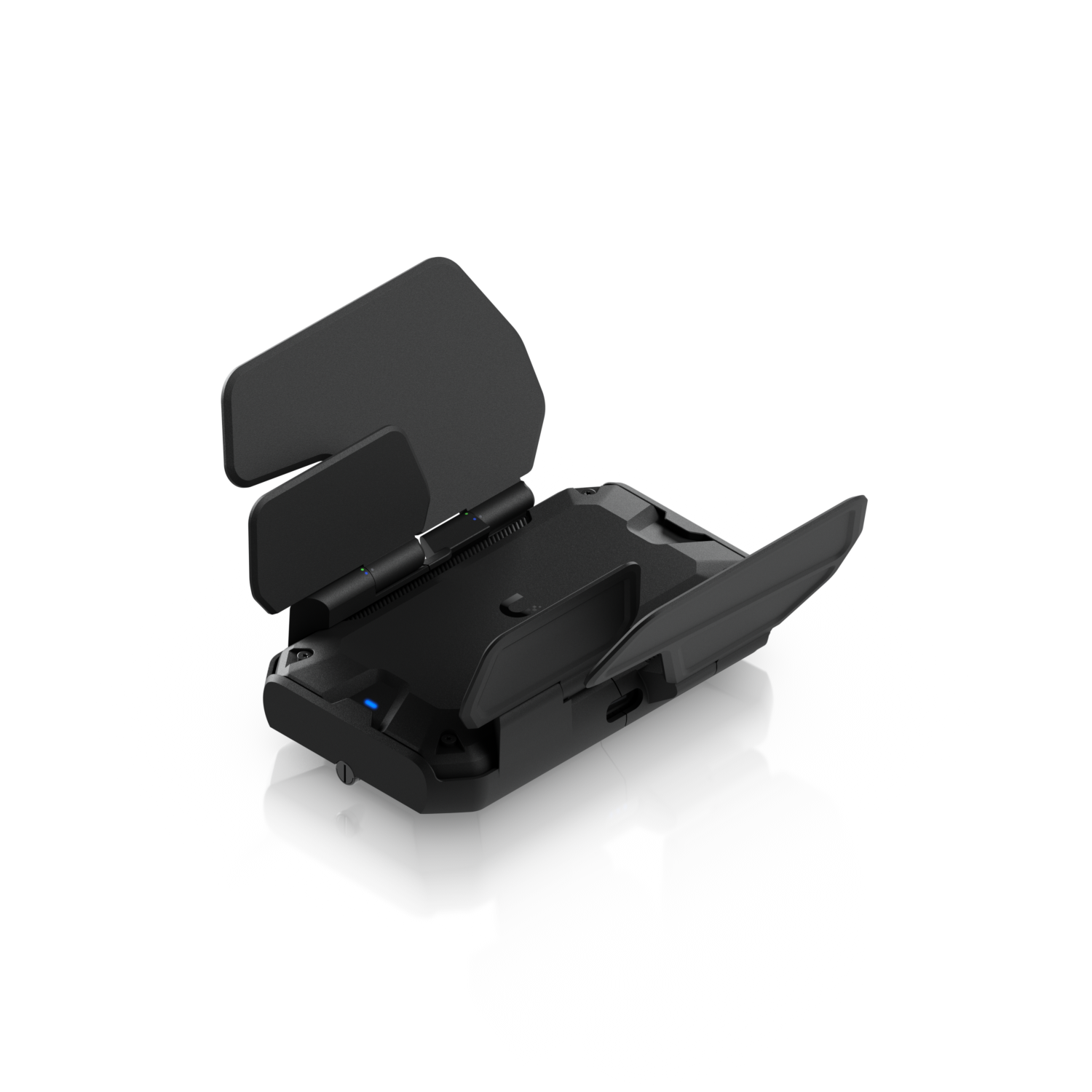

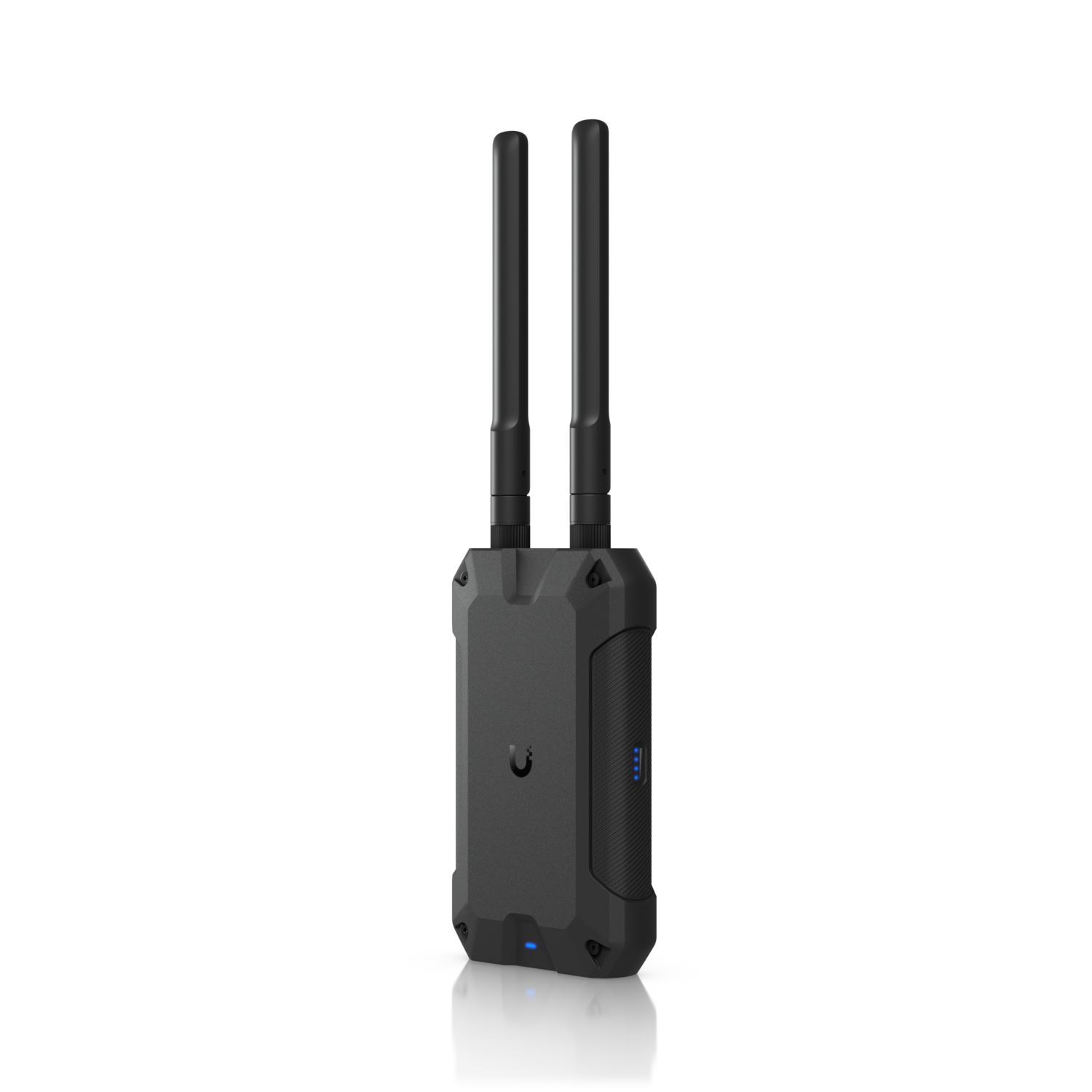

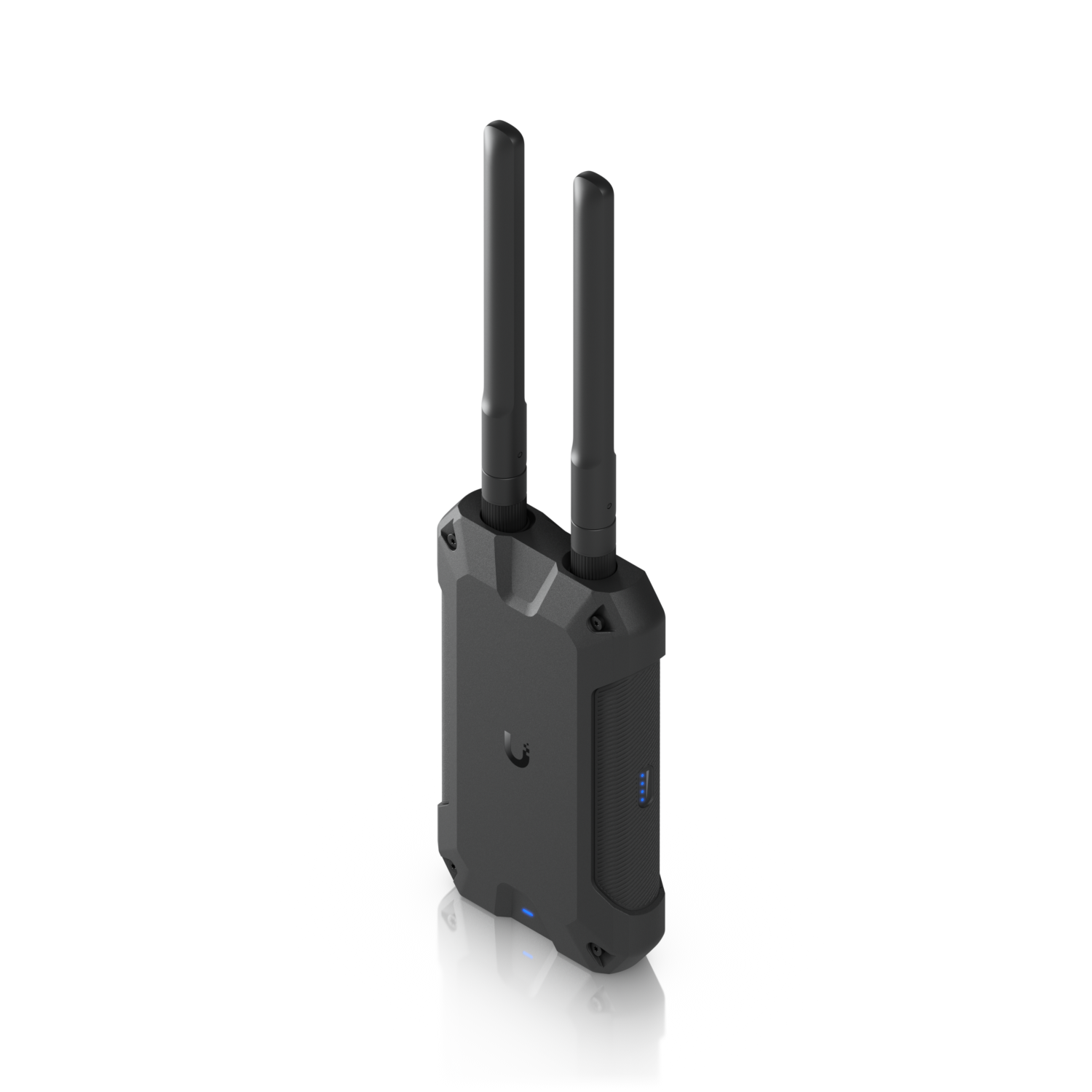

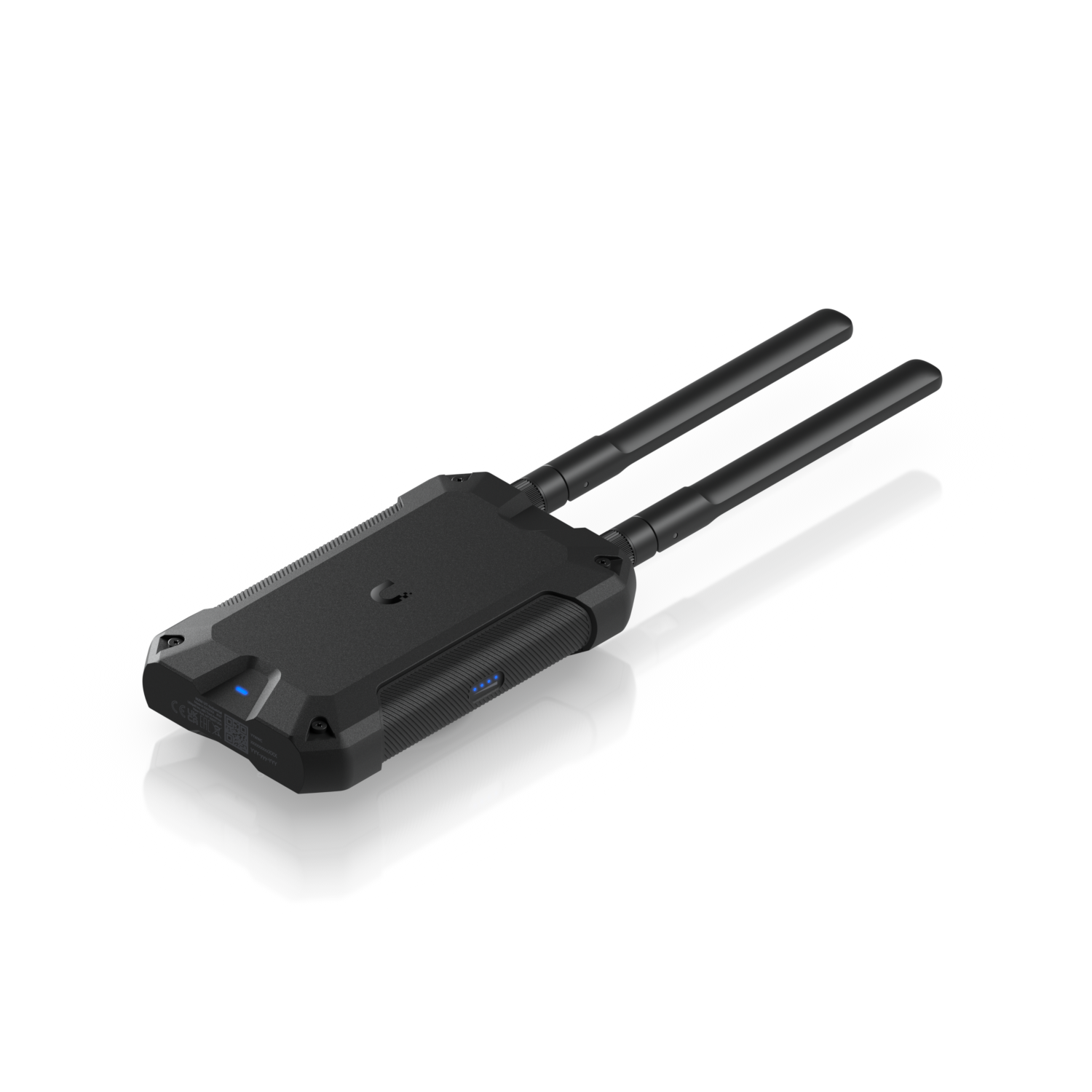

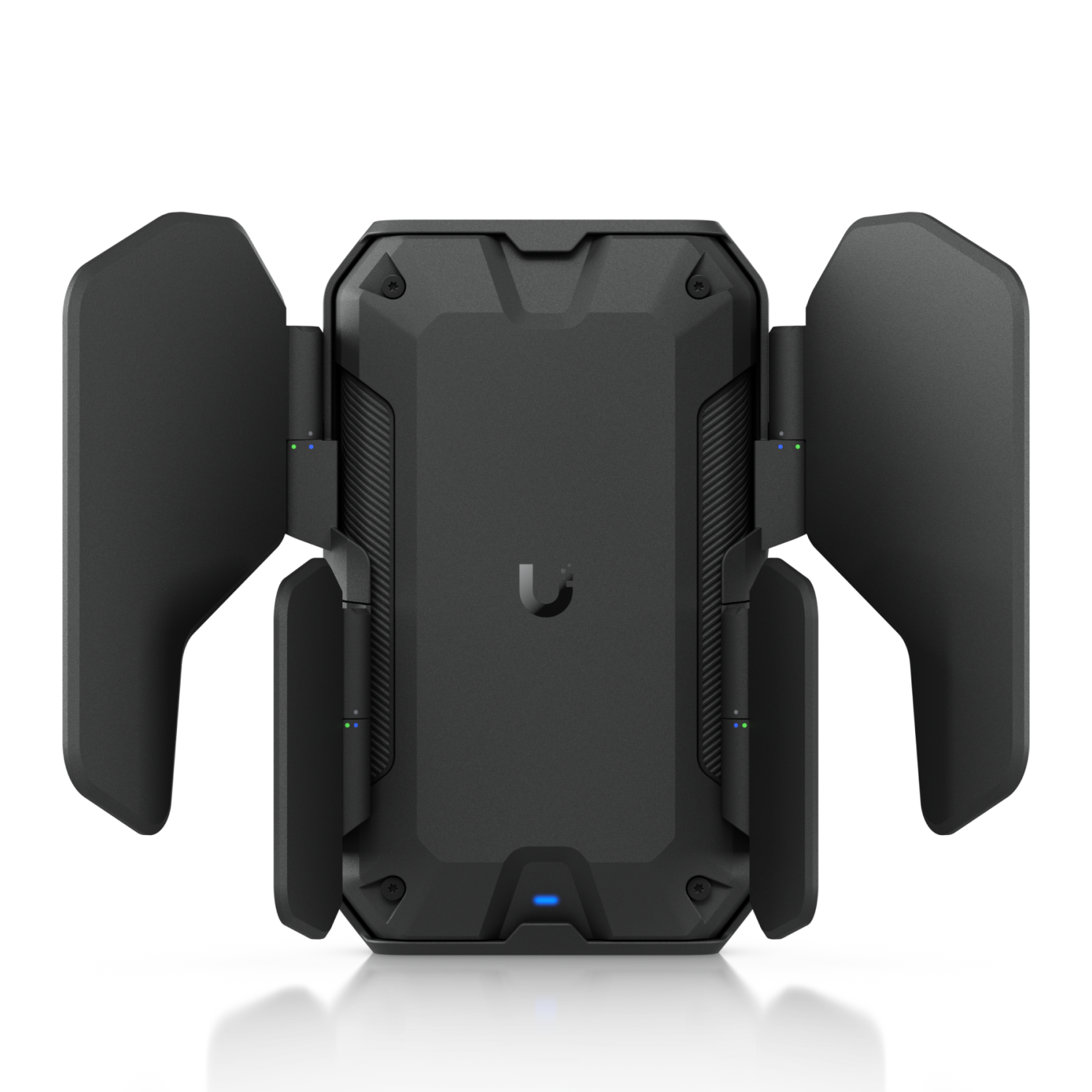

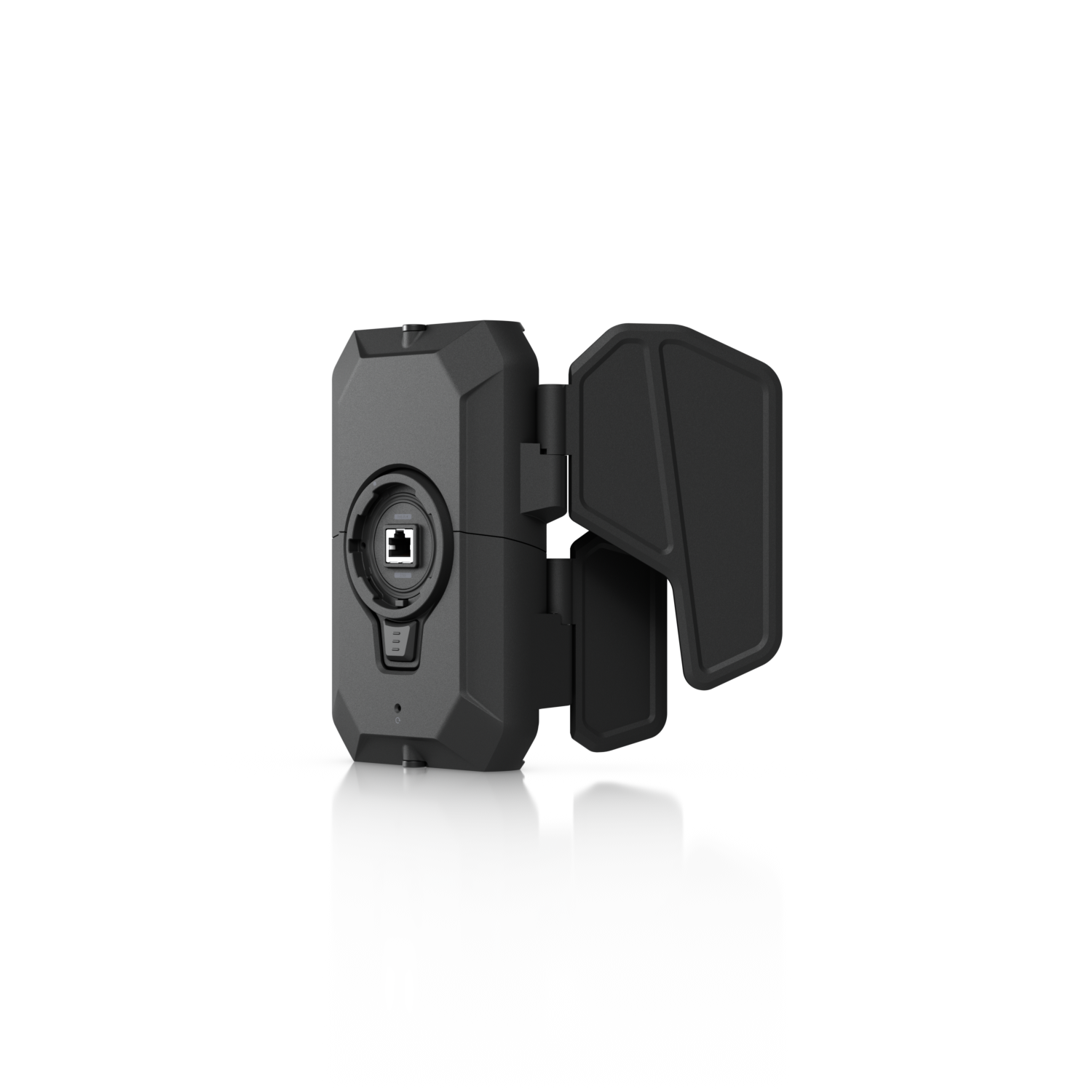

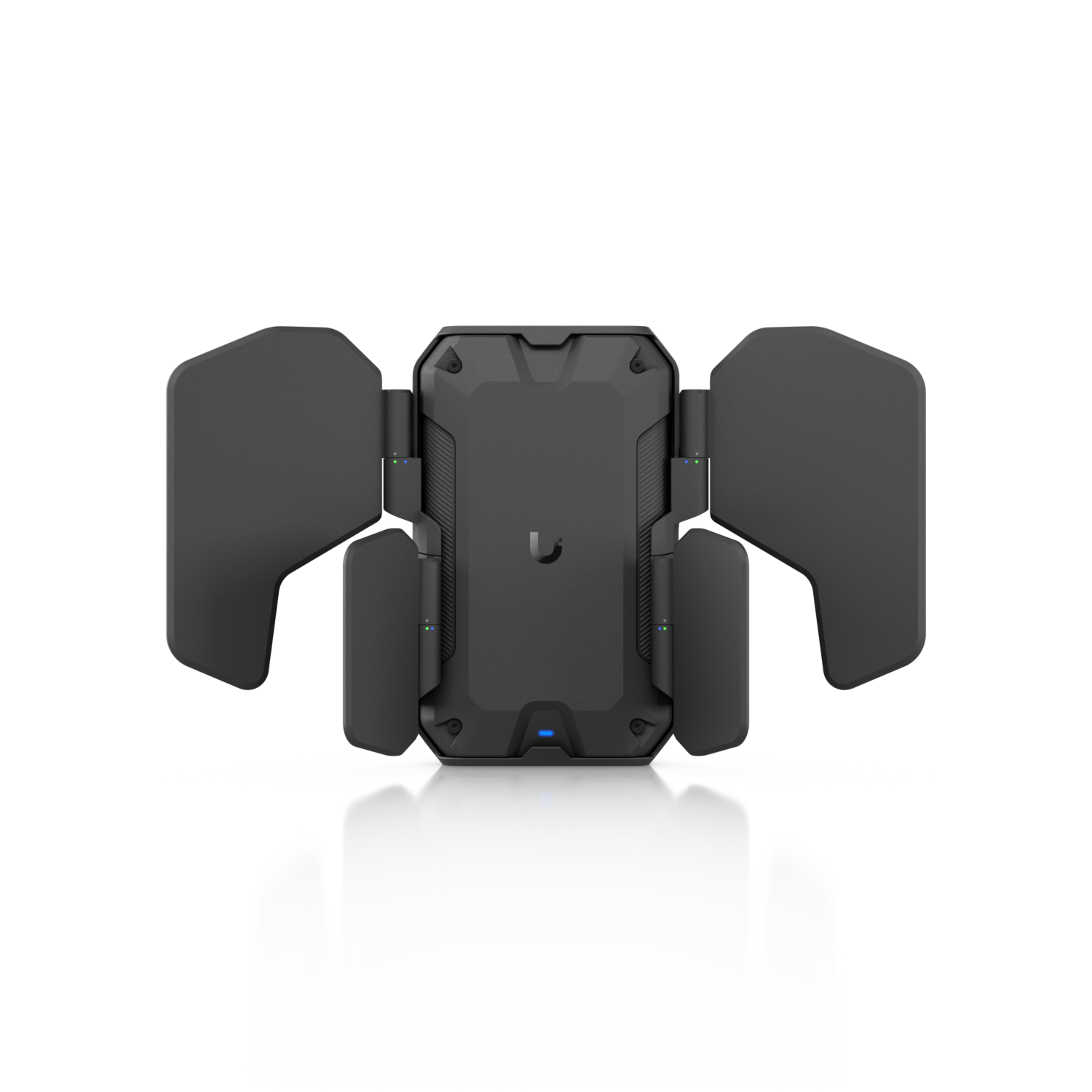

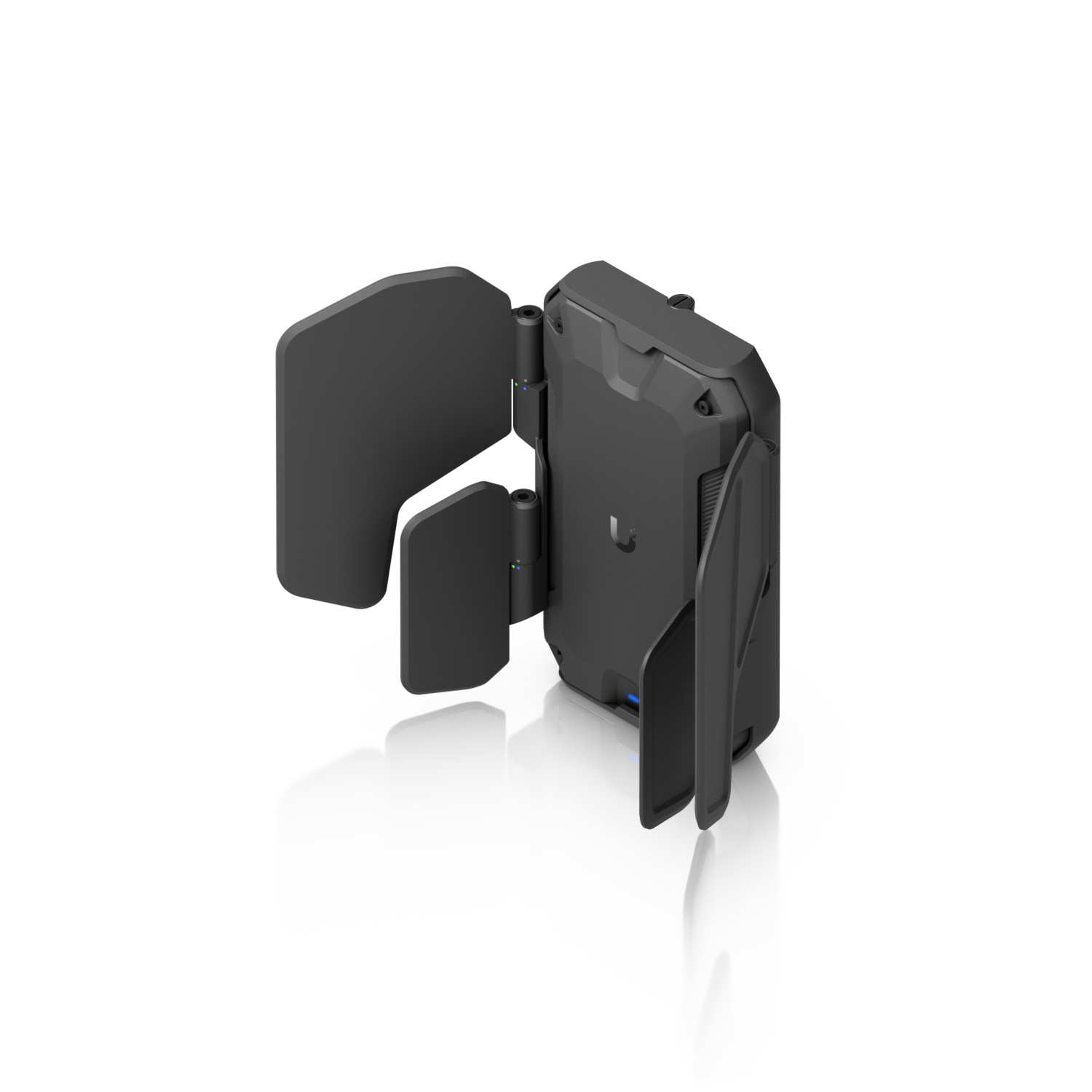

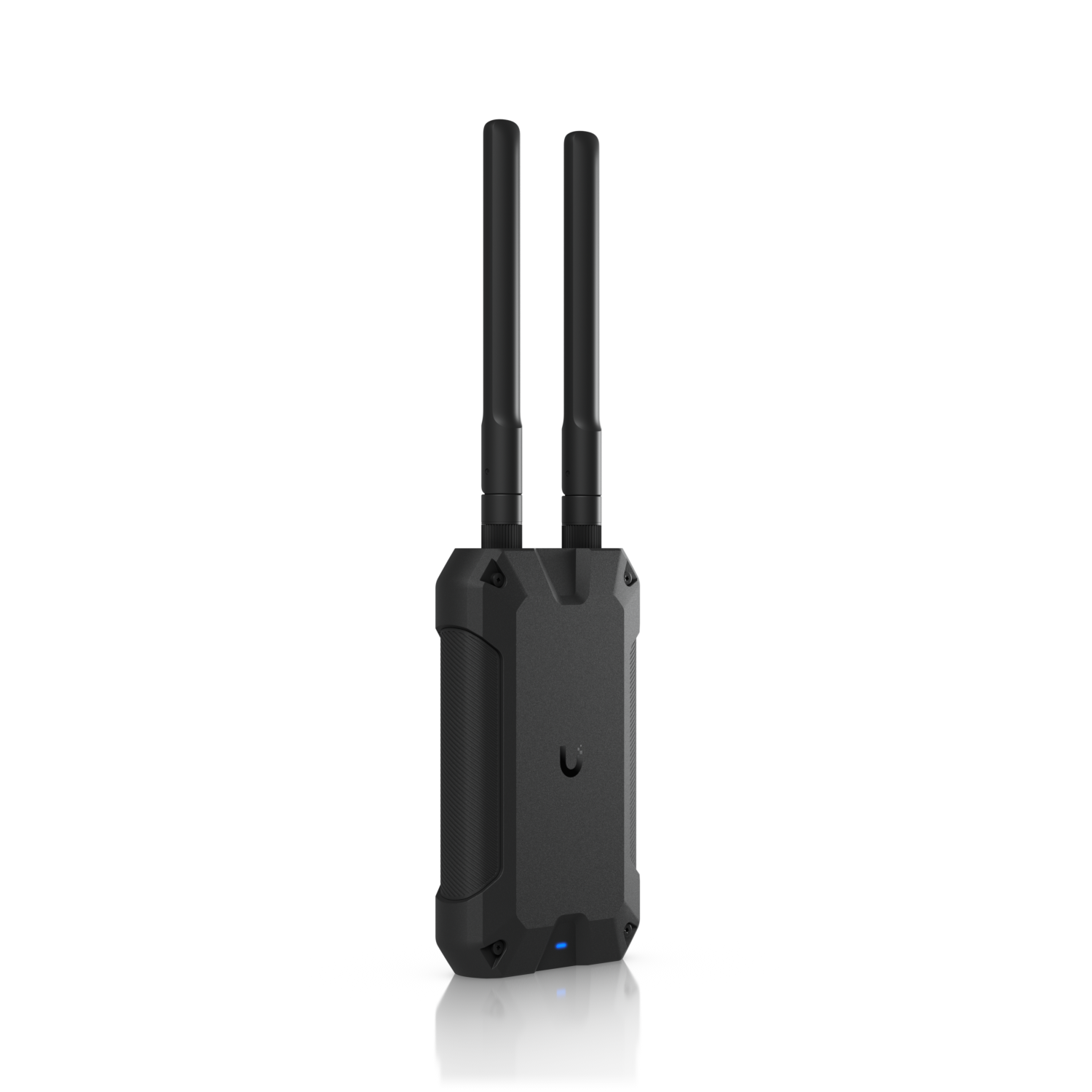

| Antenna Gain: 5 GHz | Directional internal (Built-in): 10 dBi, 95° x 45° Directional internal (Reflector Wide Angle): 11 dBi, 70° x 45° Directional internal (Reflector Narrow Angle): 12 dBi, 55° x 45° External omni: 6 dBi, 360° x 45° |
| Antenna Gain: 2.4 GHz | Directional internal (Built-in): 8 dBi, 100° x 45° Directional internal (Reflector Wide Angle): 9 dBi, 80° x 45° Directional internal (Reflector Narrow Angle): 10 dBi, 65° x 45° External omni: 5 dBi, 360° x 45° |
| Max. TX Power: 5 GHz | 24 dBm |
| Max. TX Power: 2.4 GHz | 23 dBm |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal: Custom Branding Landing Page | Yes |
| Captive Hotspot Portal: Voucher Authentication | Yes |
| Captive Hotspot Portal: Payment-Based Authentication | Yes |
| Captive Hotspot Portal: External Portal Server Support | Yes |
| Captive Hotspot Portal: Password Authentication | Yes |
| Captive Hotspot Portal: Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |

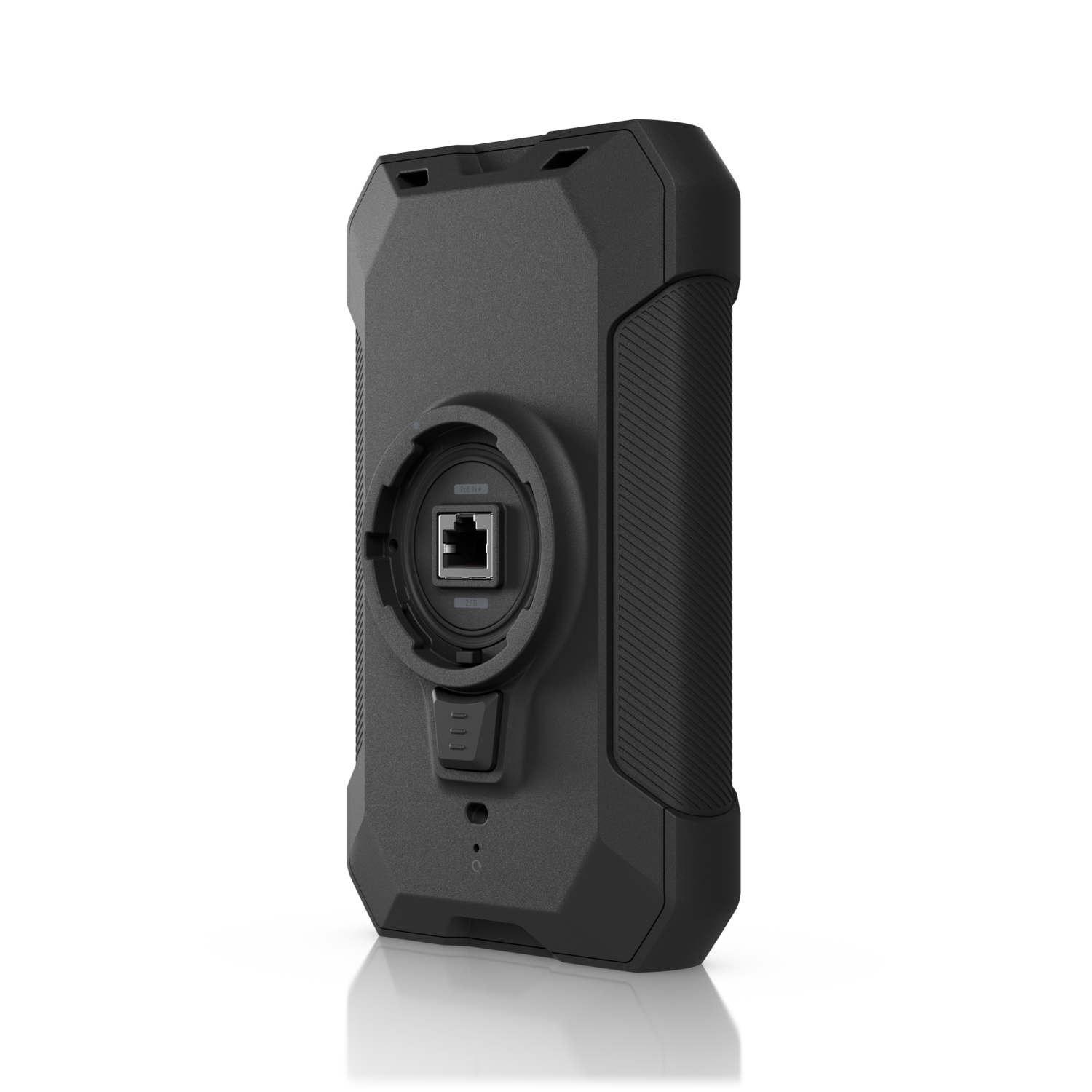

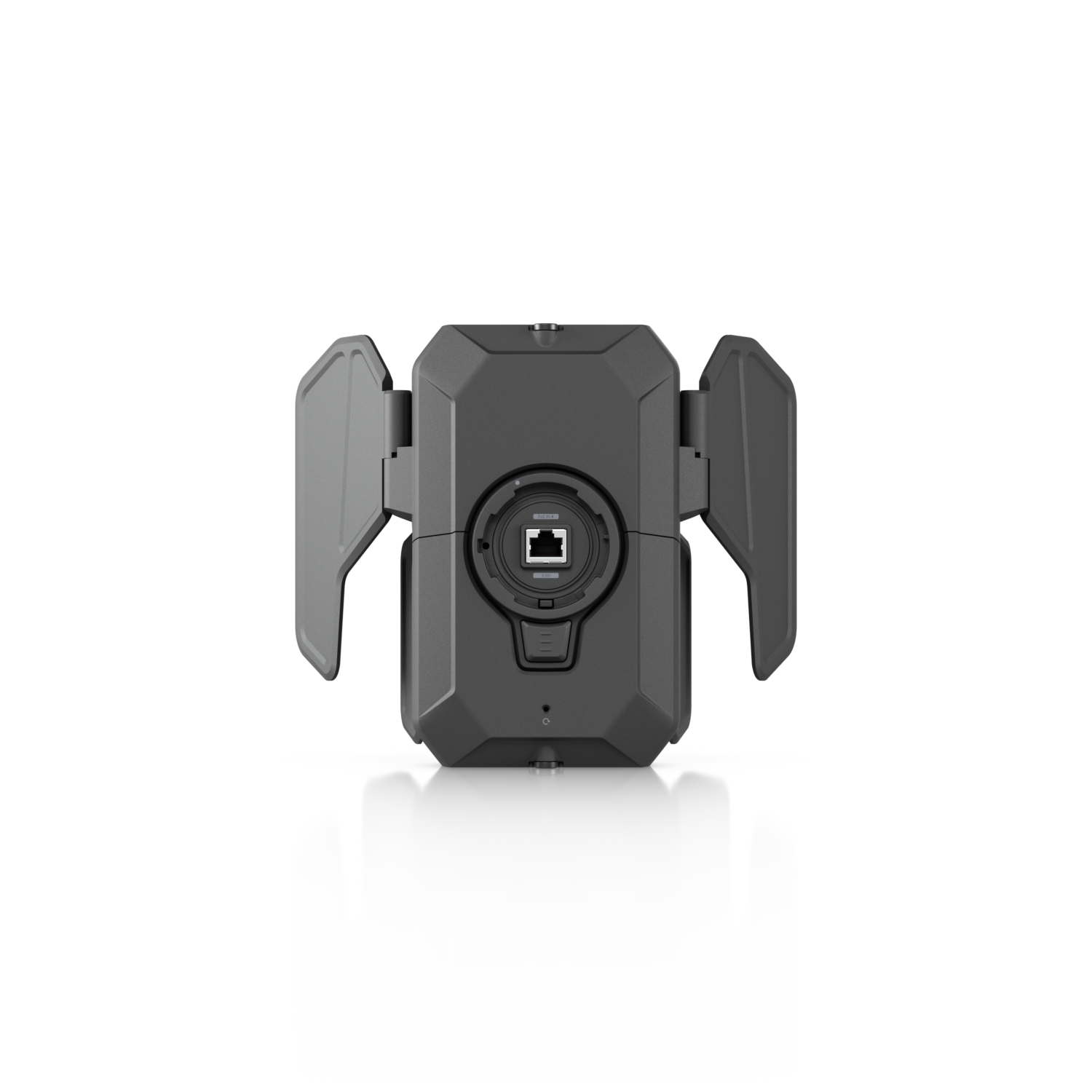

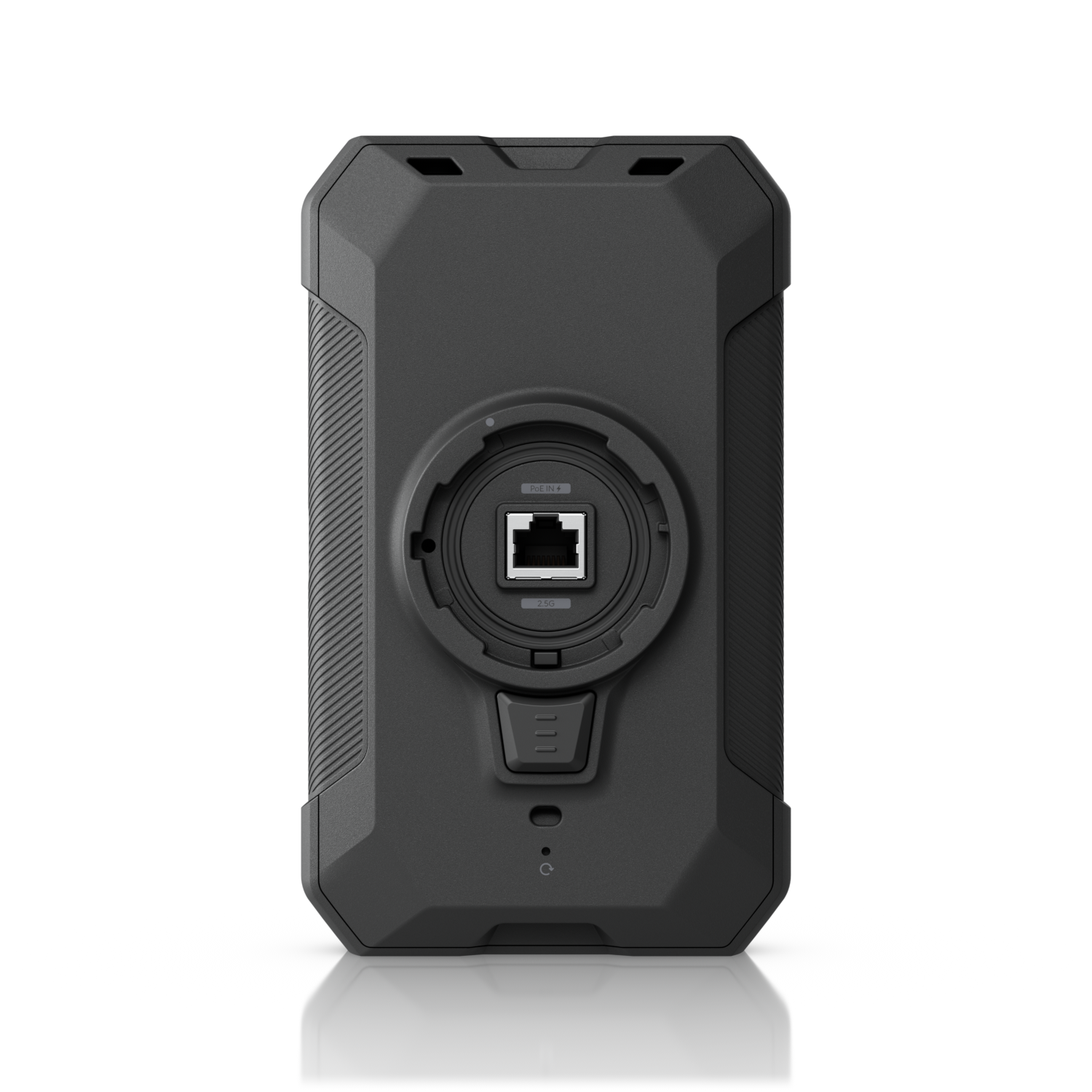

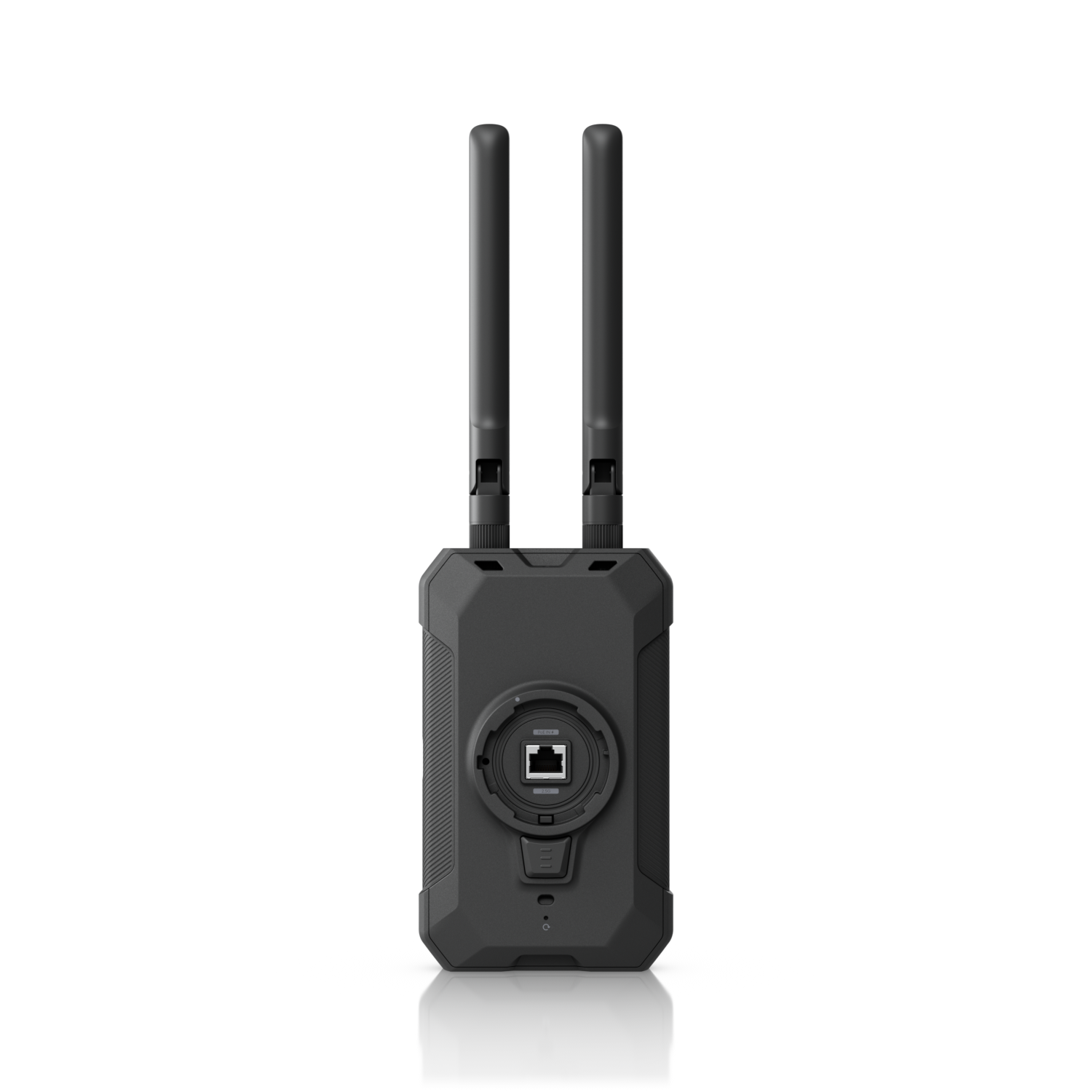

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | Device: 577 g (1.3 lb) Ball mount: 163 g (5.8 oz) Reflector antenna set: 500 g (1.1 lb) Omni antenna set: 52 g (1.8 oz) |
| Wind Loading | 97.3 N at 200 km/h (21.9 lbf at 125 mph) |

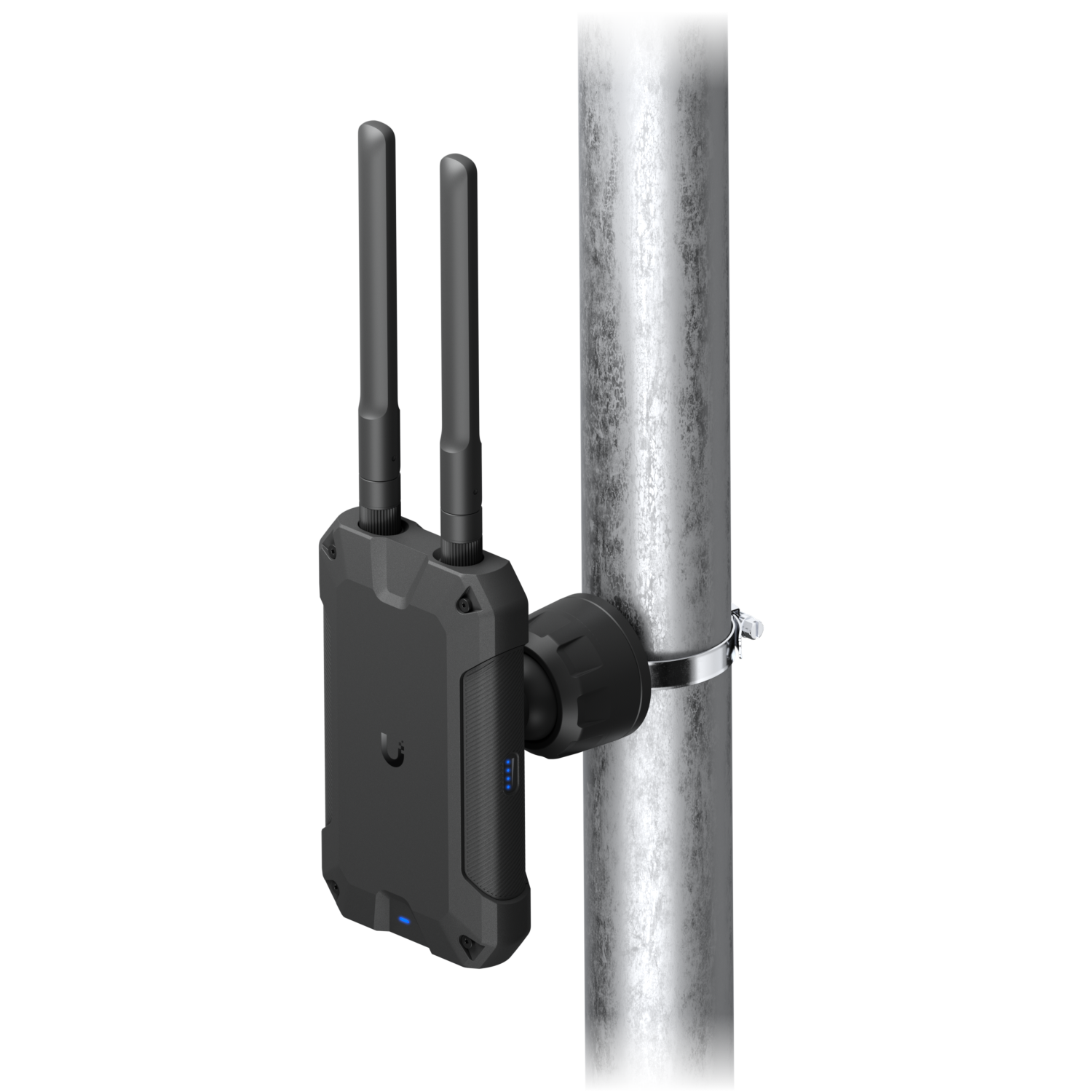

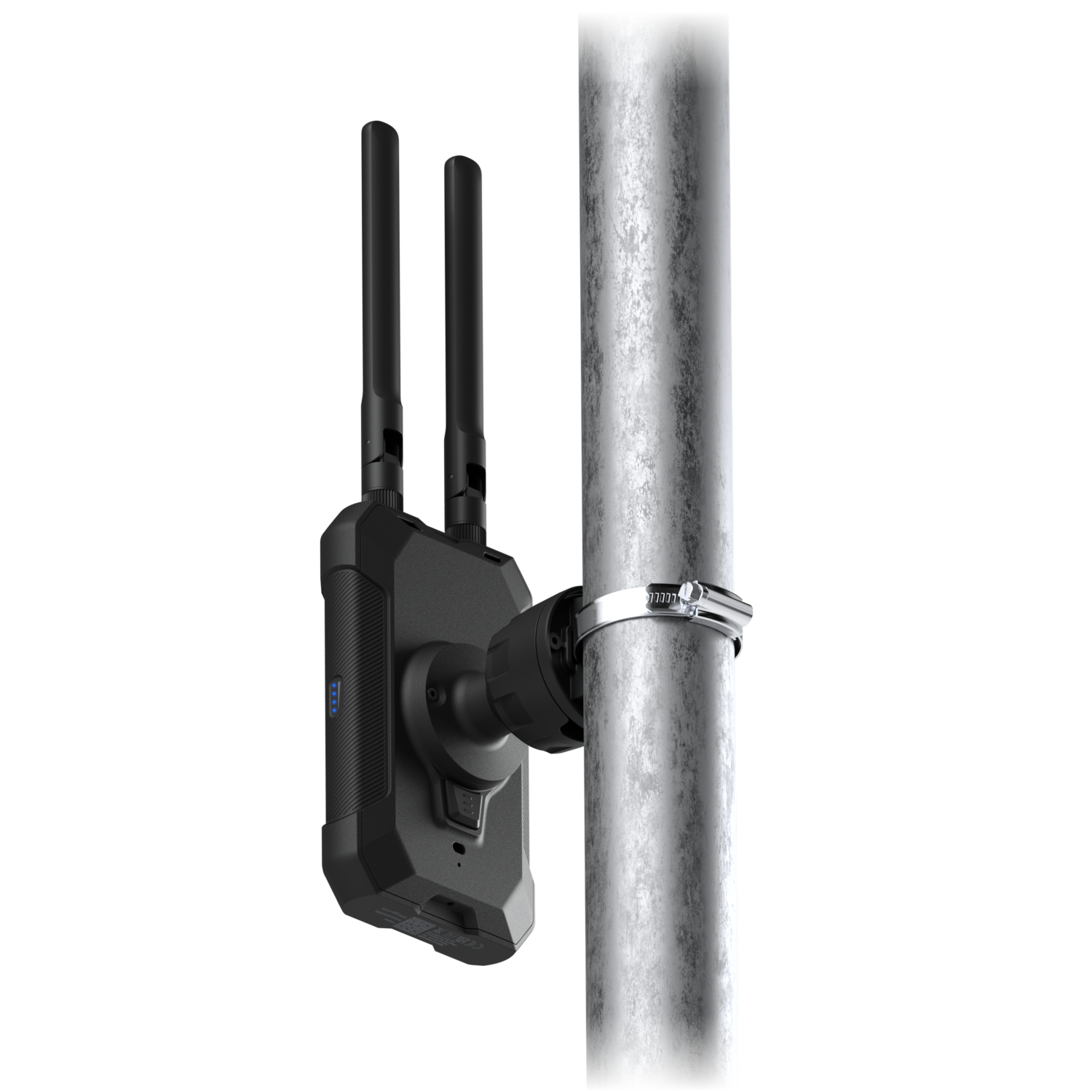

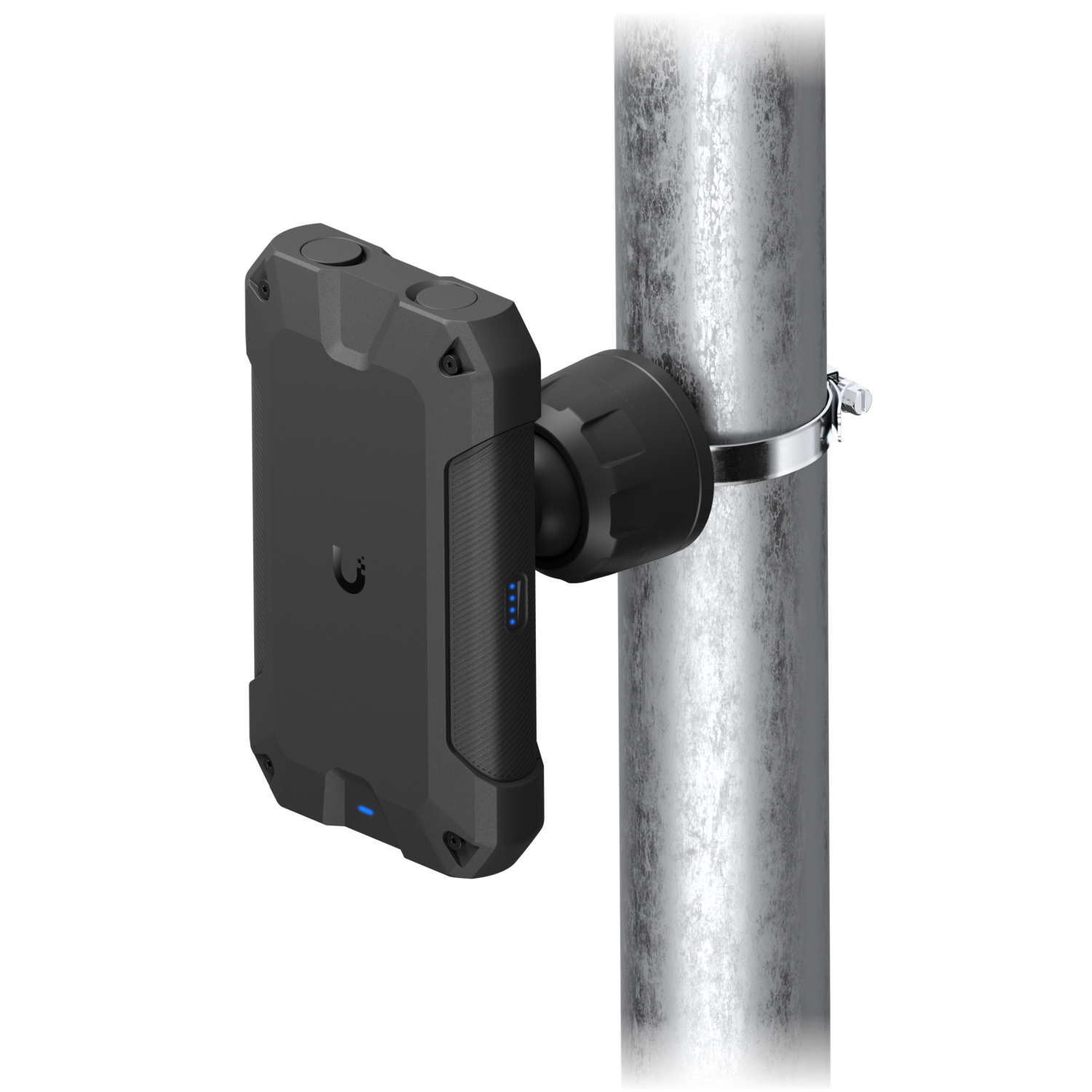

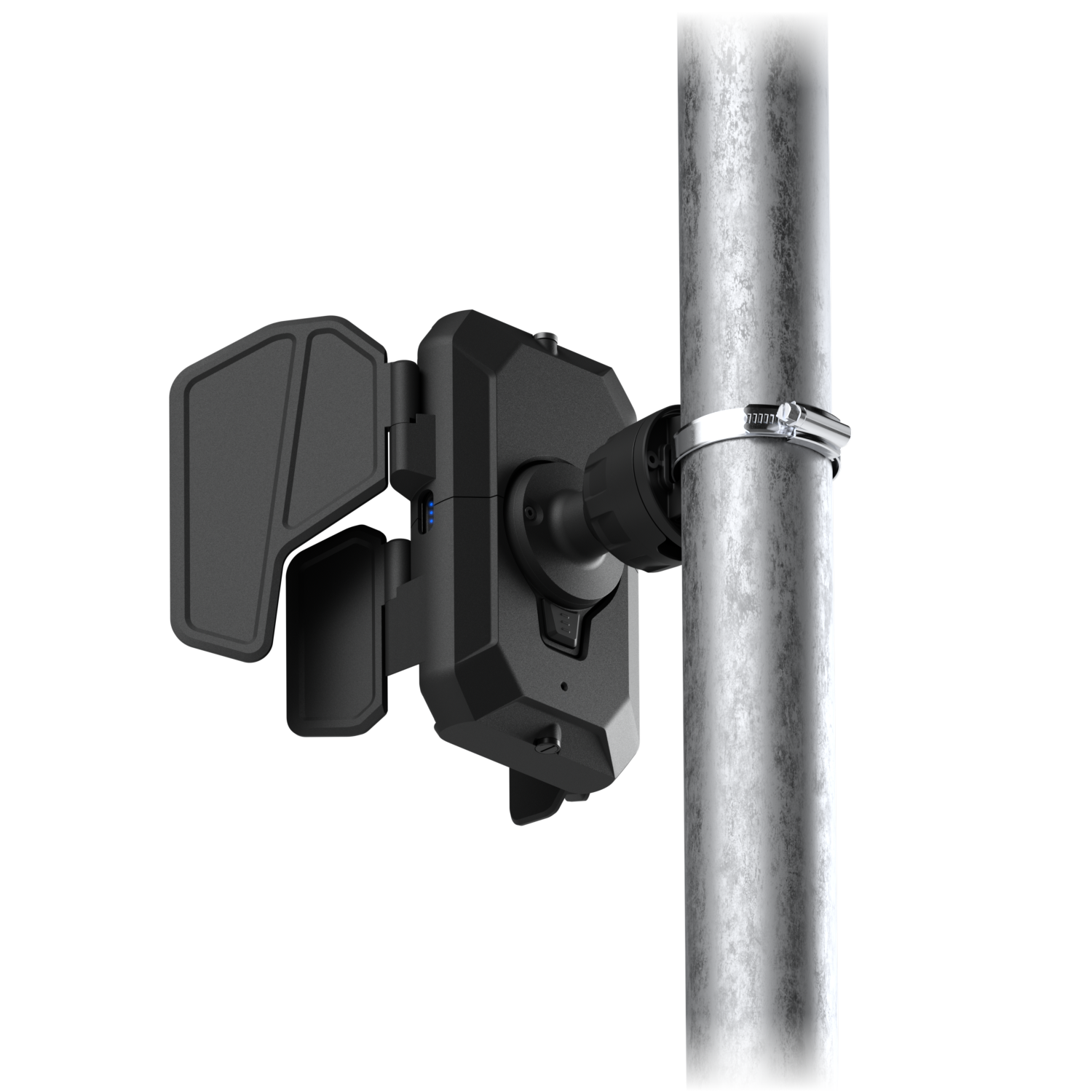

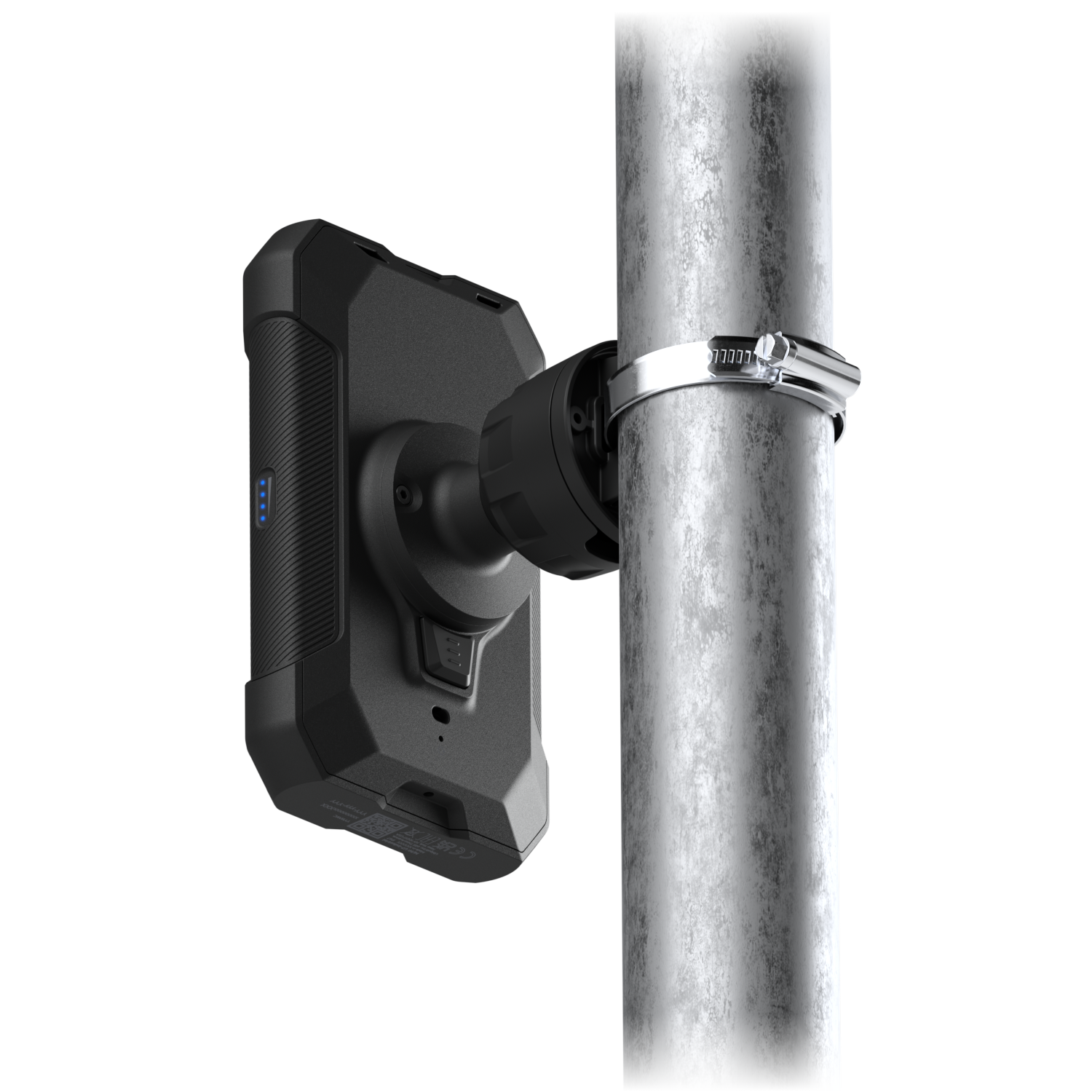

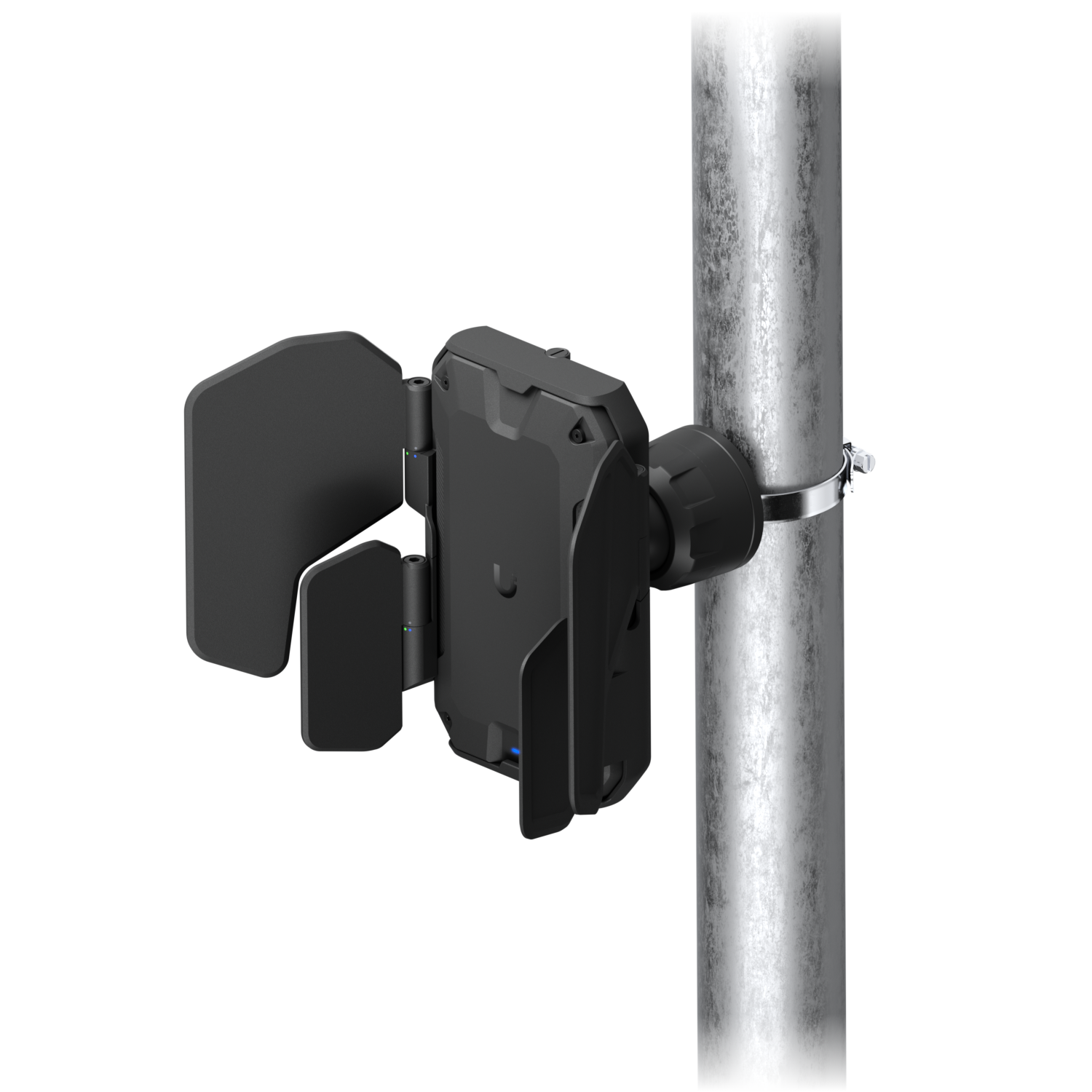

| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs: System | (4) Blue: signal (1) White/Blue: indicator |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
