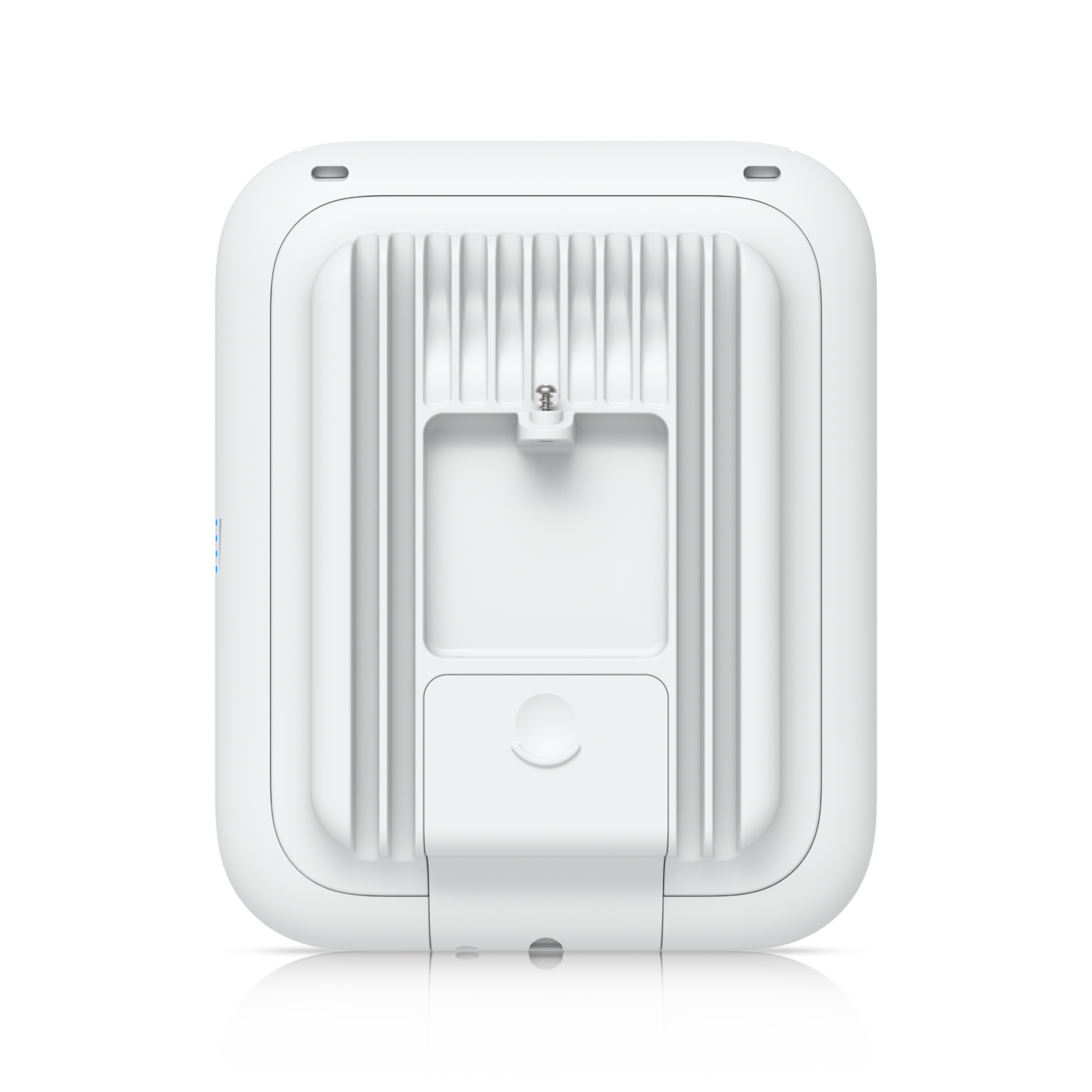

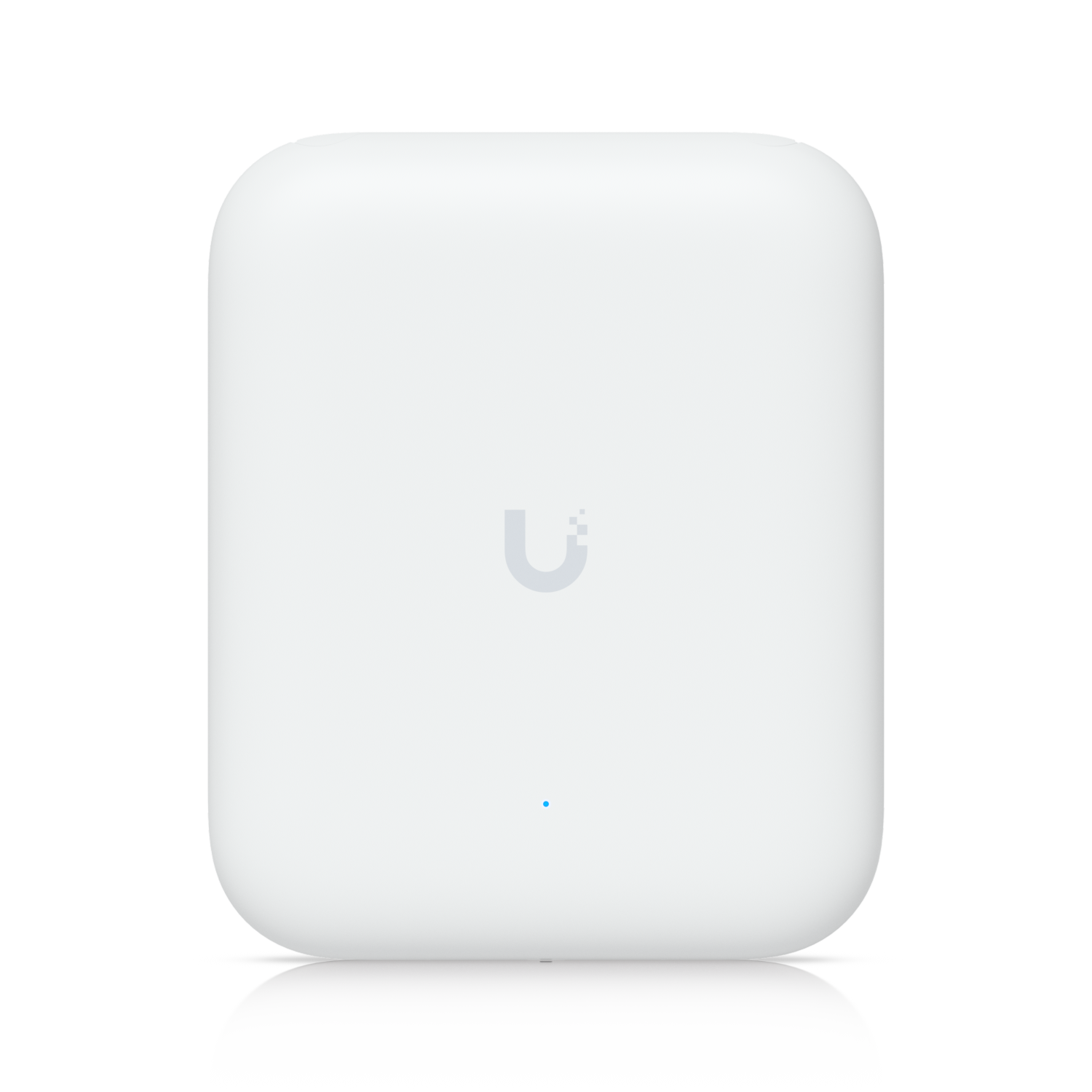

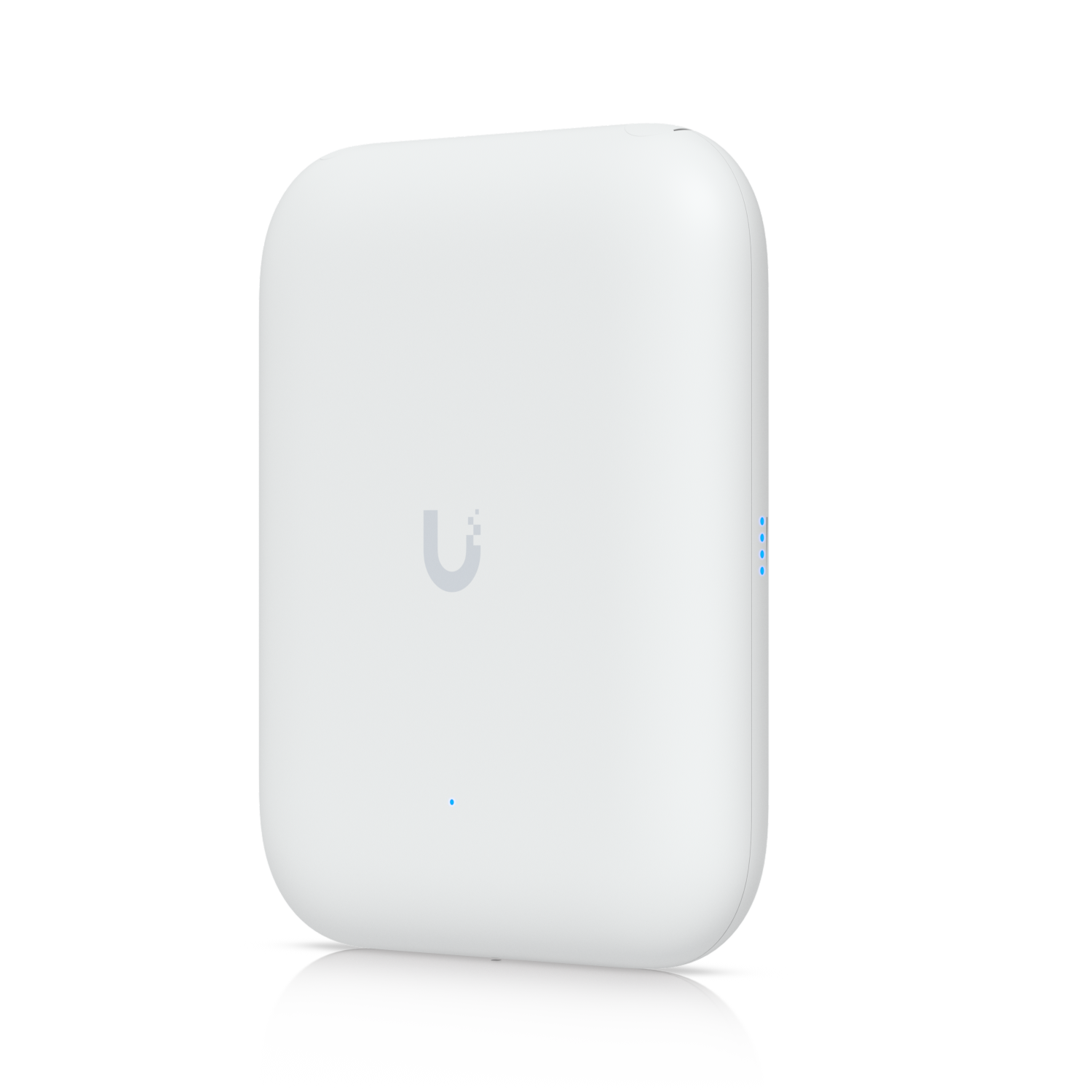

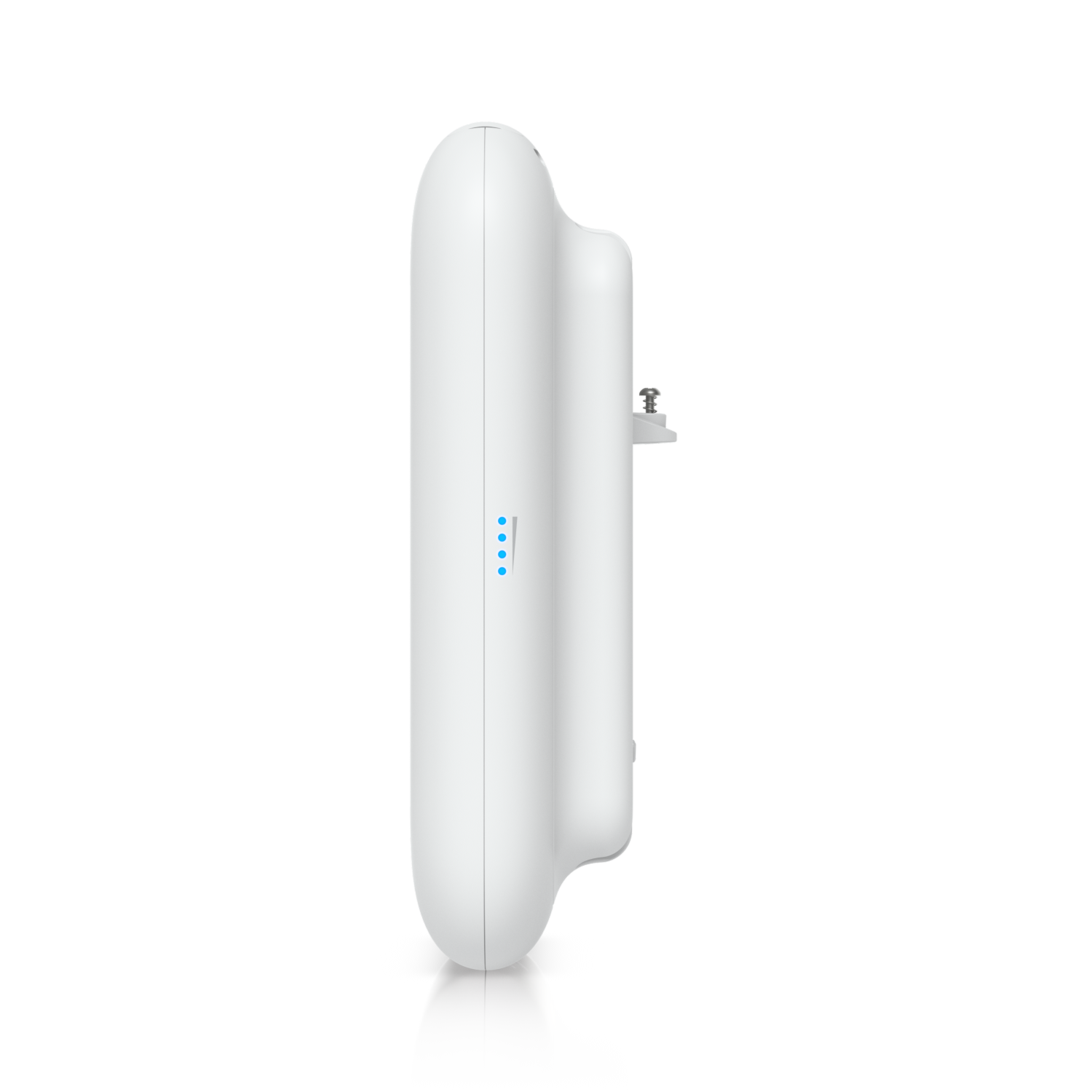

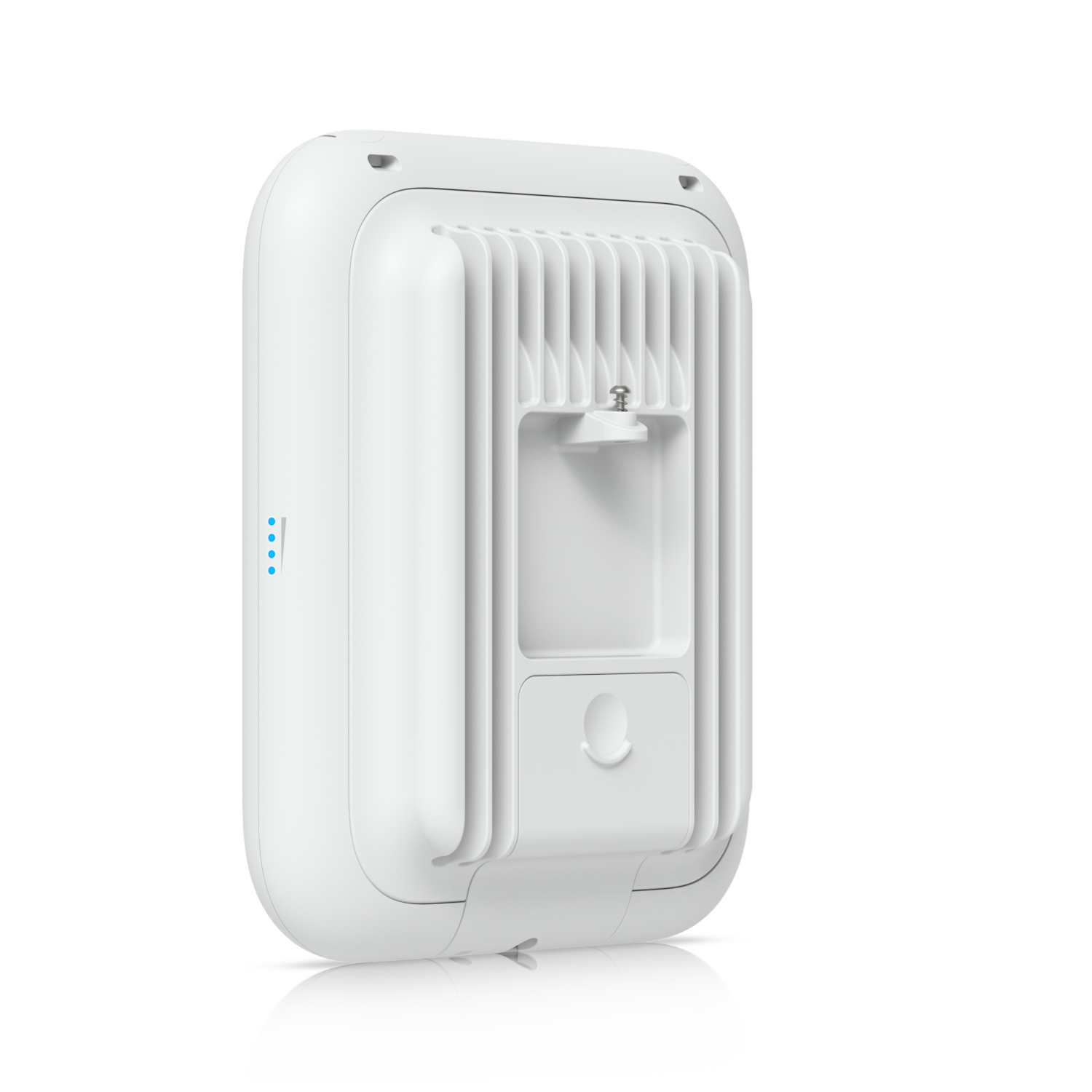

UniFi Access Point U7 Pro Outdoor
- WiFi 7
- 6 rýmisstraumar
- 465 m² (5.000 ft²) opið rýmisþekja með innbyggðu stefnuvirku ofurloftneti

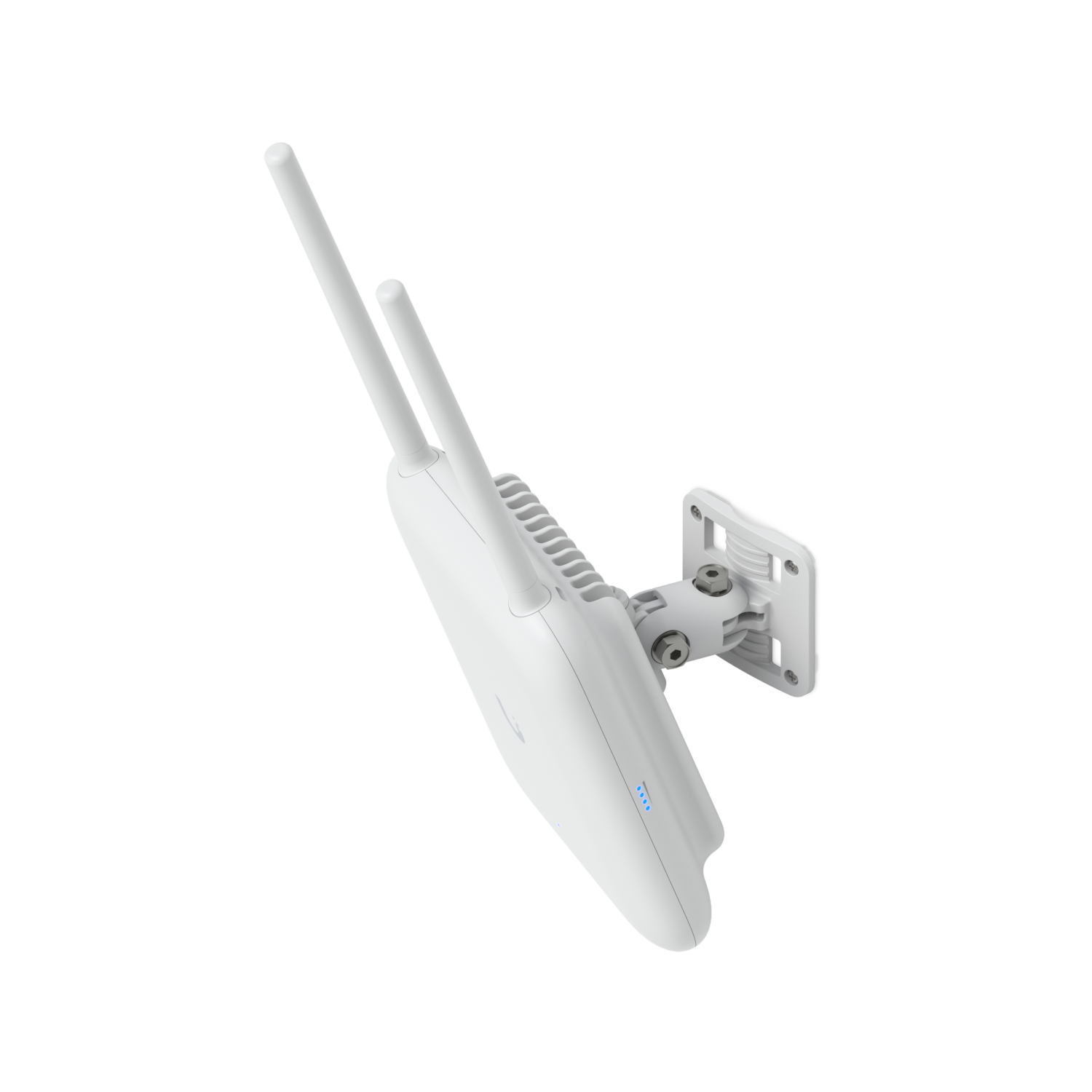

- Hugbúnaðarstýrð skipting milli innbyggðs stefnuvirks loftnets og meðfylgjandi útvortis omni loftneta
- 300+ tengd tæki
- Knúið með PoE+
- 2.5 GbE upptenging

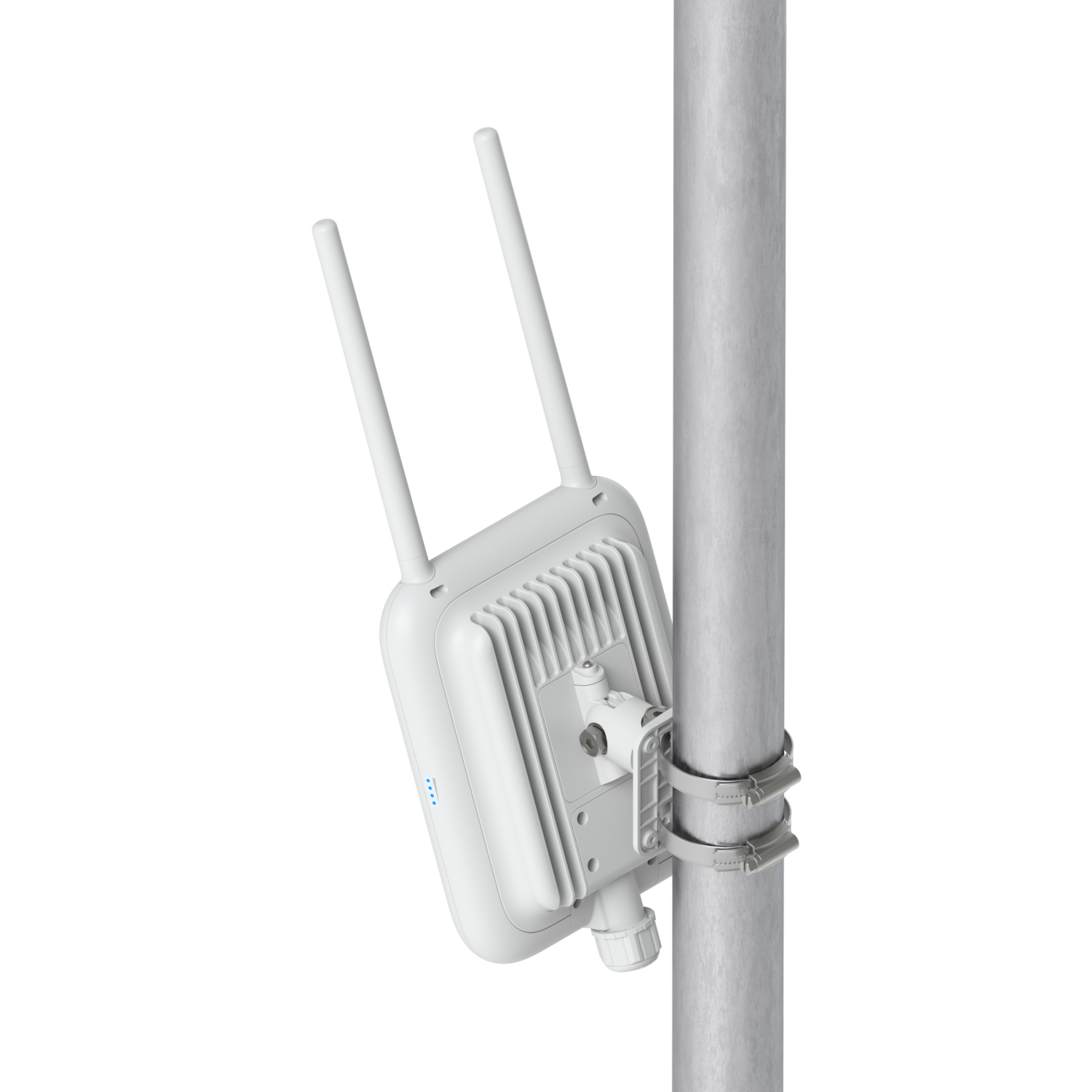

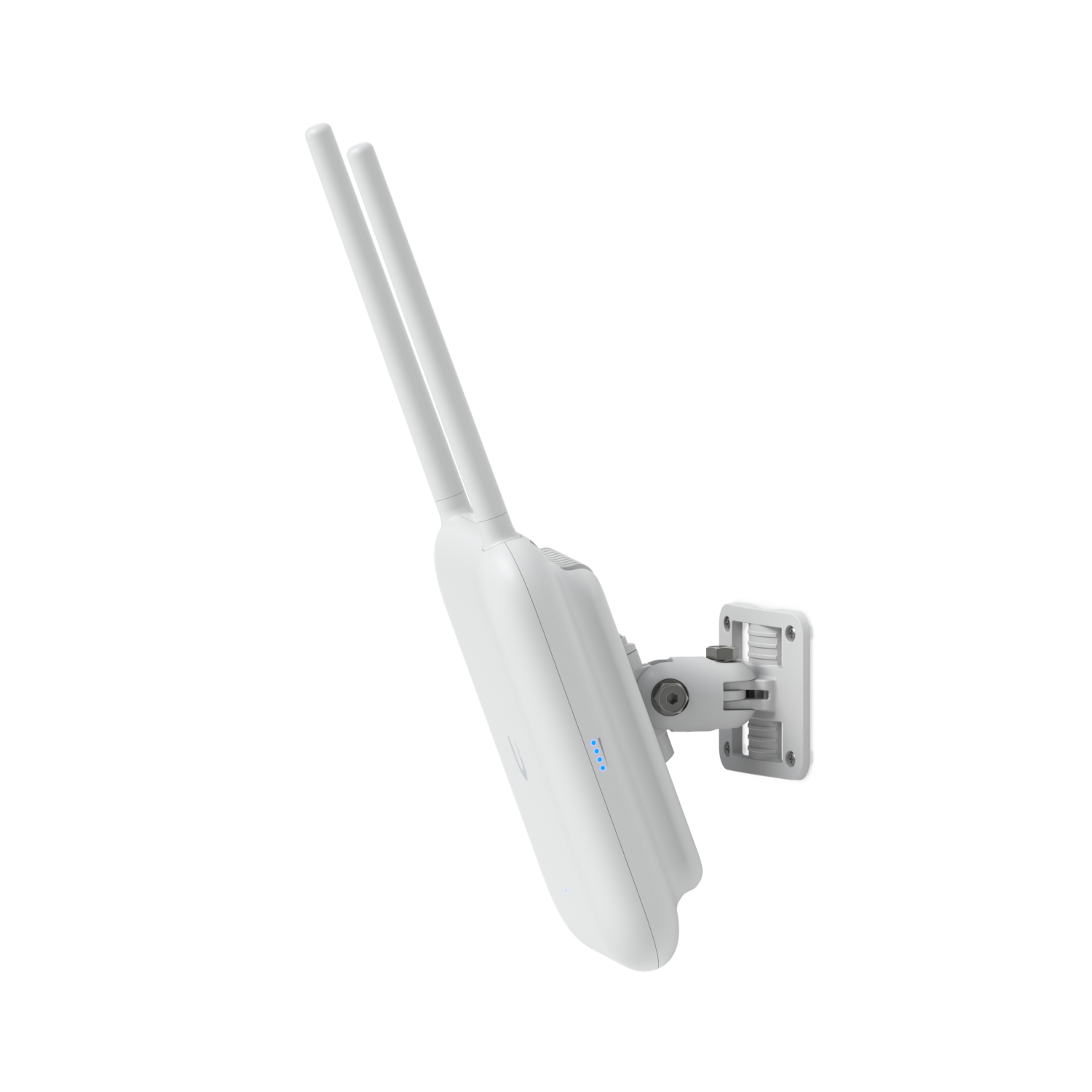

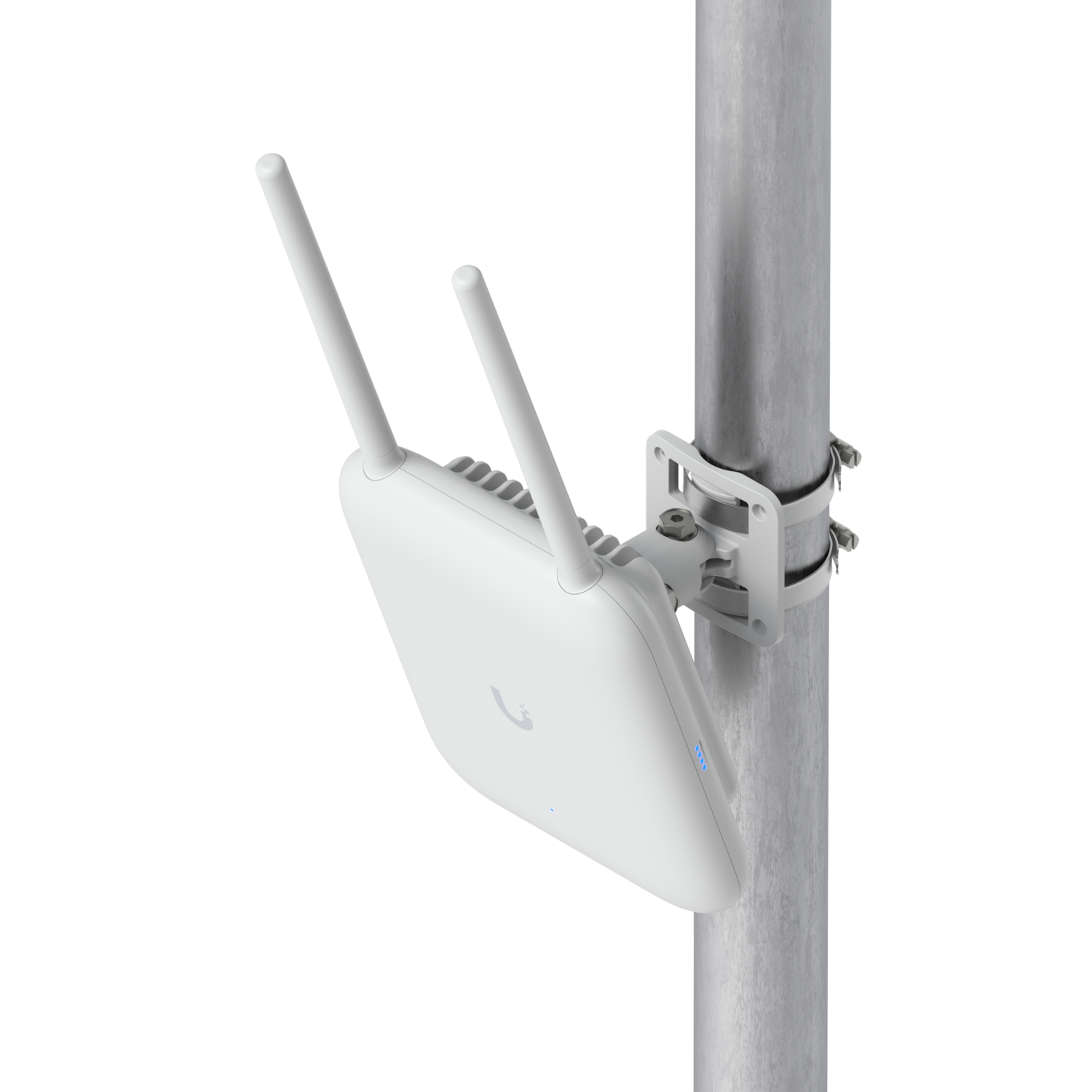

- Fjölhæf vegg- og staurafesting
- Veðurþolið (fyrir útsetningu utandyra)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts Included) |

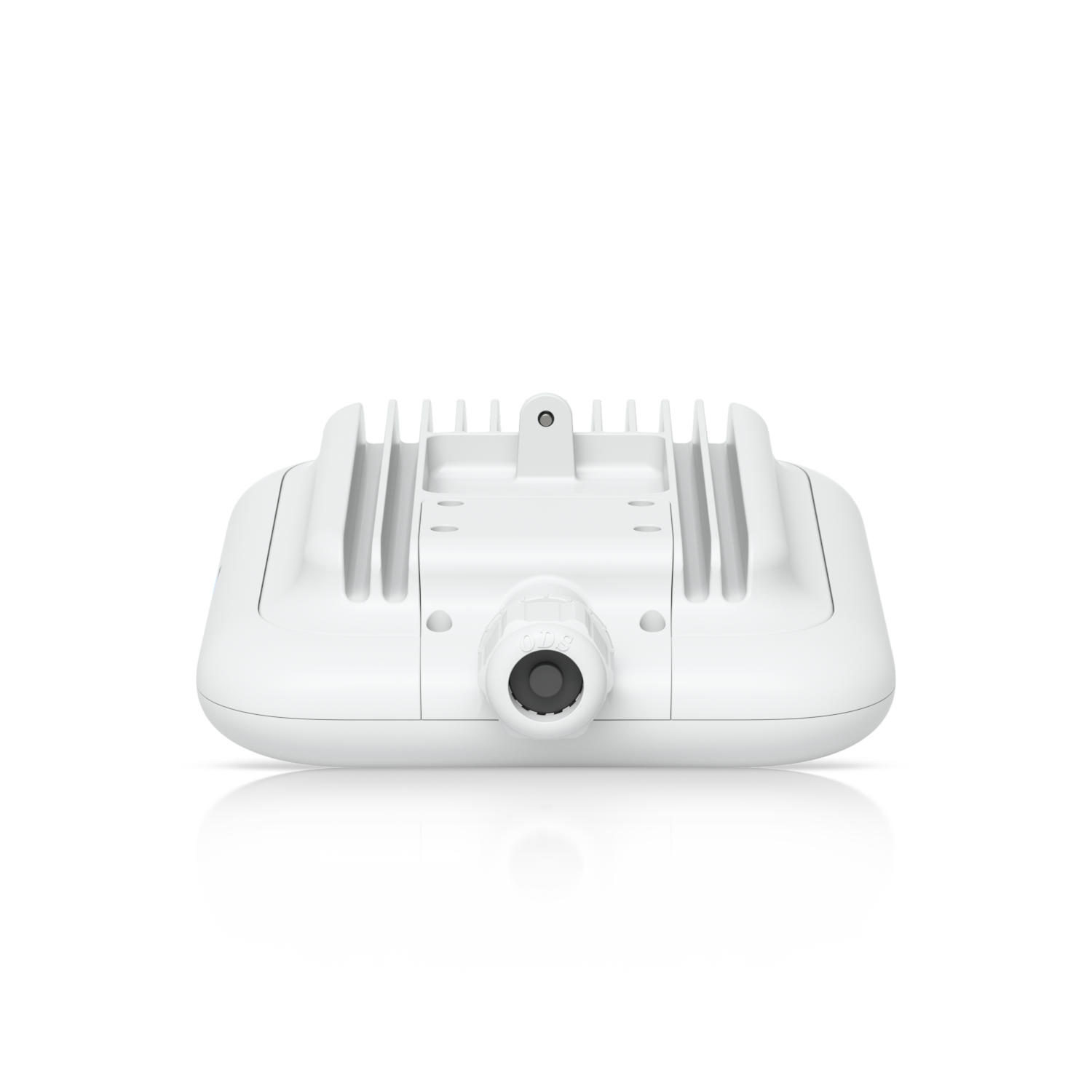

| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Power Method | PoE+ |
| MIMO: 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO: 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate: 5 GHz | 8.6 Gbps (BW240) |
| Max. Data Rate: 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain: 5 GHz | Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° |
| Antenna Gain: 2.4 GHz | Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
| Max. TX Power: 5 GHz | 29 dBm |
| Max. TX Power: 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates: 802.11be (WiFi 7) | 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| Supported Data Rates: 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates: 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates: 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal: Custom Branding Landing Page | Yes |
| Captive Hotspot Portal: Voucher Authentication | Yes |
| Captive Hotspot Portal: Payment-Based Authentication | Yes |
| Captive Hotspot Portal: External Portal Server Support | Yes |
| Captive Hotspot Portal: Password Authentication | Yes |
| Captive Hotspot Portal: Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 42.5–57V DC |

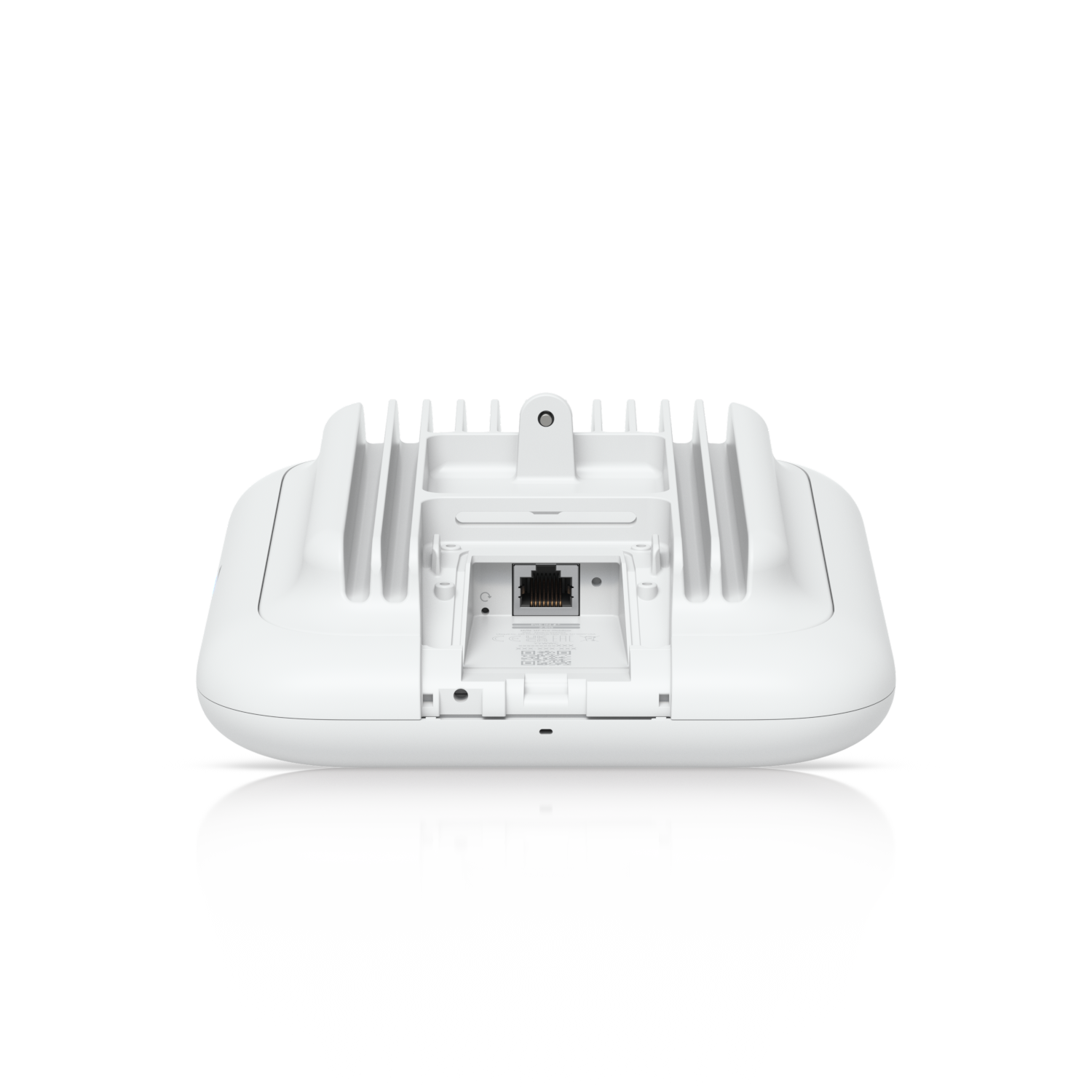

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | UV-stabilized polycarbonate |
| LEDs: System | (1) Power: White/Blue (4) Mesh signal: Blue |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, Anatel: 04999-25-08356 |
| Application Requirements: UniFi Network | Version 9.0.114 and later |
| Application Requirements: Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
