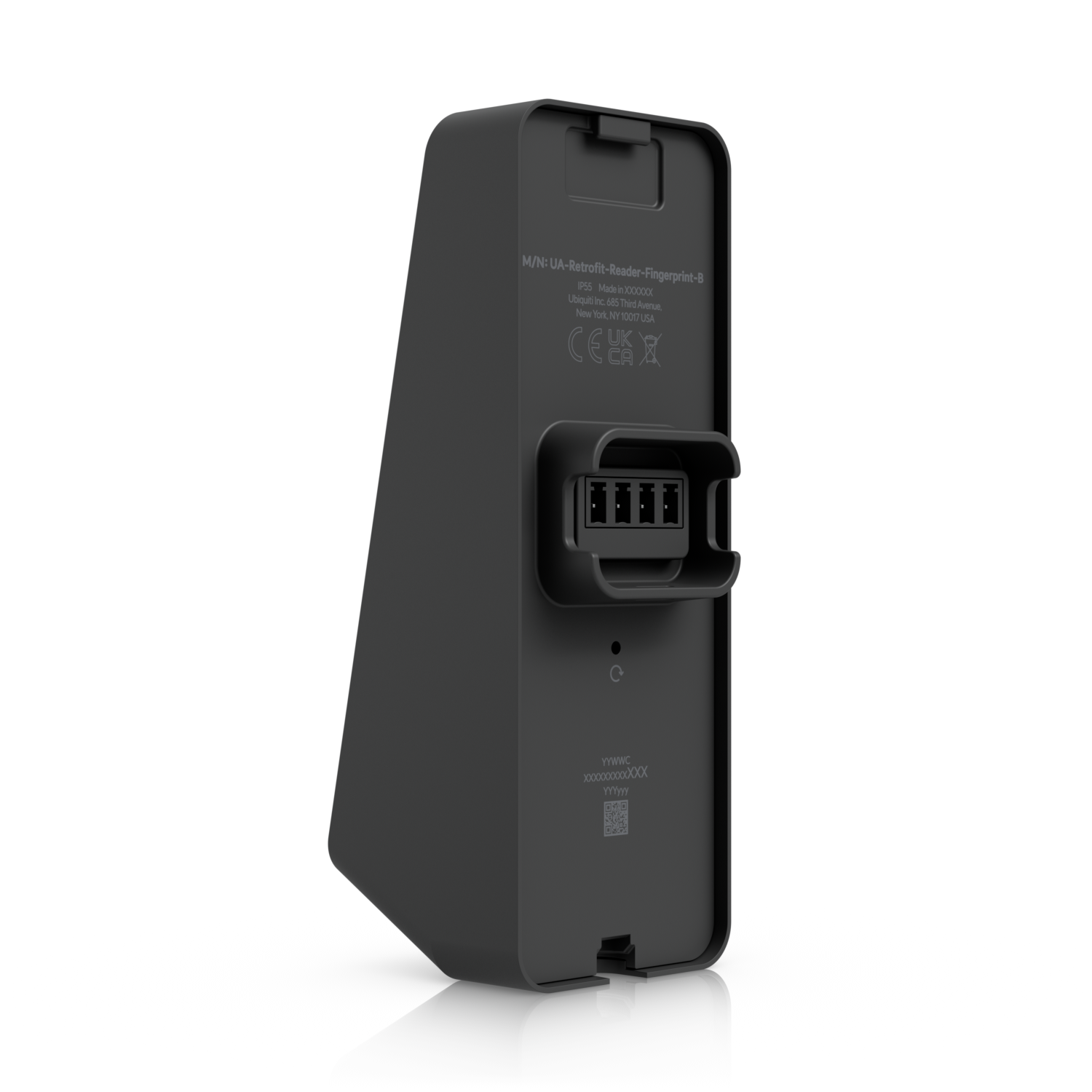

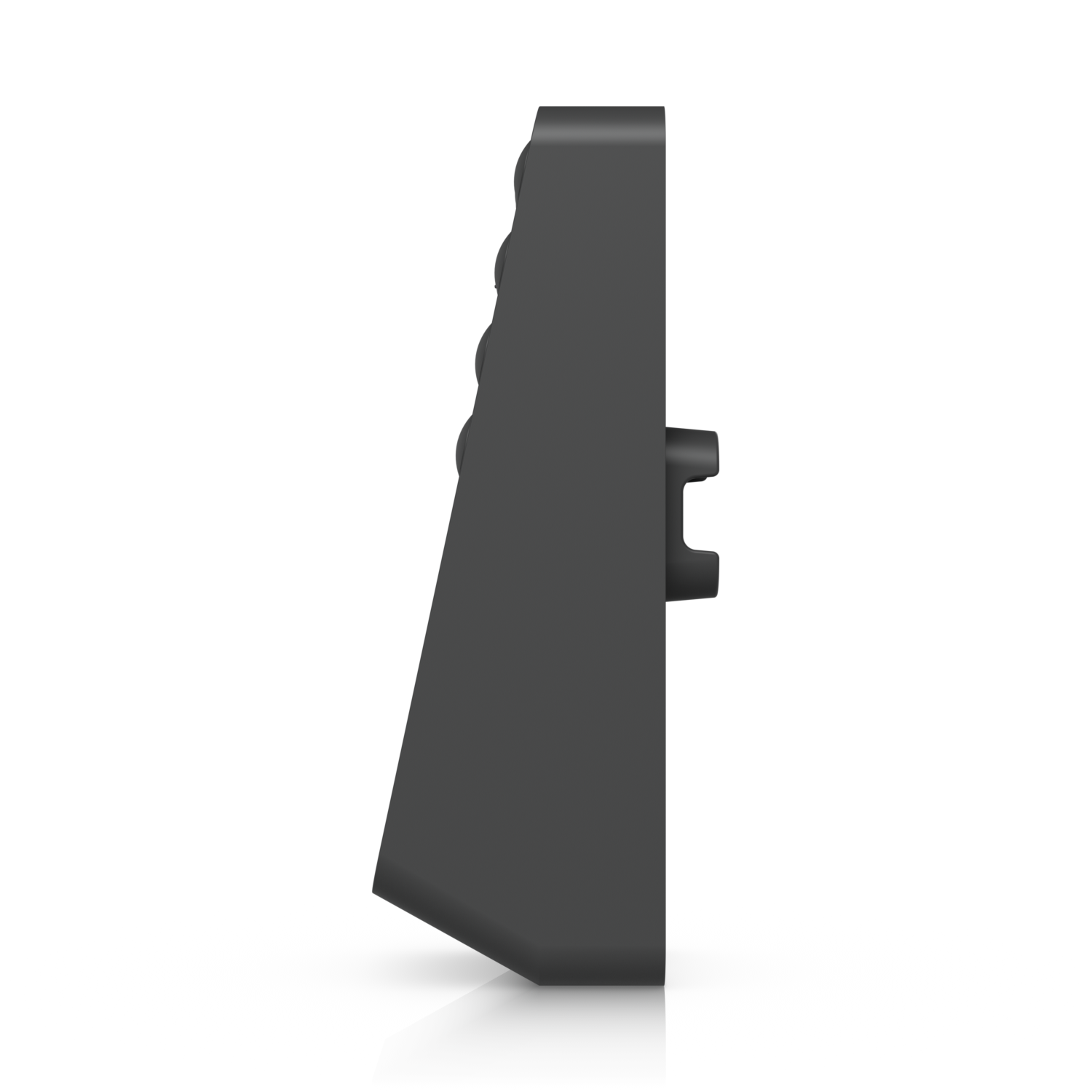

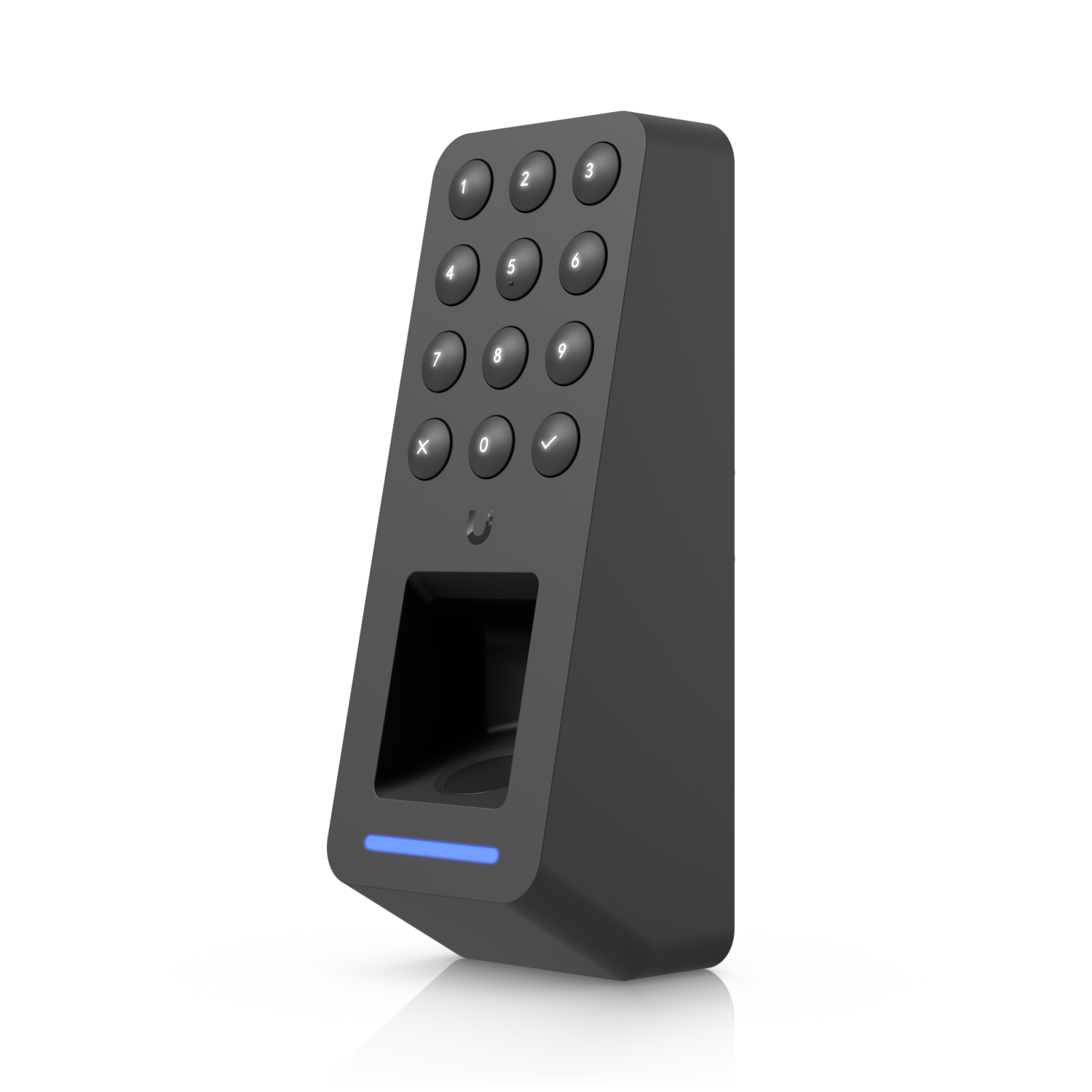

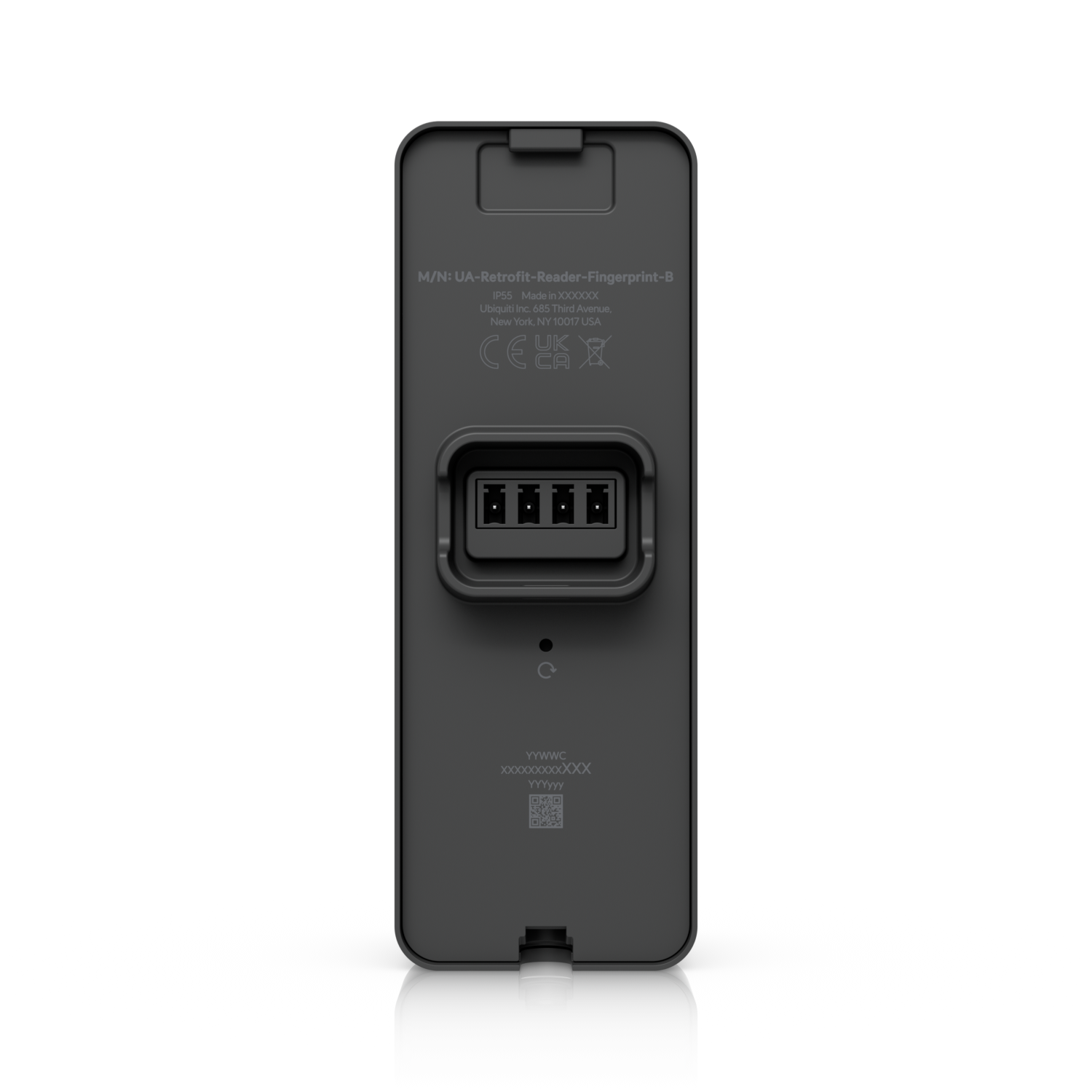

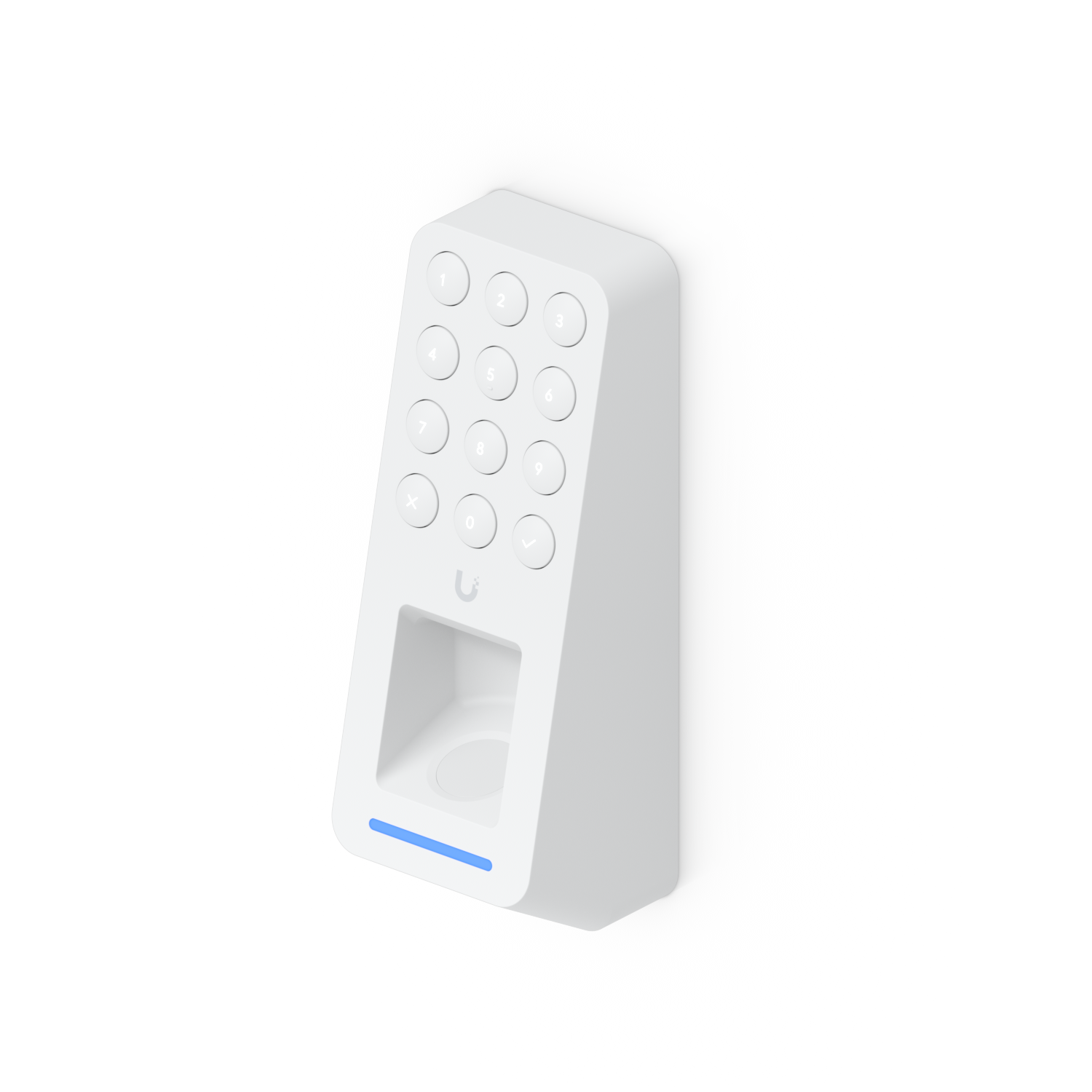

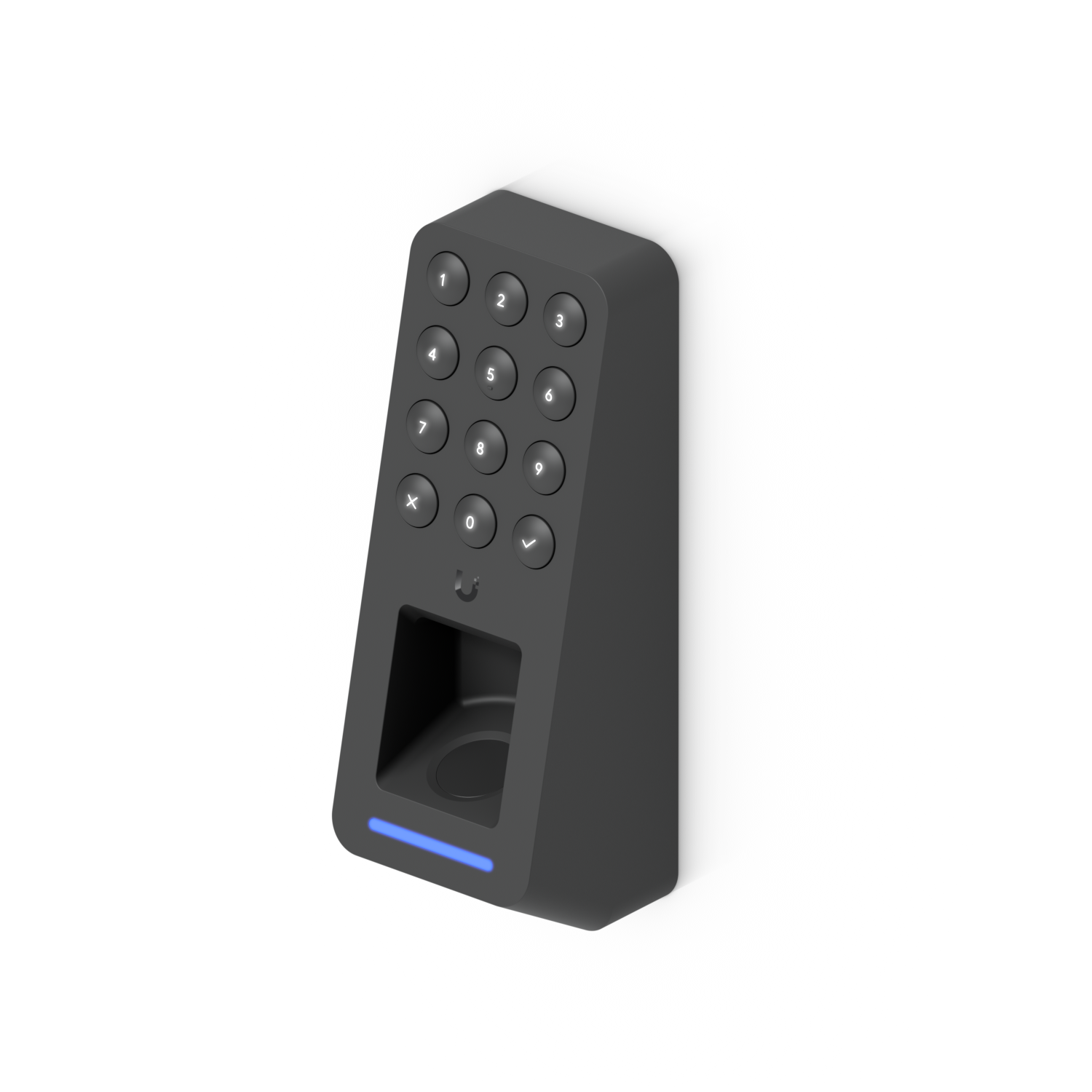

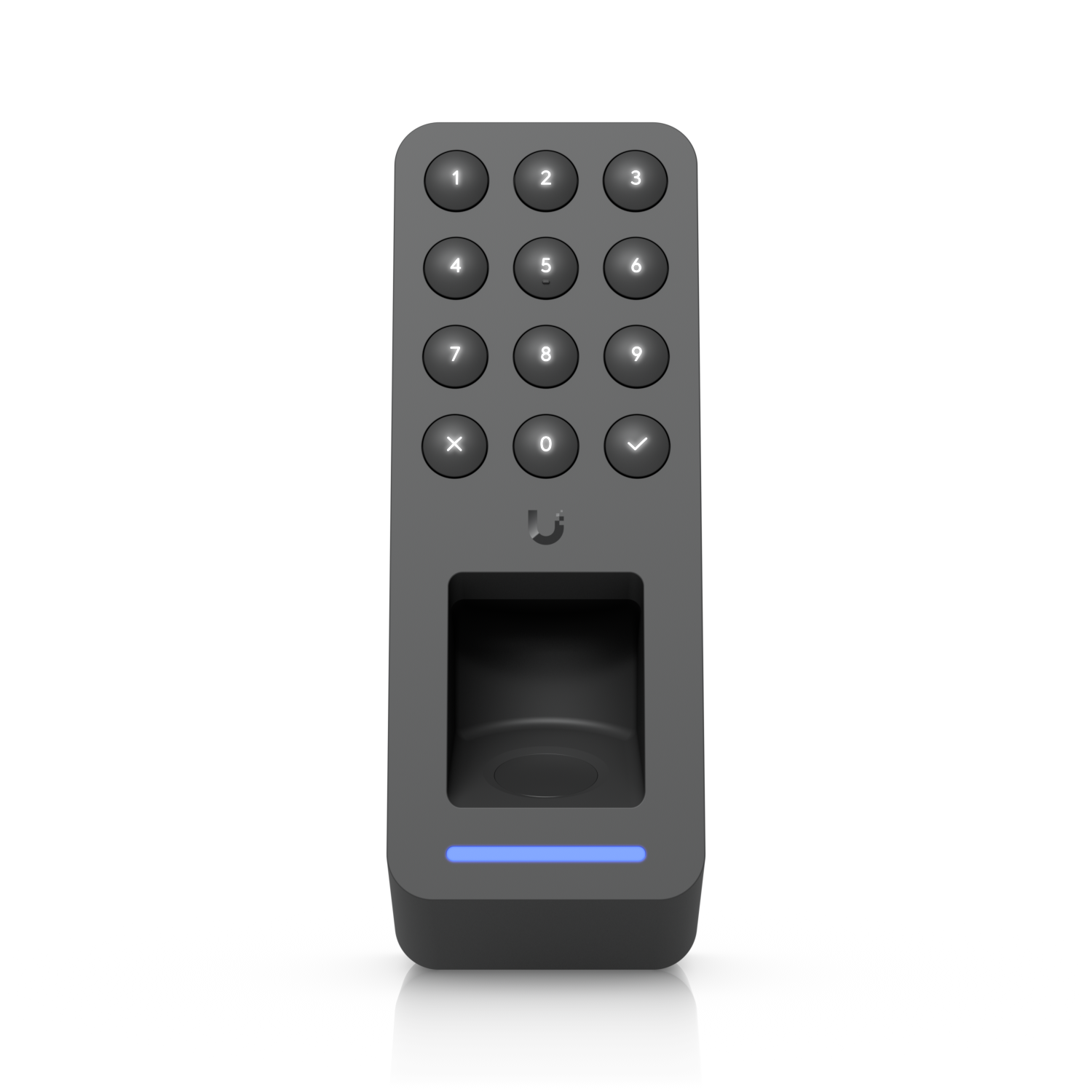

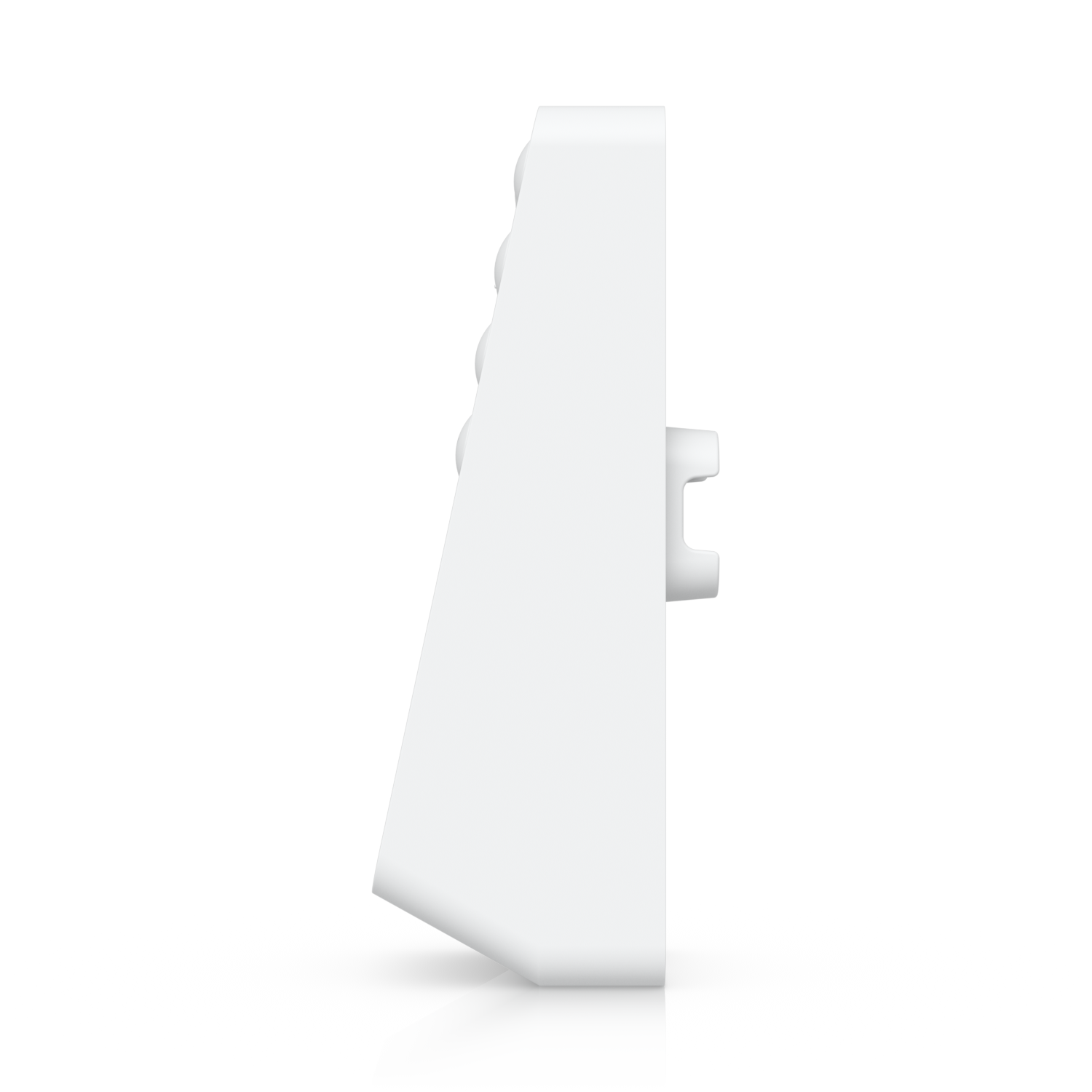

UniFi Access Retrofit Reader Fingerprint (Black)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 126.2 x 45 x 49 mm (5 x 1.8 x 1.9") |
|---|---|
| UniFi Application Suite | Access |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Fingerprint Unlock | Yes |
| Fingerprint Capacity | 300 |
| Weatherproofing | IP55 |
| NDAA Compliant | Yes |
| Weight | 142 g (5 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Steel |

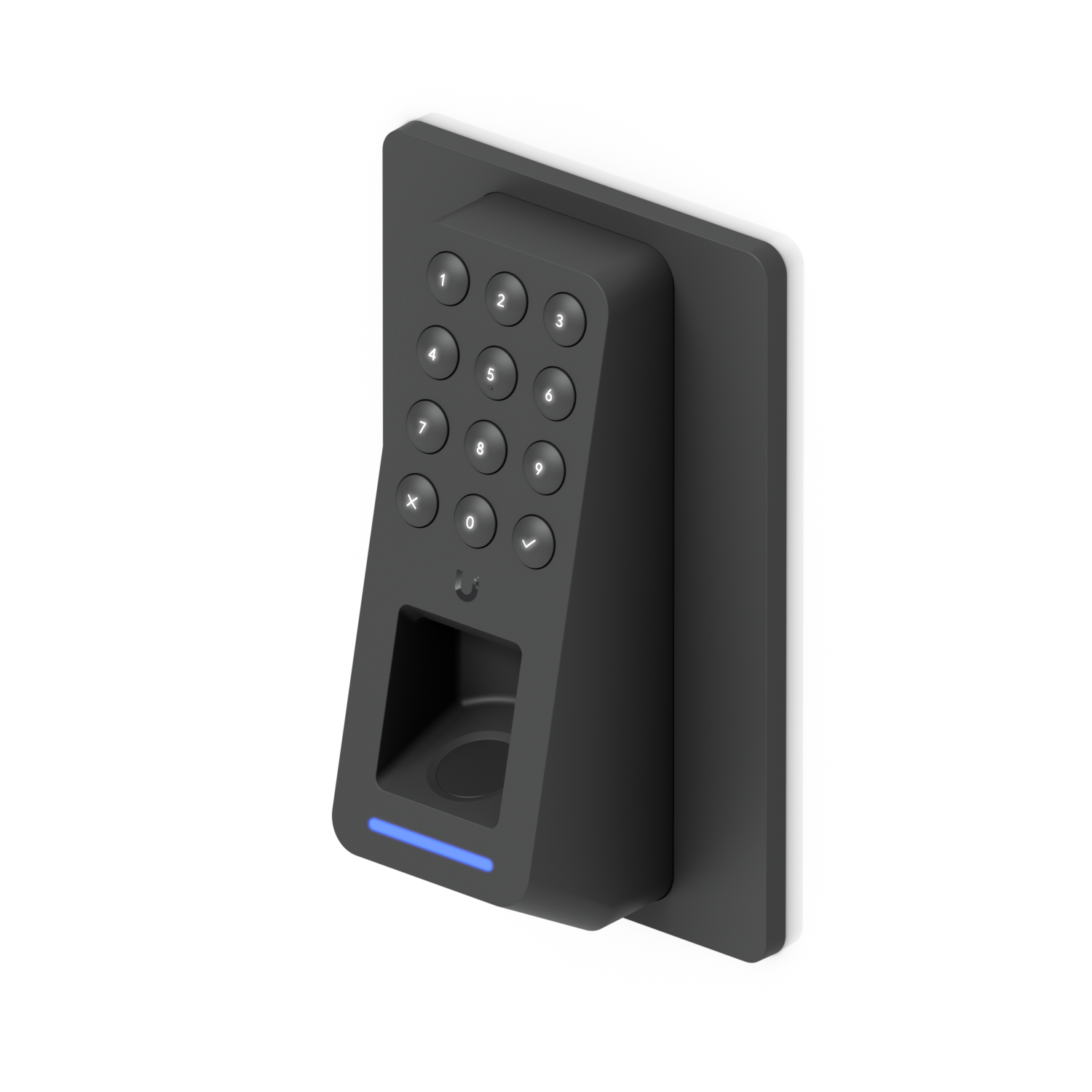

| Mounting | Wall, gang-box mount (Included) Junction box (Optional) |
| Indoor and Outdoor Use | Yes |
| Connectivity | RS-485 BLE 4.2 NFC |
| Security | OSDP v2 |
| Power Method | 12V DC |
| Max. Power Consumption | 3.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Sensors | Capacitive Fingerprint |
| Speaker | Yes ((1) 0.7W) |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
