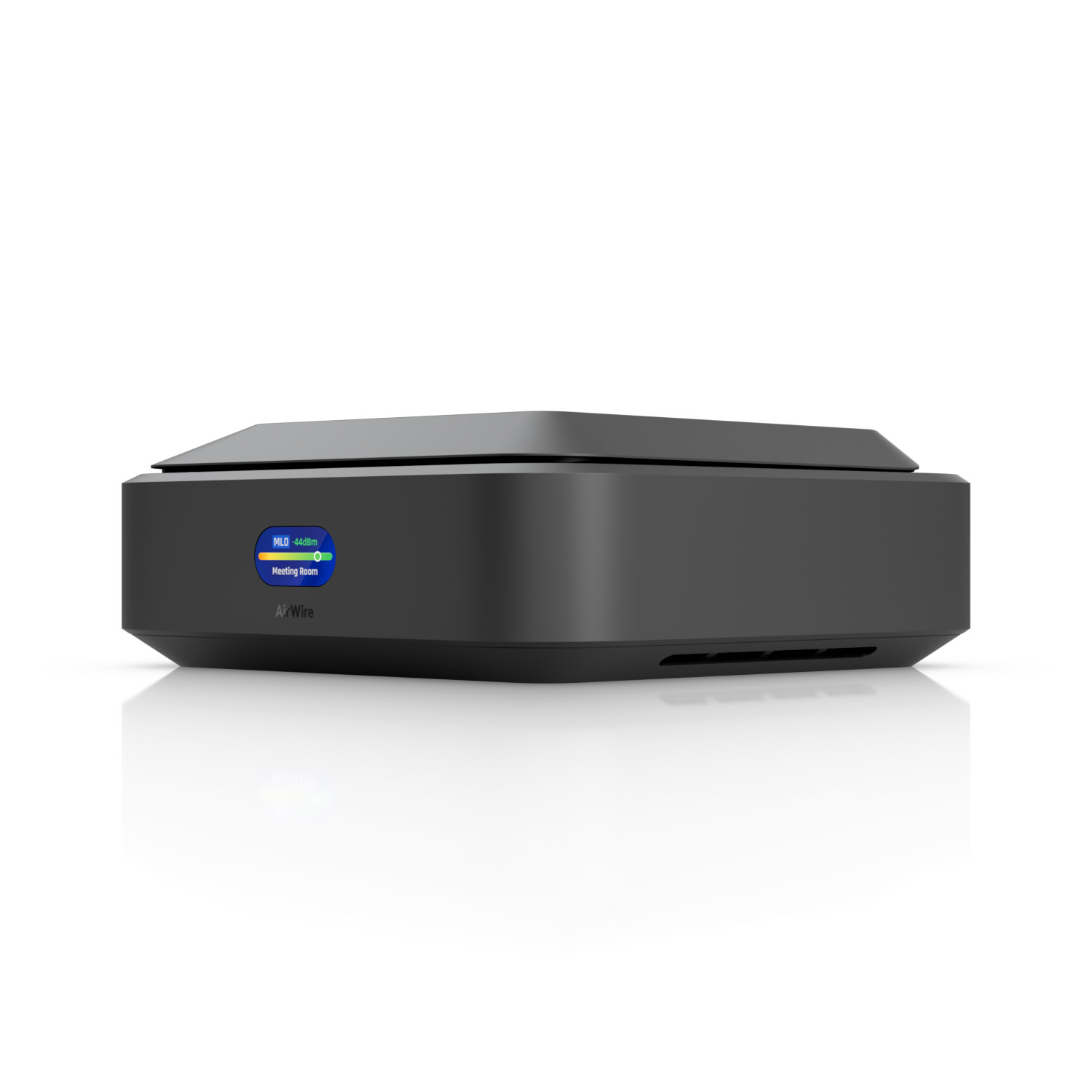

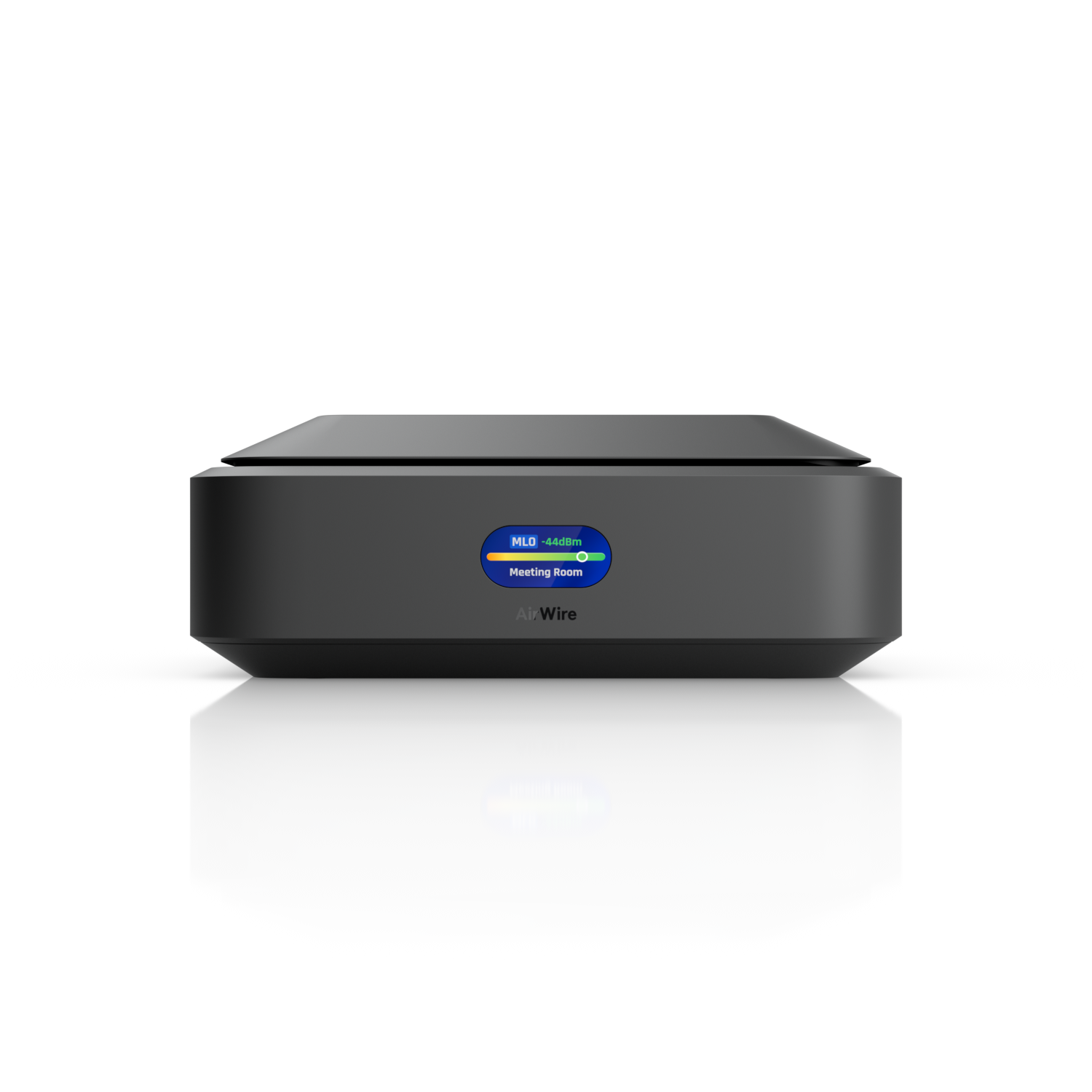

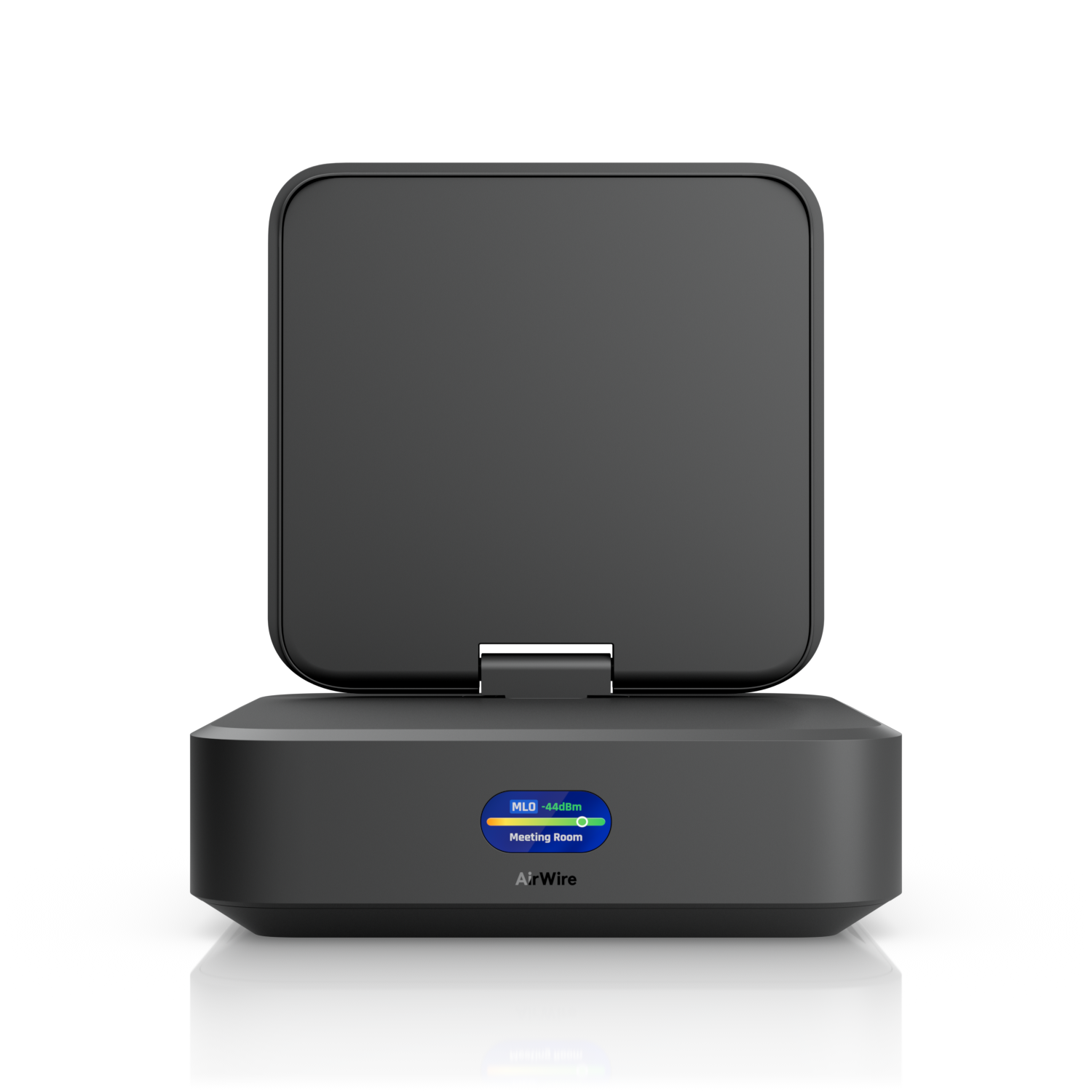

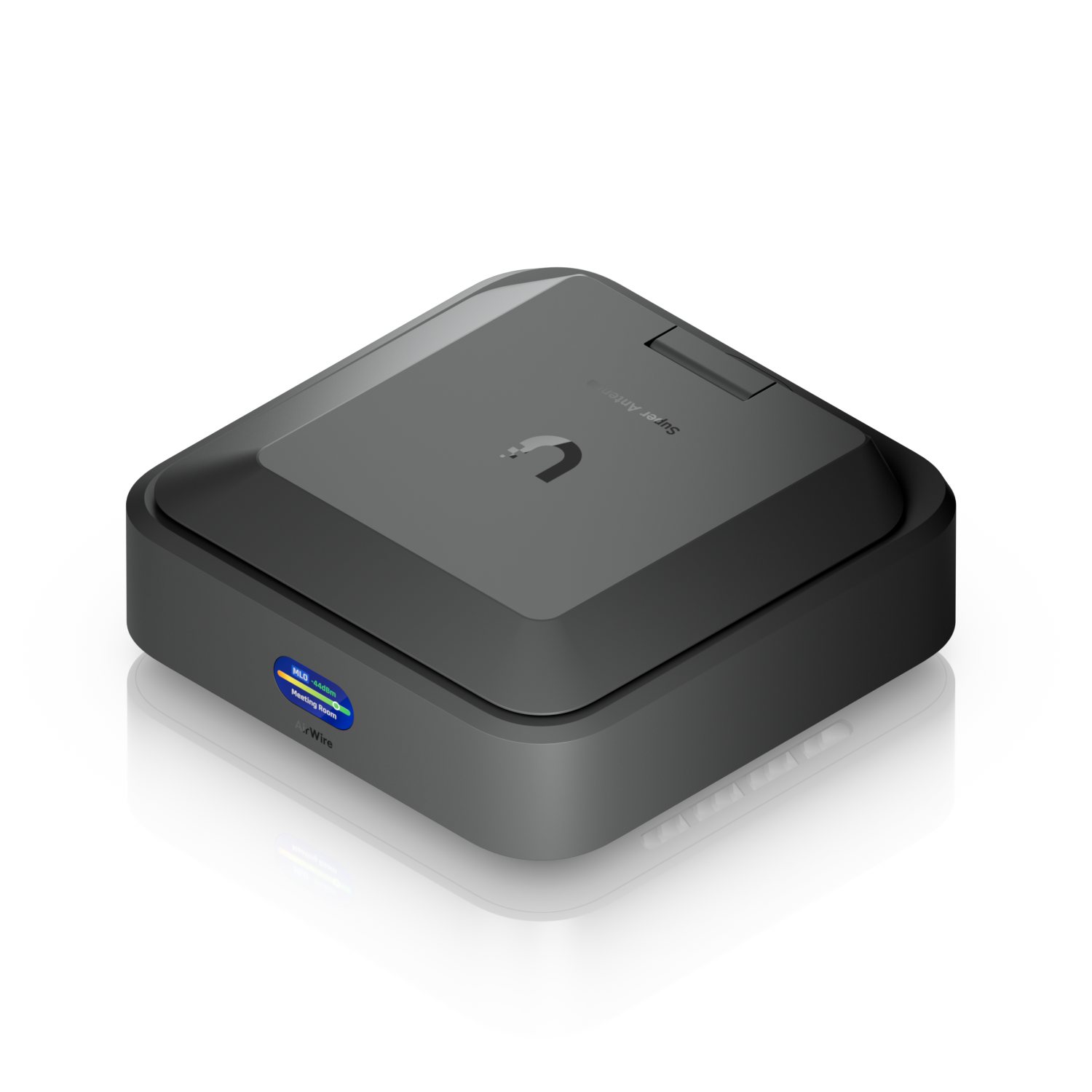

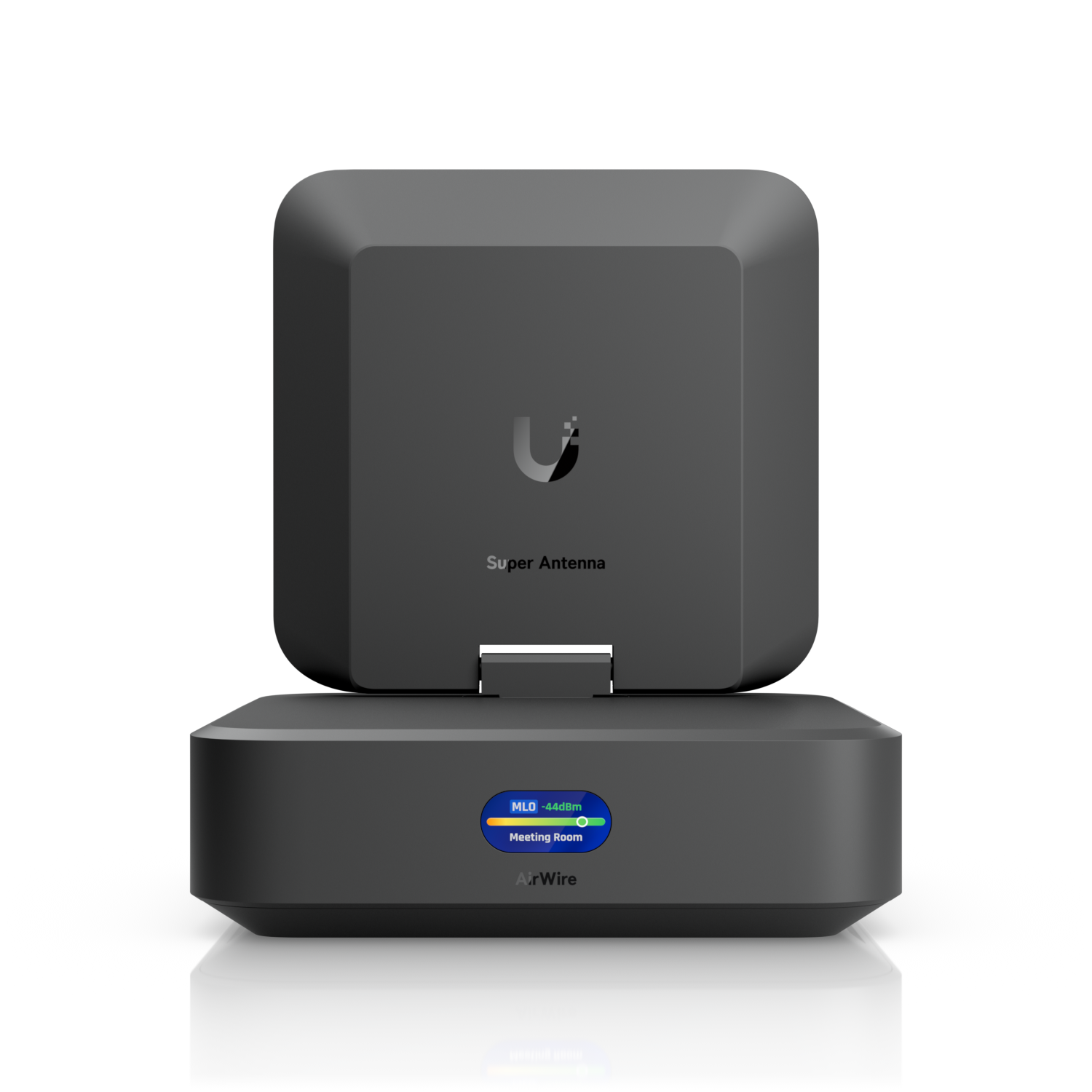

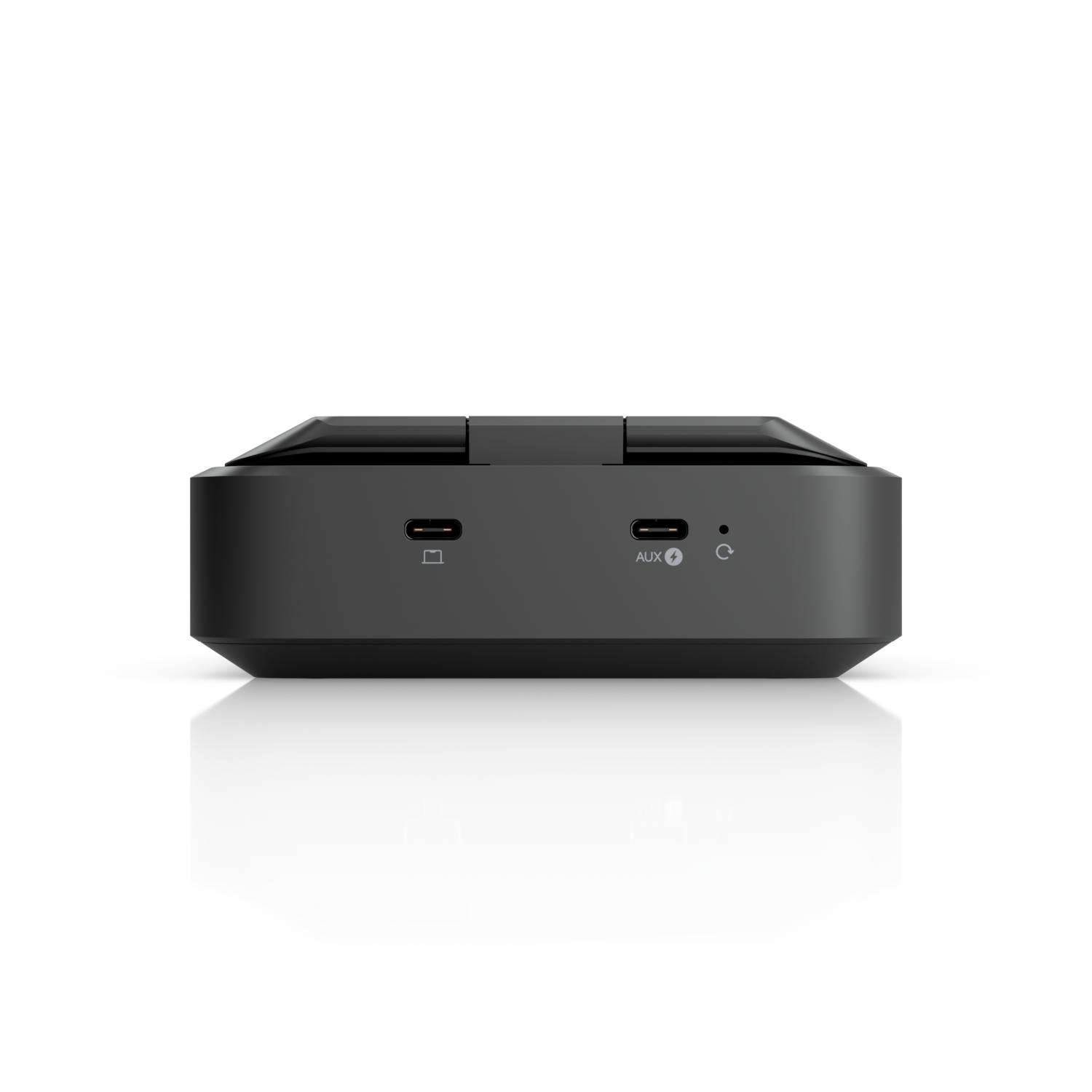

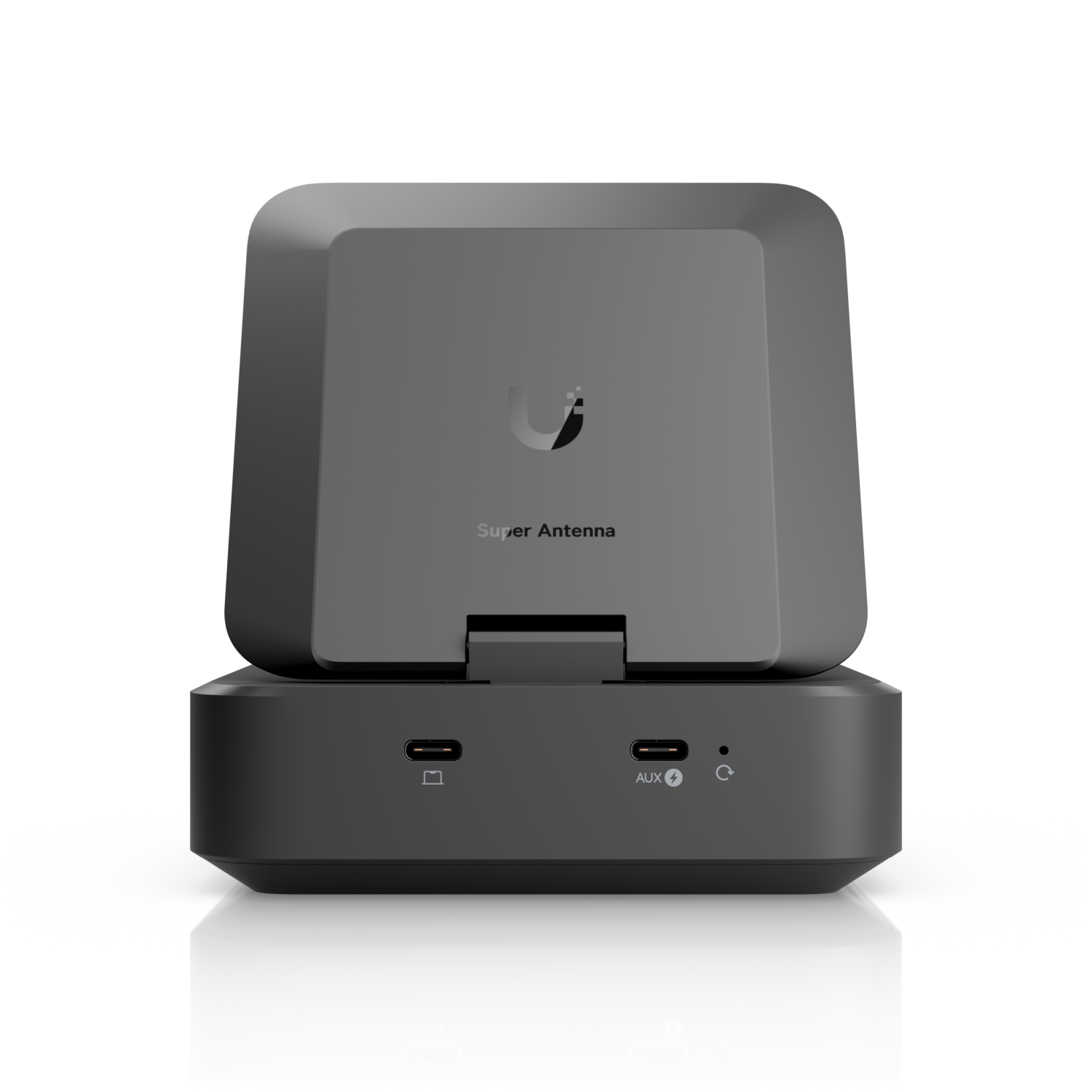

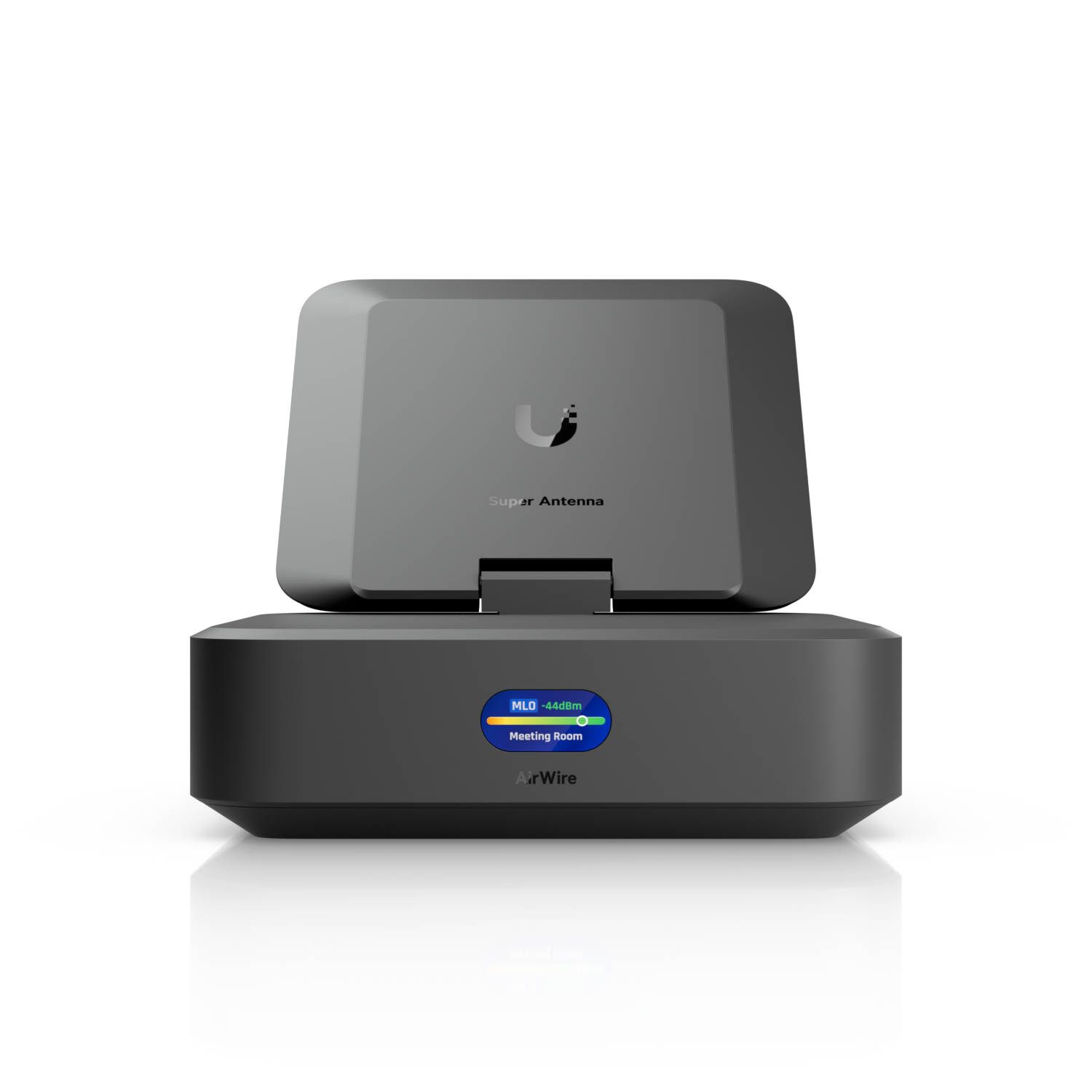

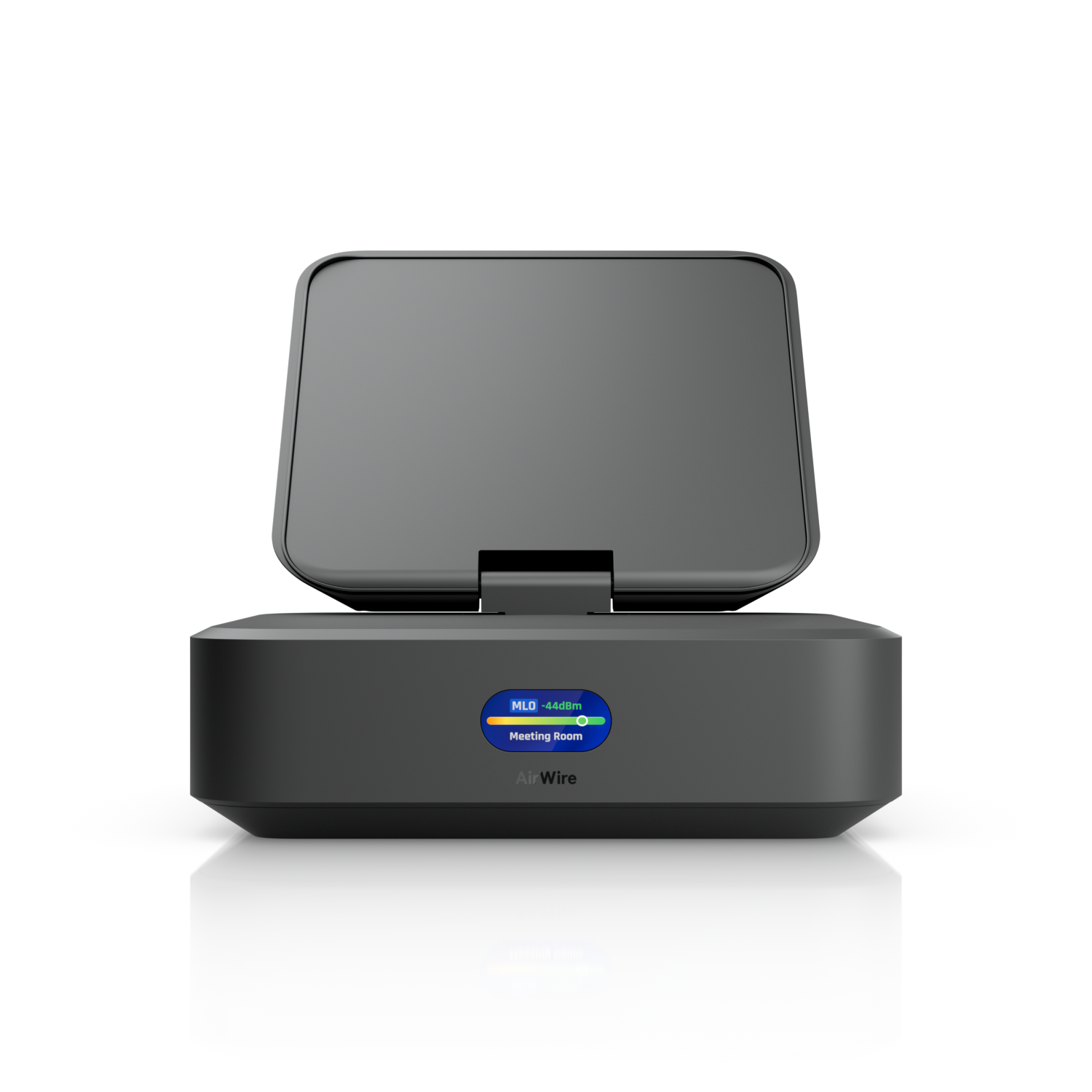

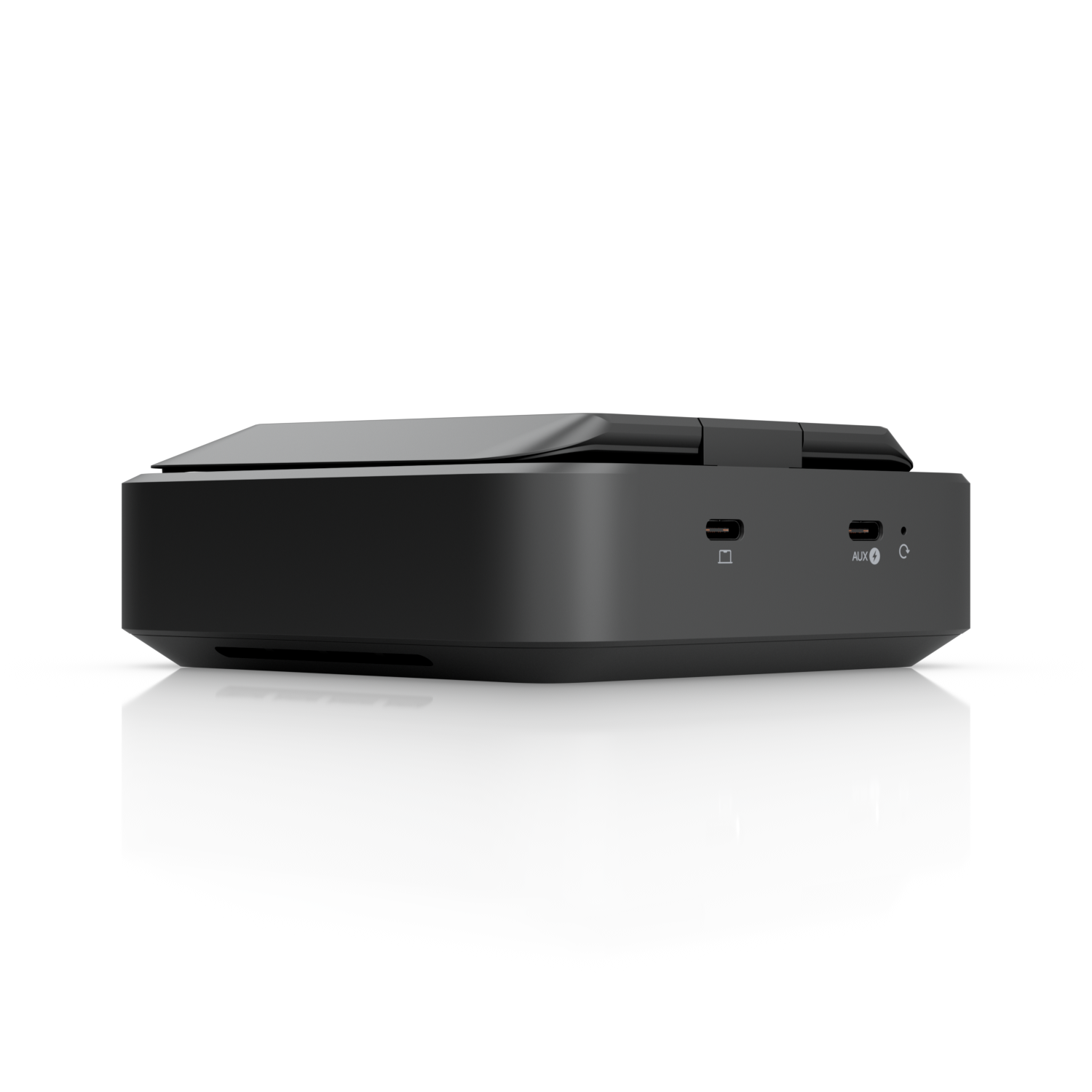

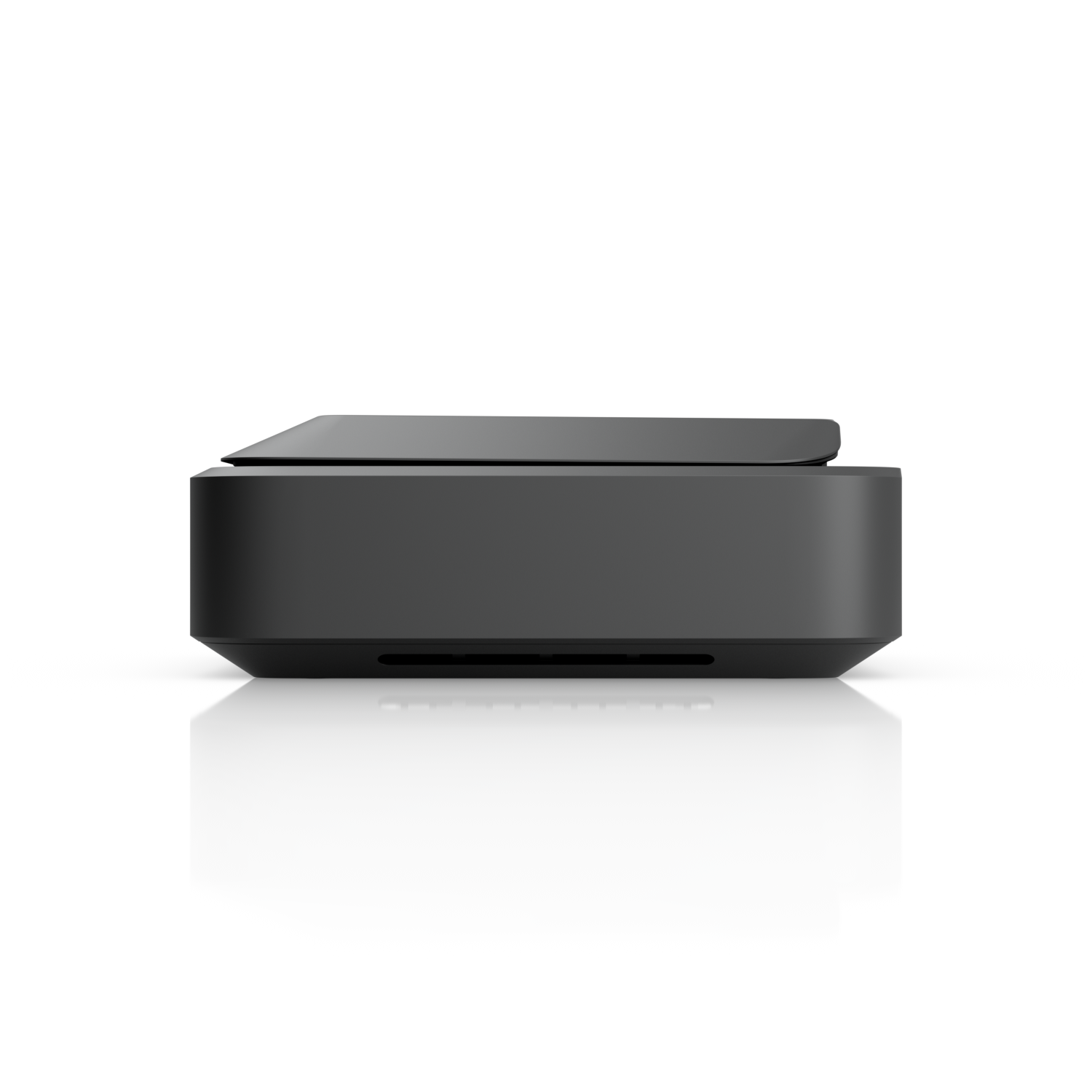

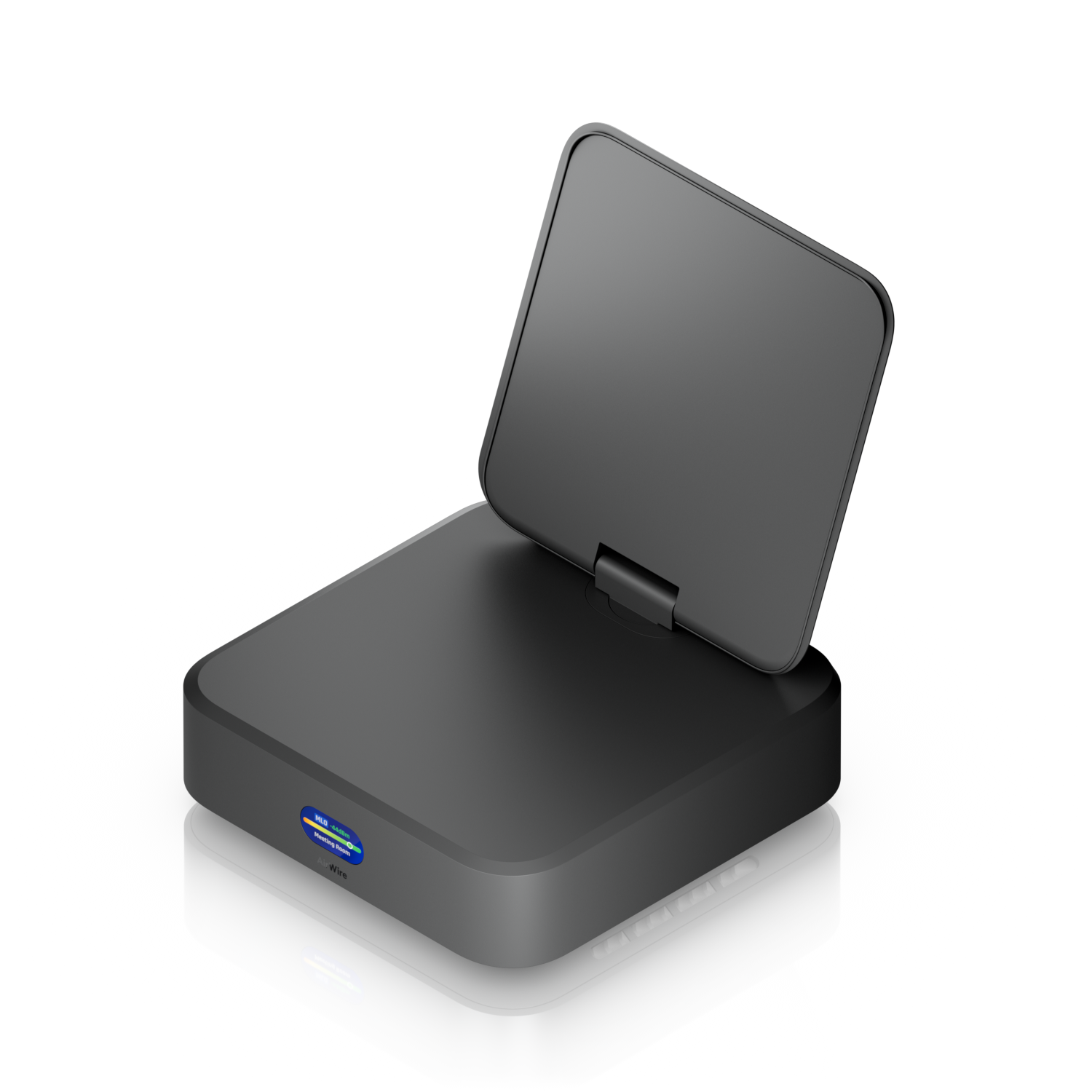

UniFi AirWire
Afkastamikill WiFi 7 biðlaraaðlögunarbúnaður (client adapter) með STR MLO, sem gerir kleift samtímis full-duplex tengingar fyrir afar lága leynd, aukið drægi og raunverulegan multi-gigabit hraða í raunaðstæðum.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Uplink | WiFi |
| MIMO: 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO: 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate: 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate: 5 GHz | 4.3 Gbps (BW240) (Depends on regulatory region.) |
| Antenna Gain: 6 GHz | 11 dBi |
| Antenna Gain: 5 GHz | 11 dBi |
| Max. TX Power: 6 GHz | 20 dBm |
| Max. TX Power: 5 GHz | 25 dBm |
| Supported Data Rates: 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) |
| Supported Data Rates: 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates: 802.11ac (WiFi 5) | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates: 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Wireless Meshing | Yes |
| Real-Time Spectral Analysis | Yes |
| Max. Power Consumption | 18W |
| Power Supply | USB PD 5/9/12V, 15W (Standard mode) USB PD 5/9/12V, 20W (Enhanced mode) |
| Networking Interface | (1) 5 GbE port (USB3.2 Gen2) |
| Weight | 544 g (1.2 lb) |
| Management | USB-C |
| Enclosure Material | Polycarbonate |
| Display | 0.96" status display |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements: UniFi Network | Version 10.2 and later |
