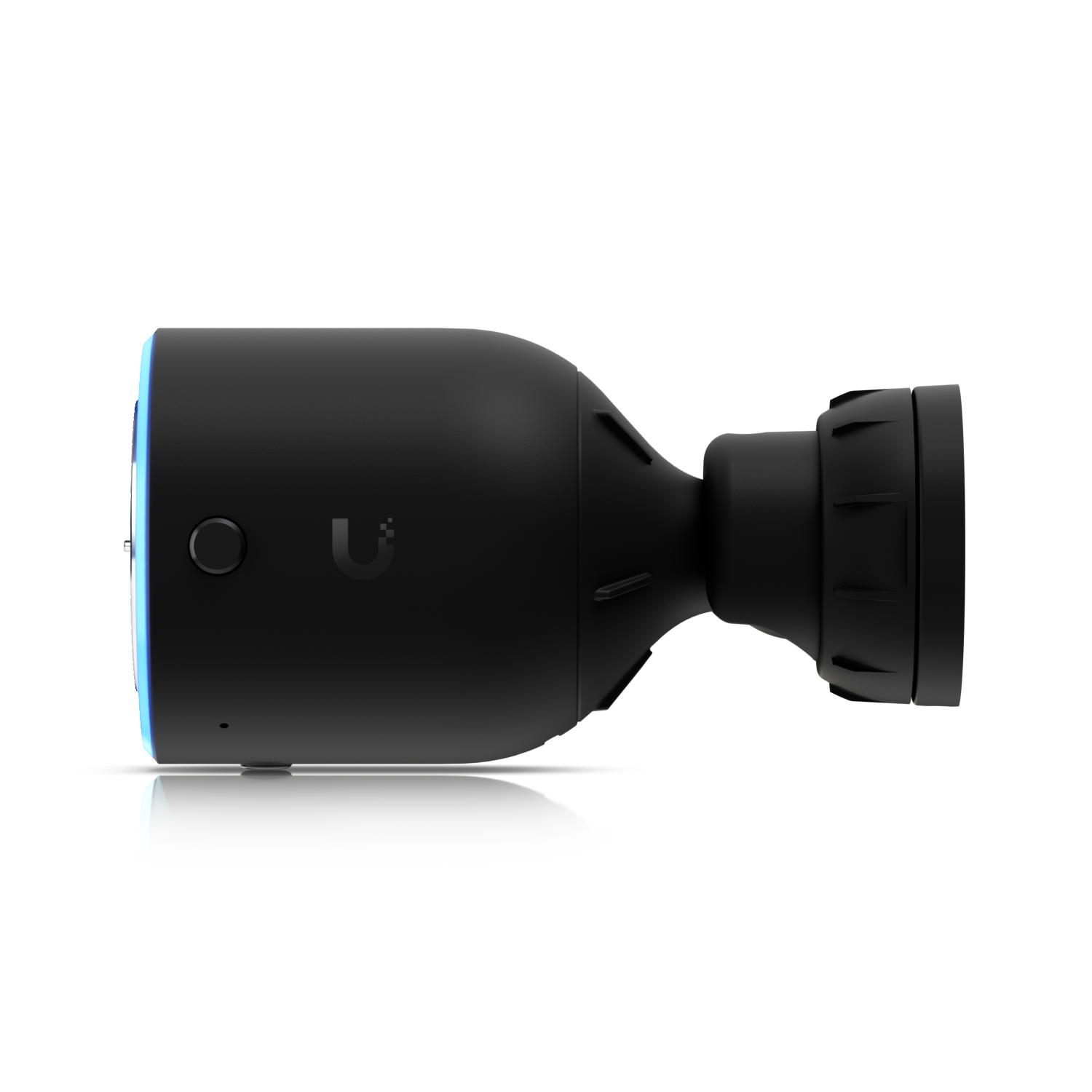

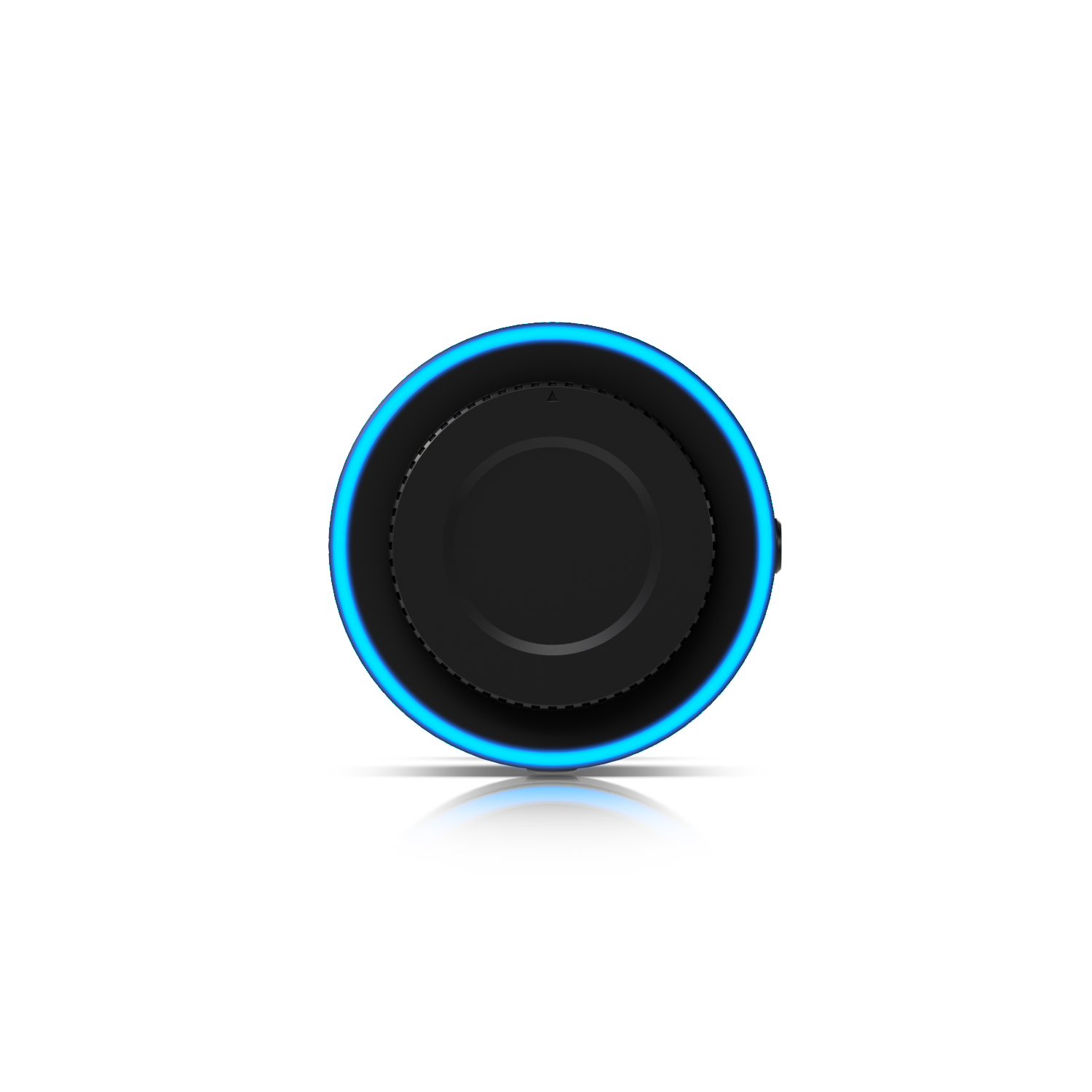

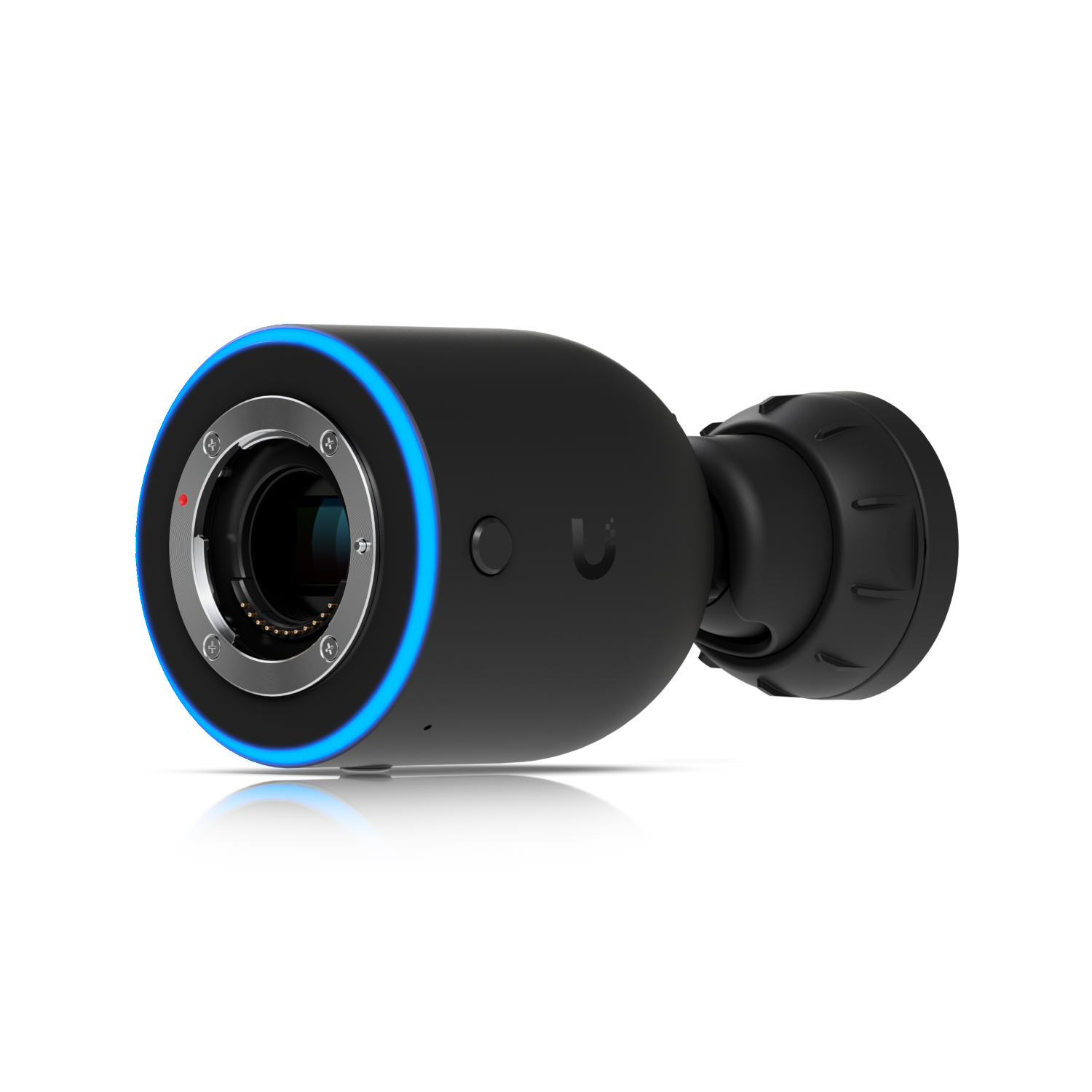

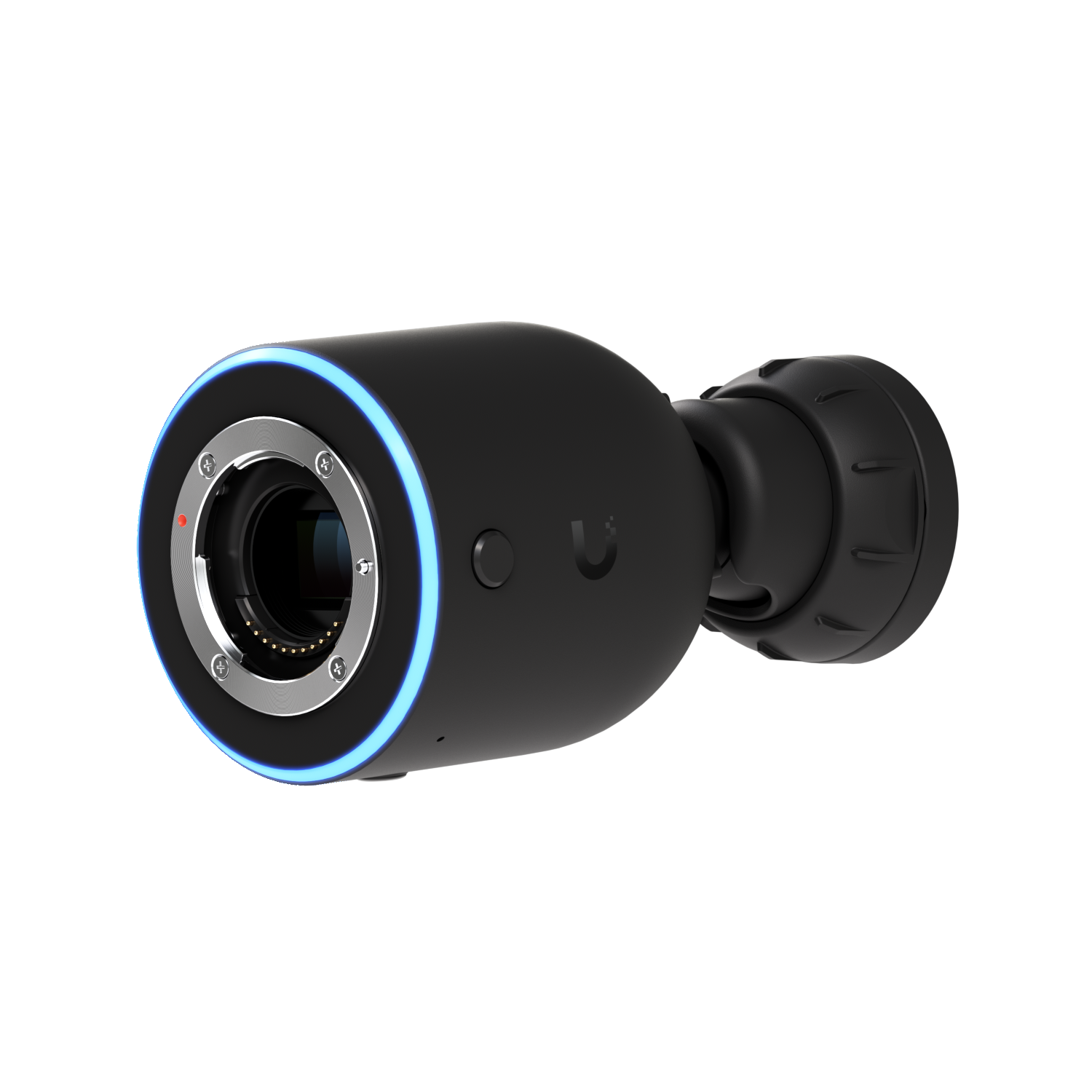

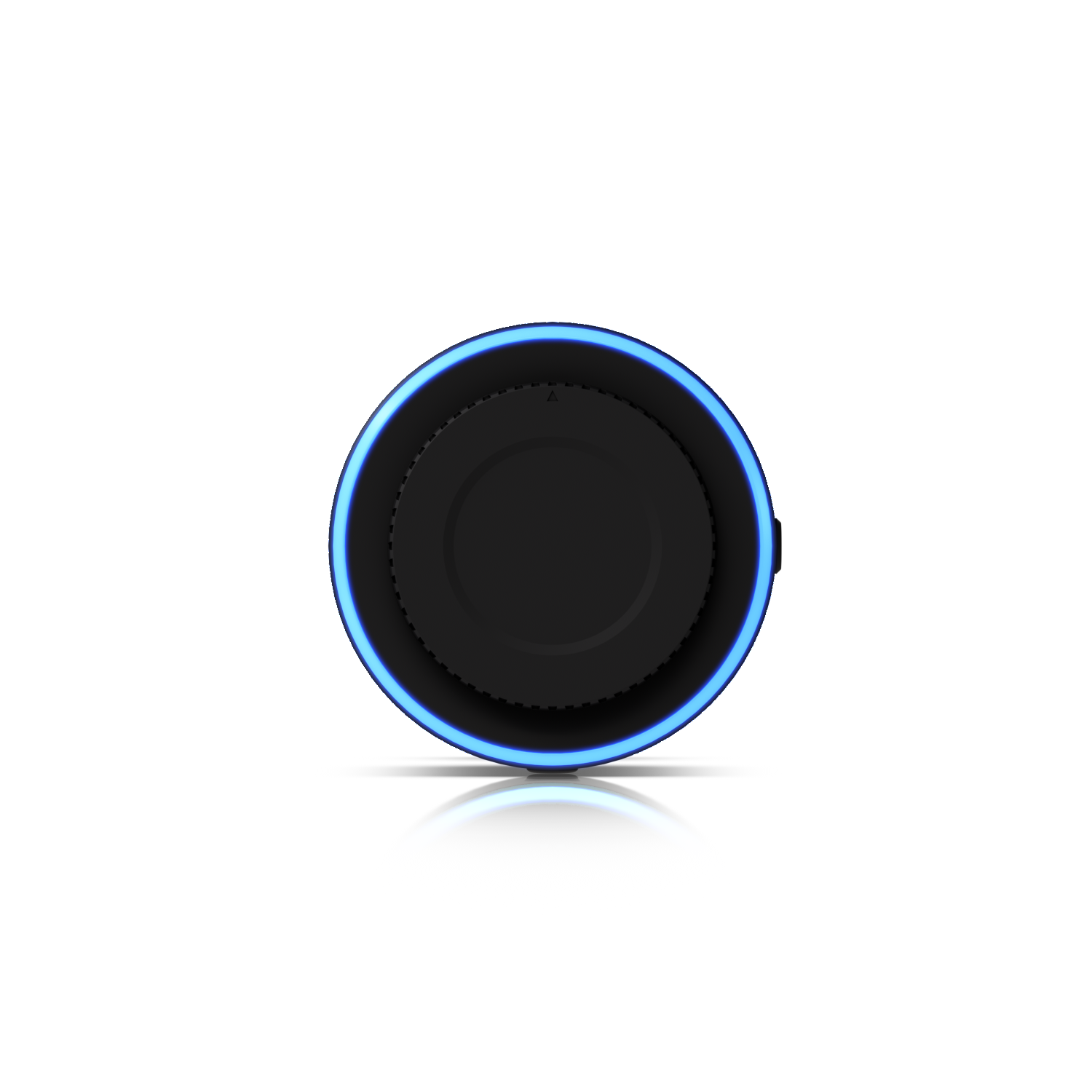

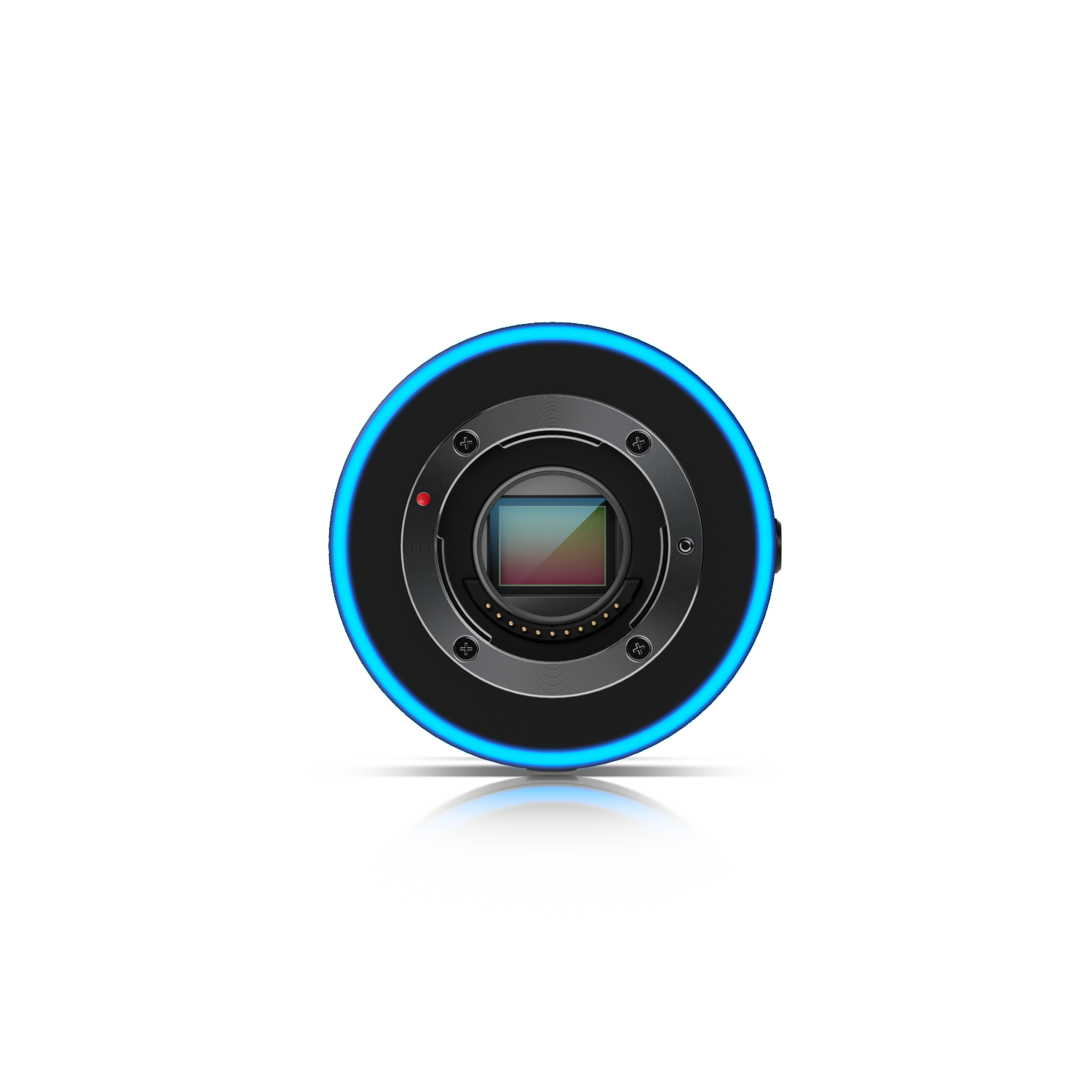

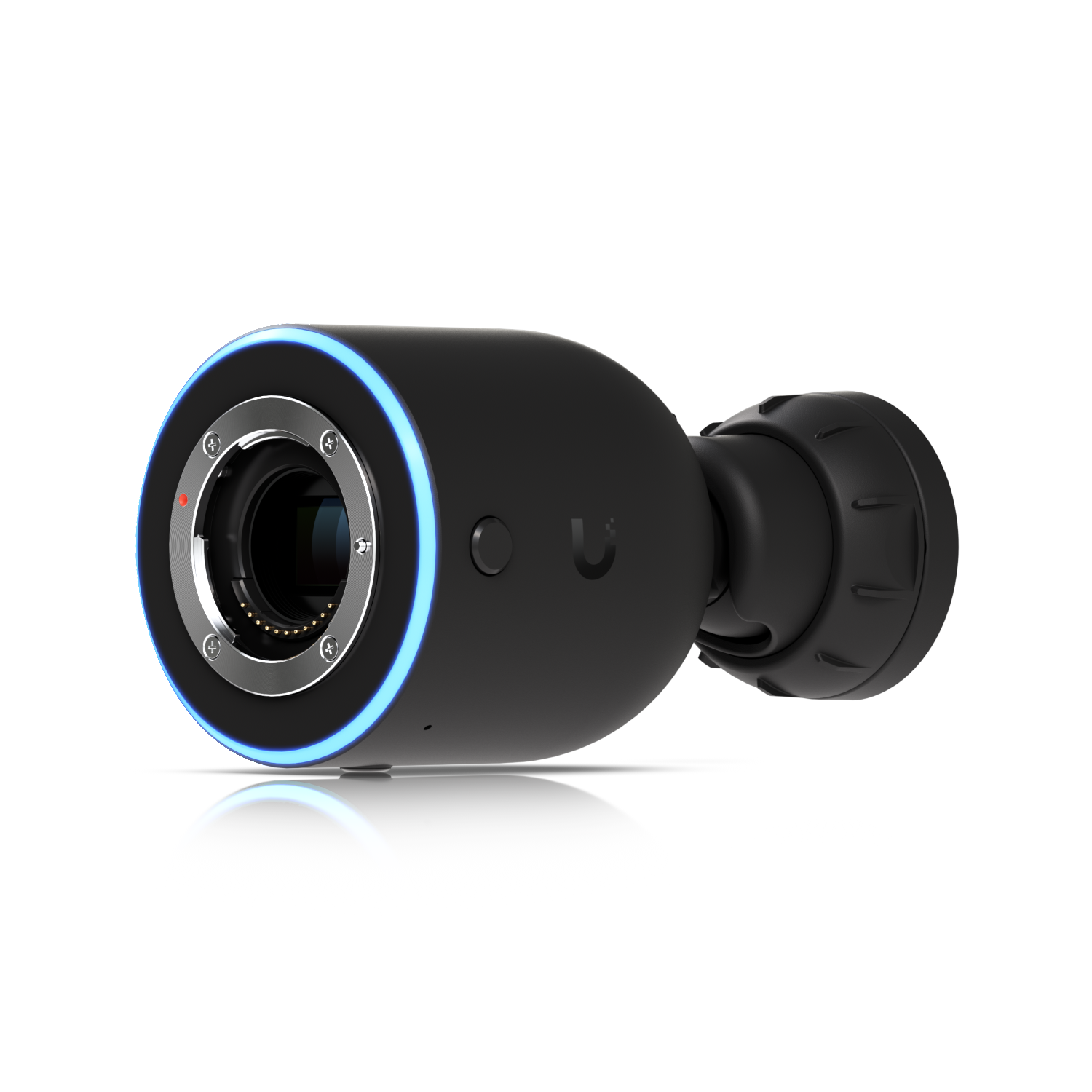

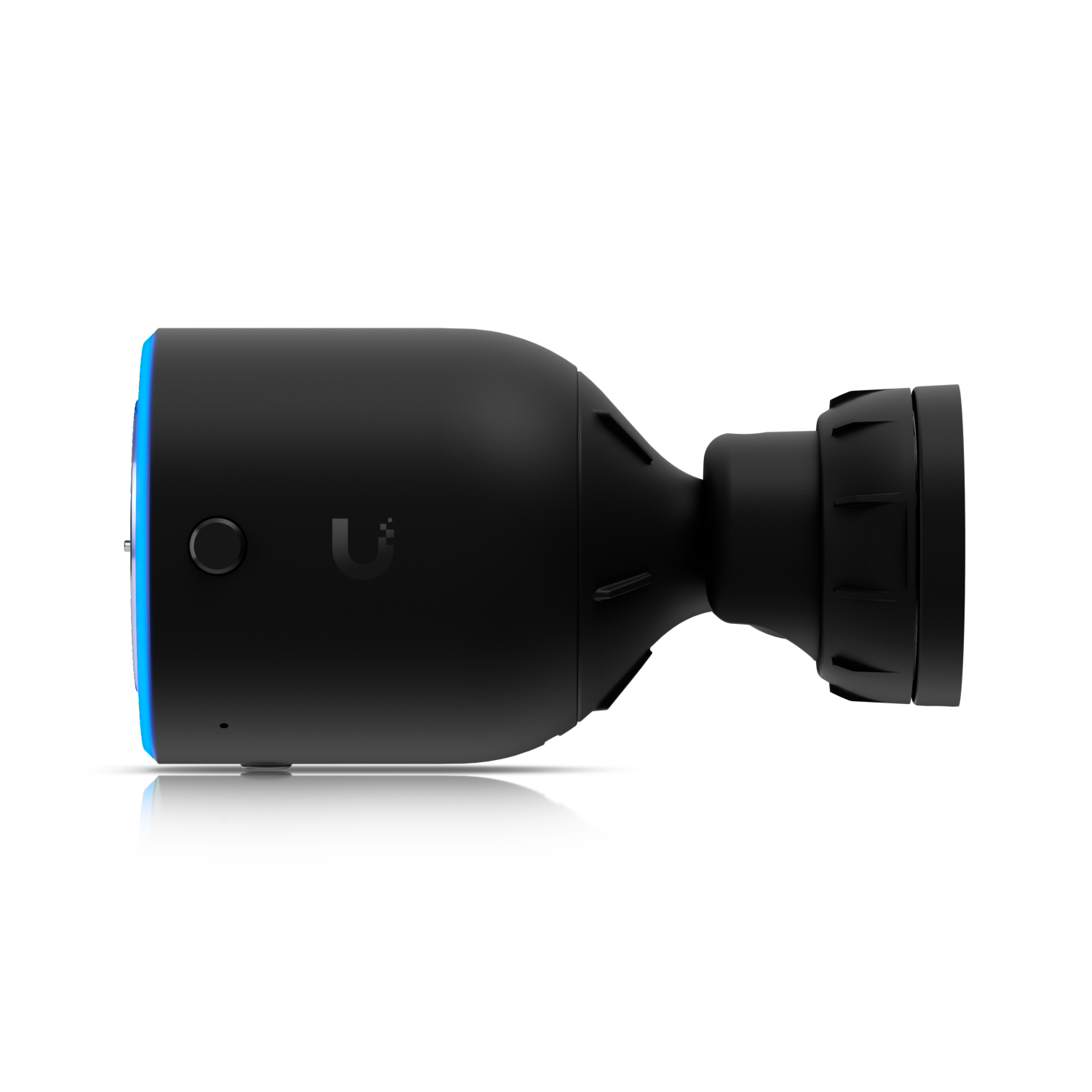

UniFi Camera AI DSLR (Wide-Angle / Black)
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.

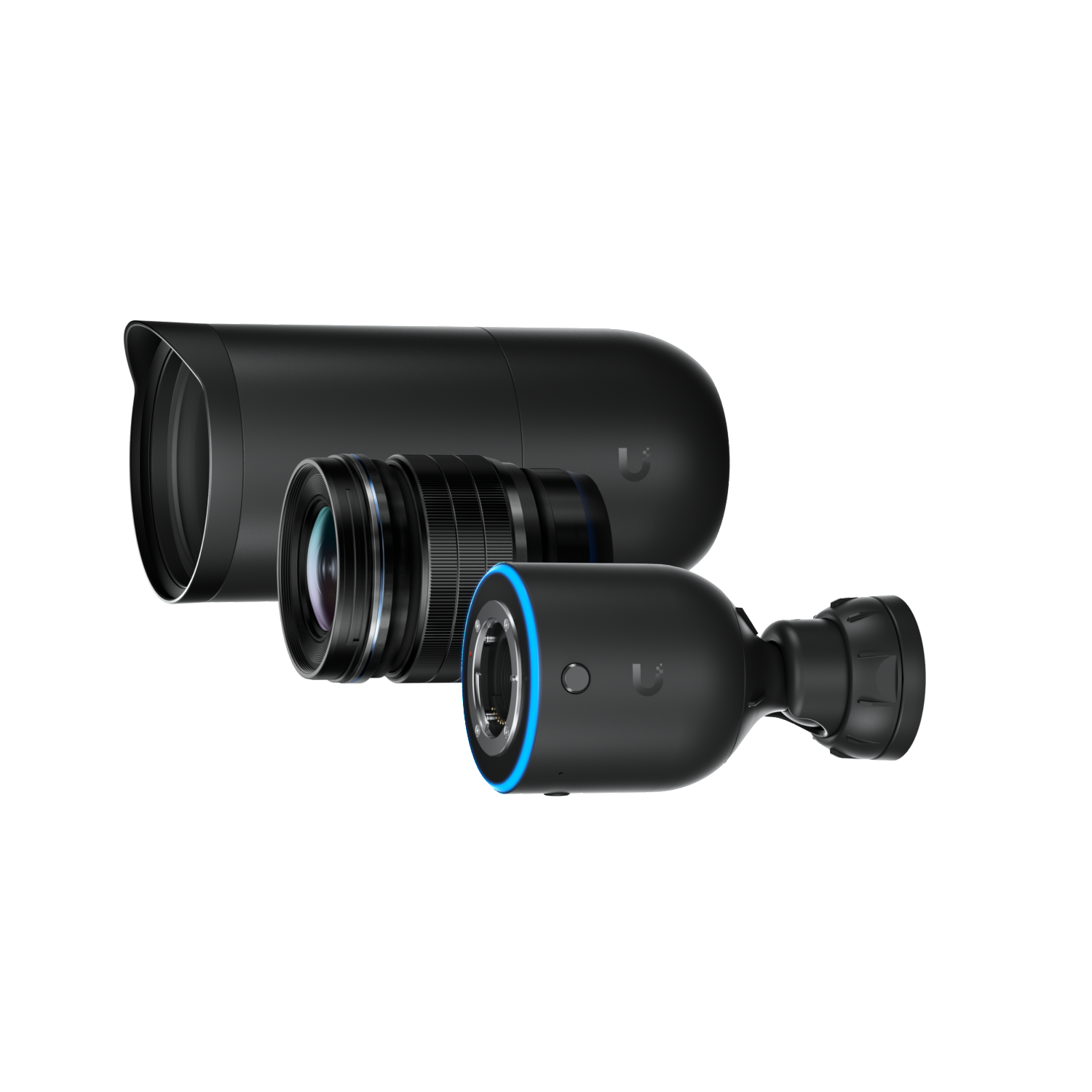

| Dimensions | Without mount: ⌀80 x 89 mm (⌀3.1 x 3.5") With mount: ⌀80 x 153 mm (⌀3.1 x 6") M. Zuiko Digital ED 17 mm PRO: ⌀68.2 x 87 mm (⌀2.7 x 3.4") M. Zuiko Digital ED 45 mm PRO: ⌀70 x 84.9 mm (⌀2.8 x 3.3") Outdoor case: ⌀91.6 x 196.3 mm (⌀3.6 x 7.7") |
|---|---|
| Face Recognition | Yes |
| License Plate Recognition | Yes |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Resolution | 4K |
| Field of View | M. Zuiko Digital ED 17 mm PRO: H: 52°, V: 39°, D: 65° M. Zuiko Digital ED 45 mm PRO: H: 21.6°, V: 16.2°, D: 27° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 (With the outdoor case) |
| Mounting | Wall, pole mount (Included) Tripod mount (Optional) |
| UniFi Application Suite | Protect |

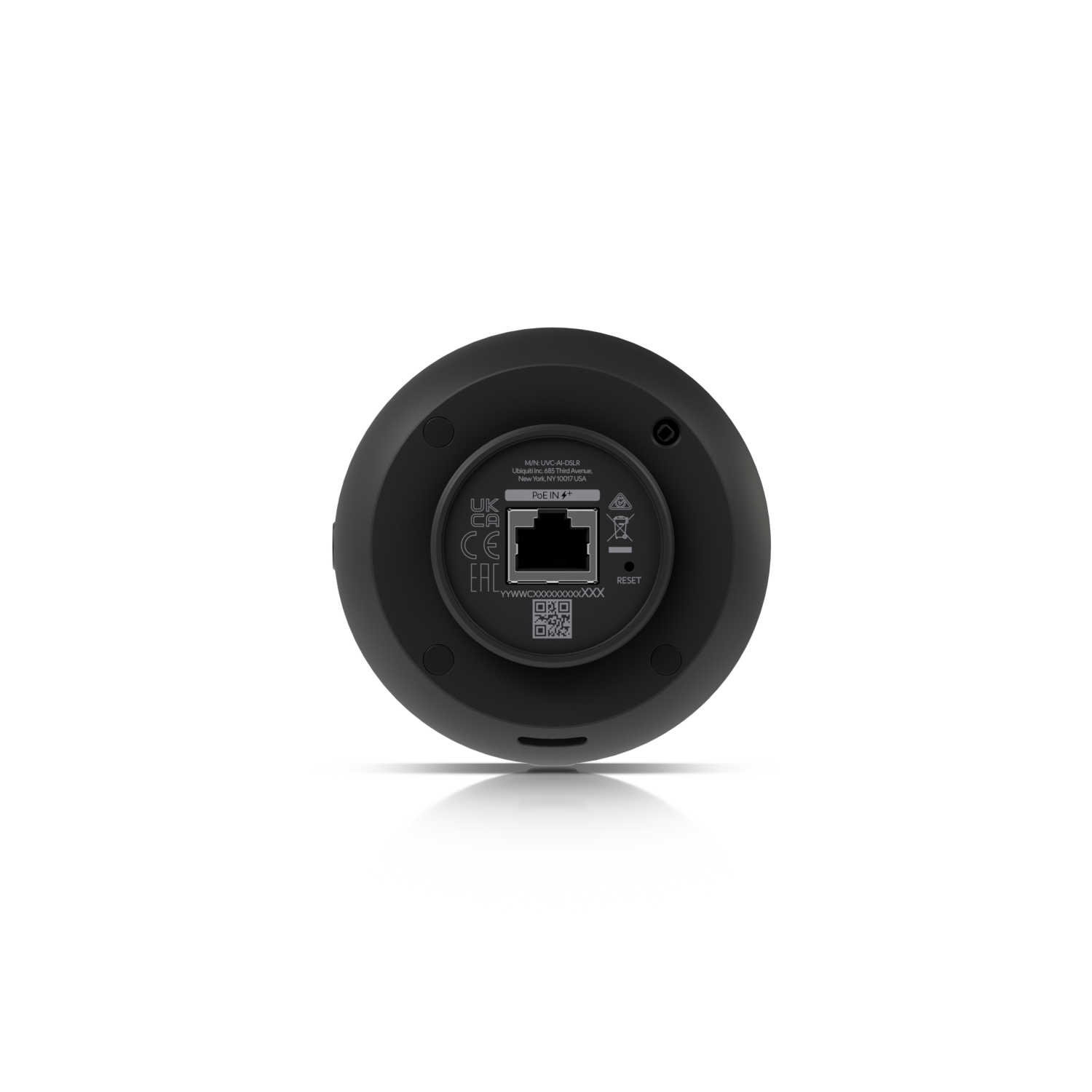

| Networking Interface | GbE RJ45 port |
| Video: Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay |
| Video: Max. Frame Rate | 30 FPS |
| Video: Resolution | 8MP 3840 x 2160 (16:9) |

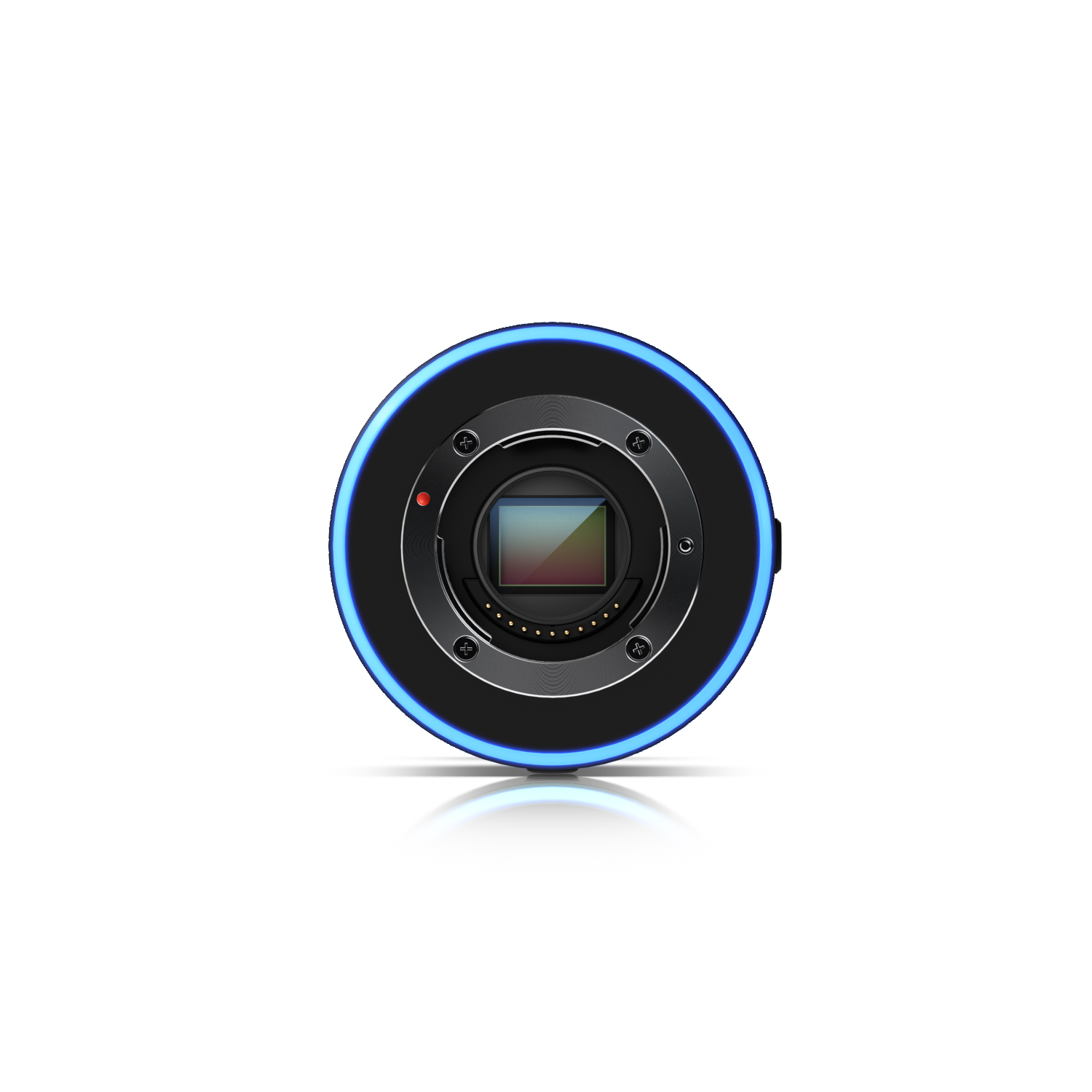

| Optics: Sensor | 4/3" 10MP CMOS |
| Optics: Lens | M. Zuiko Digital ED 17 mm ƒ/1.2 PRO M. Zuiko Digital ED 45 mm ƒ/1.2 PRO |
| Max. Power Consumption | 17.77W (With lens working) |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb) |
| Enclosure Material | Aluminum alloy |
| Mount Material | Wall mount: aluminum alloy Pole mount: aluminum alloy |
| Button | (1) Factory reset (1) Lens release key |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
