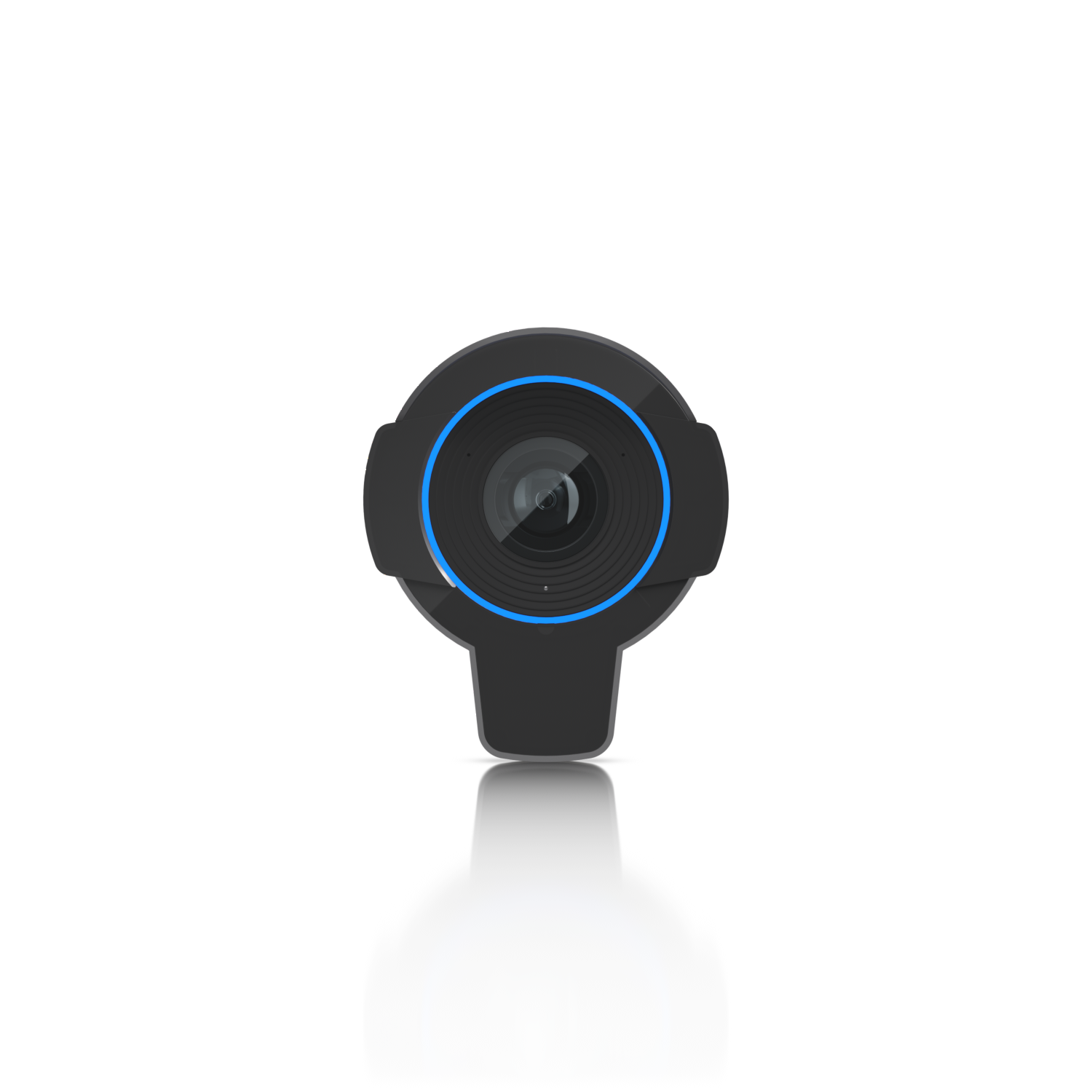

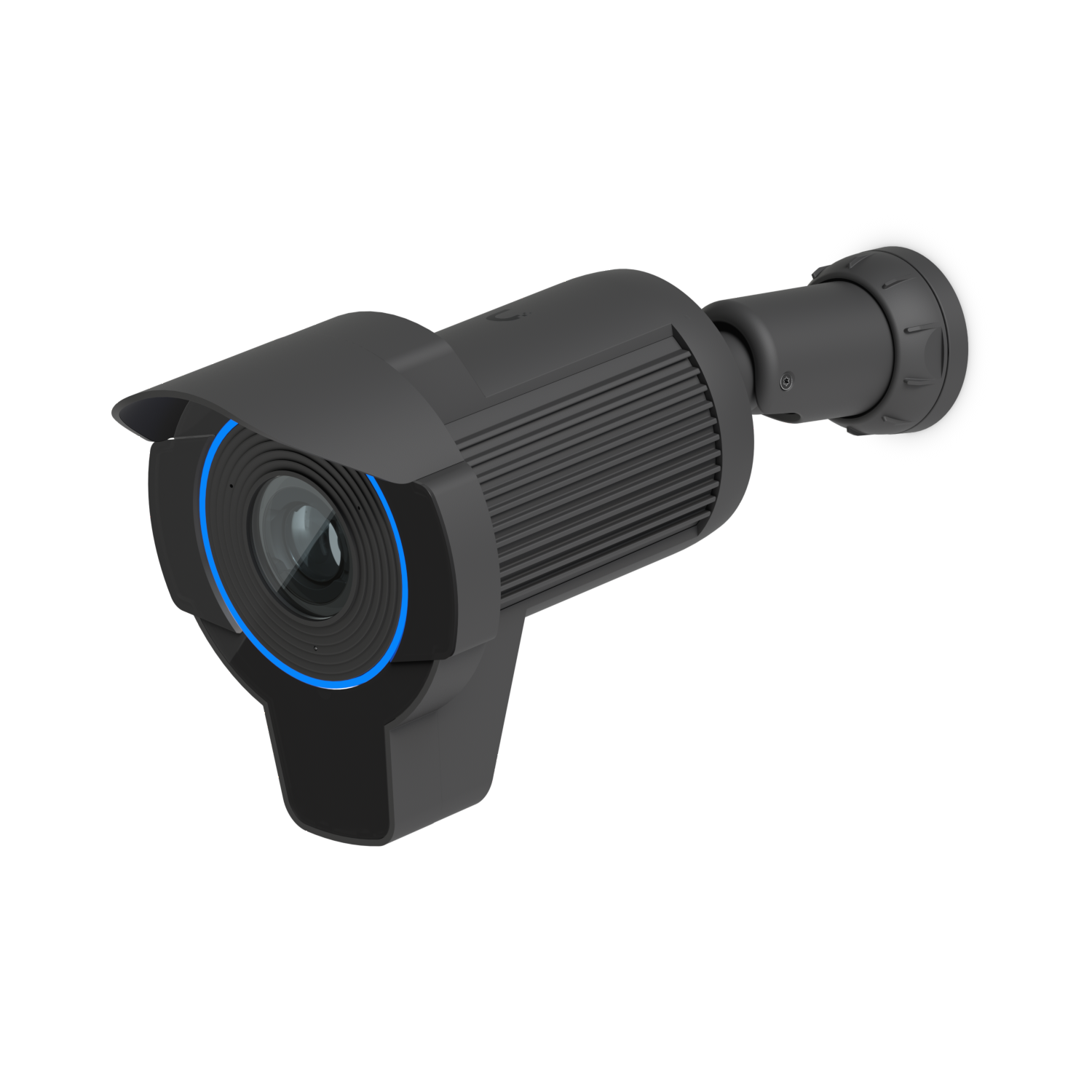

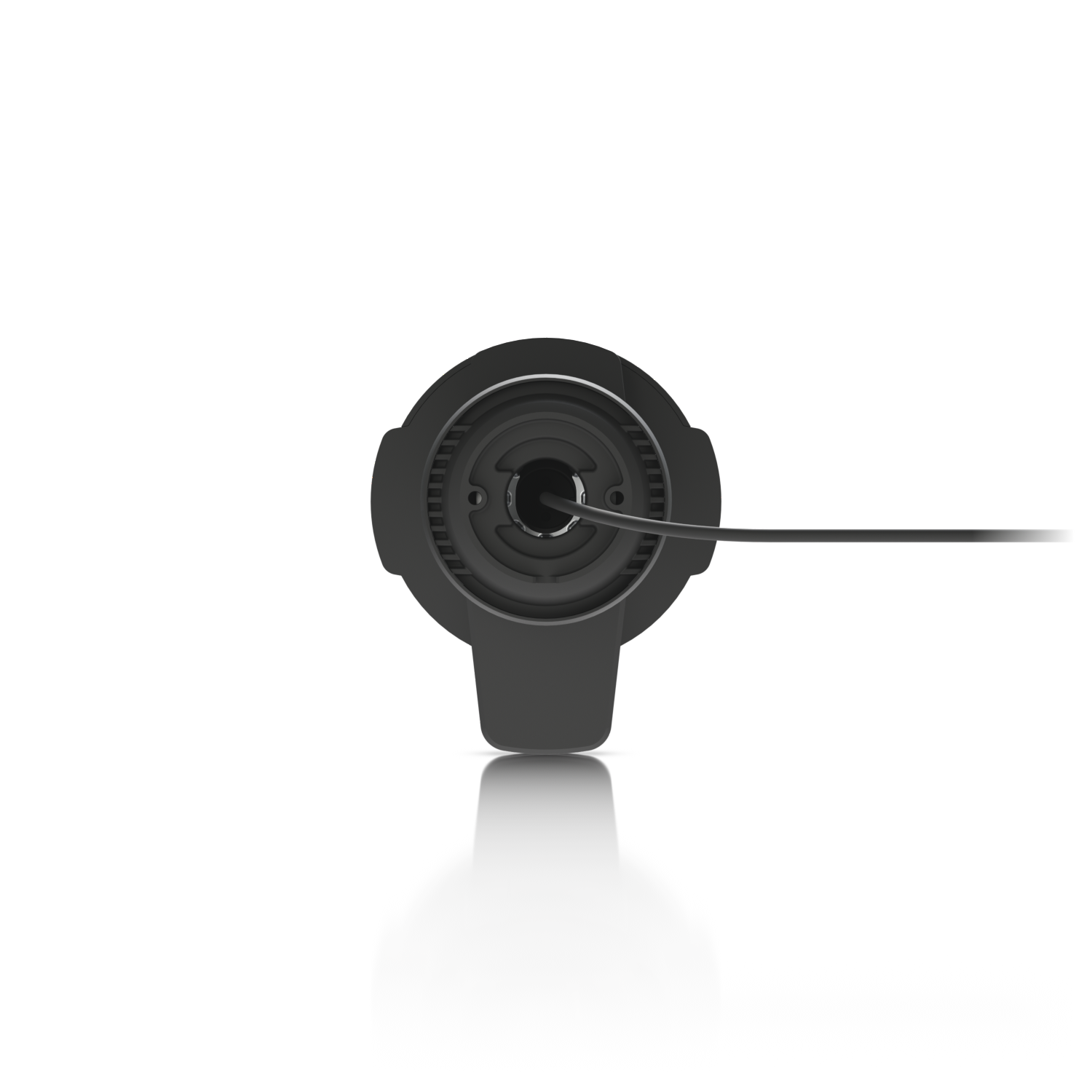

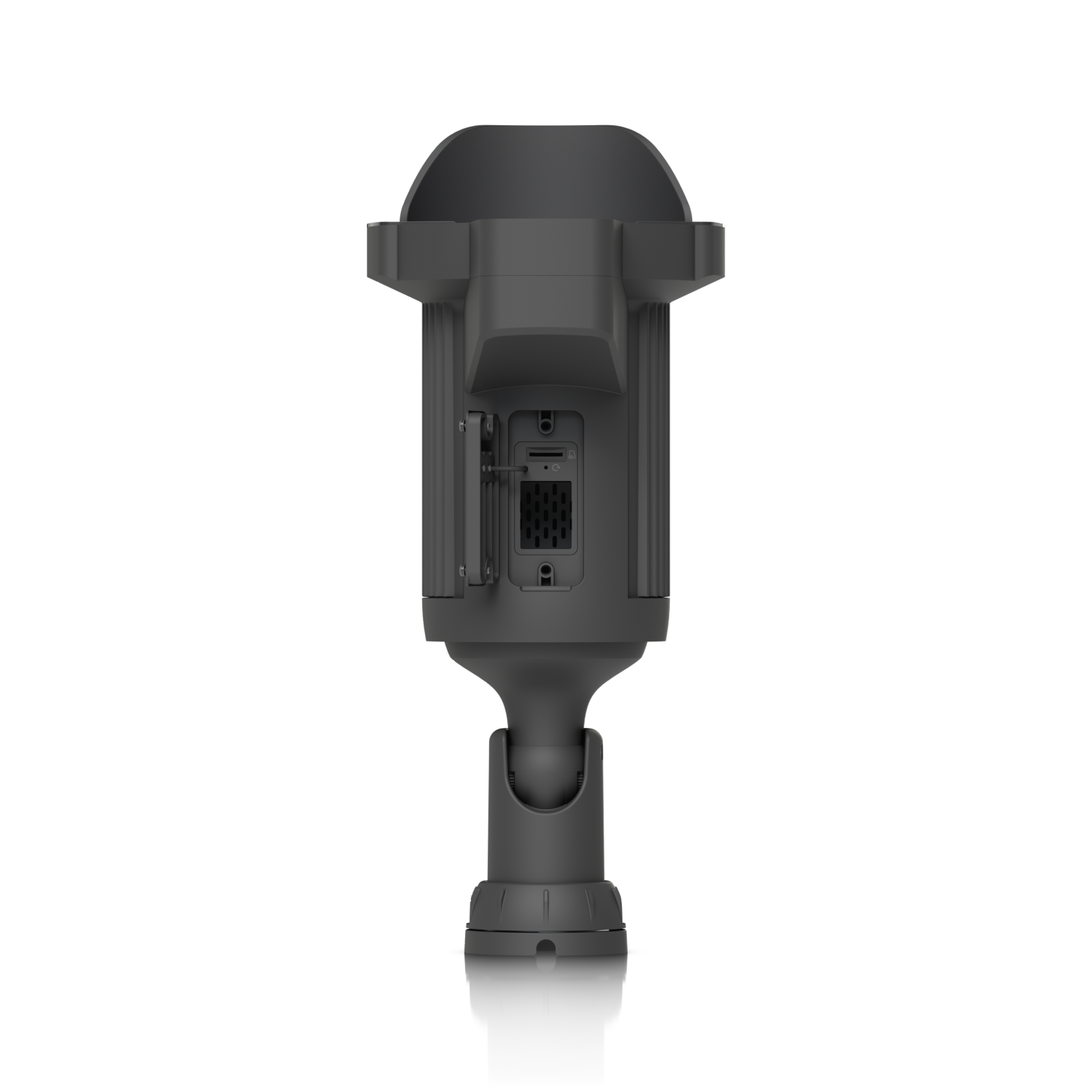

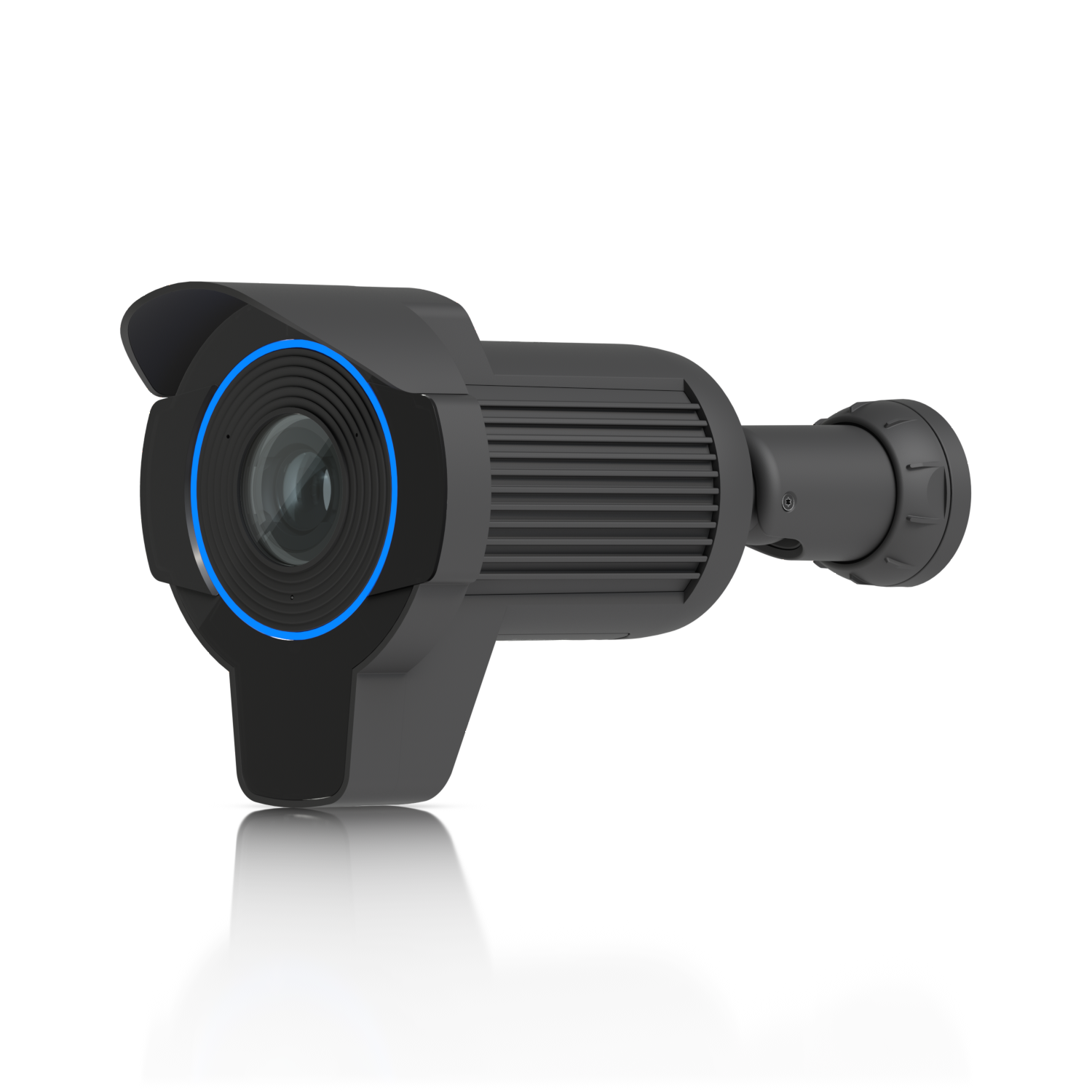

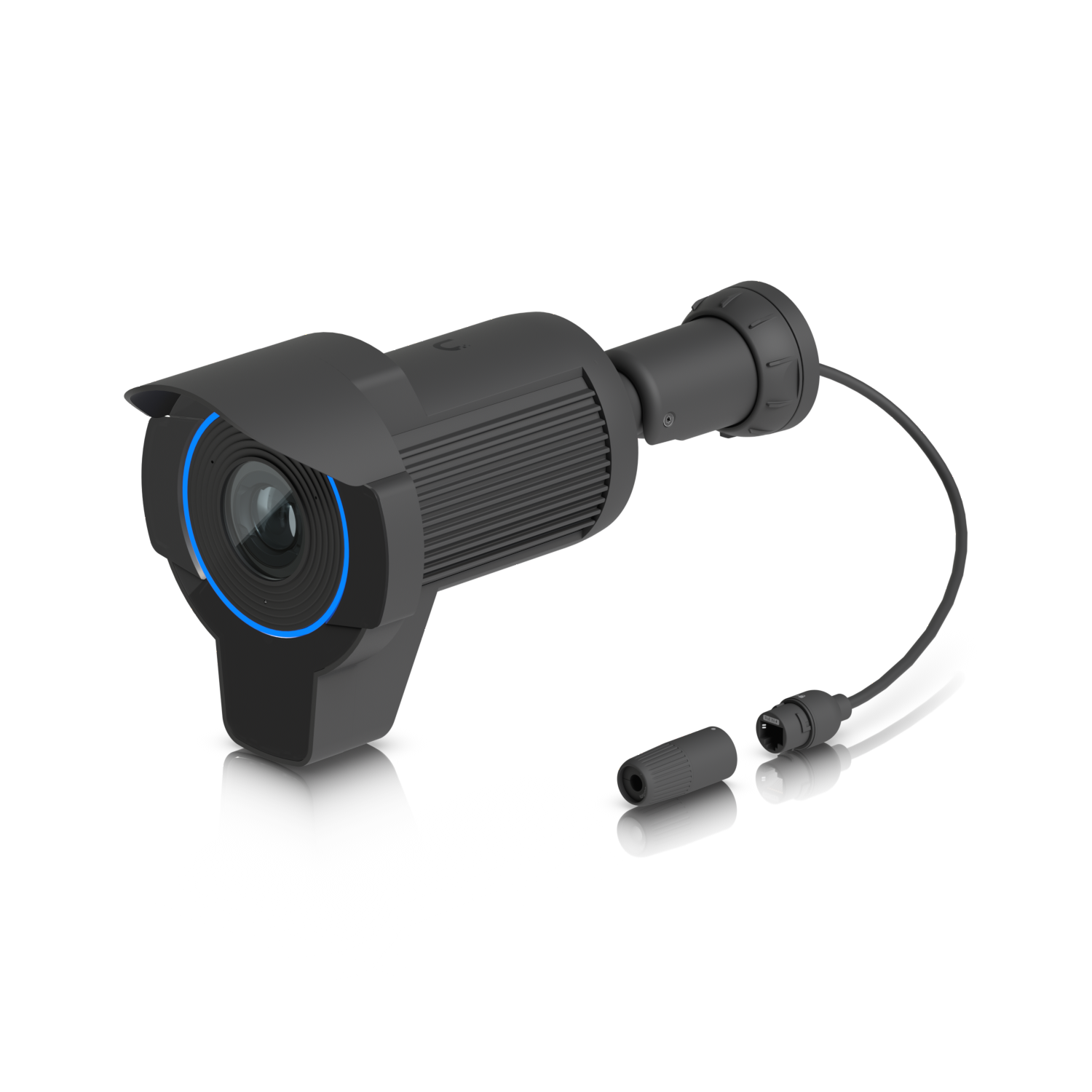

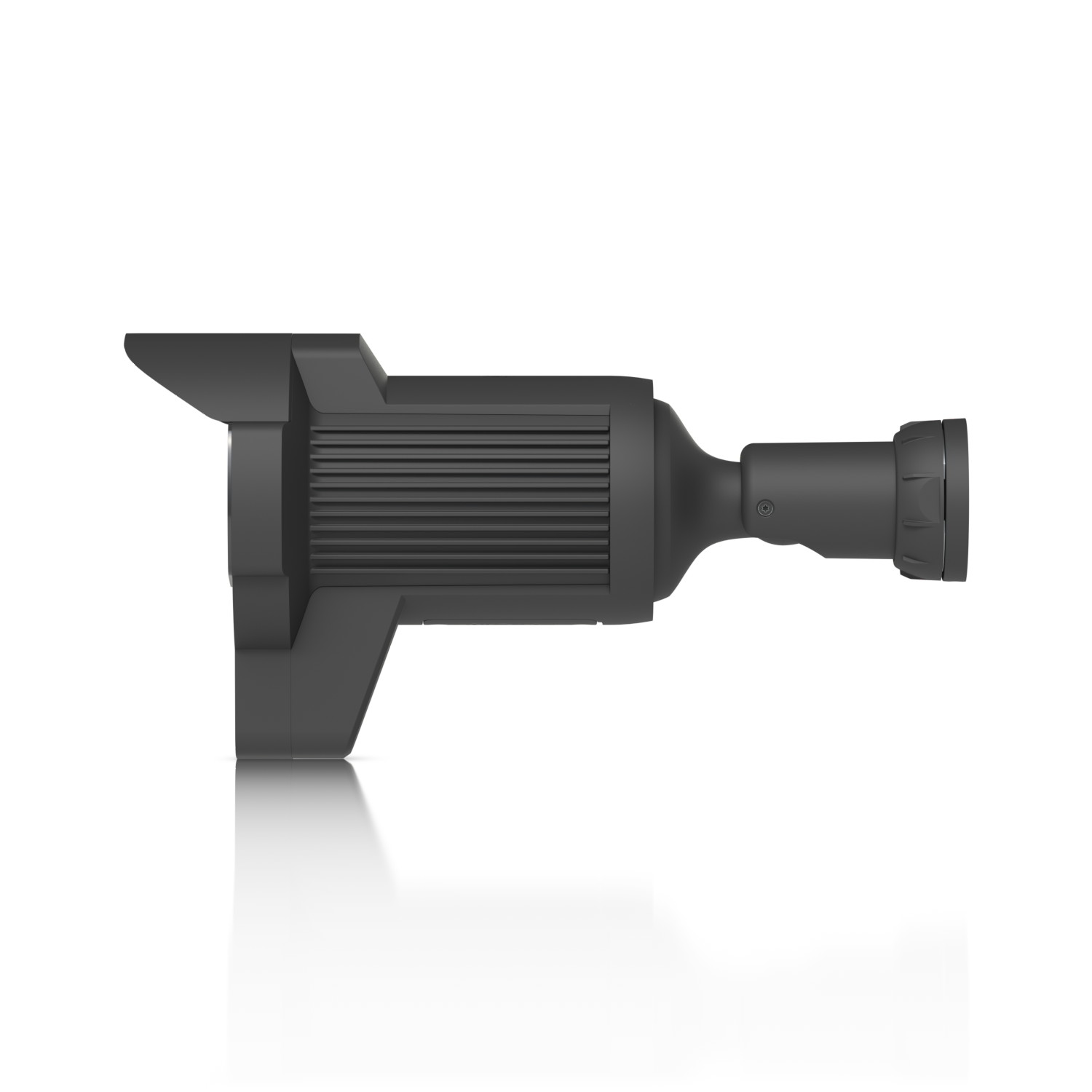

UniFi Camera AI LPR
Sérhæfð 4K myndavél með 3x optískri aðdráttarlinsu og langdrægu IR næturmyndavélarskyggni sem er fínstillt til að þekkja bílnúmeraplötur á ökutækjum á hraða allt að 90 km/klst.
Uppsetningarleiðbeiningar fyrir LPR
Athugið. AI-LPR er eingöngu fínstillt til að mynda endurskins- eða óendurskinsnúmeraplötur í myrkri. Settu upp fleiri myndavélar til að mynda önnur atriði ökutækja við dimmar aðstæður
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
|---|---|
| IR Night Vision | 15 m (50 ft) |
| Zoom Mode | 3x Optical |
| License Plate Recognition | Yes (Optimized for night time and high vehicle speeds) |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Resolution | 4K |
| Field of View | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

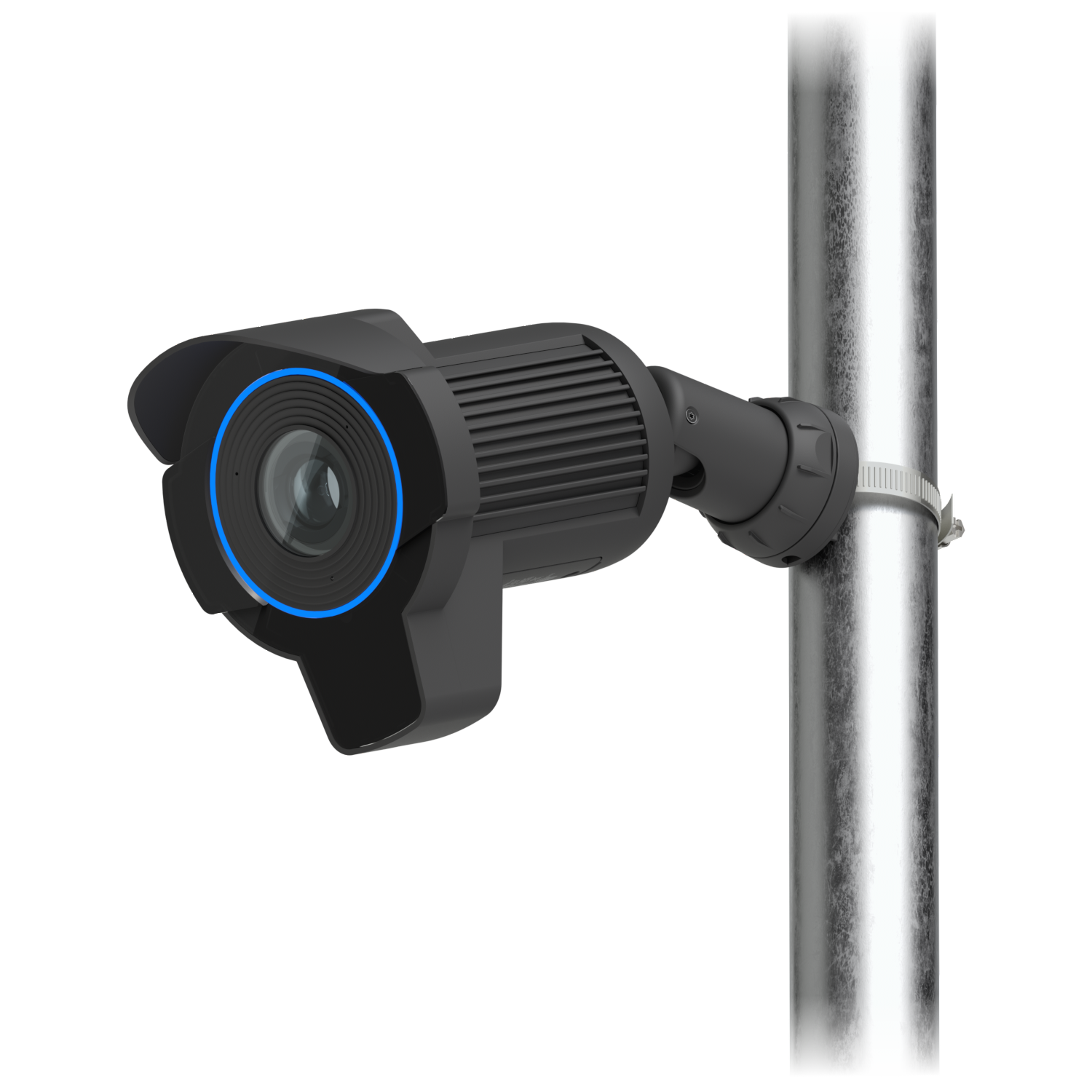

| Mounting | Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
| UniFi Application Suite | Protect |
| Networking Interface | GbE RJ45 port |
| Video: Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video: Max. Frame Rate | 30 FPS |
| Video: Resolution | 8MP 3840 x 2160 (16:9) |
| Optics: Sensor | 1/1.8" 8MP |
| Optics: Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| Optics: IR Capture Distance | 15 m (50 ft) |
| Optics: LPR Night Mode | LPR optimization filter (Capture reflective and non reflective plates at night) |
| Max. Power Consumption | 25.5W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) (Metal strap torque: 6Nm) |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Aluminum Alloy |
| Expansion Slot | Micro SD memory card (Requires a memory card with at least 64GB of storage) |
| Button | (1) Factory reset |
| Cable: Cable Connector Type | RJ45 |
| Cable: Cable Diameter | 4.5 mm (0.2") |
| Cable: Cable Length | 30 cm (1 ft) |
| Cable: Jacket Material | Thermoplastic elastomer |
| Cable: Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Cable: Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
