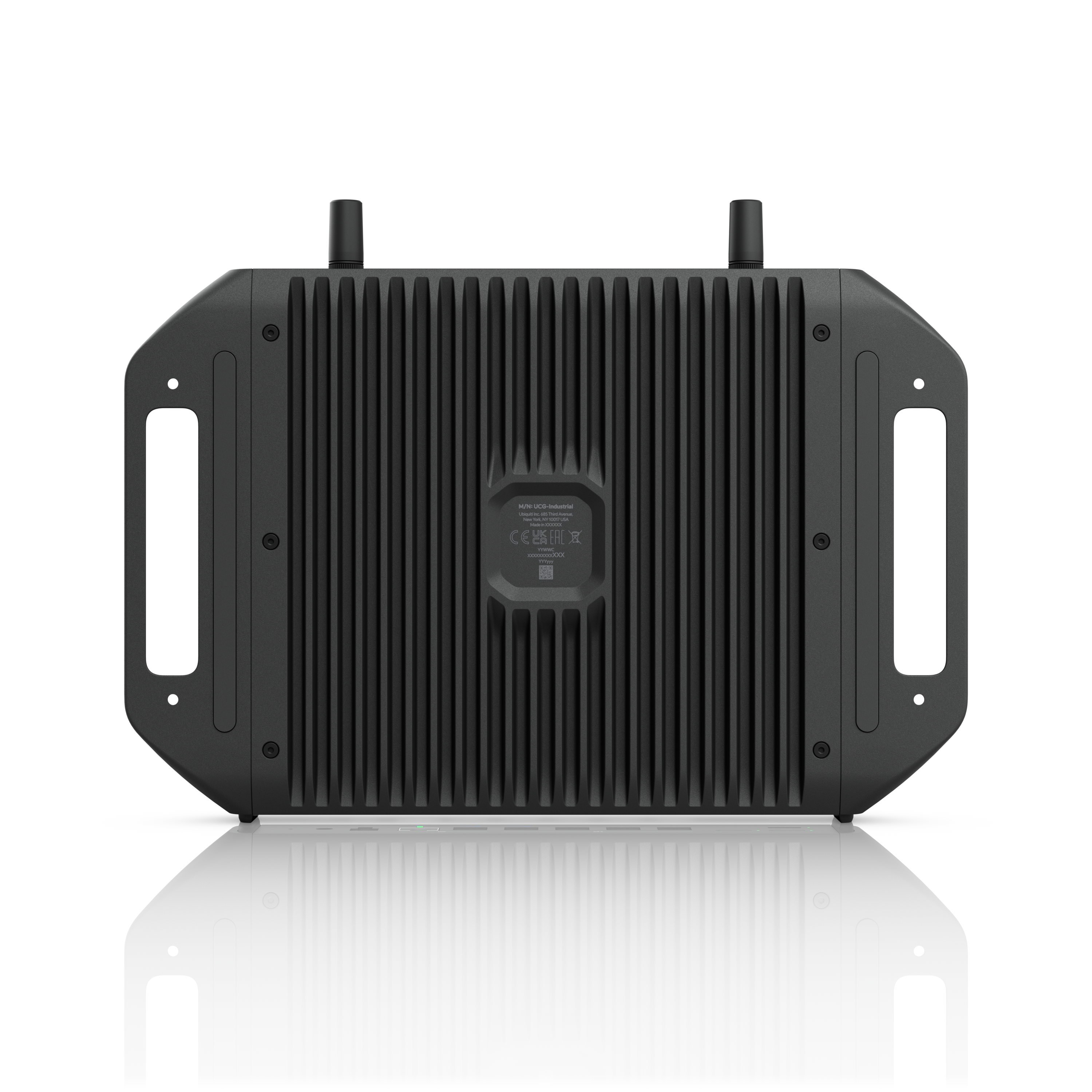

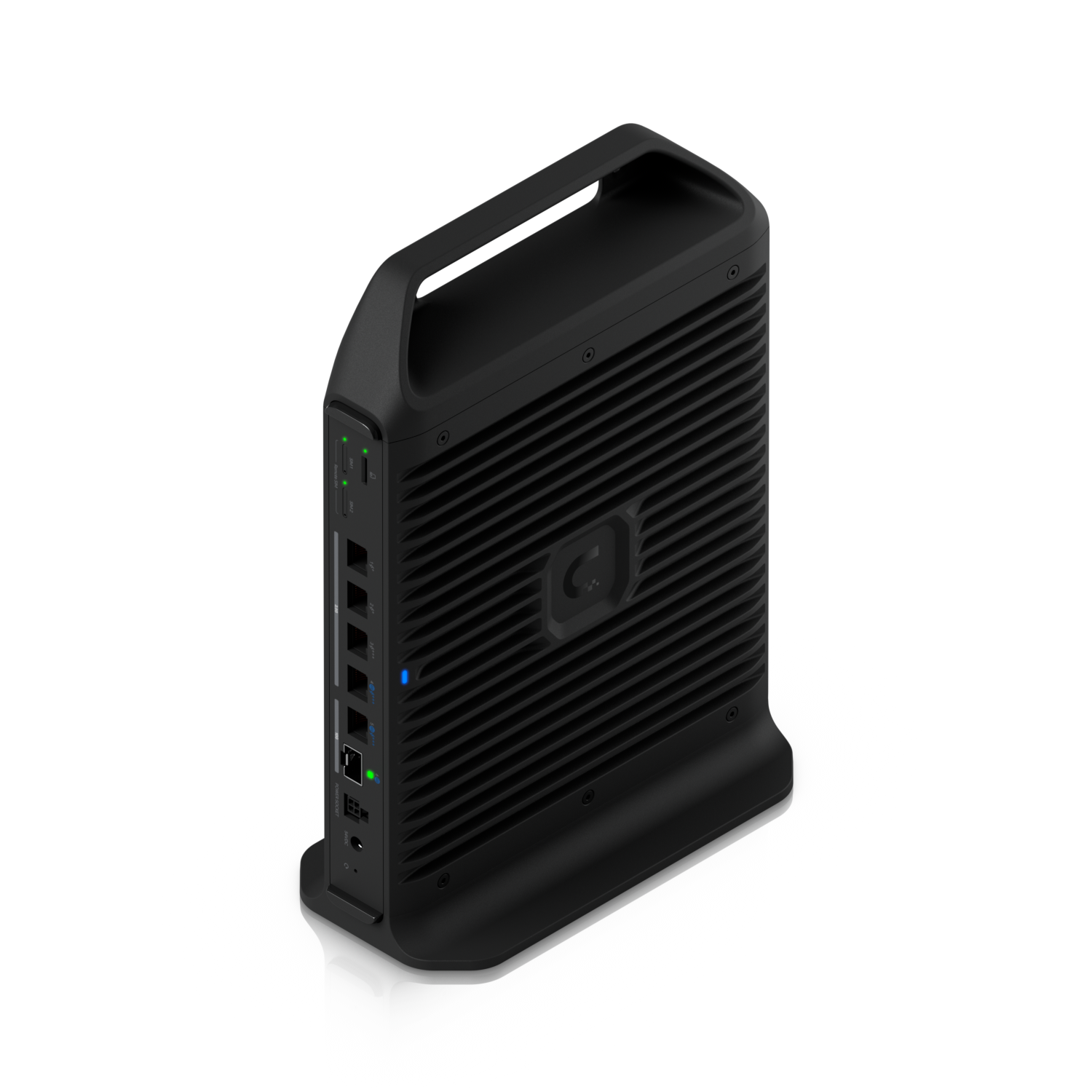

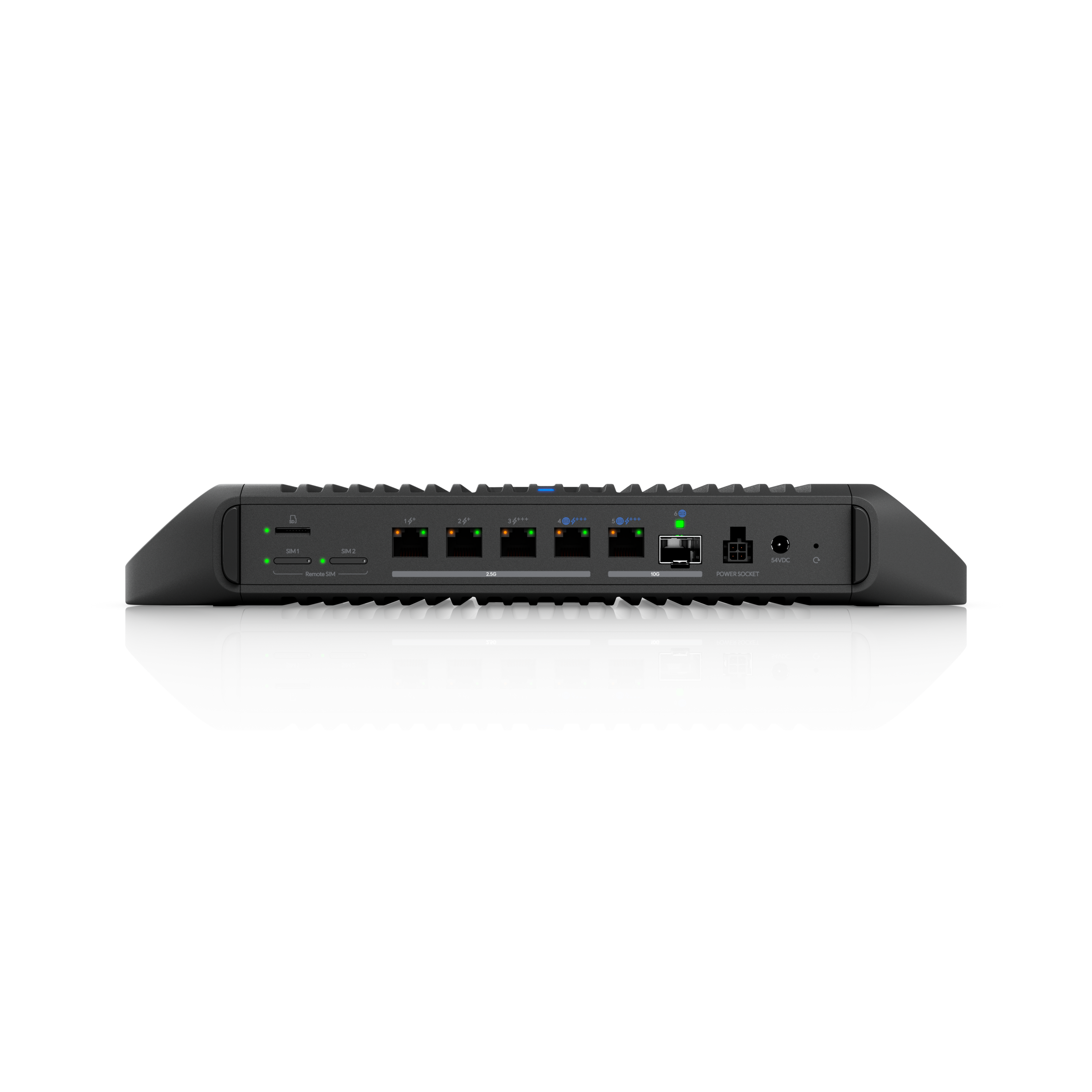

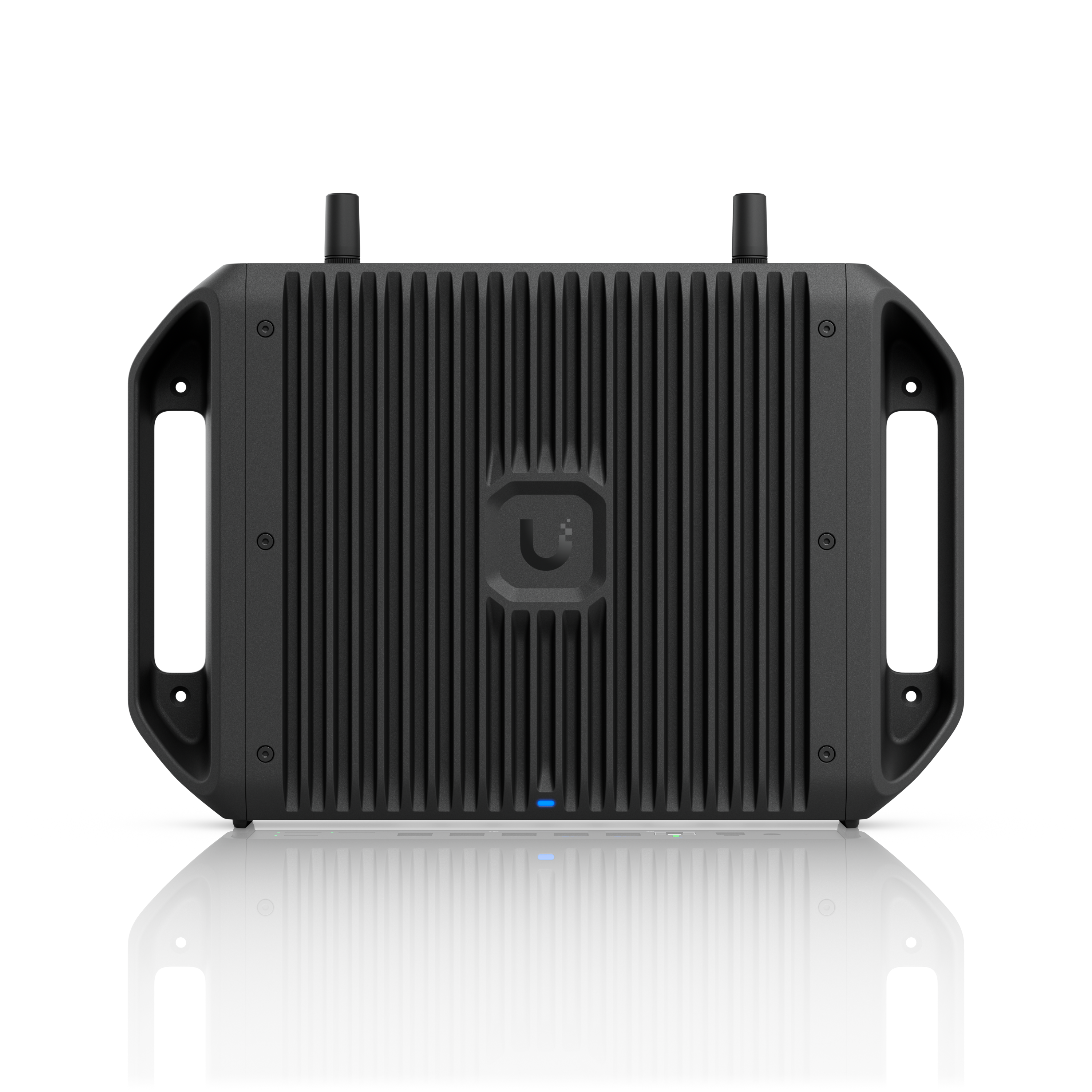

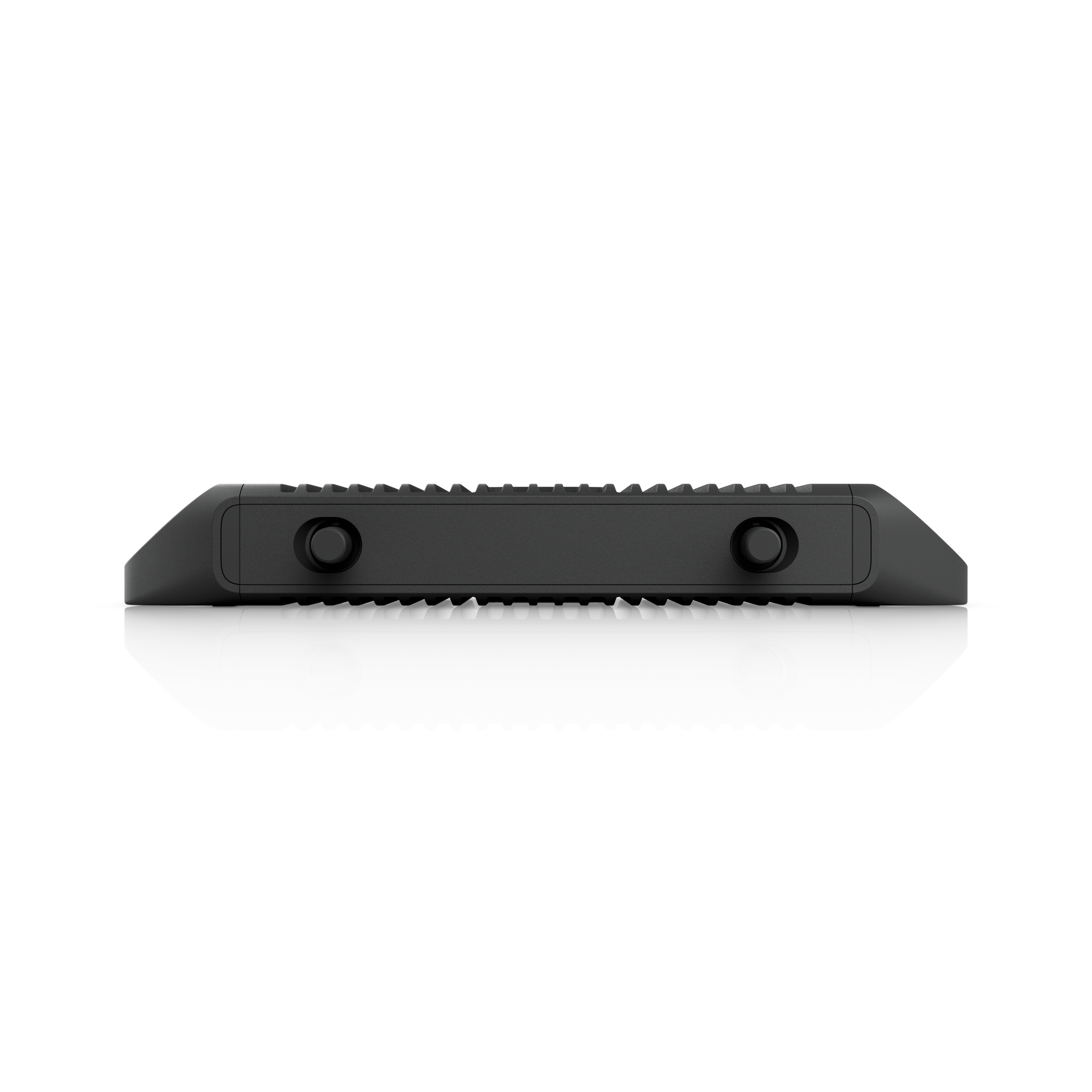

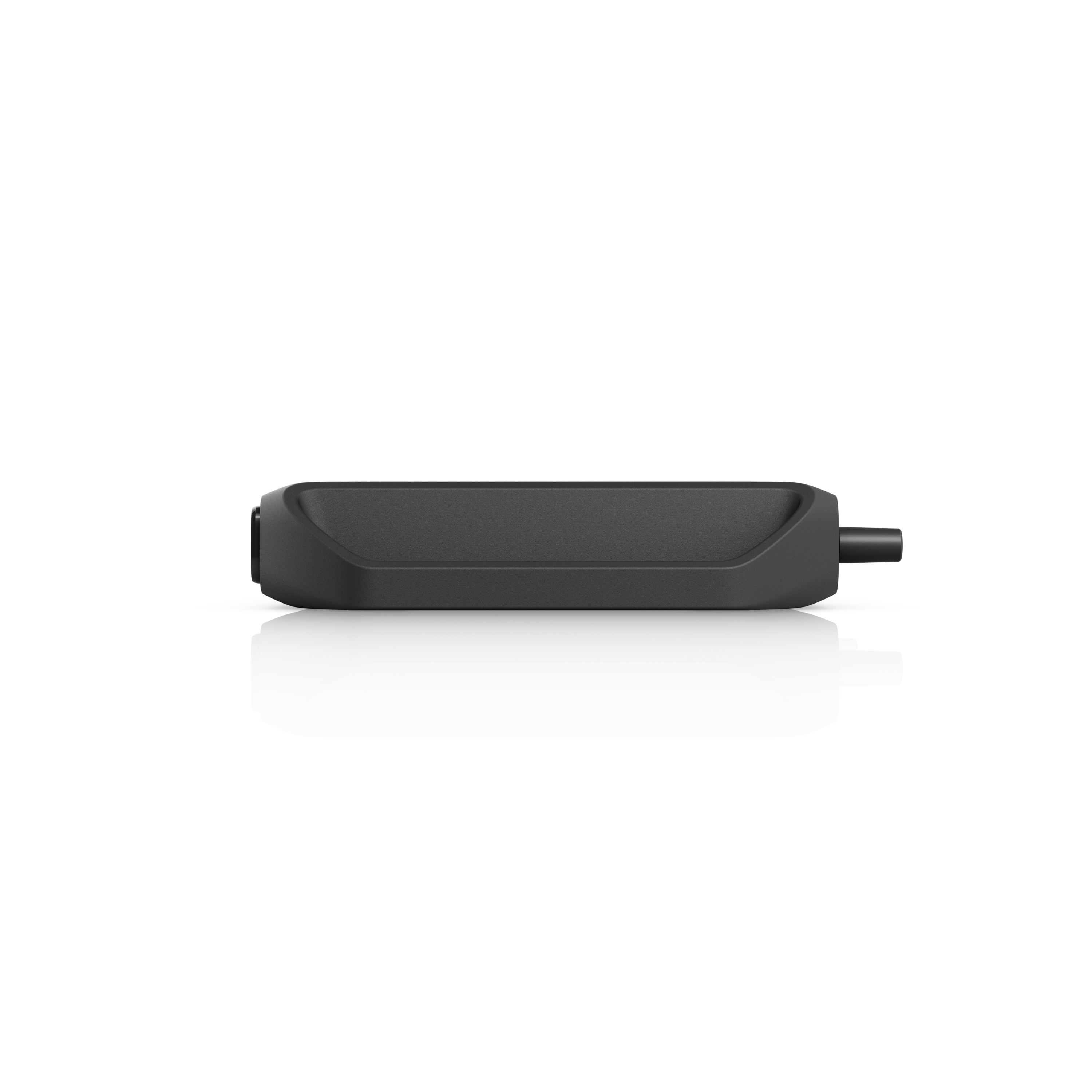

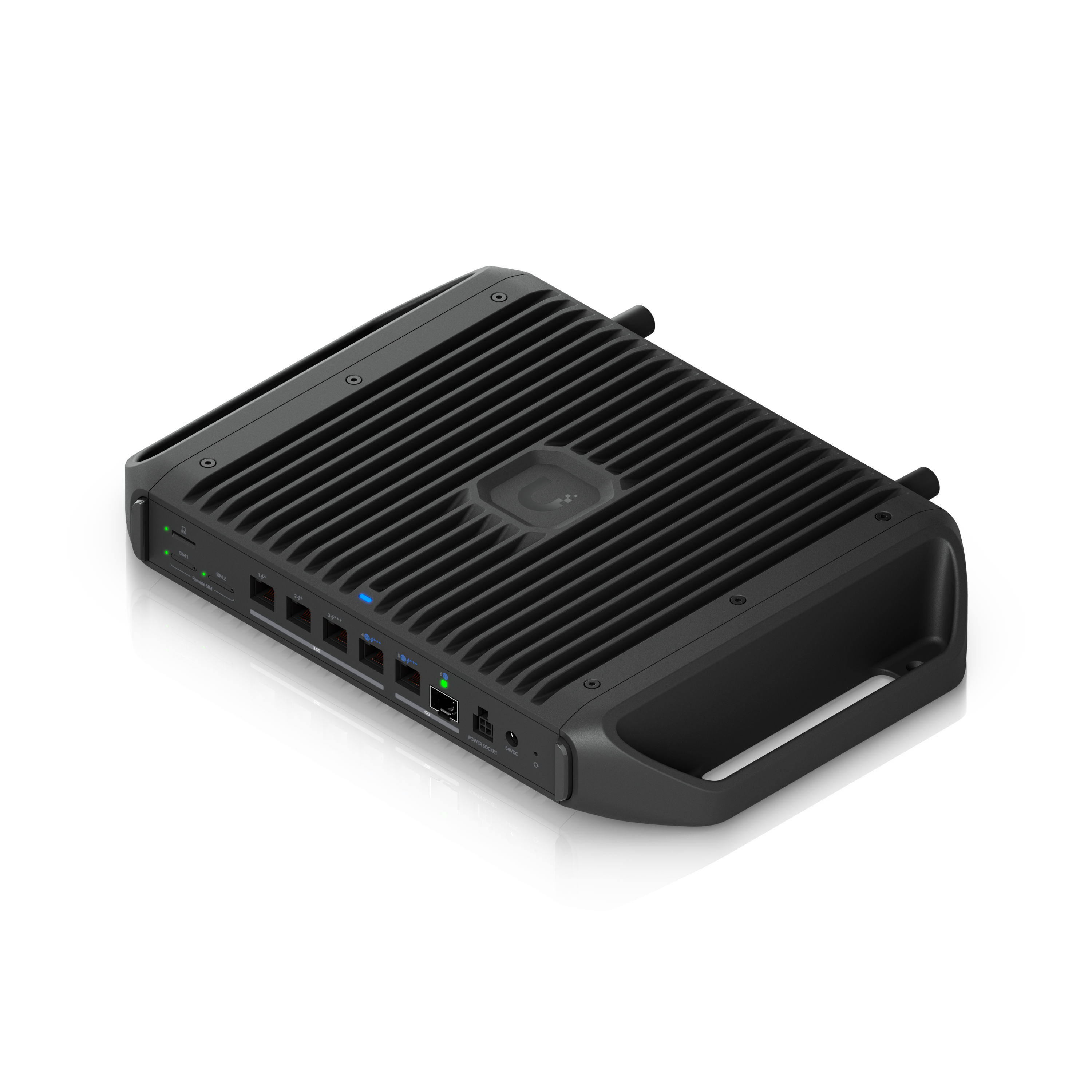

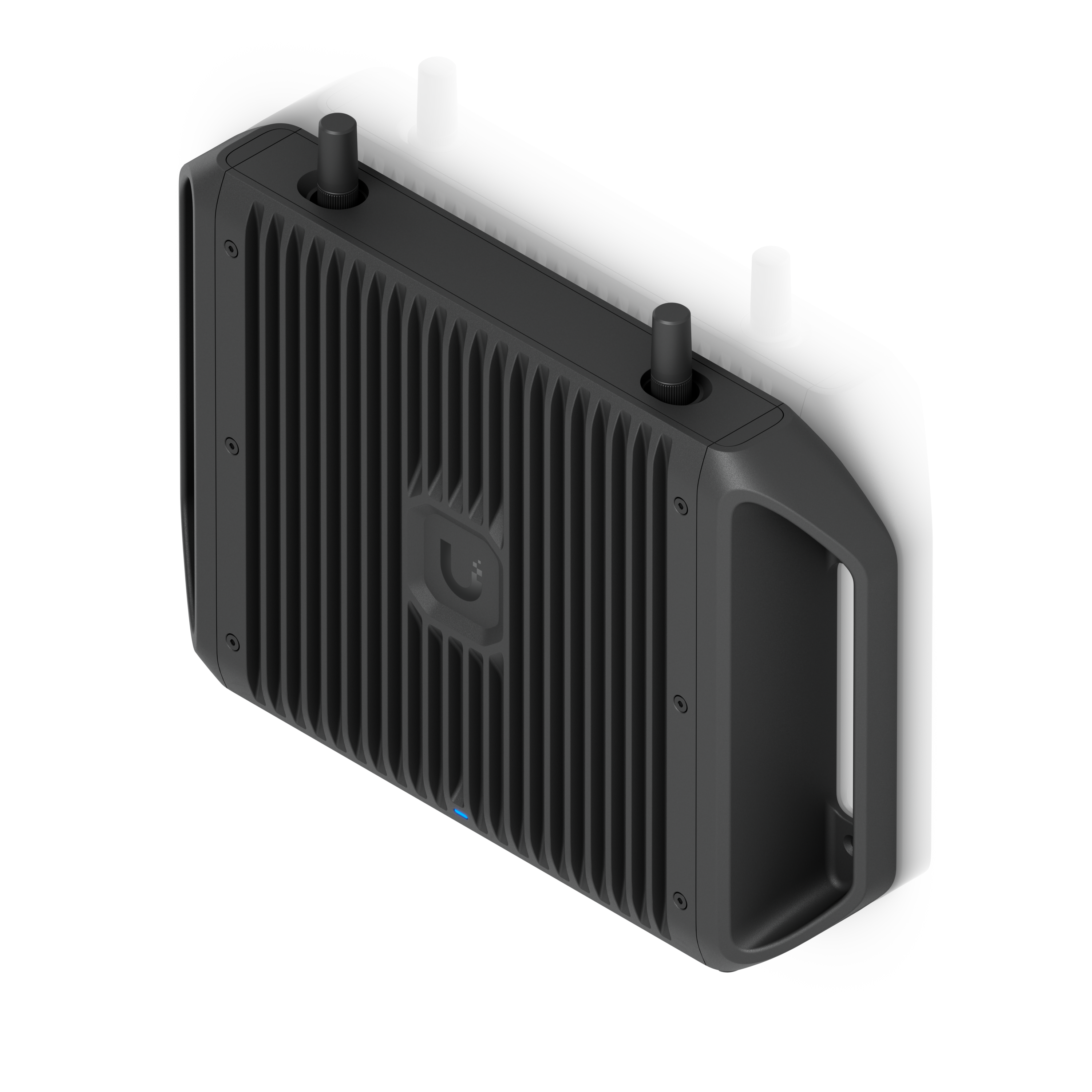

UniFi Cloud Gateway Industrial
Styrkt, viftulaus 10 GbE UniFi Cloud Gateway sem veitir 350W heildarkerfisorku fyrir þéttar PoE uppsetningar, með háþróaða beinavirkni og microSD geymslu fyrir fullan UniFi forritastuðning.
*Innbyggðu SIM-raufarnar eru eingöngu fyrir Remote SIM samþættingu með UniFi 5G Max Outdoor. Stuðningur væntanlegur bráðlega með hugbúnaðaruppfærslu.
Þrívídd og myndbönd
Tækni
Tæknilegir eiginleikar
Upplýsingar úr ETIM gögnum framleiðanda. Vantar þig meira? Hafðu samband við tækniráðgjöf okkar.
| Dimensions | Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7") Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9") |
|---|---|
| UniFi Application Suite: Network | Yes |
| UniFi Application Suite: Protect | Yes |
| UniFi Application Suite: Access | Yes |
| UniFi Application Suite: Talk | Yes |
| UniFi Application Suite: Connect | Yes |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45 |
| Port Layout: 2.5 GbE RJ45 | 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) |
| Port Layout: 10 GbE RJ45 | 1 (PoE+++) (10G/5G/2.5G/1G/100M) |
| Port Layout: 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately) |
| Coverage Area | 115 m² (1,250 ft²) |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN: Site Magic | Yes |
| Site-to-Site VPN: IPsec | Yes |
| Site-to-Site VPN: OpenVPN | Yes |
| VPN Server: Identity Endpoint One-Click VPN | Yes |
| VPN Server: Teleport Zero-Configuration VPN | Yes |
| VPN Server: WireGuard | Yes |
| VPN Server: OpenVPN | Yes |
| VPN Server: L2TP | Yes |
| VPN Client: OpenVPN | Yes |
| VPN Client: WireGuard | Yes |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing: OSPF | Yes |
| Dynamic Routing: BGP | Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 4,000 |
| Virtual Network Override | Yes |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Throughput: 5 GHz | 4.3 Gbps |
| Throughput: 2.4 GHz | 688 Mbps |
| MIMO: 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO: 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain: 5 GHz | Stub antenna: 5 dBi Terminal (Omni) antenna: 6 dBi |
| Antenna Gain: 2.4 GHz | Stub antenna: 3 dBi Terminal (Omni) antenna: 6 dBi |
| Max. TX Power: 5 GHz | 26 dBm |
| Max. TX Power: 2.4 GHz | 23 dBm |
| Supported Data Rates: 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates: 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates: 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates: 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates: 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates: 802.11b | 1, 2, 5.5, 11 Mbps |
| Supported Data Rates: 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| NVR Storage | Pre-installed 128 GB microSD for NVR |
| Expansion Slot | MicroSD Card (128 GB pre-installed microSD) |
| PoE Budget | DC input: 270W ATX power: 75W |
| Max. PoE Wattage per Port by PSE: PoE+ | 30W |
| Max. PoE Wattage per Port by PSE: PoE+++ | 90W |
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 28W (Excluding PoE output) |
| Power Method | (1) DC Input (350W PSU) (1) ATX power (48V) |
| Power Supply | 54V DC, 350W (Adapter included) ATX power (48V) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 95 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Device: 2.4 kg (5.3 lb) Table stand: 321 g (11.3 oz) |
| Enclosure Material | Device: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber |
| Management | Ethernet Bluetooth |
| LEDs: Ethernet | Yes |
| LEDs: SFP+ | Yes |
| LEDs: System | Yes |
| LEDs: MicroSD | Yes |
| LEDs: SIM | Yes |
| Button | (1) Factory reset (2) Handle release buttons |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements: Mobile App | UniFi iOS™: Version 10.32.0 and later UniFi Android™: Version 10.35.0 and later |
